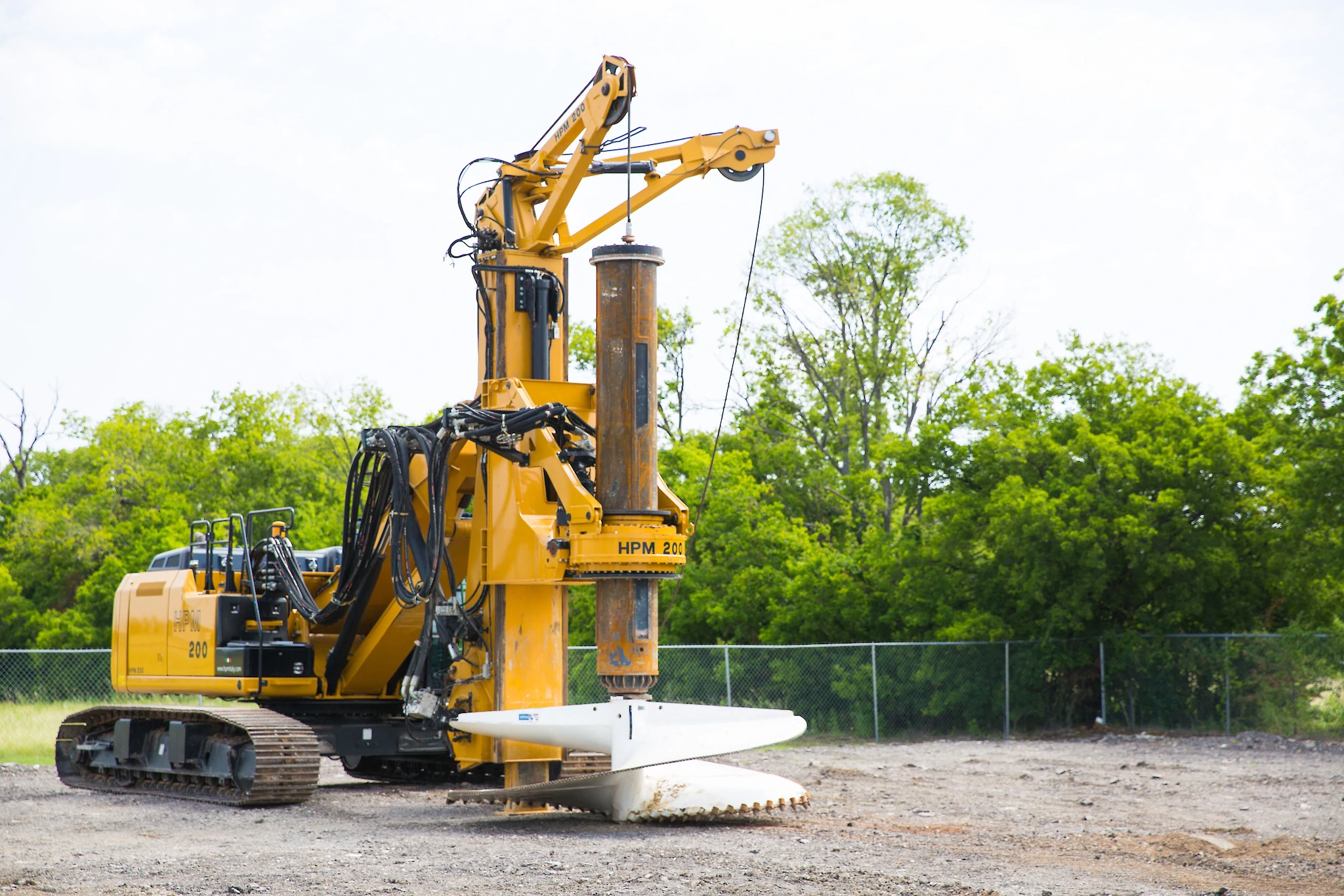

HPM Short Mast Rigs
Updated: 31.10.2023
3 images
The HPM machines are suitable for:
- Bored piles with Kelly bar & CFA
- Low head room & deep bored piles
- Casing bored piles with oscillator
- Soil mixing & vibroflotation
- DTH hammer

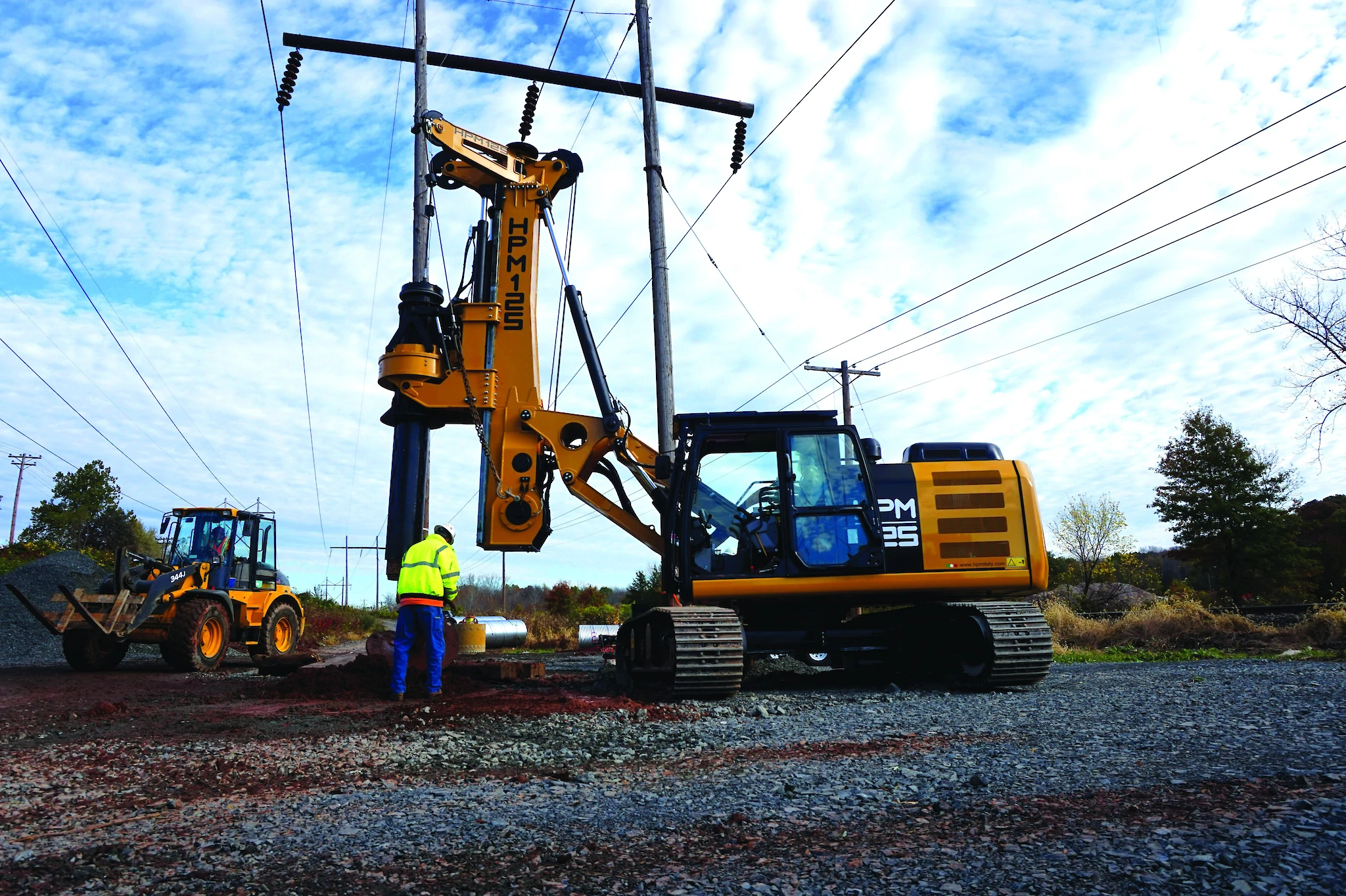

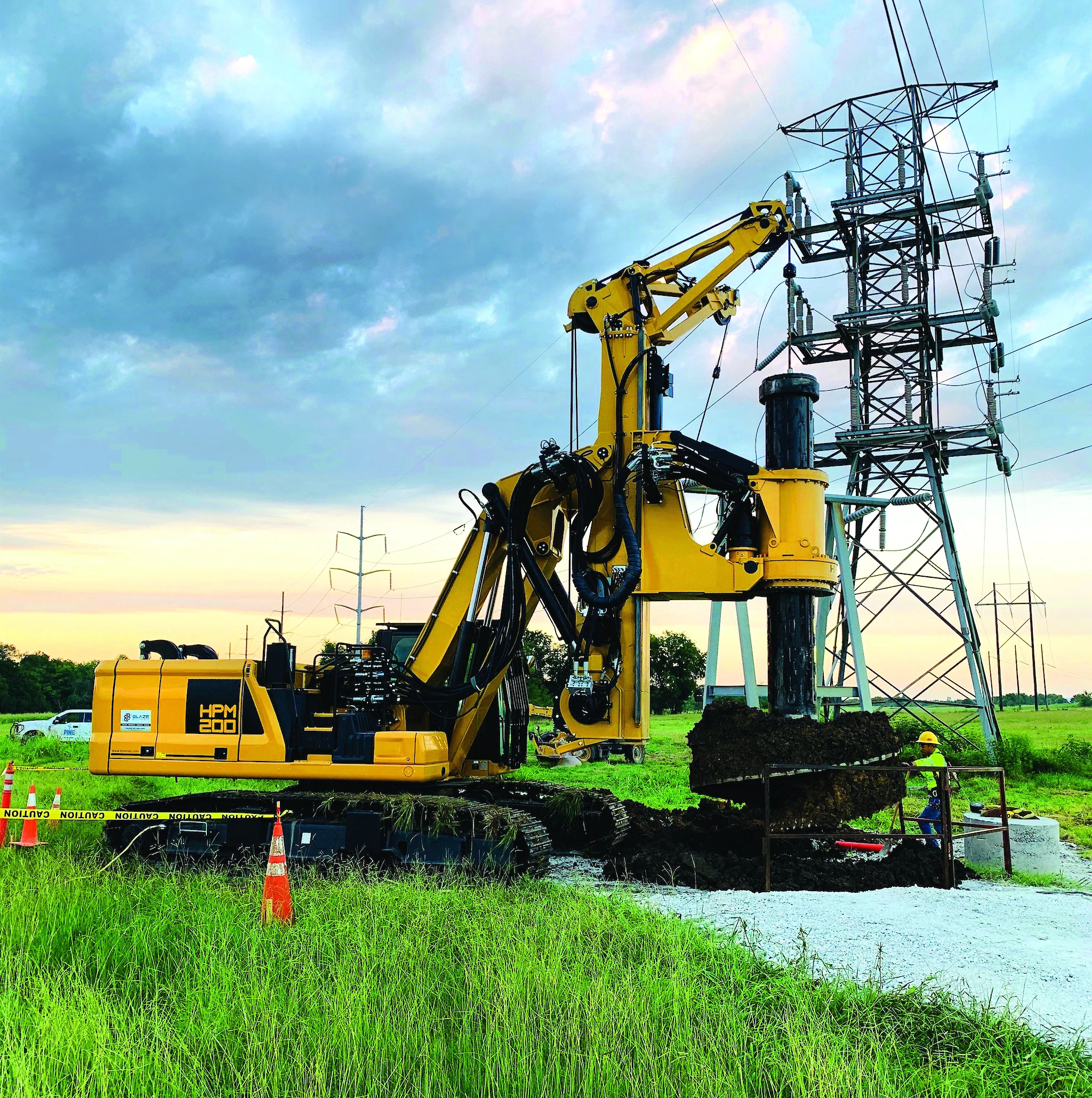

HPM short mast foundation rigs are the ultimate solution for making large diameter piles in restricted areas underneath bridges, high-voltage overhead or telephone lines and within existing buildings. The short drilling depth can be compensated by large drilling diameters up to 4000 mm.
Model | 100 | 125 | 200 | 250 | |
---|---|---|---|---|---|
Base | CAT 313 NGH | CAT 313 NGH | CAT 330 NGH | CAT 336 NGH | |
Engine model | C3.6 | C7.1 | C7.1 | C9.3B | |
Engine power | kW | 82 | 129 | 205 | 234 |
Telescopic lower | mm | 2,500 - 3,300 | 2,530 - 3,600 | 3,000 - 4,270 | 3,000 - 4,270 |
Rotary torque nominal | kN | 123 | 153 | 295 | 370 |
Working speed | rpm | 8 - 28 | 7 - 28 | 9 - 24 | 9 - 24 |
Discharge speed | rpm | 50 - 125 | 40 - 120 | 50 - 120 | 50 - 120 |
Main winch capacity | kN | 120 | 180 | 205 | 230 |
Service winch capacity | kN | 30 | 75 | 115 | 115 |
Crowd system | Winch | Cylinder | Cylinder | Cylinder | |
Crowd push/pull | kN | 100 /201 | 180 / 270 | 200 / 310 | 300 / 400 |
Mast height | mm | 5,800 | 8,250 | 7,700 | 8,340 |
Standard Kelly bar | m | 6 / 11 | 5 / 14.5 | 6 / 20 | 6 / 21 |
Drilling Ø max. | mm | 1,000 / 1,000 | 1,800 / 3,000 | 2,400 / 4,000 | 4,000 / 5,500 |
Operating weight | t | 24.5 | 32.4 | 48.2 | 70.4 |
Transport weight | t | 24.5 | 32.4 | 33 | 48 |
Transport dimensions | mm | 10,510 / 2,500 / 3,030 | 8,960 / 2,540 / 3,400 | 11,470 / 3,000 / 3,650 | 13,555 / 3,000 / 3,505 |
Optional | Long Mast | Long Mast | Long Mast | Long Mast | |
Long Kelly bar | m | 6 / 21 | 4 / 36.5 | 4 / 36 | 4 / 49 |
Transport dimensions | mm | 10,510 / 2,500 / 3,030 | 14,725 / 2,540 / 3,560 | 16,700 / 3,000 / 3,505 | 16,650 / 3,000 / 3,550 |
100 | |
---|---|
Base | CAT 313 NGH |
Engine model | C3.6 |
Engine power | 82 kW |
Telescopic lower | 2,500 - 3,300 mm |
Rotary torque nominal | 123 kN |
Working speed | 8 - 28 rpm |
Discharge speed | 50 - 125 rpm |
Main winch capacity | 120 kN |
Service winch capacity | 30 kN |
Crowd system | Winch |
Crowd push/pull | 100 /201 kN |
Mast height | 5,800 mm |
Standard Kelly bar | 6 / 11 m |
Drilling Ø max. | 1,000 / 1,000 mm |
Operating weight | 24.5 t |
Transport weight | 24.5 t |
Transport dimensions | 10,510 / 2,500 / 3,030 mm |
Optional | Long Mast |
Long Kelly bar | 6 / 21 m |
Transport dimensions | 10,510 / 2,500 / 3,030 mm |
125 | |
Base | CAT 313 NGH |
Engine model | C7.1 |
Engine power | 129 kW |
Telescopic lower | 2,530 - 3,600 mm |
Rotary torque nominal | 153 kN |
Working speed | 7 - 28 rpm |
Discharge speed | 40 - 120 rpm |
Main winch capacity | 180 kN |
Service winch capacity | 75 kN |
Crowd system | Cylinder |
Crowd push/pull | 180 / 270 kN |
Mast height | 8,250 mm |
Standard Kelly bar | 5 / 14.5 m |
Drilling Ø max. | 1,800 / 3,000 mm |
Operating weight | 32.4 t |
Transport weight | 32.4 t |
Transport dimensions | 8,960 / 2,540 / 3,400 mm |
Optional | Long Mast |
Long Kelly bar | 4 / 36.5 m |
Transport dimensions | 14,725 / 2,540 / 3,560 mm |
200 | |
Base | CAT 330 NGH |
Engine model | C7.1 |
Engine power | 205 kW |
Telescopic lower | 3,000 - 4,270 mm |
Rotary torque nominal | 295 kN |
Working speed | 9 - 24 rpm |
Discharge speed | 50 - 120 rpm |
Main winch capacity | 205 kN |
Service winch capacity | 115 kN |
Crowd system | Cylinder |
Crowd push/pull | 200 / 310 kN |
Mast height | 7,700 mm |
Standard Kelly bar | 6 / 20 m |
Drilling Ø max. | 2,400 / 4,000 mm |
Operating weight | 48.2 t |
Transport weight | 33 t |
Transport dimensions | 11,470 / 3,000 / 3,650 mm |
Optional | Long Mast |
Long Kelly bar | 4 / 36 m |
Transport dimensions | 16,700 / 3,000 / 3,505 mm |
250 | |
Base | CAT 336 NGH |
Engine model | C9.3B |
Engine power | 234 kW |
Telescopic lower | 3,000 - 4,270 mm |
Rotary torque nominal | 370 kN |
Working speed | 9 - 24 rpm |
Discharge speed | 50 - 120 rpm |
Main winch capacity | 230 kN |
Service winch capacity | 115 kN |
Crowd system | Cylinder |
Crowd push/pull | 300 / 400 kN |
Mast height | 8,340 mm |
Standard Kelly bar | 6 / 21 m |
Drilling Ø max. | 4,000 / 5,500 mm |
Operating weight | 70.4 t |
Transport weight | 48 t |
Transport dimensions | 13,555 / 3,000 / 3,505 mm |
Optional | Long Mast |
Long Kelly bar | 4 / 49 m |
Transport dimensions | 16,650 / 3,000 / 3,550 mm |
Main standard equipment:
- Multifunctional HPM computer
- Travel alarms
- Cameras
- Automatic mast verticality
- Mast memory function
- Rotary speed control
- 10 Gear system
- Remote diagnostics/updates
- Removable counterweight
- Extendable undercarriage
- Winch crowd system
- Auxiliar swing break
- Oscillator predisposition
- Universal casing joint
- Walking platform
- Remote control
- Self-mounting counterweight
- FOPS cabin
- Biodegradable oil
- CFA kit
- Long mast kit
