Leffer Hydraulic Casing Oscillators For Cranes

Updated: 07.09.2023
1 image

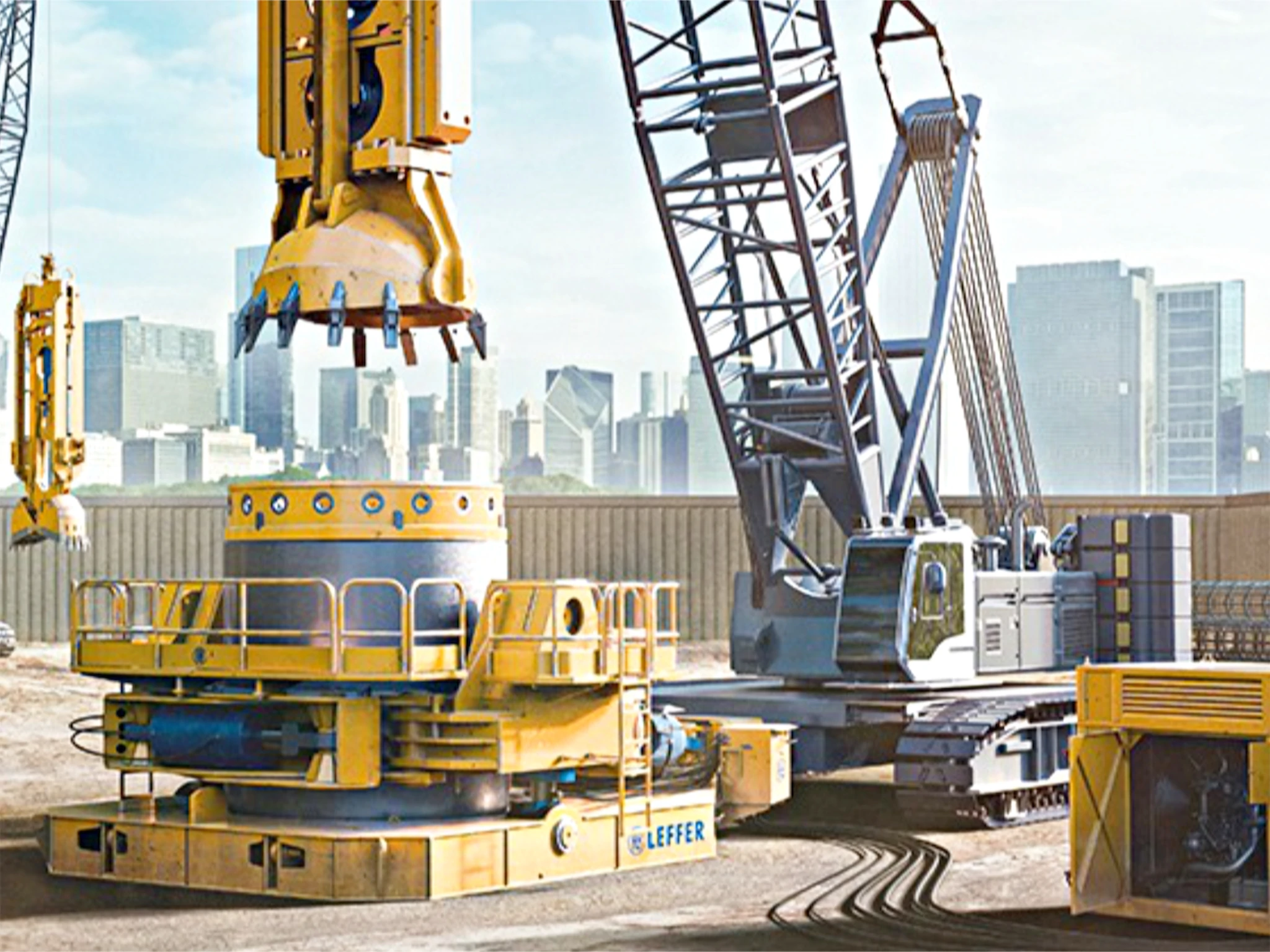

When concrete piles of very large diameter or great depth are required, it is often more economical to excavate the pile using a pile grab which is hanging and operated by a crawler crane. To drive the casing and to extract it after concreting a hydraulic casing oscillator is required which is mounted in front of the crawler crane.
If the crane has sufficient power, it can also operate the oscillator, otherwise a separate power pack is required.

ModelCasing ØLifting forceTorque
mmNkNm
VRM 1300620 - 1,3001,5301,660
VRM 1500750 - 1,5002,0502,900
VRM 20001,180 - 2,0002,6504,110
VRM 22001,500 - 2,2002,6504,520
VRM 25001,800 - 2,5005,1509,500
VRM 30002,000 - 3,0009,00013,500
VRM 33002,500 - 3,30010,869 / 11,78019,900 / 23,000
VRM 35002,500 - 3,50010,86022,000
VRM 38002,800 - 3,8008,310 / 8,310 / 11,78015,800 / 22,000 / 31,000
VRM 1300
Casing Ø620 - 1,300 mm
Lifting force1,530 N
Torque1,660 kNm

VRM 1500
Casing Ø750 - 1,500 mm
Lifting force2,050 N
Torque2,900 kNm

VRM 2000
Casing Ø1,180 - 2,000 mm
Lifting force2,650 N
Torque4,110 kNm

VRM 2200
Casing Ø1,500 - 2,200 mm
Lifting force2,650 N
Torque4,520 kNm

VRM 2500
Casing Ø1,800 - 2,500 mm
Lifting force5,150 N
Torque9,500 kNm

VRM 3000
Casing Ø2,000 - 3,000 mm
Lifting force9,000 N
Torque13,500 kNm

VRM 3300
Casing Ø2,500 - 3,300 mm
Lifting force10,869 / 11,780 N
Torque19,900 / 23,000 kNm

VRM 3500
Casing Ø2,500 - 3,500 mm
Lifting force10,860 N
Torque22,000 kNm

VRM 3800
Casing Ø2,800 - 3,800 mm
Lifting force8,310 / 8,310 / 11,780 N
Torque15,800 / 22,000 / 31,000 kNm
