GreenWall PVC Sheet Piles

Updated: 07.02.2024

PVC Sheet piles offer many advantages such as competitive price, excellent mechanical properties, reduced weight and transportation cost, easy installation with standard vibrators, exceptional duration, less maintenance and great ecological footprint.

Applications

Anti-erosion protection for rivers and channels
Flood protection projects
Embankments for irrigation channels
Retaining walls
Embankment reinforced concrete walls
Reclamation of polluted areas
Hydraulic barriers or cut-off walls
Works against hydrogeological instability

Technical Details

Manufactured according to DIN 164-65-01
Monitored according to ISA 9001:2015
Sheet pile length up to 12 m
Ultra-sealing for interlocks available
Z-piles section modulus 451-1867 cm³
U-type section modulus 273-1366 cm³
For vibratory driving the use of a metal mandrel (drive guide) is recommended

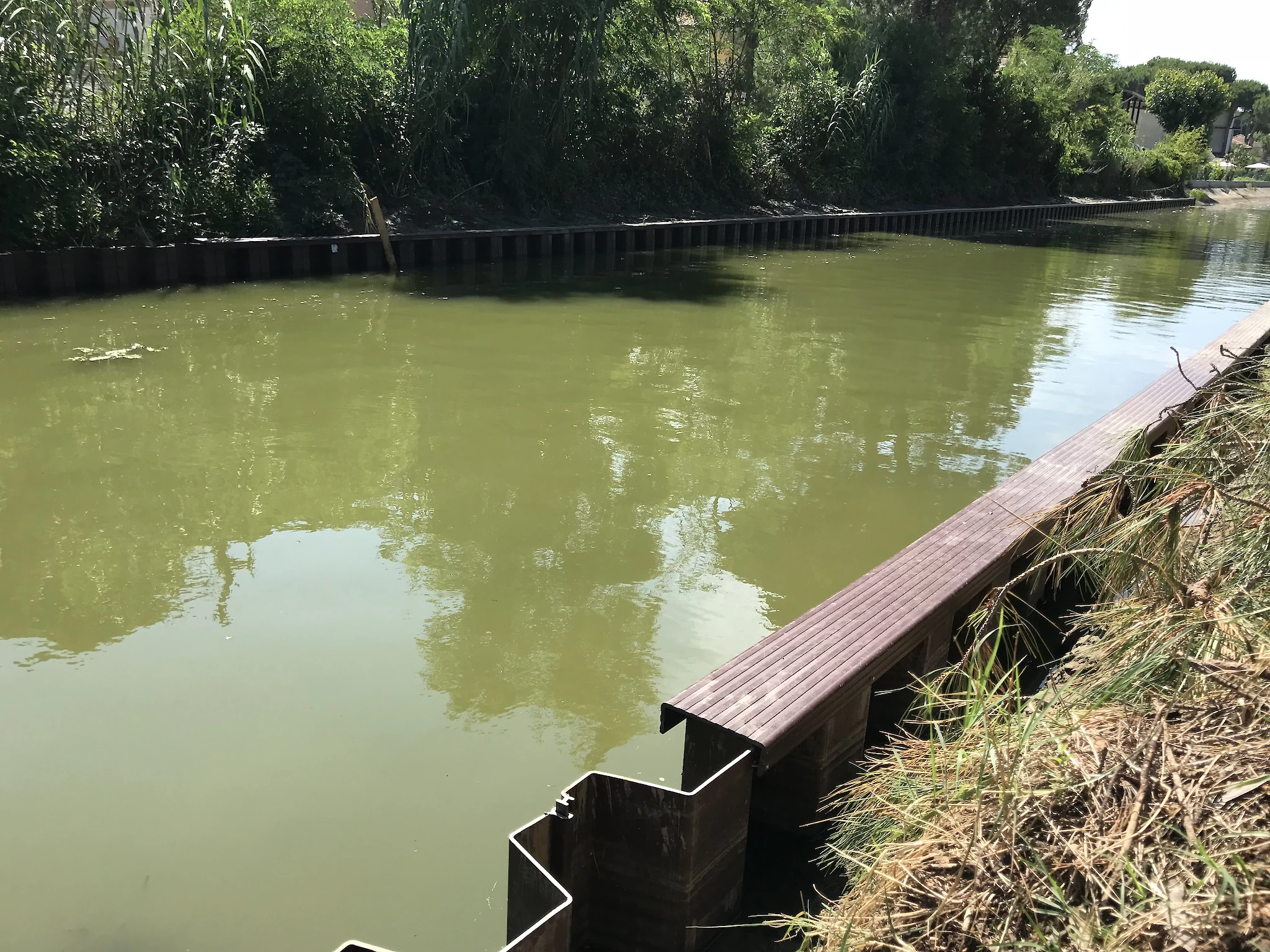

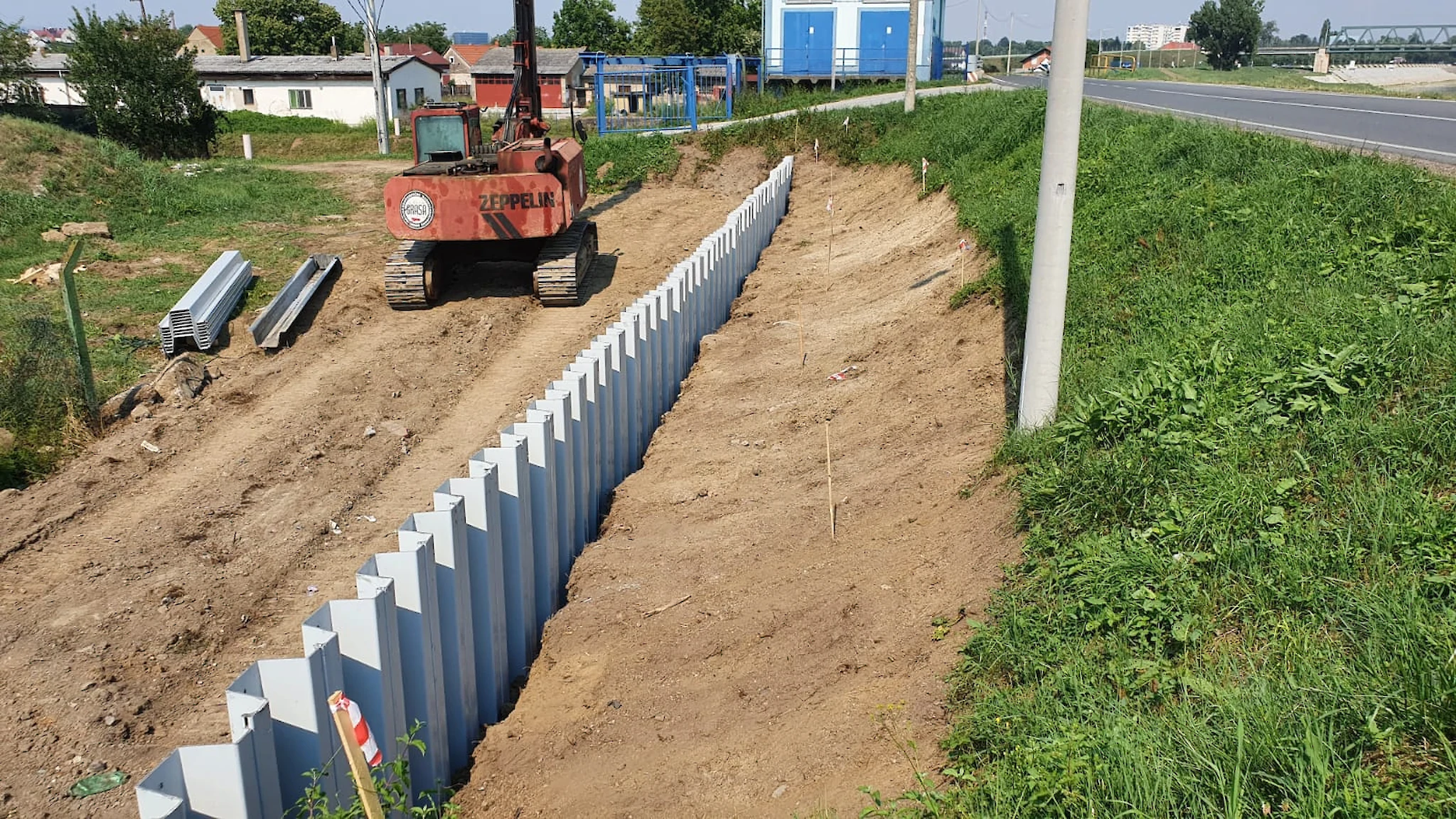

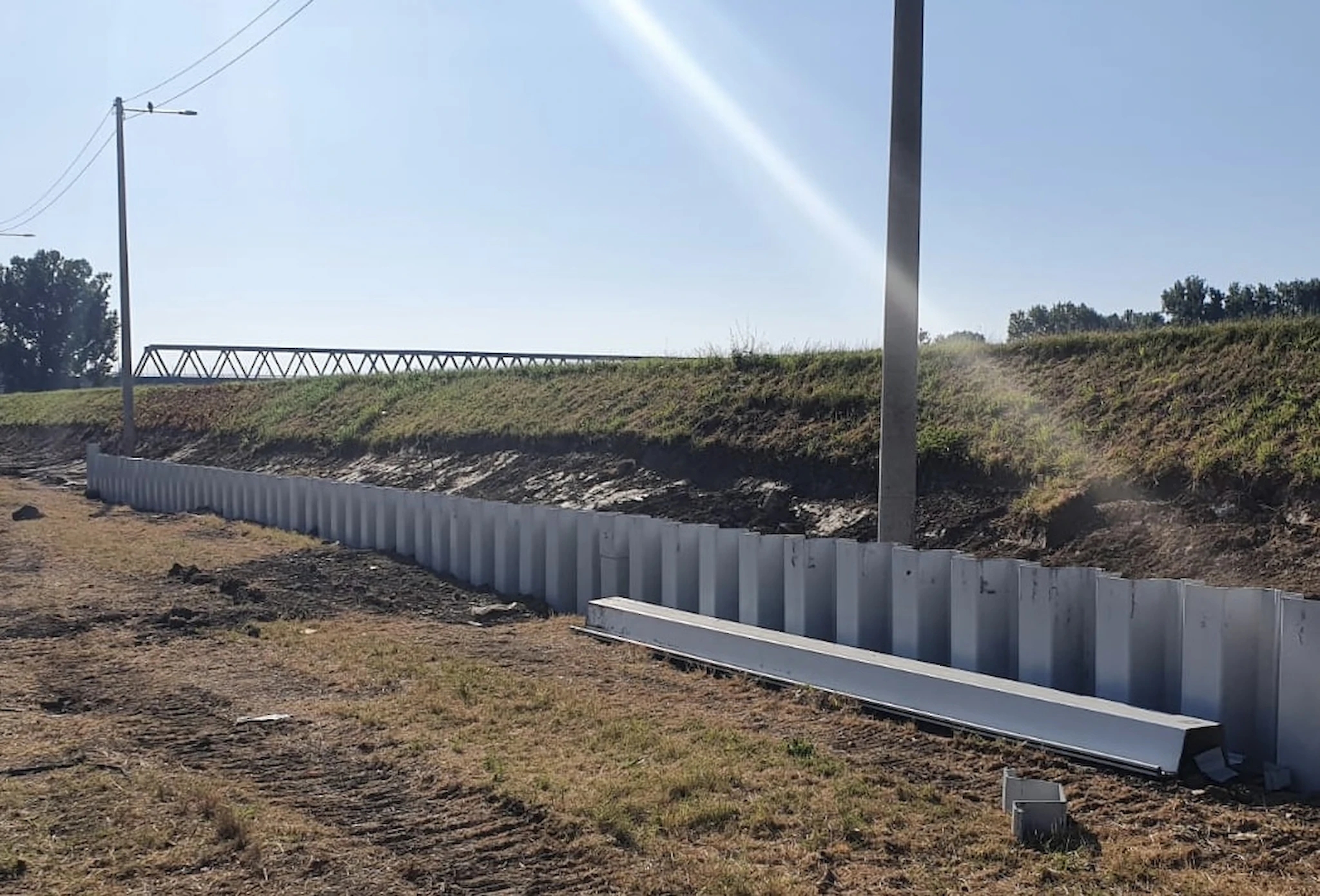

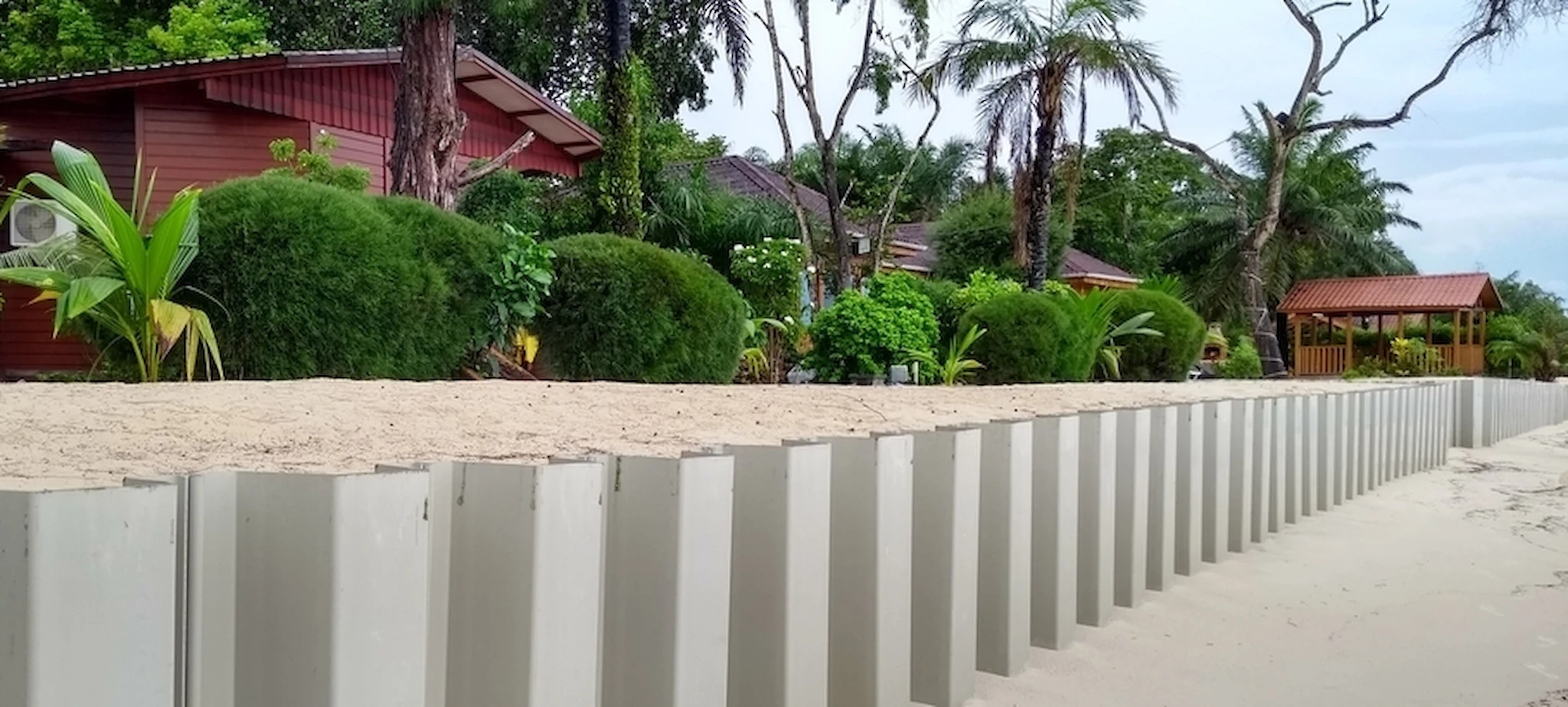

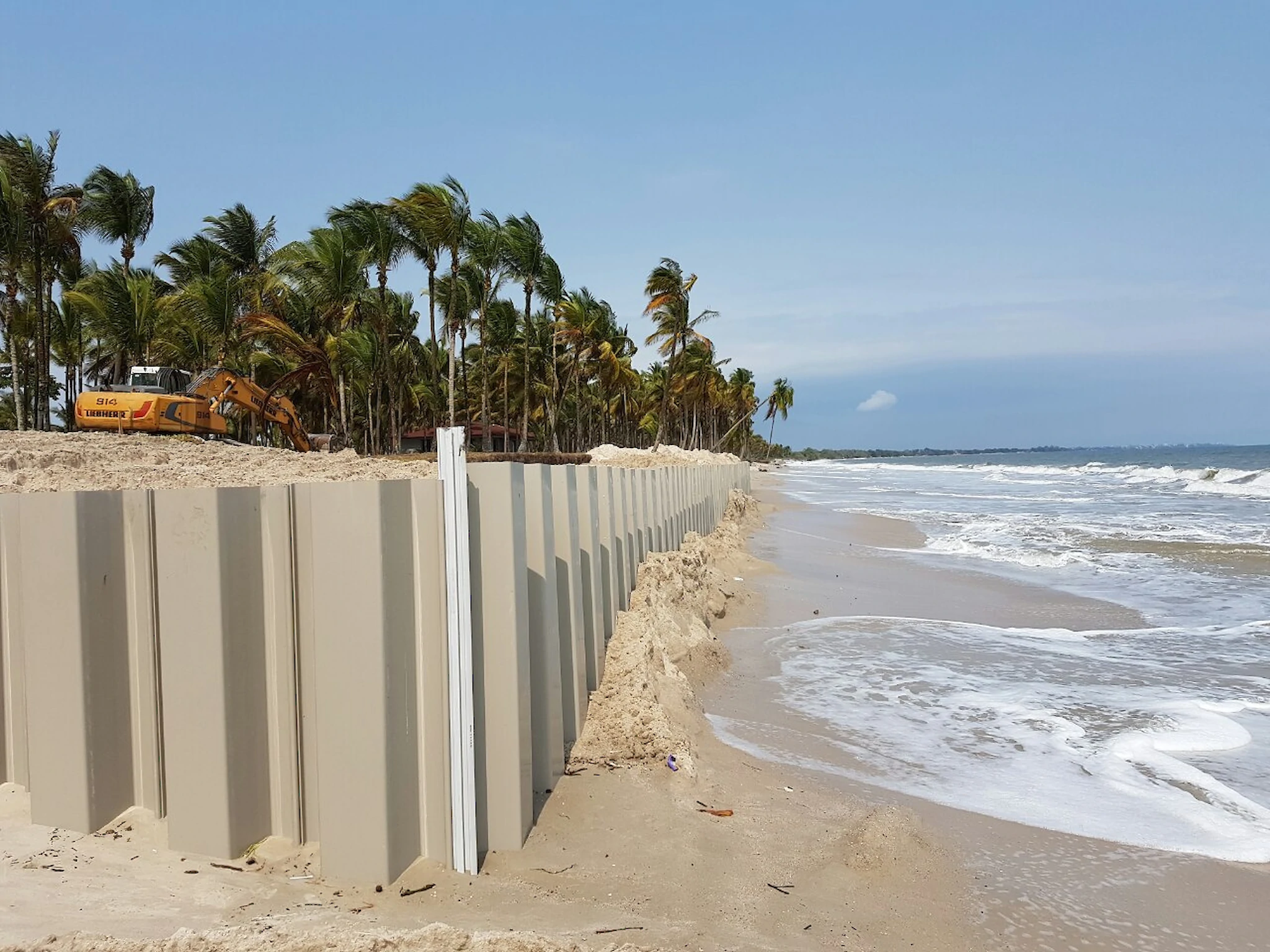

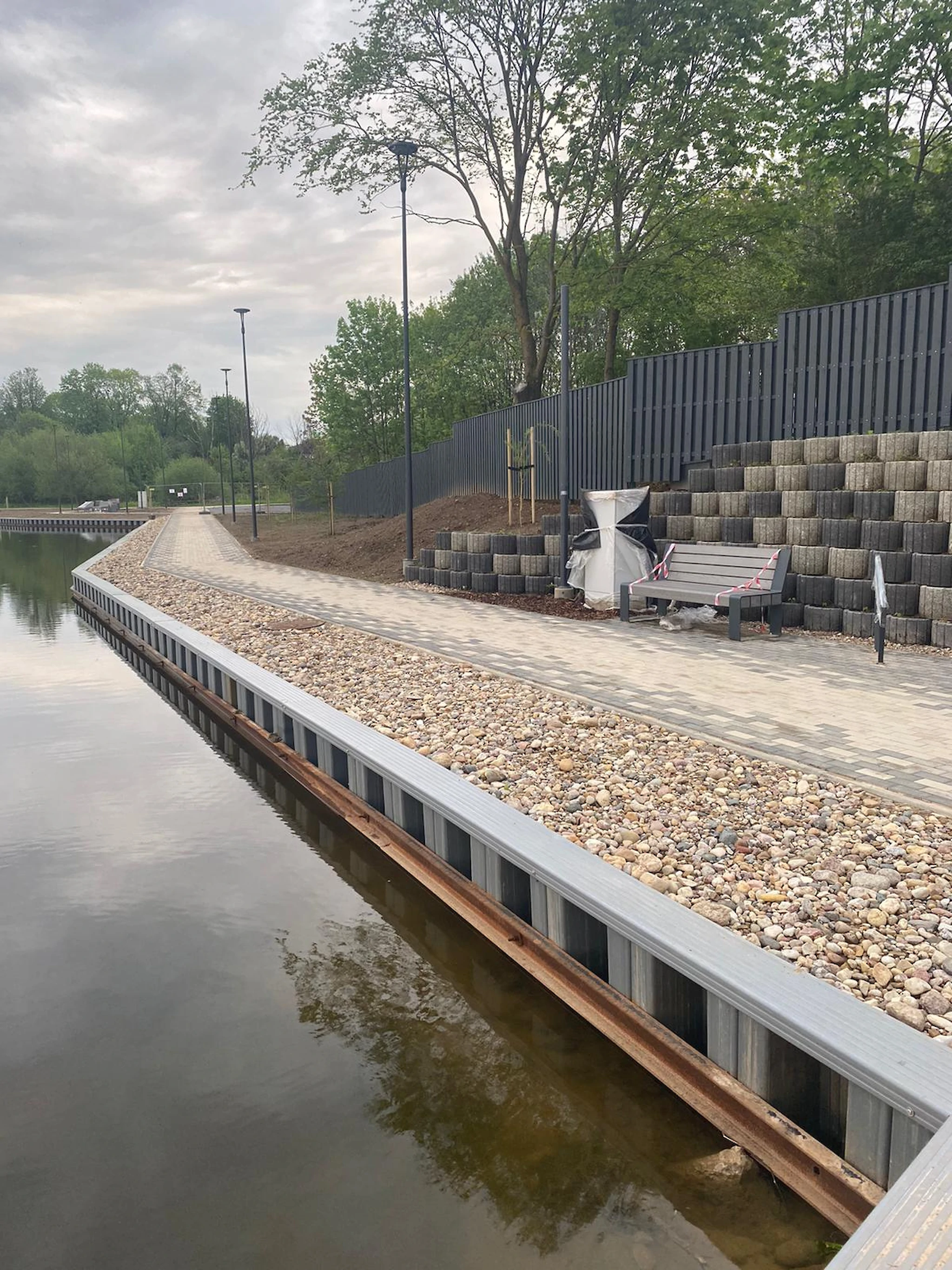

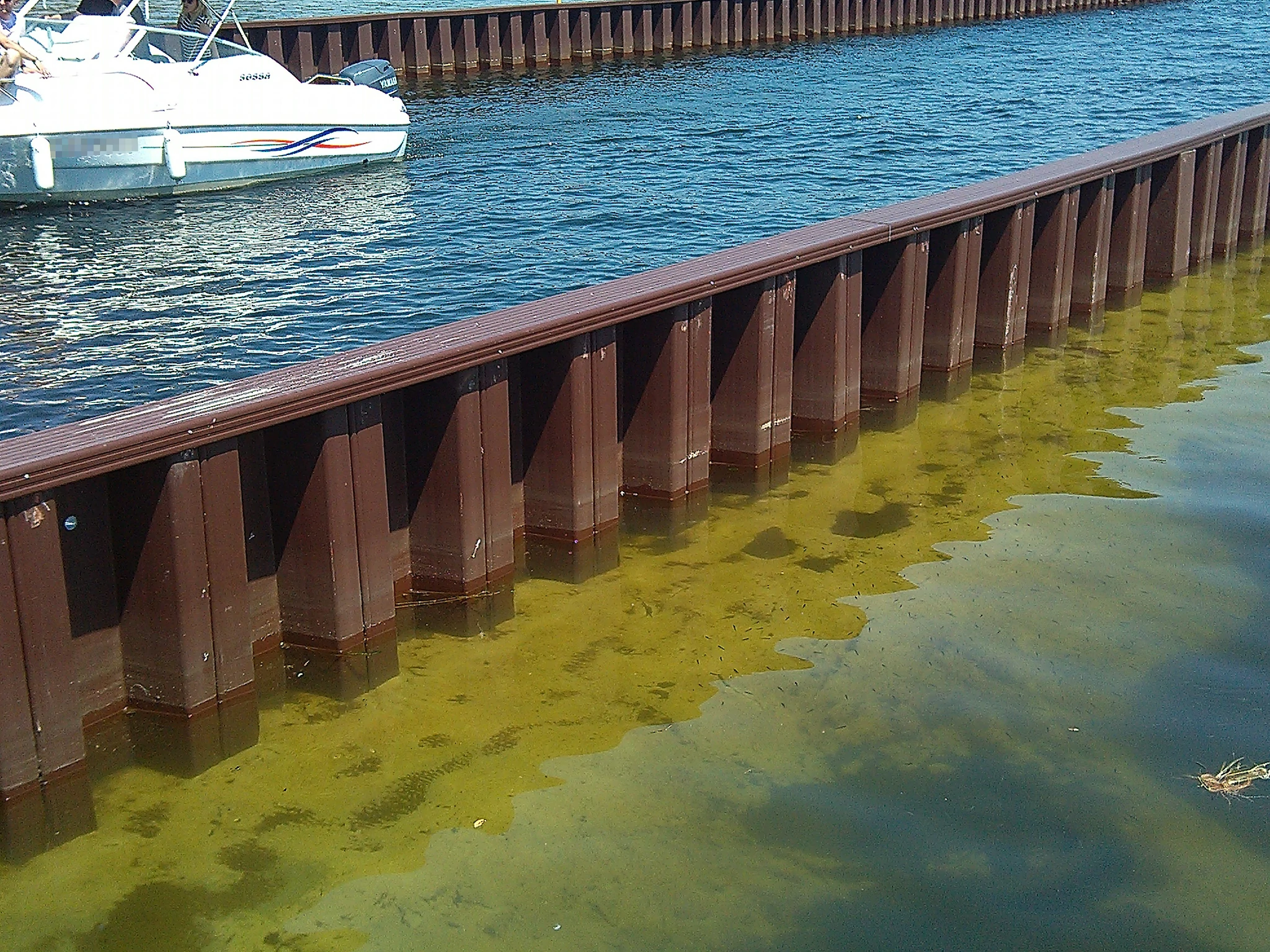

U-Type PVC Sheet Piles

8 images

Model	Width	Height	Thickness	Weight per pile	Wall	Moment of inertia	Section modulus
	mm	mm	mm	kg/m	kg/m²	cm⁴/m	cm³m
GW 450	460	140	4.0	5.05	10.90	2,107	273
GW 460	460	140	5.8	7.2	15.7	2,976	397
GW 590	600	220	6.8	11.3	18.8	9,034	753
GW595	600	220	7.1	11.8	19.7	9,041	772
GW 600	600	220	8.0	13.5	23.0	10,633	967
GW 620	600	225	9.5	15.0	25.0	12,730	1,046.9
GW 622	600	230	9.8	15.2	25.35	14,021	1,129.7
GW 625	650	240	9.5	16.2	25.0	14,992	1,244.7
GW 650	650	240	10.5	17.12	26.34	16,180	1,366.5

GW 450
Width	460 mm
Height	140 mm
Thickness	4.0 mm
Weight per pile	5.05 kg/m
Wall	10.90 kg/m²
Moment of inertia	2,107 cm⁴/m
Section modulus	273 cm³m

GW 460
Width	460 mm
Height	140 mm
Thickness	5.8 mm
Weight per pile	7.2 kg/m
Wall	15.7 kg/m²
Moment of inertia	2,976 cm⁴/m
Section modulus	397 cm³m

GW 590
Width	600 mm
Height	220 mm
Thickness	6.8 mm
Weight per pile	11.3 kg/m
Wall	18.8 kg/m²
Moment of inertia	9,034 cm⁴/m
Section modulus	753 cm³m

GW595
Width	600 mm
Height	220 mm
Thickness	7.1 mm
Weight per pile	11.8 kg/m
Wall	19.7 kg/m²
Moment of inertia	9,041 cm⁴/m
Section modulus	772 cm³m

GW 600
Width	600 mm
Height	220 mm
Thickness	8.0 mm
Weight per pile	13.5 kg/m
Wall	23.0 kg/m²
Moment of inertia	10,633 cm⁴/m
Section modulus	967 cm³m

GW 620
Width	600 mm
Height	225 mm
Thickness	9.5 mm
Weight per pile	15.0 kg/m
Wall	25.0 kg/m²
Moment of inertia	12,730 cm⁴/m
Section modulus	1,046.9 cm³m

GW 622
Width	600 mm
Height	230 mm
Thickness	9.8 mm
Weight per pile	15.2 kg/m
Wall	25.35 kg/m²
Moment of inertia	14,021 cm⁴/m
Section modulus	1,129.7 cm³m

GW 625
Width	650 mm
Height	240 mm
Thickness	9.5 mm
Weight per pile	16.2 kg/m
Wall	25.0 kg/m²
Moment of inertia	14,992 cm⁴/m
Section modulus	1,244.7 cm³m

GW 650
Width	650 mm
Height	240 mm
Thickness	10.5 mm
Weight per pile	17.12 kg/m
Wall	26.34 kg/m²
Moment of inertia	16,180 cm⁴/m
Section modulus	1,366.5 cm³m

Z-Type PVC Sheet Piles

Model	Width	Height	Thickness	Weight per pile	Wall	Moment of inertia	Section modulus
	mm	mm	mm	kg/m	kg/m²	cm⁴/m	cm³/m
GW 630/9	300	245	9.15	10.0	33.33	20,066	1,638.4
GW 630/11	300	245	11.3	11.6	34.80	22,880	1,867.8

GW 630/9
Width	300 mm
Height	245 mm
Thickness	9.15 mm
Weight per pile	10.0 kg/m
Wall	33.33 kg/m²
Moment of inertia	20,066 cm⁴/m
Section modulus	1,638.4 cm³/m

GW 630/11
Width	300 mm
Height	245 mm
Thickness	11.3 mm
Weight per pile	11.6 kg/m
Wall	34.80 kg/m²
Moment of inertia	22,880 cm⁴/m
Section modulus	1,867.8 cm³/m
