Delmag RH 12/140
Updated: 24.10.2022
| RH 12/140 | |
|---|---|
| Rotary head: | |
| Model | BT 140 |
| Rotary torque | 0-143 @ 350 bar kNm |
| Revolutions | 0-30 rpm |
| Weight of rotary | 3,600 kg |

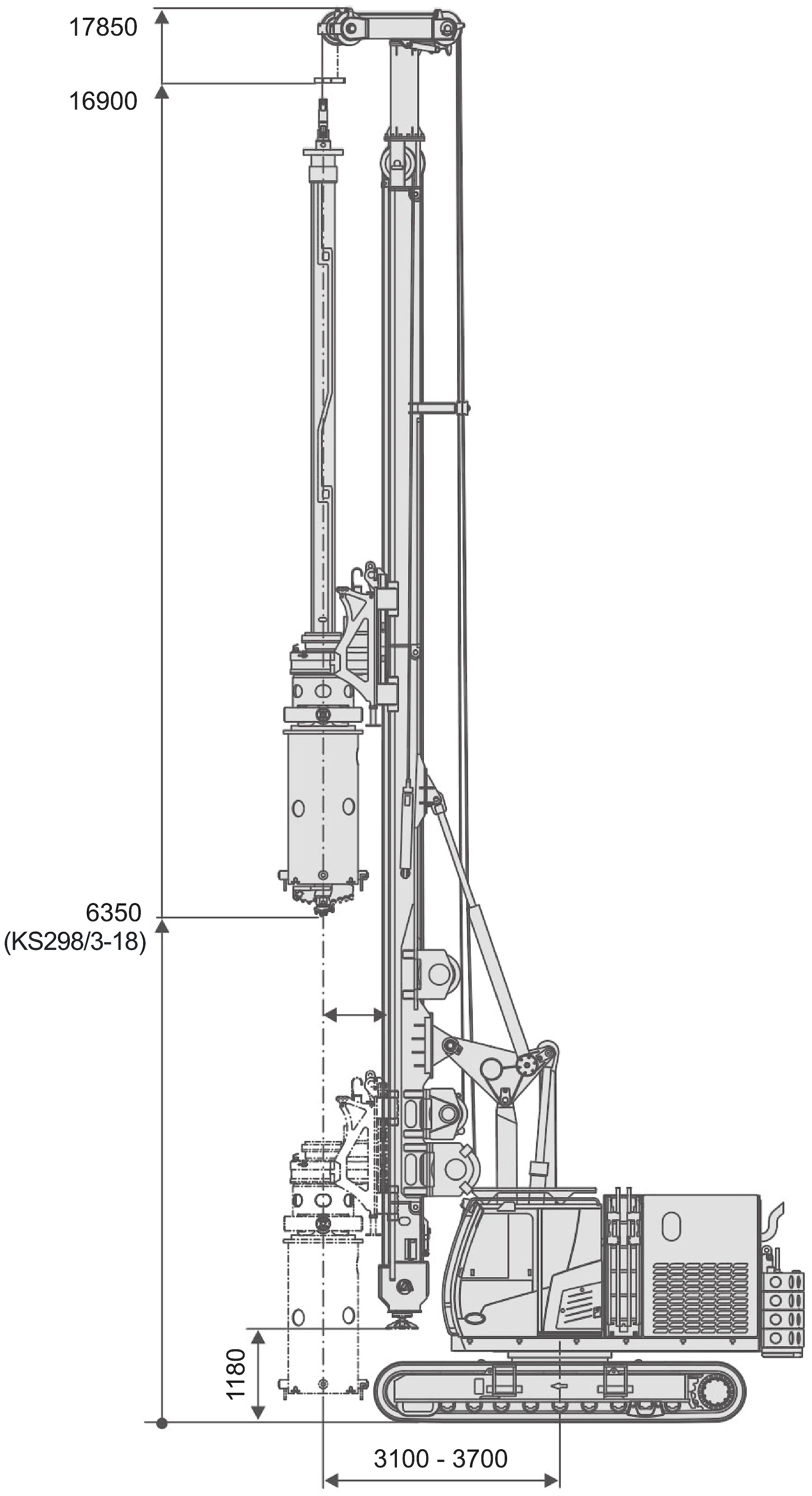

| Leader mast: | |
| Total height | 17,850 mm |
| Drilling distance max. (center) | 3,700 mm |
| Ground clearence-mast foot | 1,180 mm |
| Inclination forward / backward | 5 / 14 deg |
| Inclination left / right | 9.5 / 9.5 deg |
| Stroke | 12,000 mm |
| Crowd winch force up / down | 200 / 125 kN |
| Crowd winch speed rapid / working | 35 / 12 m/min |
| Kelly winch line pull | 100 kN |
| Kelly winch rope speed | 70 m/min |
| Service winch line pull | 42 kN |
| Service winch rope speed | 55 m/min |
| Base carrier: | |
| Model | SR 20 F |
| Engine | CUMMINS B6.7 |
| Engine power | 209 kW |
| Track shoes | 700 mm |

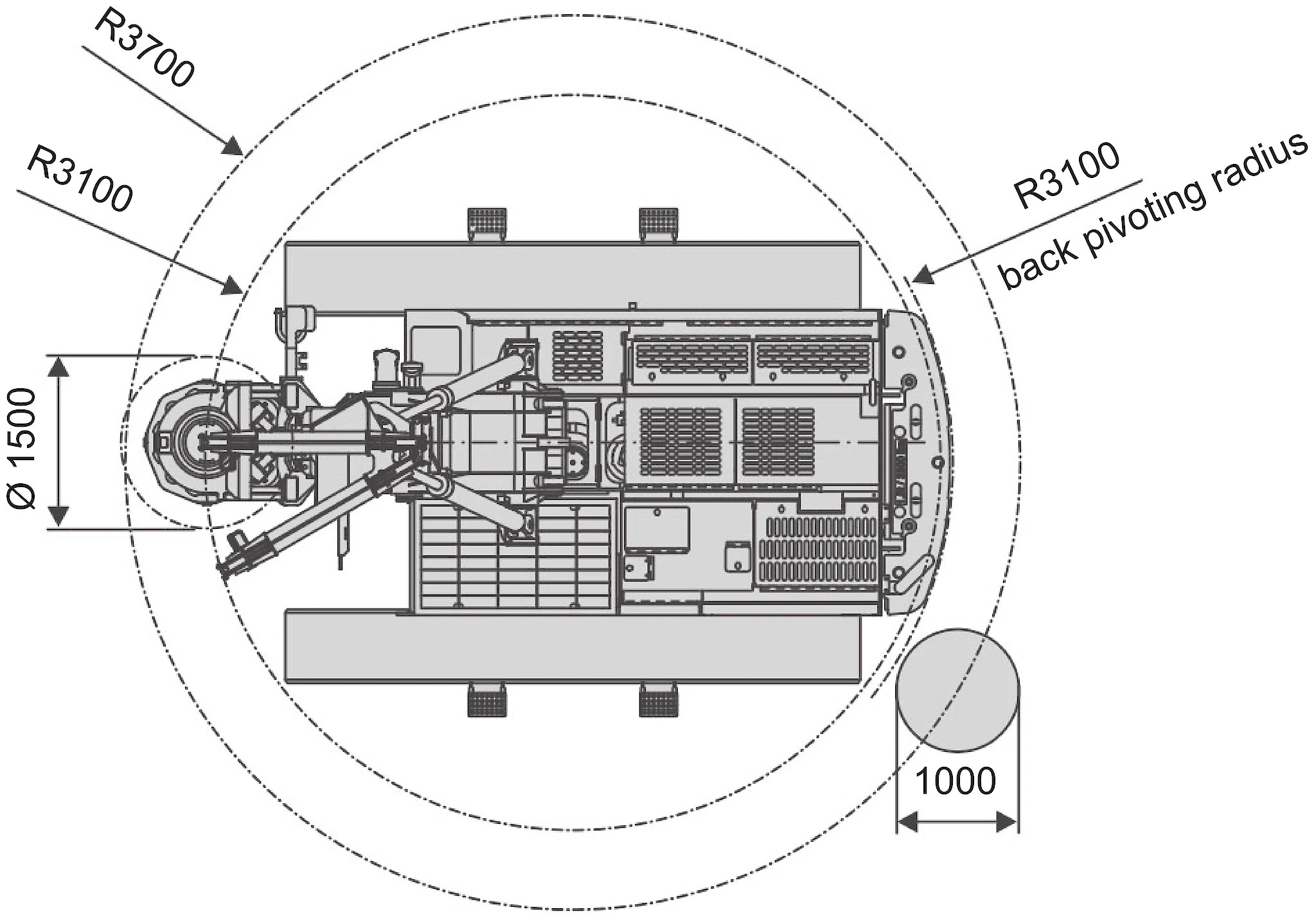

| Back pivoting radius | 3,250 mm |
| Transport weight: | |
| Weight | 44.5 t |

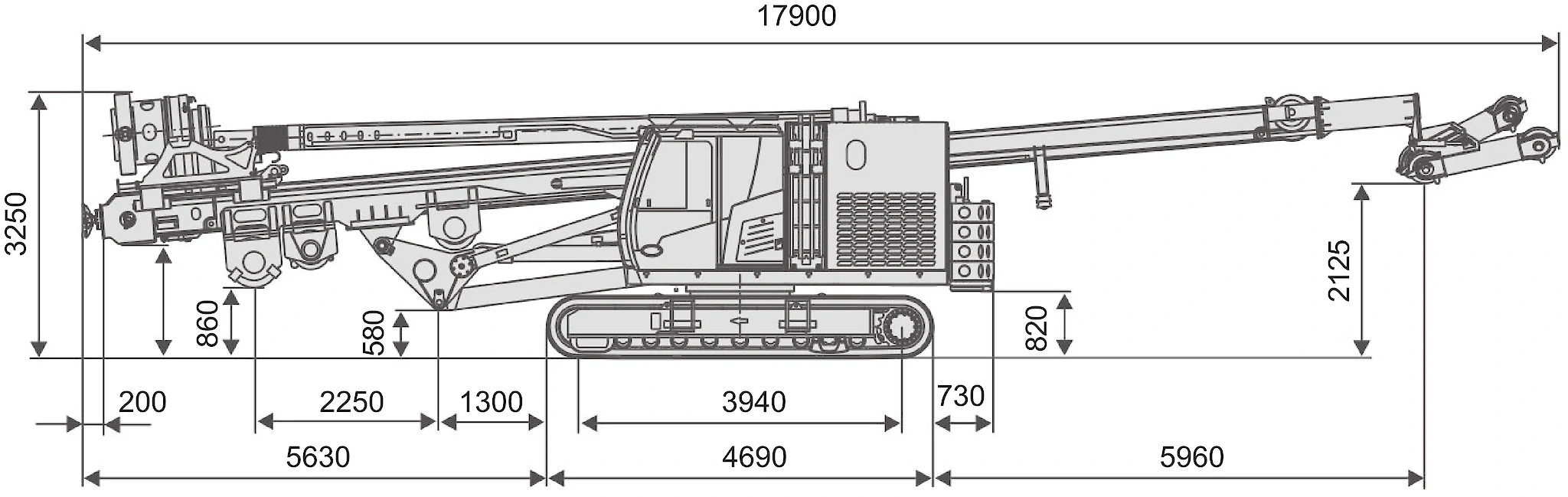

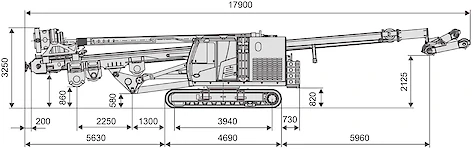

| Transport dimensions: | |
| Length | 17,900 mm |

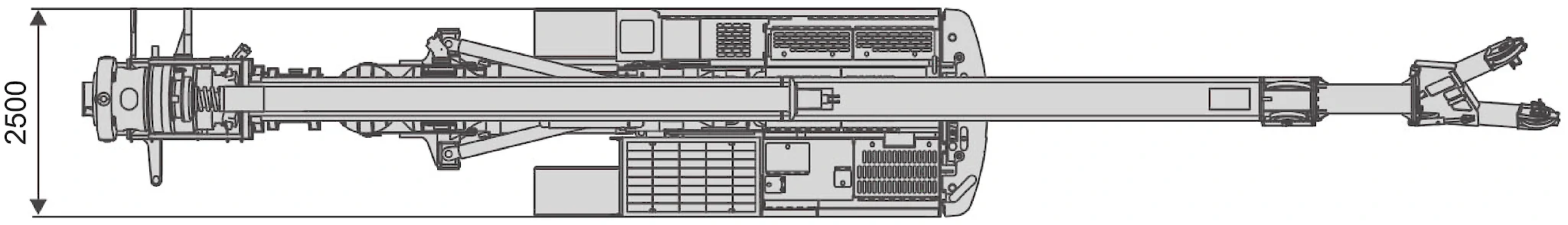

| Width | 2,500 mm |
| Height | 3,250 mm |
