Delmag RH 40
Updated: 24.10.2022
| RH 40 | |
|---|---|
| Rotary head: | |
| Model | BT 400 D |
| Rotary torque | 400 @ 350 bar kNm |
| Revolutions | 0-25 rpm |
| Weight of rotary | 9,000 kg |
| Leader mast: | |

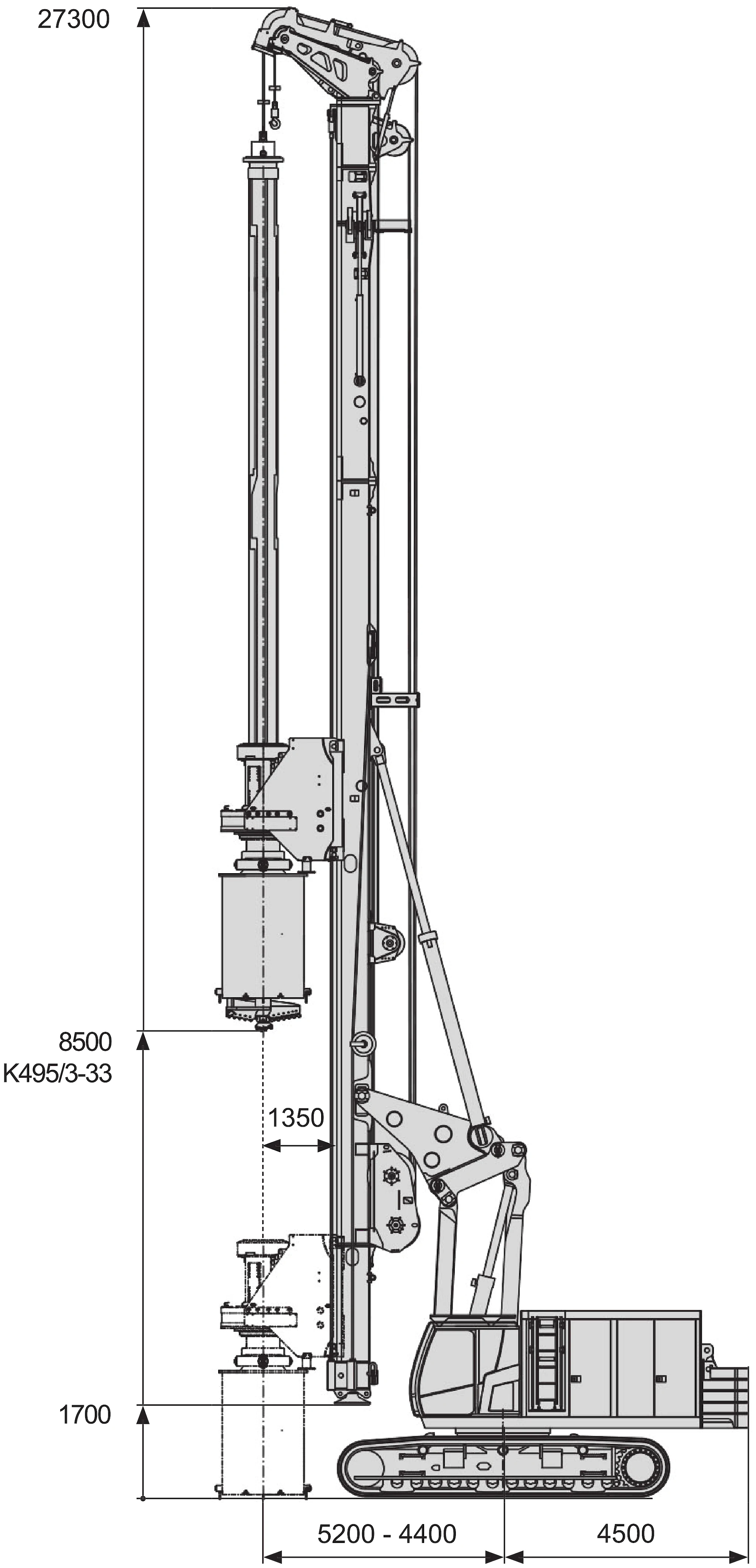

| Total height | 27,300 mm |
| Drilling distance max. (center) | 5,200 mm |
| Ground clearence-mast foot | 1,700 mm |
| Inclination forward / backward | 4 / 14 deg |
| Inclination left / right | 9.5 / 9.5 deg |
| Stroke | 19,950 mm |
| Crowd winch force up / down | 450 / 350 kN |
| Crowd winch speed rapid / working | 35 / 7 m/min |
| Kelly winch line pull | 300 kN |
| Kelly winch rope speed | 70 m/min |
| Service winch line pull | 100 kN |
| Service winch rope speed | 70 m/min |
| Base carrier: | |
| Model | T 110 D-A |
| Engine | CAT C18 |
| Engine power | 470 kW |

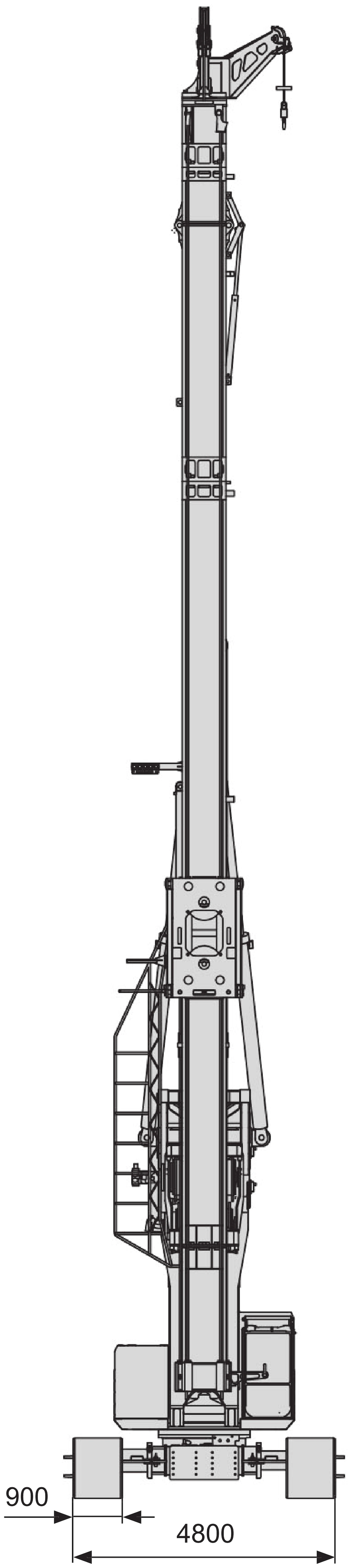

| Track shoes | 900 mm |

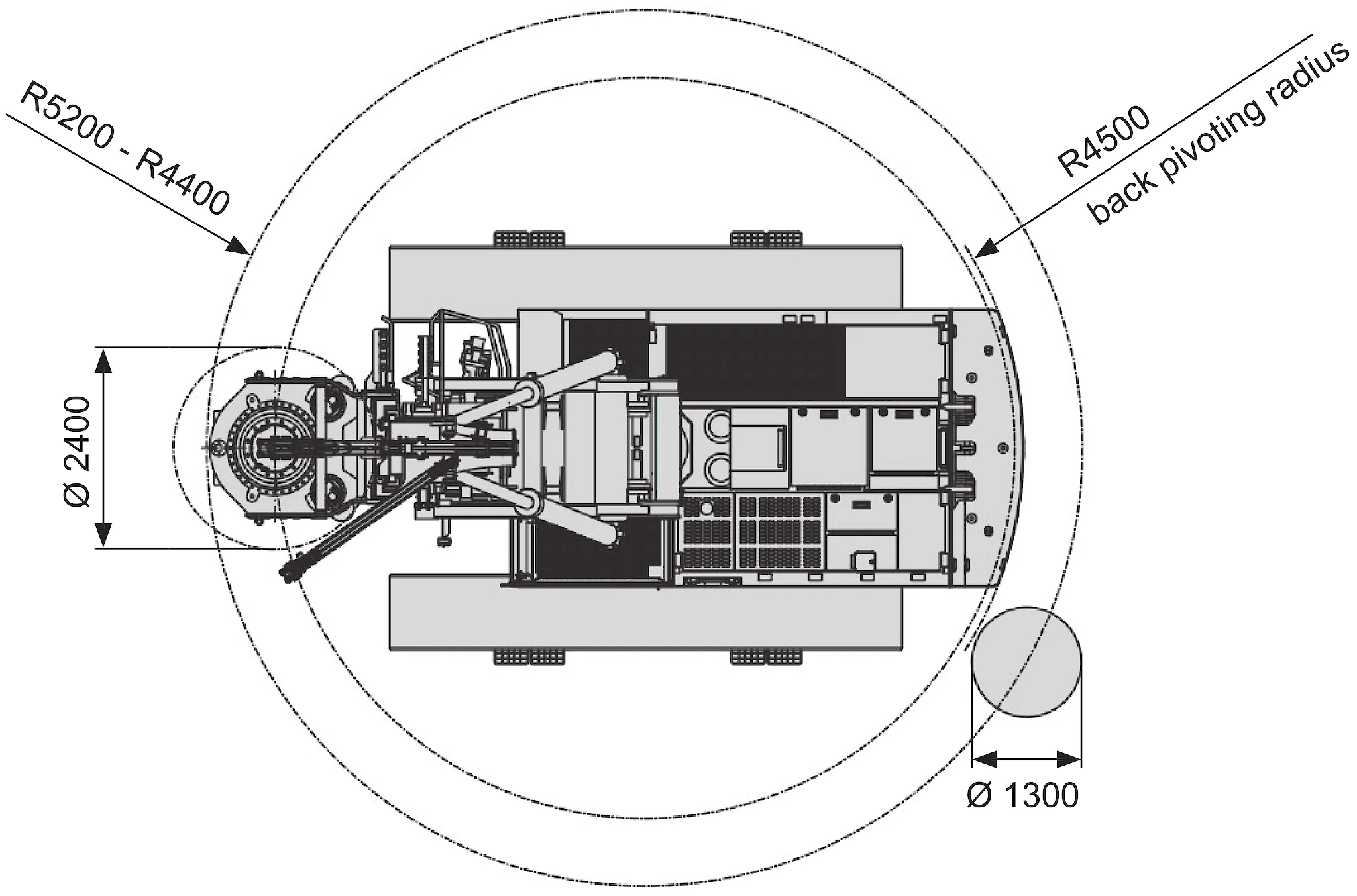

| Back pivoting radius | 4,500 mm |
| Transport weight: | |
| Weight | 87.5 t |
| Transport dimensions: | |

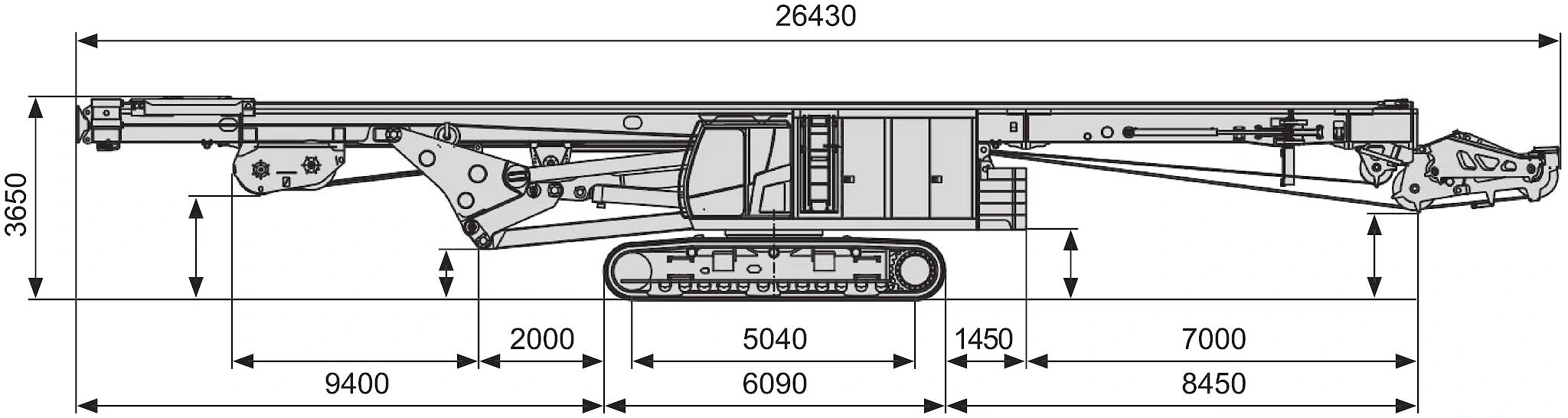

| Length | 26,430 mm |

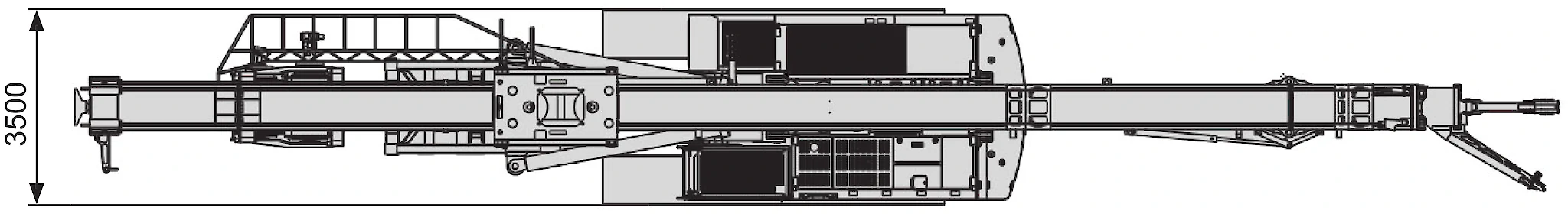

| Width | 3,500 mm |
| Height | 3,650 mm |
