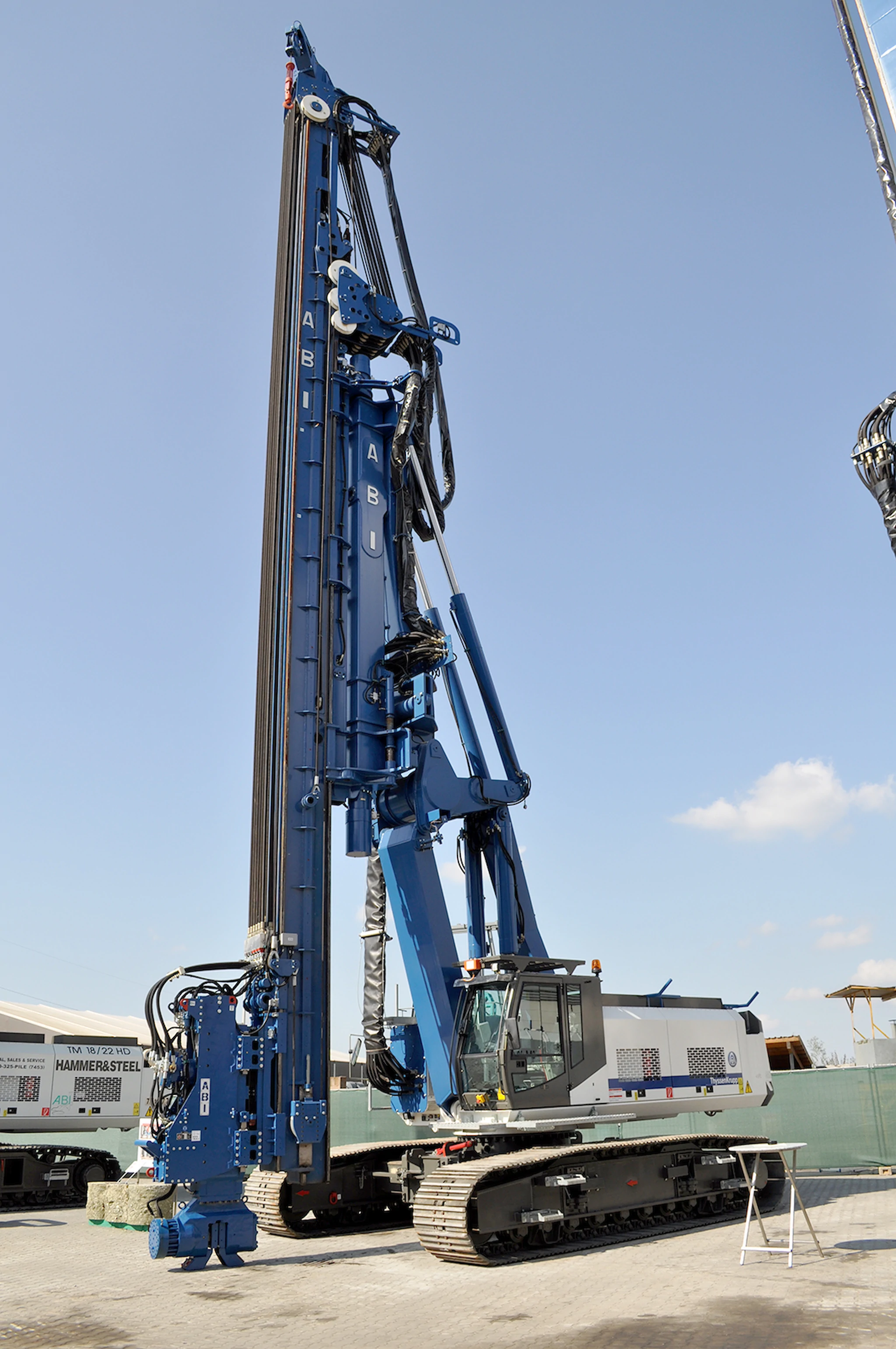

ABI Mobilram with Telescopic Leaders
Updated: 15.07.2025
ABI Mobilram telescopic leader systems in combination with the wide range of different attachments are the ultimate piling and drilling equipment when maximum performance, driving accuracy, flexibility and manoeuvrability are required. Some main applications are:

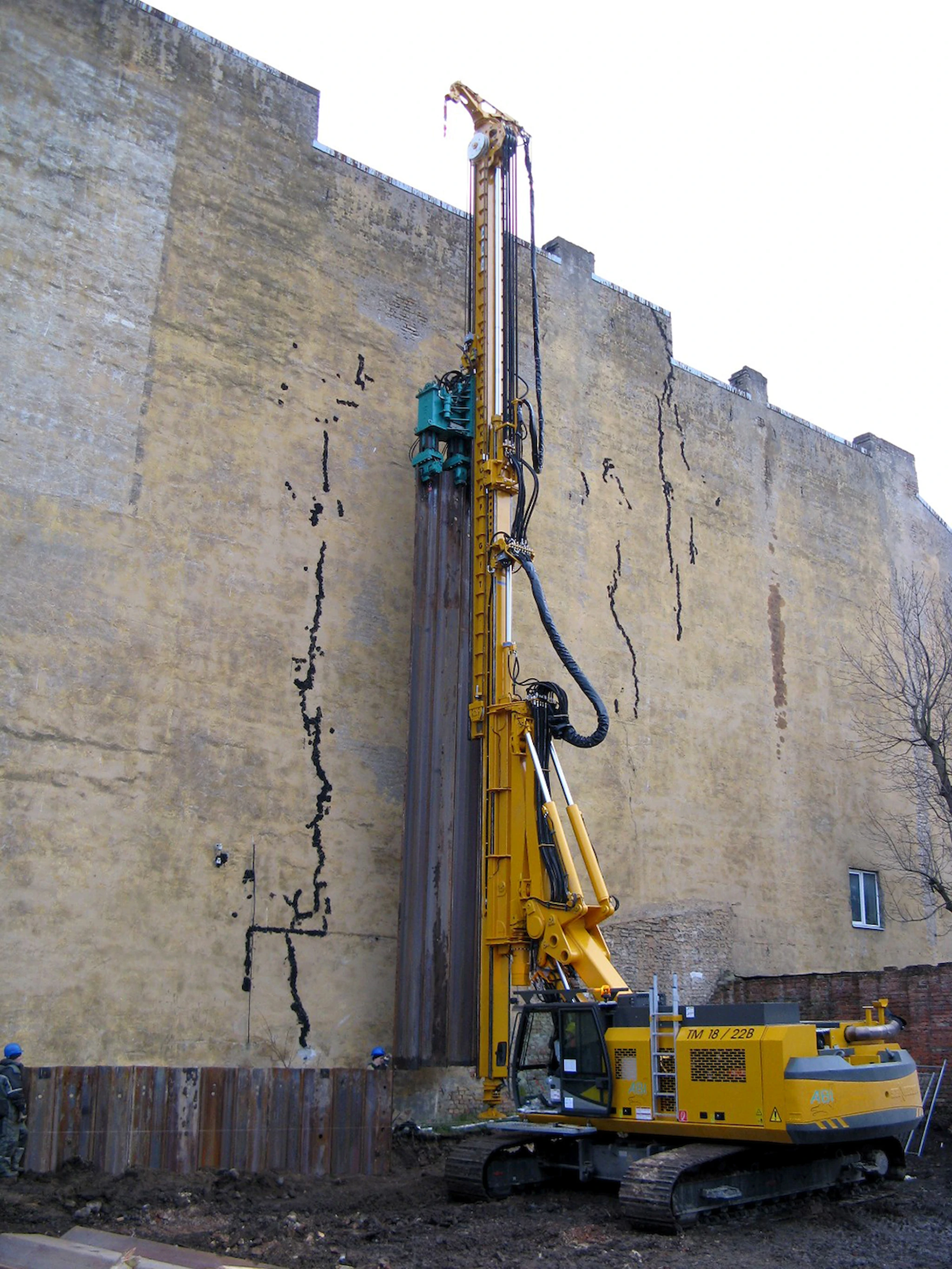

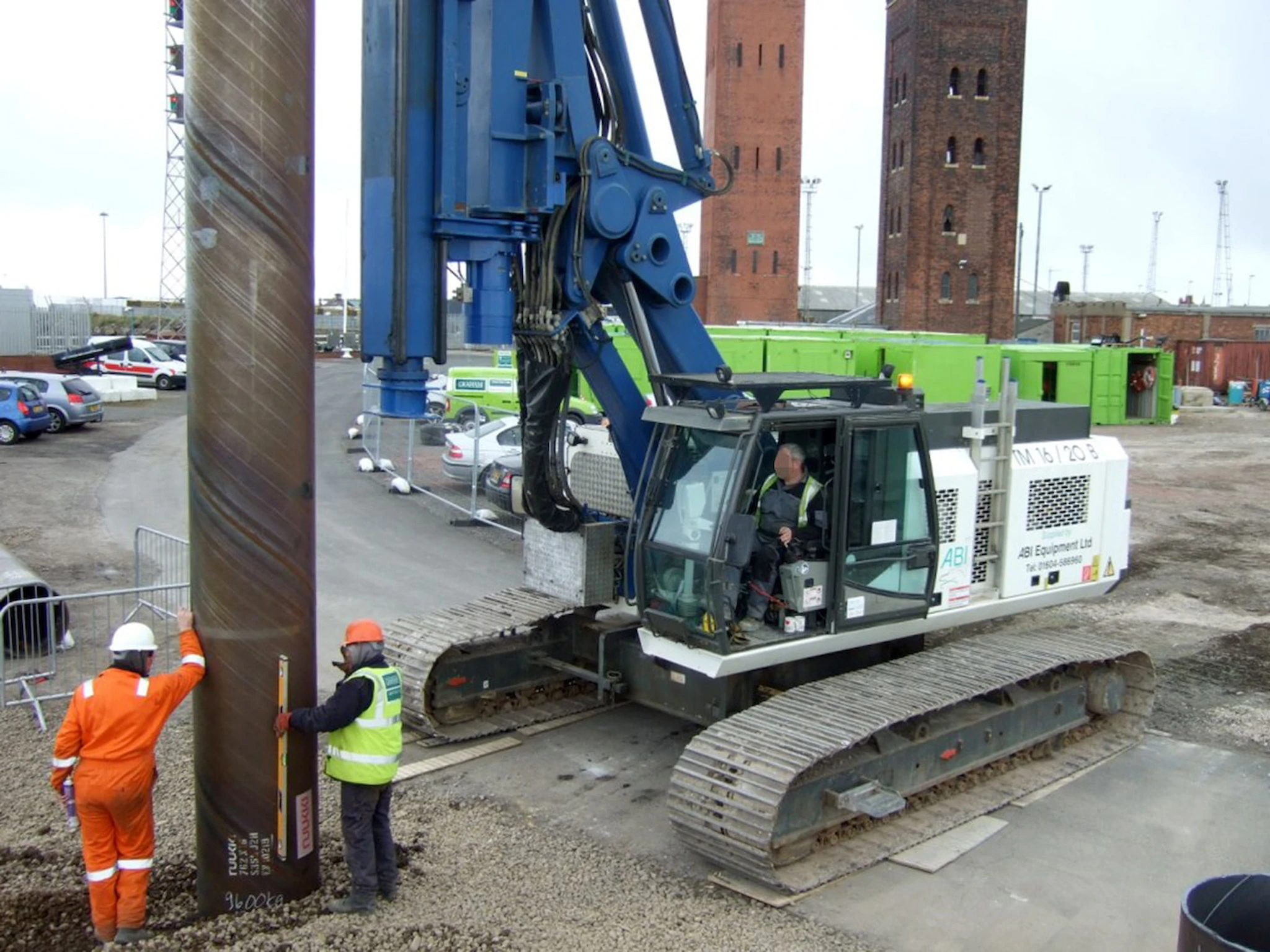

Vibrator for driving and extracting sheet piles, H-piles and pipe piles but also for installation of wick drains, gravel piles and other soil improvement works.
Various auger drives for pre-drilling, deep wells, installation of CFA piles and soil mixing applications.
| Model | TM 13 | TM 13/16 SL | TM 14/17 V | TM 17 | TM 20 | TM 22 | |
|---|---|---|---|---|---|---|---|
| Leader mast: | |||||||
| Total height | mm | 17,590 | 20,560 | 22,645 | 22,800 | 24,650 | 27,190 |
| Inclination left / right | deg | 4 / 4 | 4 / 4 | 4 / 4 | 4 / 4 | 4 / 4 | 4 / 4 |
| Inclination forward / backward | deg | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 | 4 / 5 |
| Stroke guiding carriage | mm | 13,500 | 16,000 | 17,000 | 18,000 | 20,000 | 22,000 |
| Extraction force up | kN | 180 | 175 | 200 | 200 | 200 | 200 |
| Feed force down | kN | 100 | 90 | 120 | 118 | 120 | 165 |
| Torque absorption max. | kNm | 60 | 45 | 100 | 150 | 150 | 200 |
| Load capacity max. | kg | 7,000 | 7,500 | 10,000 | 11,000 | 12,000 | 15,000 |
| Auxiliary winch (option): | |||||||
| Line pull at min. reach | kN | 14 | 50 | 50 | 50 | 50 | 50 |
| Speed, adjusted | m/min | 34 | 35 | 35 | 35 | 35 | 35 |
| Base carrier: | |||||||
| Model | SR 20 F | SR 30 T-E | SR 35 F | SR 35 F | SR 35 F | SR 35 F | |
| Engine | CUMMINS B6.7 | Scania DC9 | CAT C18 | CAT C18 | CAT C18 | CAT C18 | |
| Engine power | kW | 209 | 294 | 470 | 470 | 470 | 470 |
| Working pressure | bar | 350 | 330 | 330 | 330 | 330 | 330 |
| Transport weight: | |||||||
| Weight | kg | 39,900 | 49,200 | 57,000 | 62,650 | 64,800 | 77,600 |
| ABI TM 13 | |
|---|---|
| Leader mast: | |
| Total height | 17,590 mm |
| Inclination left / right | 4 / 4 deg |
| Inclination forward / backward | 4 / 5 deg |
| Stroke guiding carriage | 13,500 mm |
| Extraction force up | 180 kN |
| Feed force down | 100 kN |
| Torque absorption max. | 60 kNm |
| Load capacity max. | 7,000 kg |
| Auxiliary winch (option): | |
| Line pull at min. reach | 14 kN |
| Speed, adjusted | 34 m/min |
| Base carrier: | |
| Model | SR 20 F |
| Engine | CUMMINS B6.7 |
| Engine power | 209 kW |
| Working pressure | 350 bar |
| Transport weight: | |
| Weight | 39,900 kg |

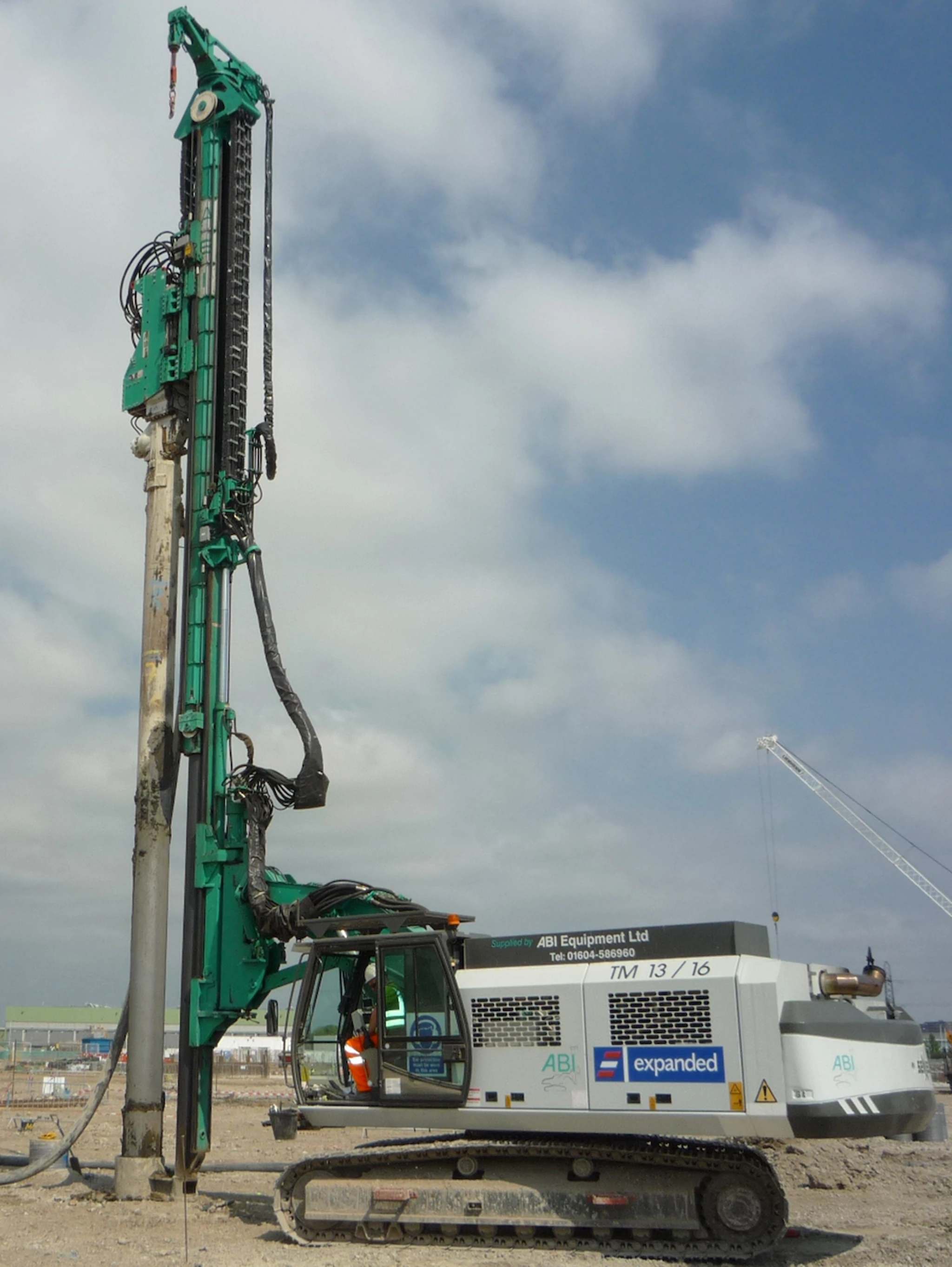

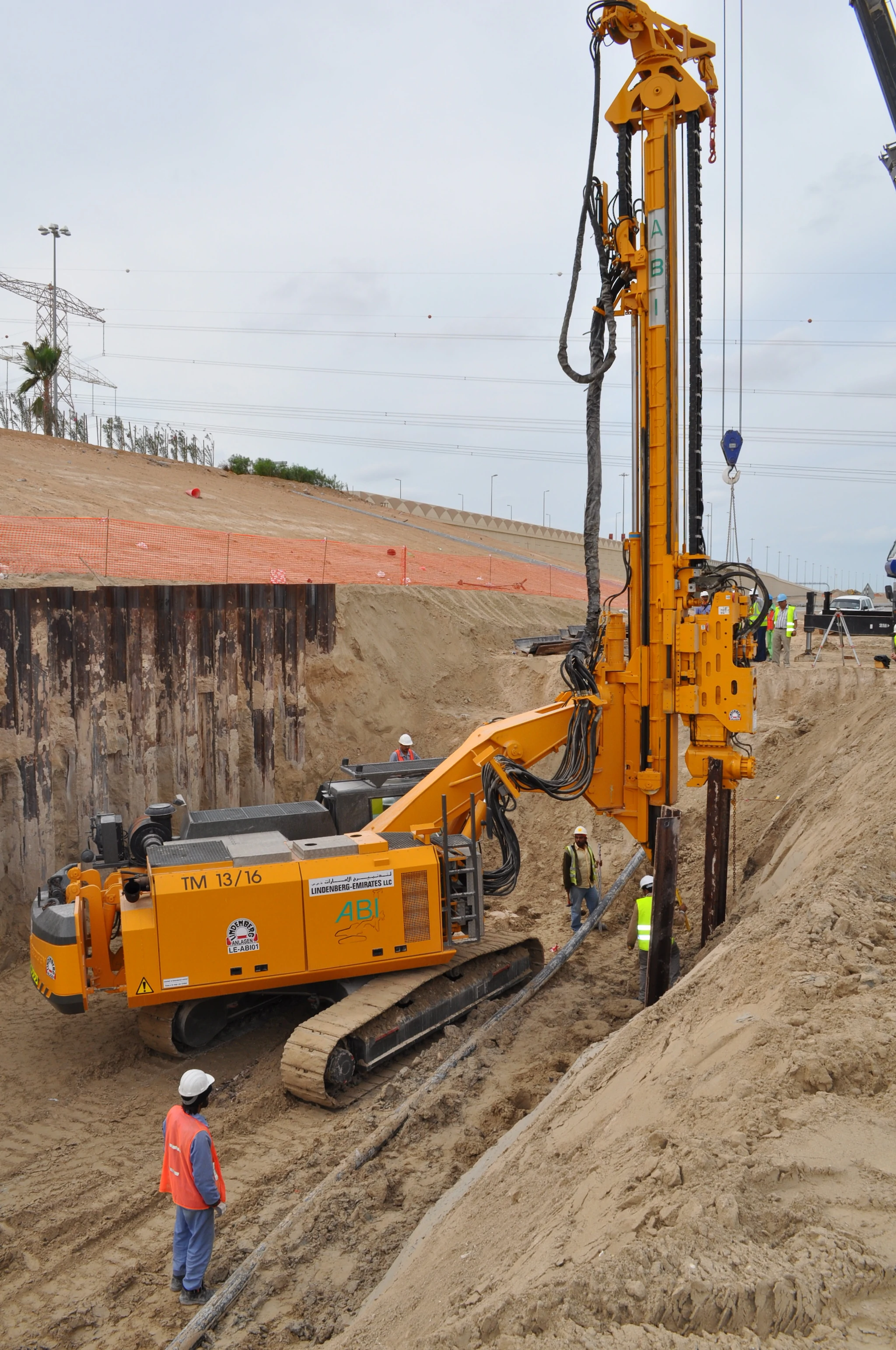

| ABI TM 13/16 SL | |
| Leader mast: | |
| Total height | 20,560 mm |
| Inclination left / right | 4 / 4 deg |
| Inclination forward / backward | 4 / 5 deg |
| Stroke guiding carriage | 16,000 mm |
| Extraction force up | 175 kN |
| Feed force down | 90 kN |
| Torque absorption max. | 45 kNm |
| Load capacity max. | 7,500 kg |
| Auxiliary winch (option): | |
| Line pull at min. reach | 50 kN |
| Speed, adjusted | 35 m/min |
| Base carrier: | |
| Model | SR 30 T-E |
| Engine | Scania DC9 |
| Engine power | 294 kW |
| Working pressure | 330 bar |
| Transport weight: | |
| Weight | 49,200 kg |

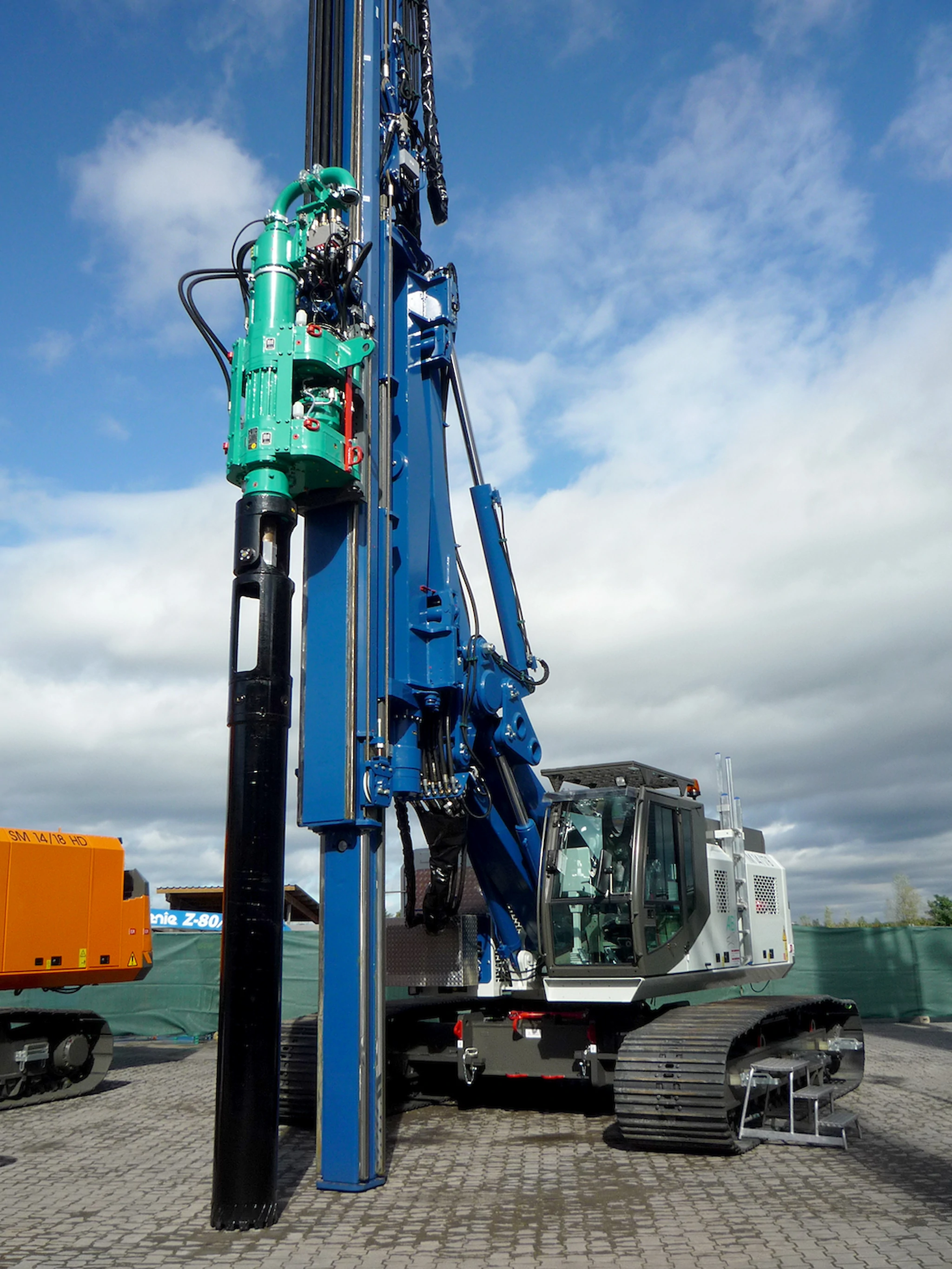

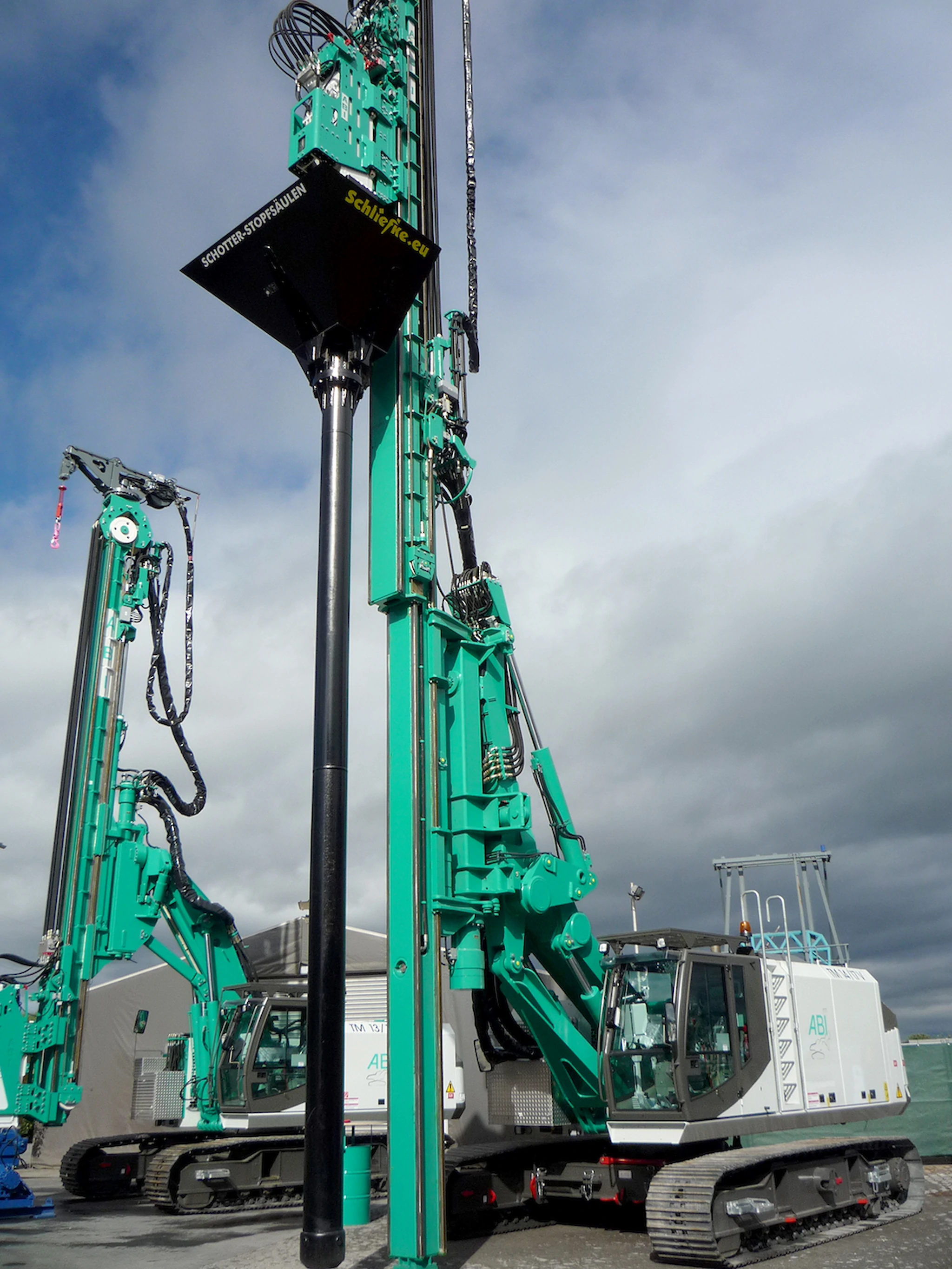

| ABI TM 14/17 V | |
| Leader mast: | |
| Total height | 22,645 mm |
| Inclination left / right | 4 / 4 deg |
| Inclination forward / backward | 4 / 5 deg |
| Stroke guiding carriage | 17,000 mm |
| Extraction force up | 200 kN |
| Feed force down | 120 kN |
| Torque absorption max. | 100 kNm |
| Load capacity max. | 10,000 kg |
| Auxiliary winch (option): | |
| Line pull at min. reach | 50 kN |
| Speed, adjusted | 35 m/min |
| Base carrier: | |
| Model | SR 35 F |
| Engine | CAT C18 |
| Engine power | 470 kW |
| Working pressure | 330 bar |
| Transport weight: | |
| Weight | 57,000 kg |

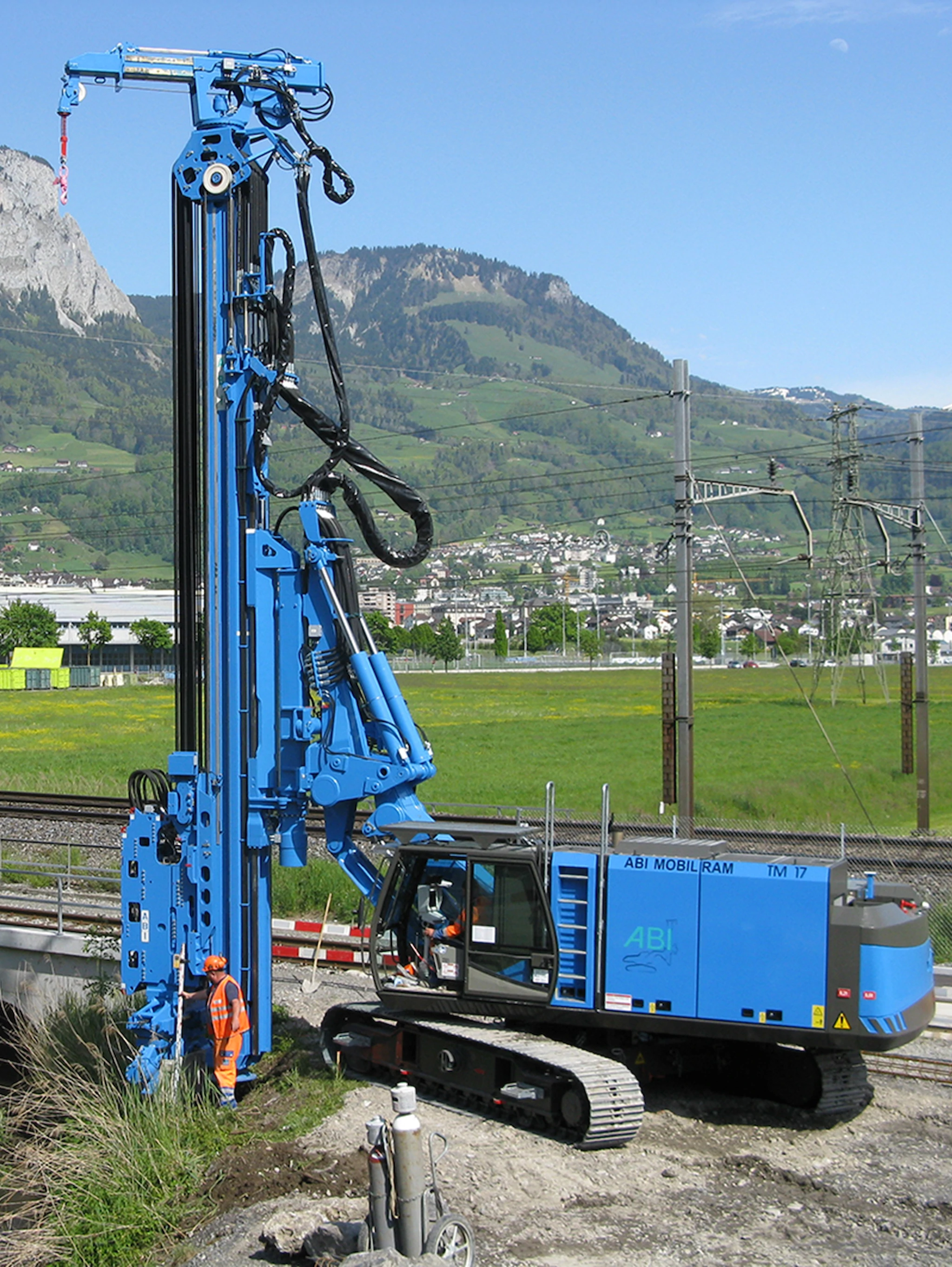

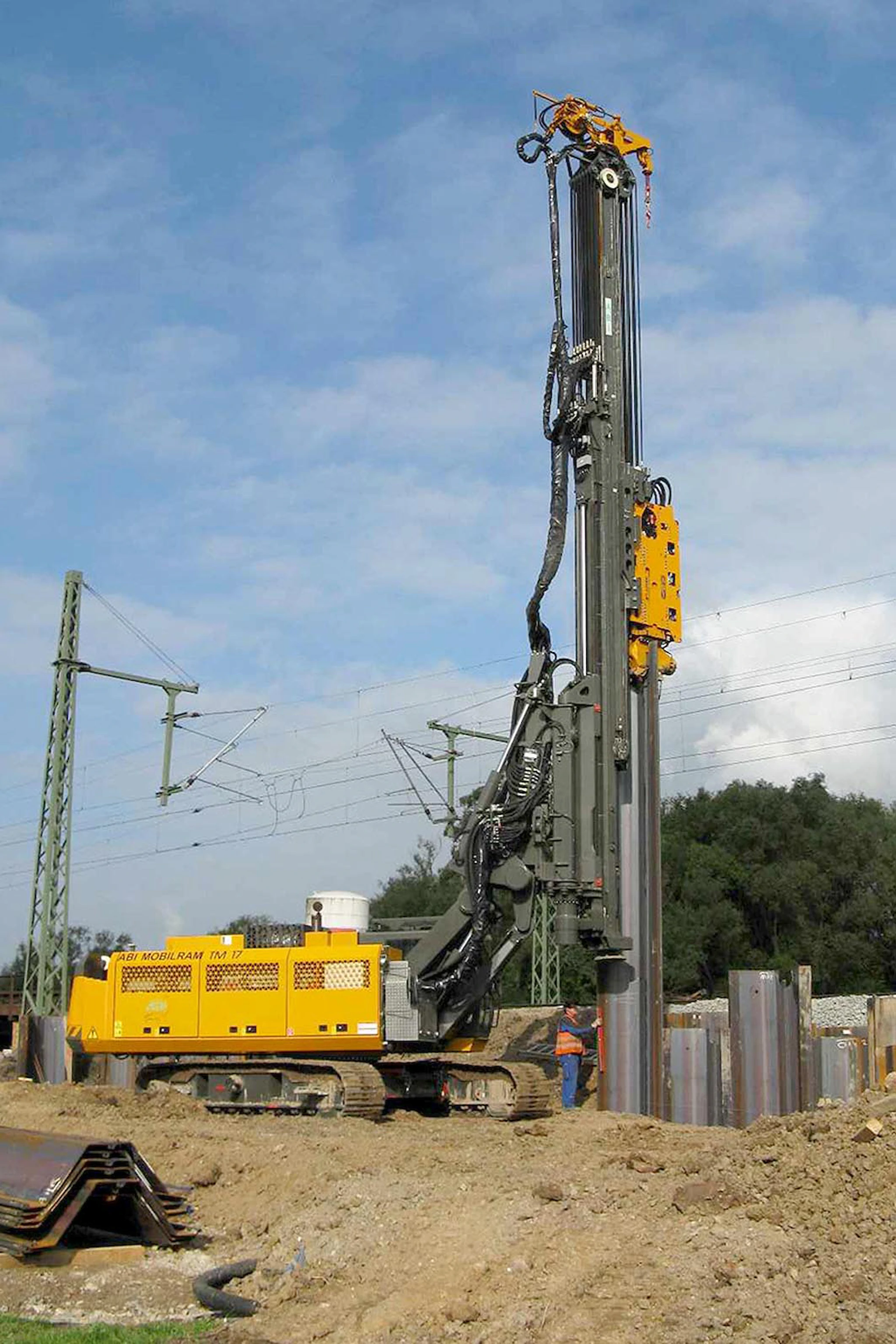

| ABI TM 17 | |
| Leader mast: | |
| Total height | 22,800 mm |
| Inclination left / right | 4 / 4 deg |
| Inclination forward / backward | 4 / 5 deg |
| Stroke guiding carriage | 18,000 mm |
| Extraction force up | 200 kN |
| Feed force down | 118 kN |
| Torque absorption max. | 150 kNm |
| Load capacity max. | 11,000 kg |
| Auxiliary winch (option): | |
| Line pull at min. reach | 50 kN |
| Speed, adjusted | 35 m/min |
| Base carrier: | |
| Model | SR 35 F |
| Engine | CAT C18 |
| Engine power | 470 kW |
| Working pressure | 330 bar |
| Transport weight: | |
| Weight | 62,650 kg |
| ABI TM 20 | |
| Leader mast: | |
| Total height | 24,650 mm |
| Inclination left / right | 4 / 4 deg |
| Inclination forward / backward | 4 / 5 deg |
| Stroke guiding carriage | 20,000 mm |
| Extraction force up | 200 kN |
| Feed force down | 120 kN |
| Torque absorption max. | 150 kNm |
| Load capacity max. | 12,000 kg |
| Auxiliary winch (option): | |
| Line pull at min. reach | 50 kN |
| Speed, adjusted | 35 m/min |
| Base carrier: | |
| Model | SR 35 F |
| Engine | CAT C18 |
| Engine power | 470 kW |
| Working pressure | 330 bar |
| Transport weight: | |
| Weight | 64,800 kg |

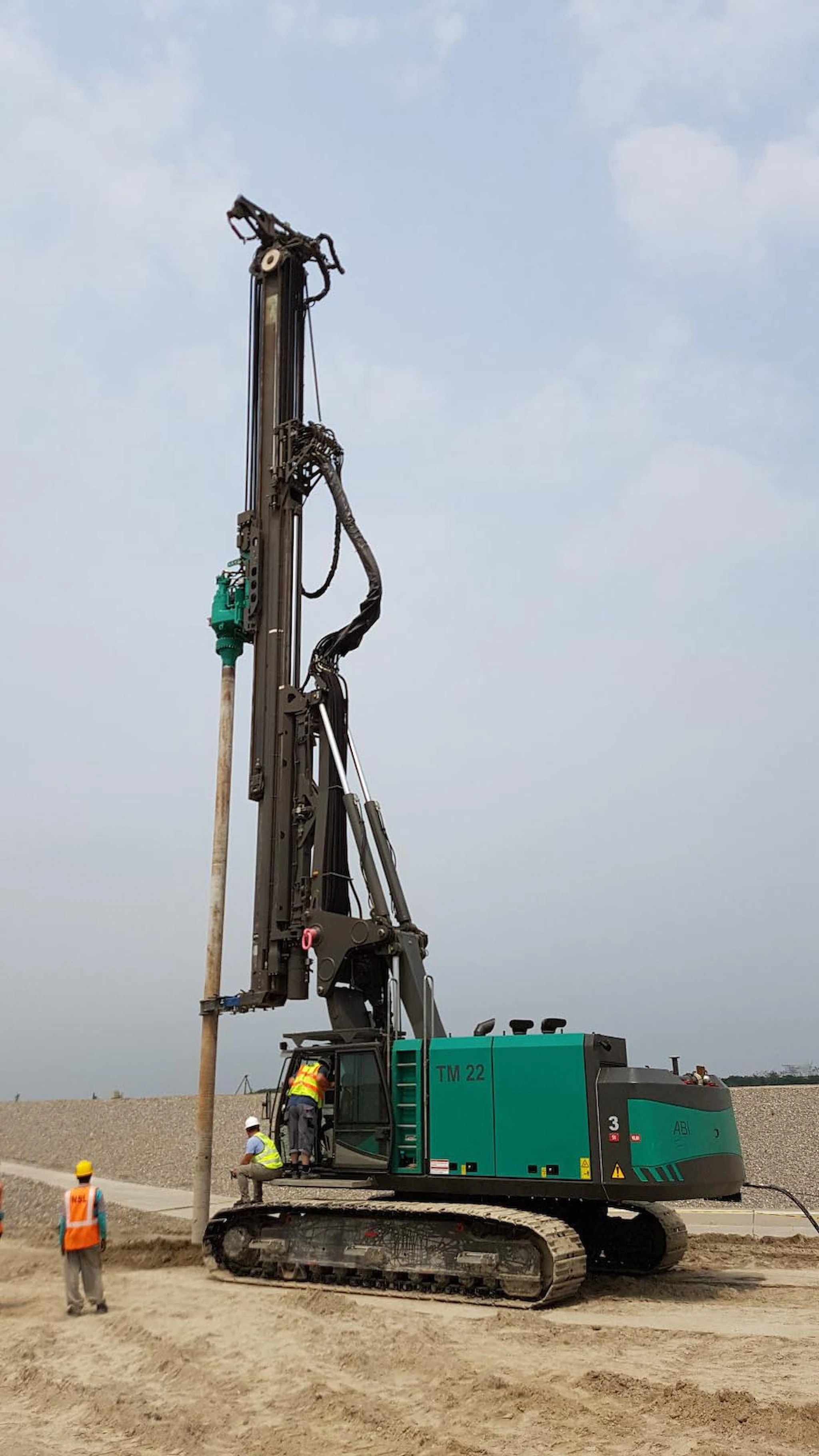

| ABI TM 22 | |
| Leader mast: | |
| Total height | 27,190 mm |
| Inclination left / right | 4 / 4 deg |
| Inclination forward / backward | 4 / 5 deg |
| Stroke guiding carriage | 22,000 mm |
| Extraction force up | 200 kN |
| Feed force down | 165 kN |
| Torque absorption max. | 200 kNm |
| Load capacity max. | 15,000 kg |
| Auxiliary winch (option): | |
| Line pull at min. reach | 50 kN |
| Speed, adjusted | 35 m/min |
| Base carrier: | |
| Model | SR 35 F |
| Engine | CAT C18 |
| Engine power | 470 kW |
| Working pressure | 330 bar |
| Transport weight: | |
| Weight | 77,600 kg |
