ABI Add-On Vibrators for Excavators
Updated: 24.10.2023
Main features:

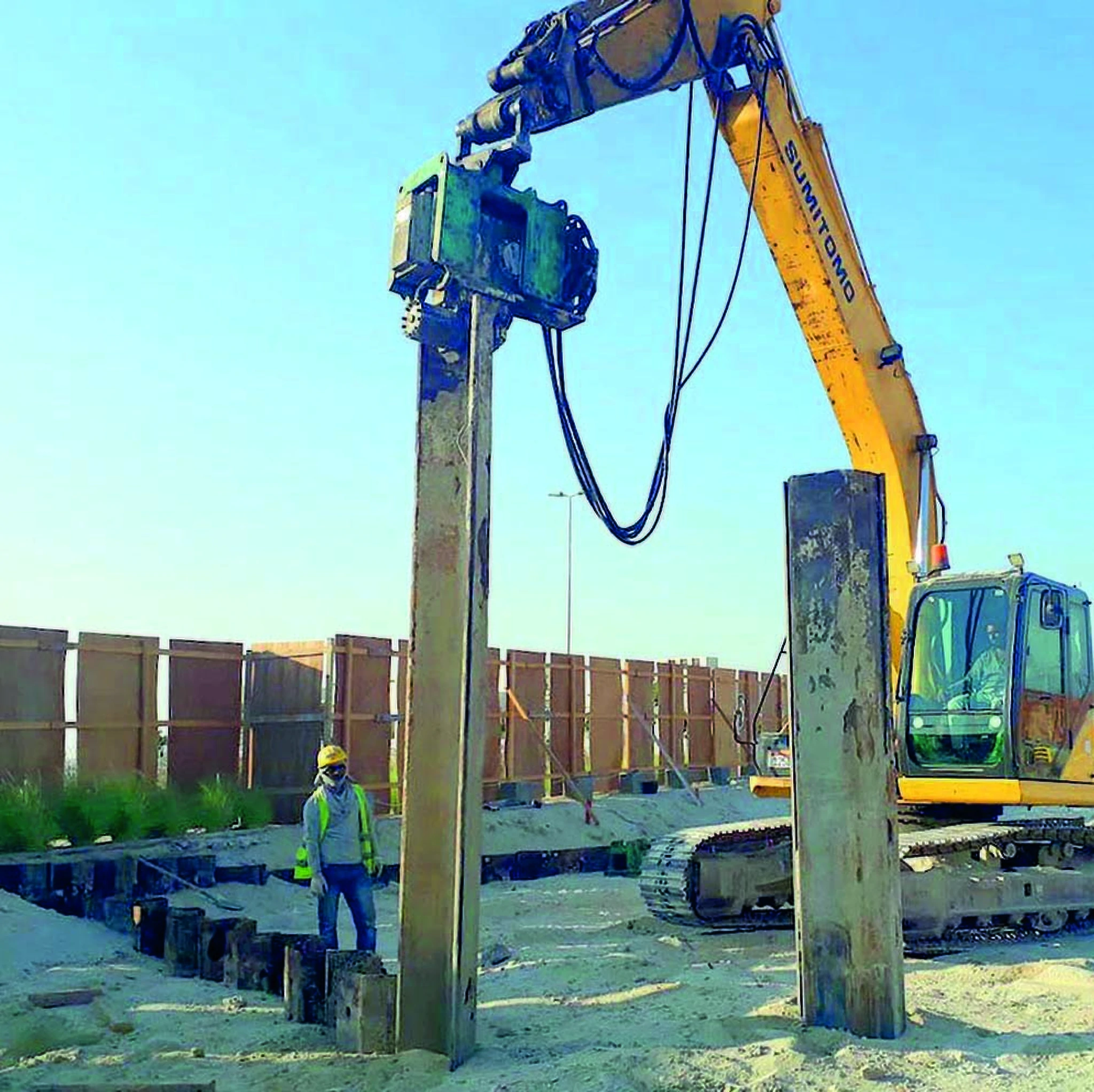

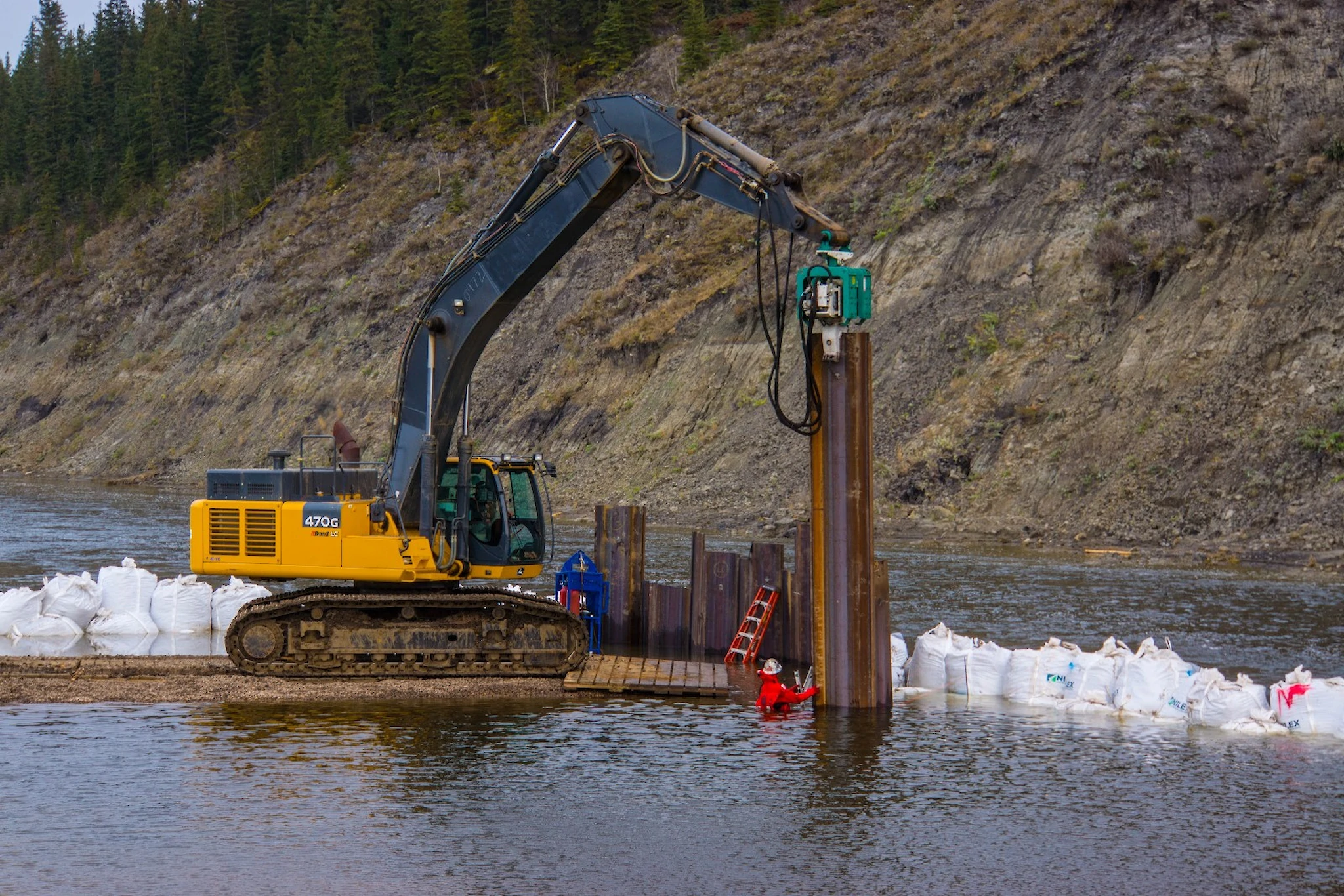

Hydraulic add-on vibrators are mounted to the stick of a hydraulic excavator instead of the bucket and are connected to the hydraulic system for driving and extracting trench sheets, sheet piles, H-piles or steel pipes up to a length of 7 m (depending on the stick configuration)
- Very compact design and low point of gravity
- Excellent performance due to large static moment and push-down with the excavator
- Very little impact to nearby structures due to high-frequency (city vibrators)
- Simple handling of piles with lifting chain
- Very economical as no separate power pack is required
- The piling length can be extended up to 8 or 10 m with excavators having a long boom and stick or when using a 'goose neck'
| Model | HVR 30 | HVR 45 | HVR 60 | HVR 85 | HVR 100 | |
|---|---|---|---|---|---|---|
| Static moment | kgm | 3 | 4.5 | 6 | 8.5 | 10 |
| Dynamic mass | kg | 650 | 815 | 950 | 1,535 | 1,570 |
| Nominal revolutions | min⁻¹ | 3,000 | 2,460 | 2,460 | 2,300 | 2,135 |
| Centrifugal force at nominal frequency | kN | 300 | 300 | 400 | 500 | 500 |
| Static extraction force max. | kN | 40 | 40 | 40 | 80 | 80 |
| Nominal oil pressure | MPa | 32 | 32 | 32 | 32 | 32 |
| Hydraulic flow rate | l/min | 90 | 130 | 196 | 245 | 312 |
| Hydraulic power at p max. | kW | 50 | 70 | 100 | 130 | 170 |
| Total weight | kg | 945 | 1,160 | 1,300 | 2,040 | 2,100 |
| Transport weight | kg | 1,030 | 1,240 | 1,380 | 2,250 | 2,310 |
| Recommended weight of pile elements | kg | 600 | 1,100 | 1,500 | 1,900 | 2,500 |
| Height H | mm | 1,560 | 1,600 | 1,640 | 1,865 | 1,865 |
| Width B | mm | 1,020 | 1,065 | 1,170 | 1,445 | 1,445 |
| Depth T | mm | 610 | 615 | 615 | 750 | 750 |
| S | mm | 1,120 | 1,160 | 1,200 | 1,430 | 1,430 |
| X | mm | 740 | 780 | 820 | 845 | 845 |
| Z | mm | 352 | 352 | 352 | 352 | 352 |
| Transport dimensions: | ||||||
| Height h | mm | 1,670 | 1,675 | 1,715 | 1,965 | 1,965 |
| Width b | mm | 1,095 | 1,150 | 1,190 | 1,480 | 1,480 |
| Depth t | mm | 660 | 660 | 660 | 1,030 | 1,030 |
| HVR 30 | |
|---|---|
| Static moment | 3 kgm |
| Dynamic mass | 650 kg |
| Nominal revolutions | 3,000 min⁻¹ |
| Centrifugal force at nominal frequency | 300 kN |
| Static extraction force max. | 40 kN |
| Nominal oil pressure | 32 MPa |
| Hydraulic flow rate | 90 l/min |
| Hydraulic power at p max. | 50 kW |
| Total weight | 945 kg |
| Transport weight | 1,030 kg |
| Recommended weight of pile elements | 600 kg |
| Height H | 1,560 mm |
| Width B | 1,020 mm |
| Depth T | 610 mm |
| S | 1,120 mm |
| X | 740 mm |
| Z | 352 mm |
| Transport dimensions: | |
| Height h | 1,670 mm |
| Width b | 1,095 mm |
| Depth t | 660 mm |
| HVR 45 | |
| Static moment | 4.5 kgm |
| Dynamic mass | 815 kg |
| Nominal revolutions | 2,460 min⁻¹ |
| Centrifugal force at nominal frequency | 300 kN |
| Static extraction force max. | 40 kN |
| Nominal oil pressure | 32 MPa |
| Hydraulic flow rate | 130 l/min |
| Hydraulic power at p max. | 70 kW |
| Total weight | 1,160 kg |
| Transport weight | 1,240 kg |
| Recommended weight of pile elements | 1,100 kg |
| Height H | 1,600 mm |
| Width B | 1,065 mm |
| Depth T | 615 mm |
| S | 1,160 mm |
| X | 780 mm |
| Z | 352 mm |
| Transport dimensions: | |
| Height h | 1,675 mm |
| Width b | 1,150 mm |
| Depth t | 660 mm |
| HVR 60 | |
| Static moment | 6 kgm |
| Dynamic mass | 950 kg |
| Nominal revolutions | 2,460 min⁻¹ |
| Centrifugal force at nominal frequency | 400 kN |
| Static extraction force max. | 40 kN |
| Nominal oil pressure | 32 MPa |
| Hydraulic flow rate | 196 l/min |
| Hydraulic power at p max. | 100 kW |
| Total weight | 1,300 kg |
| Transport weight | 1,380 kg |
| Recommended weight of pile elements | 1,500 kg |
| Height H | 1,640 mm |
| Width B | 1,170 mm |
| Depth T | 615 mm |
| S | 1,200 mm |
| X | 820 mm |
| Z | 352 mm |
| Transport dimensions: | |
| Height h | 1,715 mm |
| Width b | 1,190 mm |
| Depth t | 660 mm |
| HVR 85 | |
| Static moment | 8.5 kgm |
| Dynamic mass | 1,535 kg |
| Nominal revolutions | 2,300 min⁻¹ |
| Centrifugal force at nominal frequency | 500 kN |
| Static extraction force max. | 80 kN |
| Nominal oil pressure | 32 MPa |
| Hydraulic flow rate | 245 l/min |
| Hydraulic power at p max. | 130 kW |
| Total weight | 2,040 kg |
| Transport weight | 2,250 kg |
| Recommended weight of pile elements | 1,900 kg |
| Height H | 1,865 mm |
| Width B | 1,445 mm |
| Depth T | 750 mm |
| S | 1,430 mm |
| X | 845 mm |
| Z | 352 mm |
| Transport dimensions: | |
| Height h | 1,965 mm |
| Width b | 1,480 mm |
| Depth t | 1,030 mm |
| HVR 100 | |
| Static moment | 10 kgm |
| Dynamic mass | 1,570 kg |
| Nominal revolutions | 2,135 min⁻¹ |
| Centrifugal force at nominal frequency | 500 kN |
| Static extraction force max. | 80 kN |
| Nominal oil pressure | 32 MPa |
| Hydraulic flow rate | 312 l/min |
| Hydraulic power at p max. | 170 kW |
| Total weight | 2,100 kg |
| Transport weight | 2,310 kg |
| Recommended weight of pile elements | 2,500 kg |
| Height H | 1,865 mm |
| Width B | 1,445 mm |
| Depth T | 750 mm |
| S | 1,430 mm |
| X | 845 mm |
| Z | 352 mm |
| Transport dimensions: | |
| Height h | 1,965 mm |
| Width b | 1,480 mm |
| Depth t | 1,030 mm |
All our add-on vibros are supplied with:

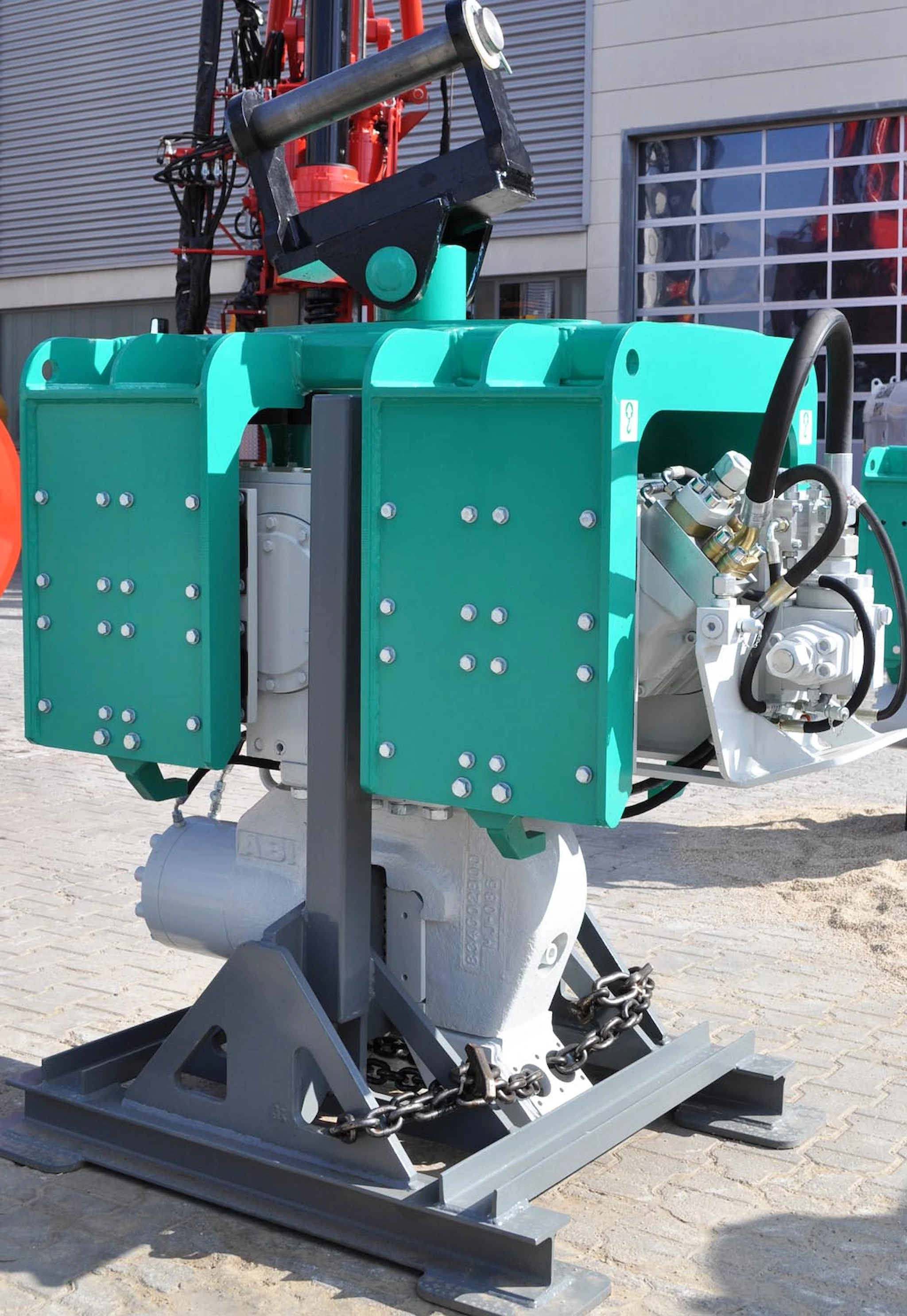

- Universal sheet pile clamp
- Mounting adapter to excavator boom
- Hydraulic hose set
- Storage plate
- Complete set of manuals in English
