Delmag RH 24/270
Updated: 24.10.2022
| RH 24/270 | |
|---|---|
| Rotary head: | |
| Model | BT 270 |
| Rotary torque | 270 @ 350 bar kNm |
| Revolutions | 0-40 rpm |
| Weight of rotary | 5,900 kg |

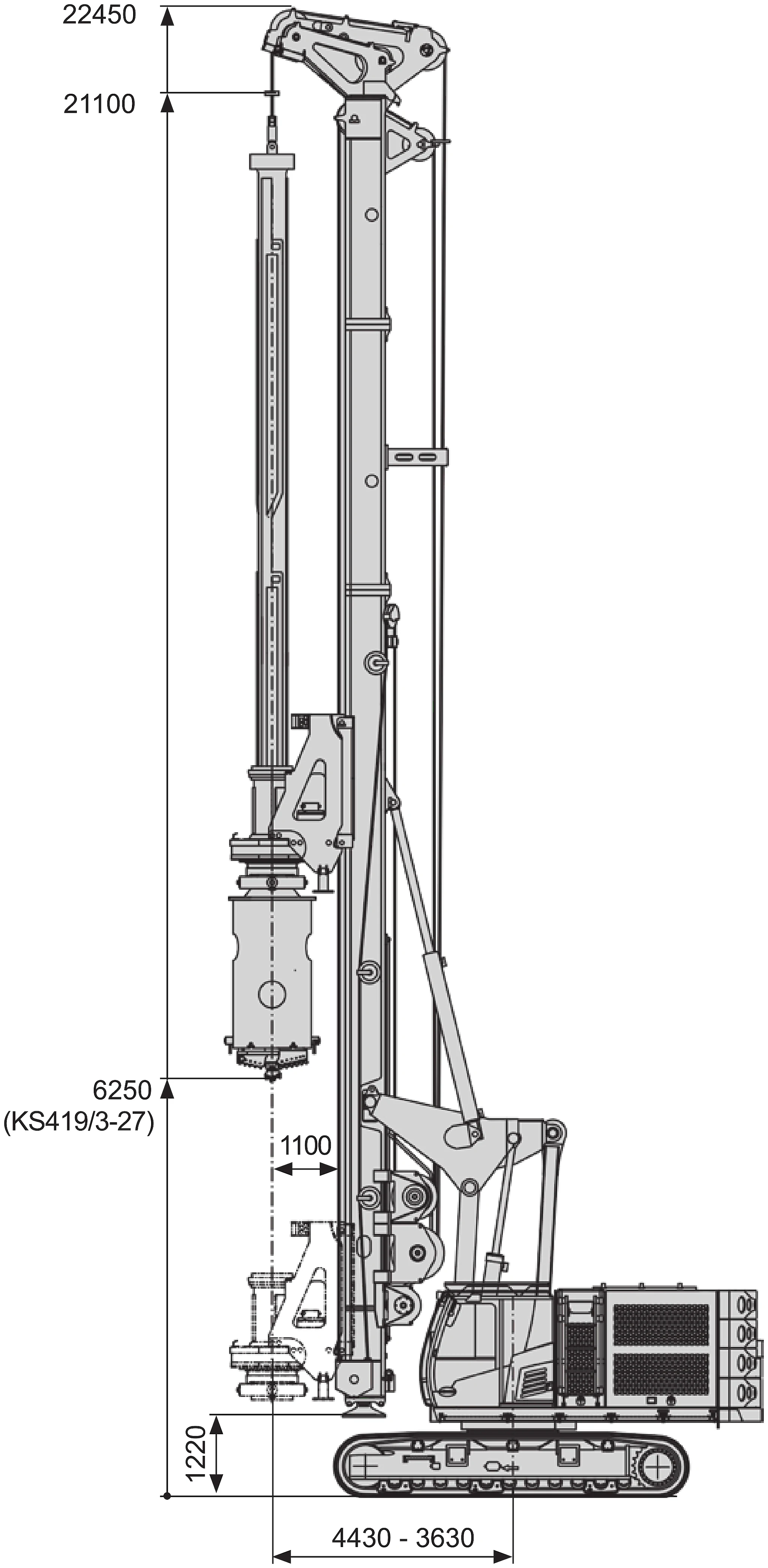

| Leader mast: | |
| Total height | 22,450 mm |
| Drilling distance max. (center) | 4,430 mm |
| Ground clearence-mast foot | 1,220 mm |
| Inclination forward / backward | 4 / 14 deg |
| Inclination left / right | 9 / 9 deg |
| Stroke | 16,200 mm |
| Crowd winch force up / down | 340 / 230 kN |
| Crowd winch speed rapid / working | 25 / 7 m/min |
| Kelly winch line pull | 210 kN |
| Kelly winch rope speed | 57 m/min |
| Service winch line pull | 80 kN |
| Service winch rope speed | 60 m/min |
| Base carrier: | |
| Model | SR 30 F |
| Engine | CAT C9.3B |
| Engine power | 310 kW |
| Track shoes | 700 mm |

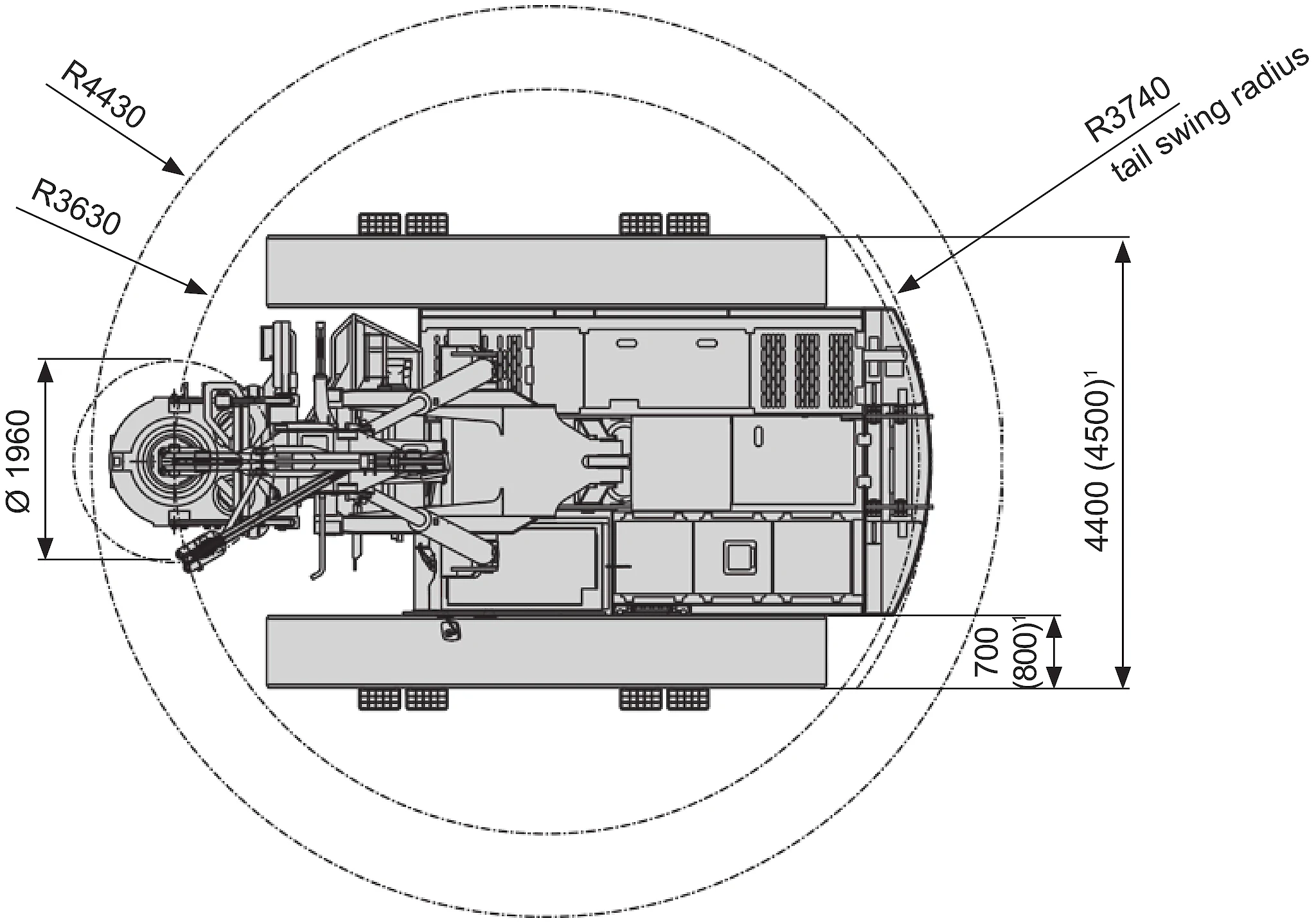

| Back pivoting radius | 3,750 mm |
| Transport weight: | |
| Weight | 68.2 t |

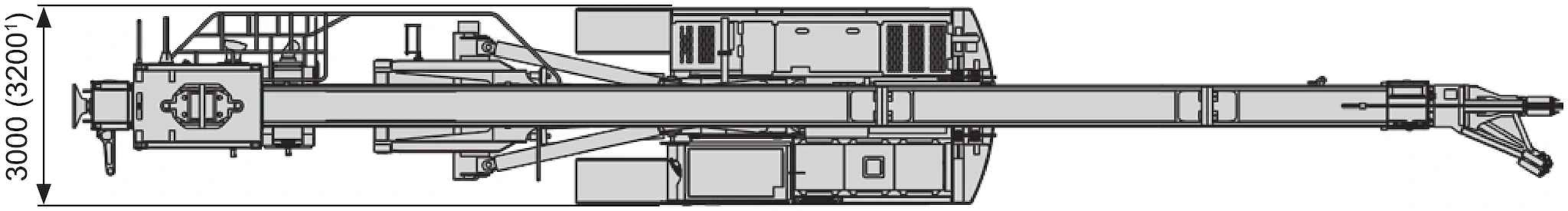

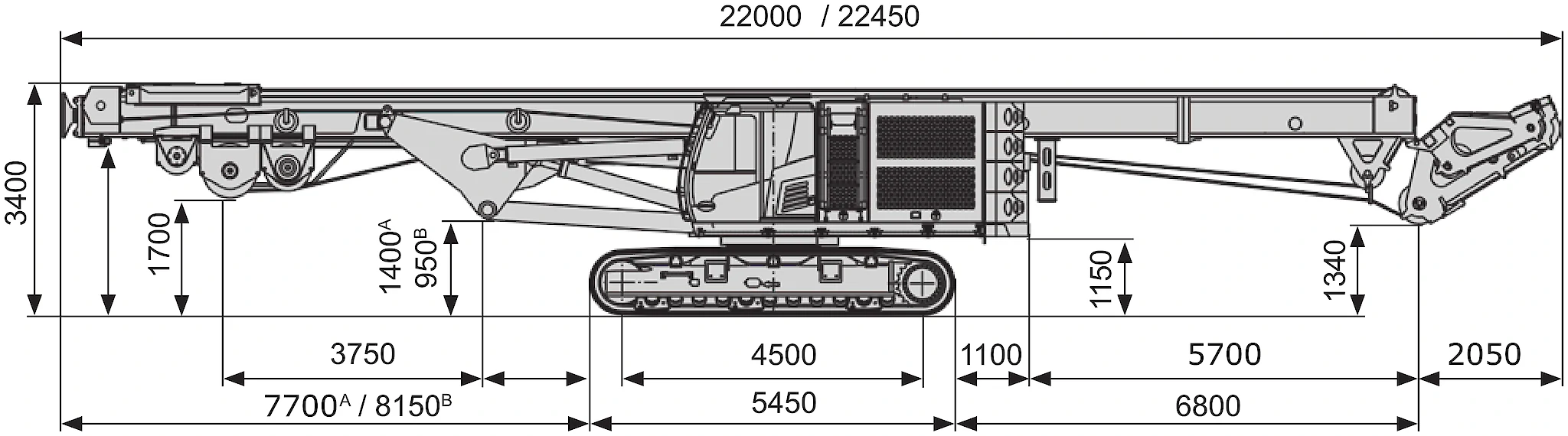

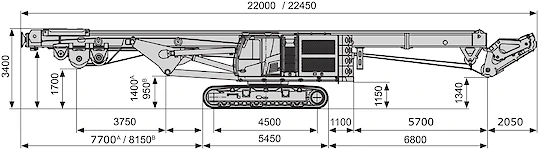

| Transport dimensions: | |
| Length | 22,000 mm |
| Width | 3,000 mm |
| Height | 3,400 mm |
