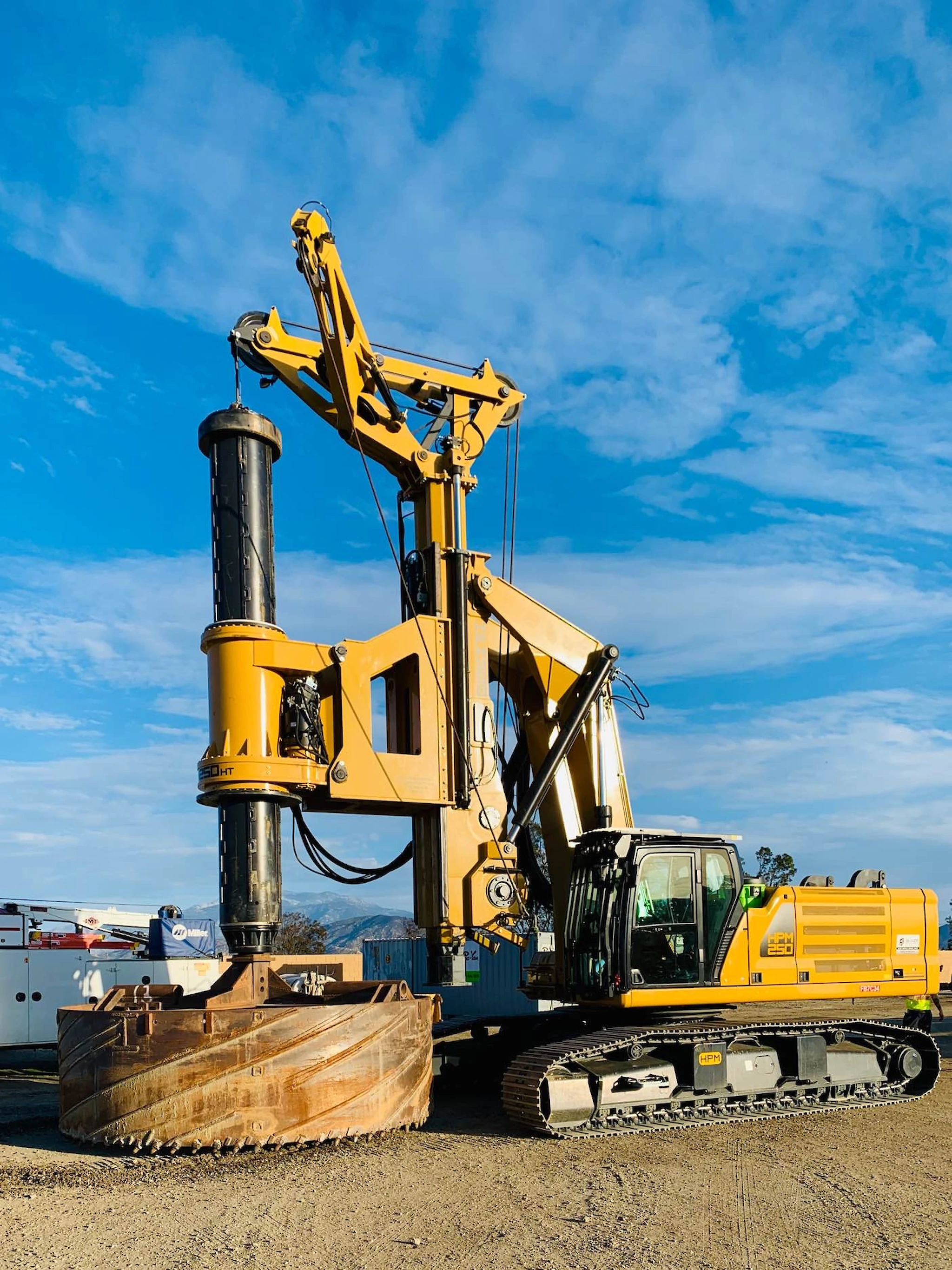

HPM 250
Updated: 09.05.2023
| 250 | |
|---|---|
| Base | CAT 336 NGH |
| Engine model | C9.3B |
| Engine power | 234 kW |
| Telescopic lower | 3,000 - 4,270 mm |
| Rotary torque nominal | 370 kN |
| Working speed | 9 - 24 rpm |
| Discharge speed | 50 - 120 rpm |
| Main winch capacity | 230 kN |
| Service winch capacity | 115 kN |
| Crowd system | Cylinder |
| Crowd push/pull | 300 / 400 kN |
| Mast height | 8,340 mm |
| Standard Kelly bar | 6 / 21 m |
| Drilling Ø max. | 4,000 / 5,500 mm |
| Operating weight | 70.4 t |
| Transport weight | 48 t |
| Transport dimensions | 13,555 / 3,000 / 3,505 mm |
| Optional | Long Mast |
| Long Kelly bar | 4 / 49 m |
| Transport dimensions | 16,650 / 3,000 / 3,550 mm |
