ABI MRZV 30VV
Updated: 10.03.2026
| ABI MRZV 30VV | |
|---|---|
| Standard clamp assembly | SKZ 1120 / SKZ 1800 |
| Docking-system | D6 |
| Static moment | 0-30 kgm |
| Dynamic mass | 3,280 / 3,985 kg |
| Nominal revolutions | 1,745 / 2,140 min⁻¹ |
| Maximum revolutions | 2,600 min⁻¹ |
| Centrifugal force at nominal freq. | 1,000 / 1,500 kN |
| Maximum centrifugal force | 1,500 kN |
| Static extraction force max. | 300 kN |
| Maximum oil pressure | 35 MPa |
| Recommended power of carrier ~ | 470 - 570 kW |
| Total weight | 4,710 / 5,390 kg |
| Transport weight | 5,230 / 5,880 kg |

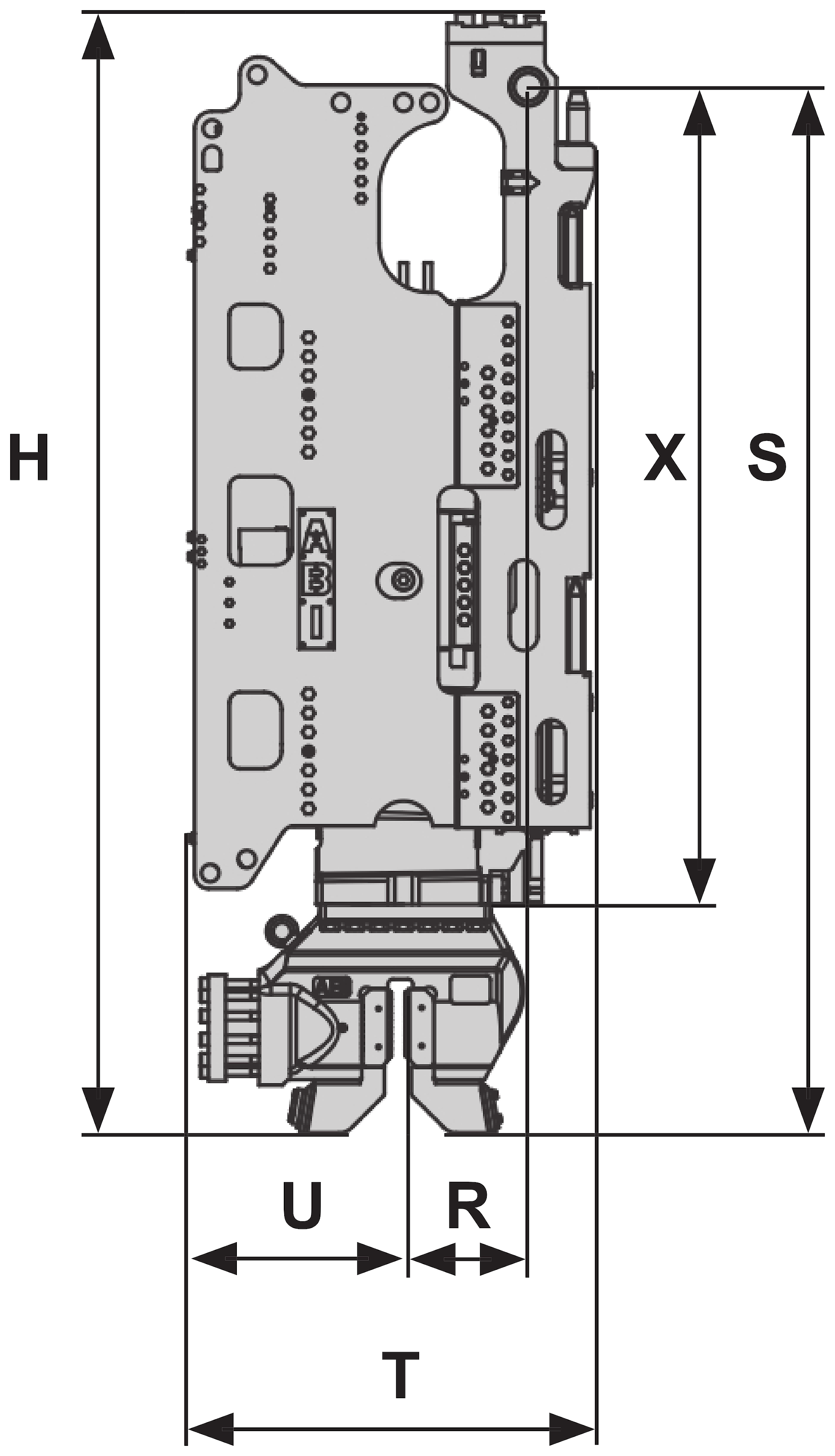

| Height H | 3,280 / 3,405 mm |

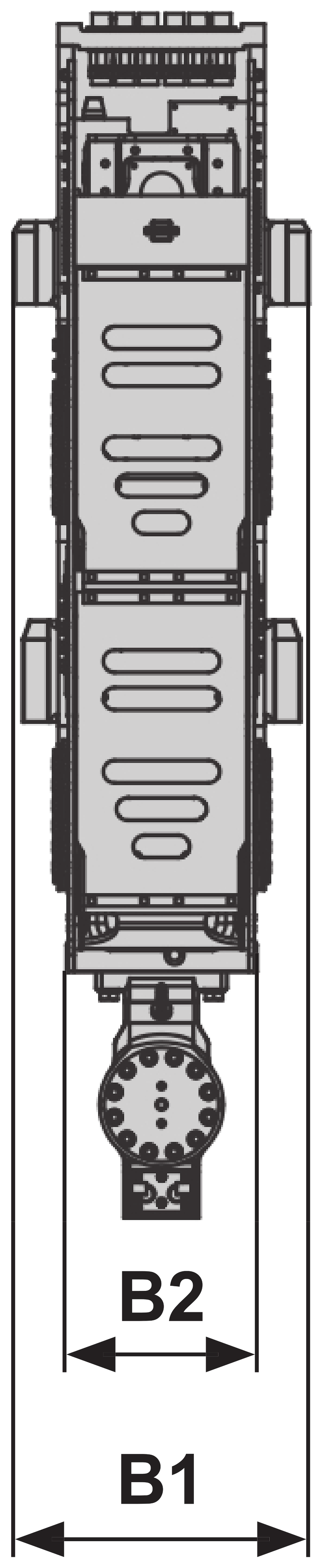

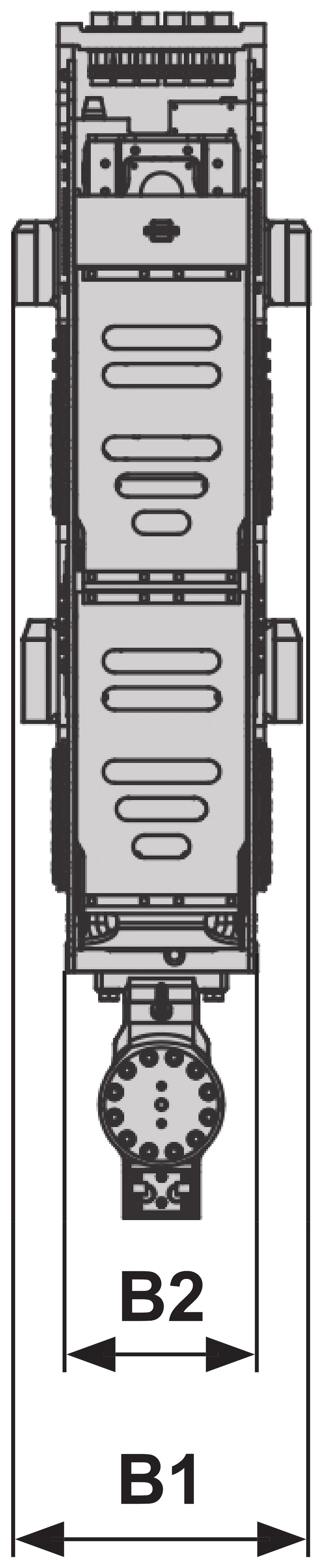

| Width B1 | 790 mm |
| Depth T | 1,465 mm |
| B2 | 510 mm |
| R | 360 mm |
| U | 910 mm |
| S | 3,065 / 3,190 mm |
| X | 2,410 mm |

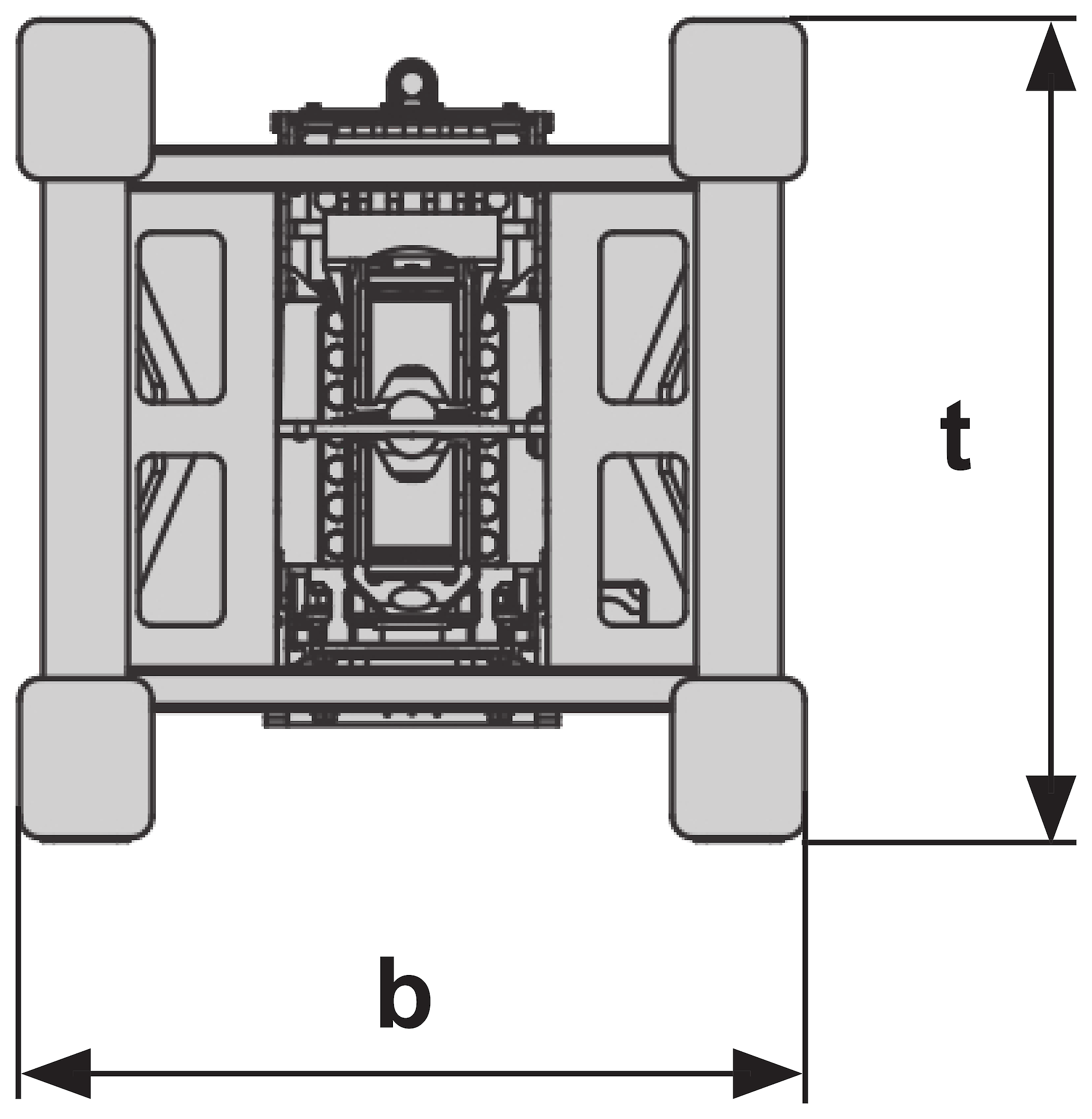

| Transport dimensions: | |

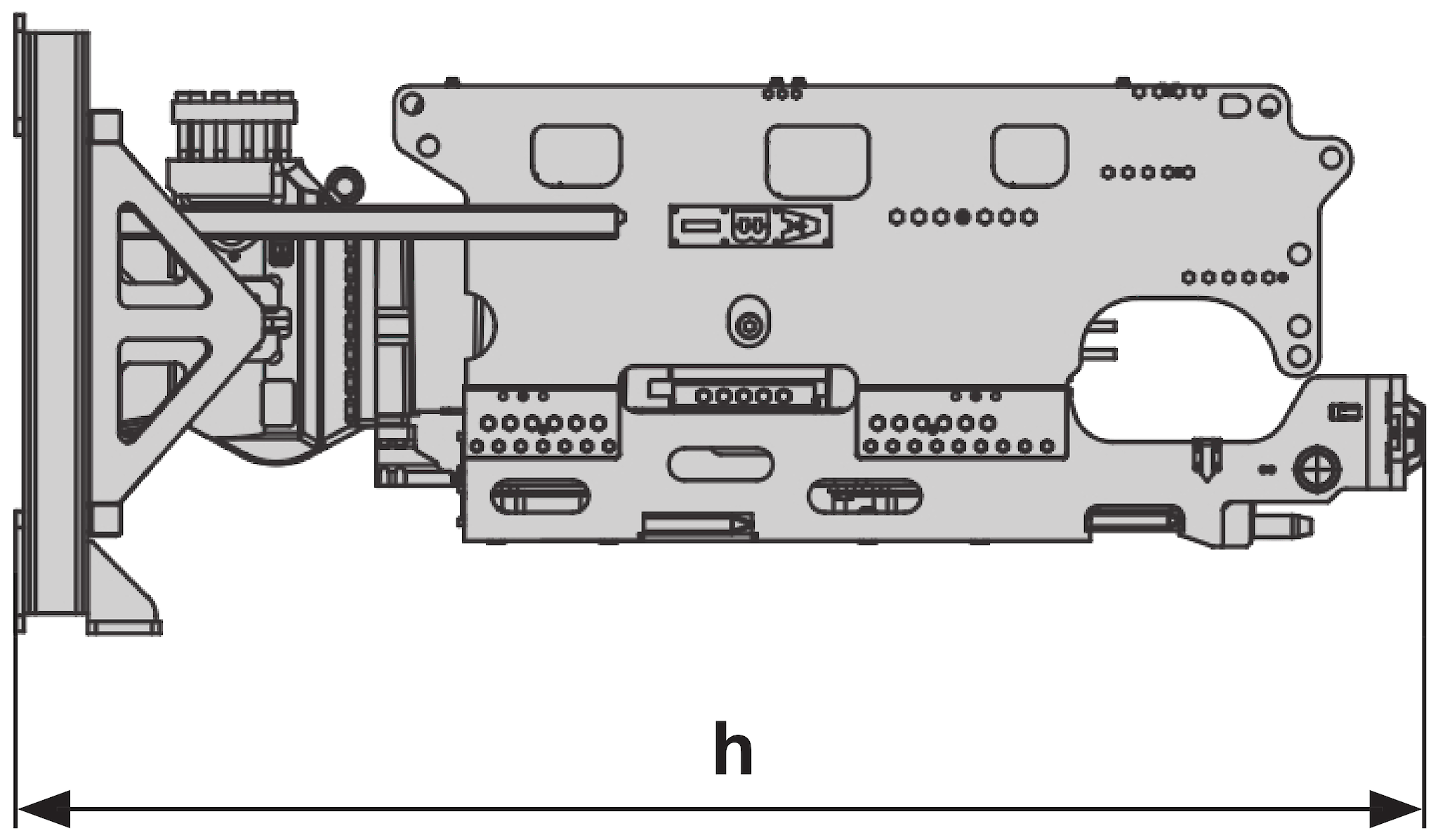

| Height h | 3,580 / 3,630 mm |
| Width b | 1,480 mm |
| Depth t | 1,770 mm |
