ABI Leader Guided Vibrators
Updated: 16.10.2023
6 images

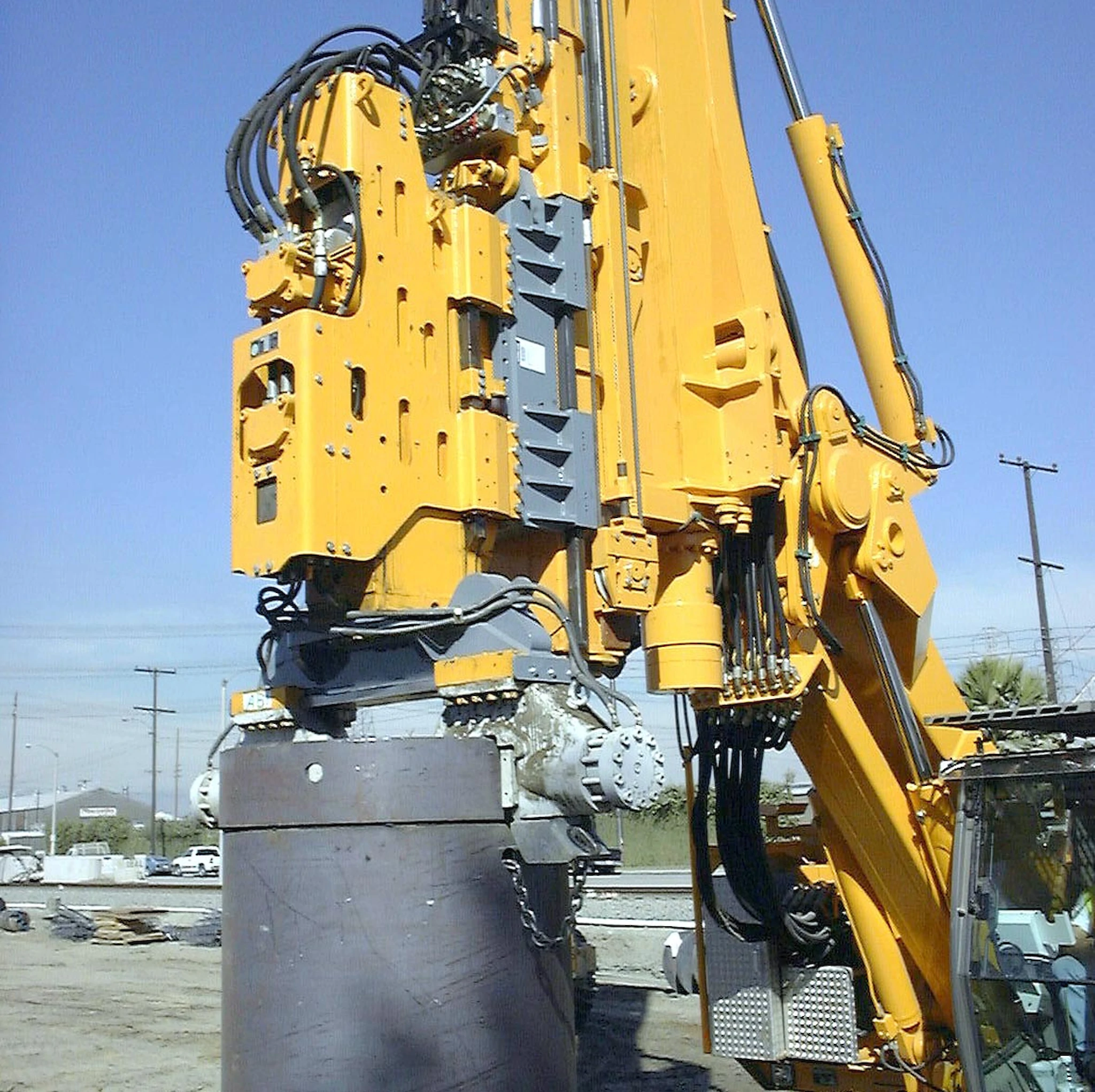

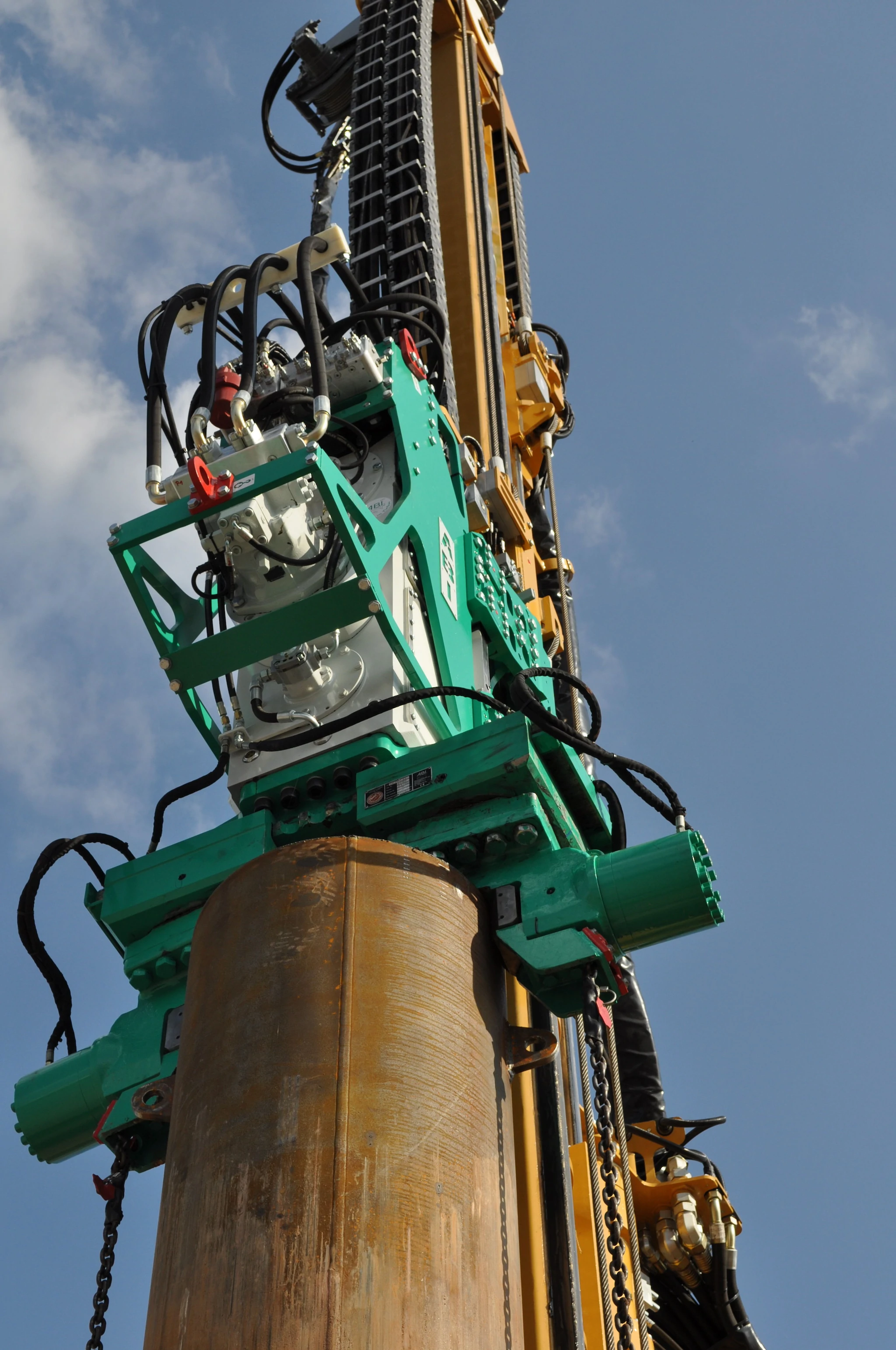

We supply hydraulic vibrators in standard high frequency version and with variable moment (city vibros). The V-line of vibrators is the ideal solution for pile driving works near delicate structures where soil vibrations should be avoided or are strictly forbidden. All attachments are mounted to the leader by a mounting plate with quick couplings and changing from vibrator to i.e. auger drive takes less than one hour. Clamps for sheet piles, double piles, H-piles and steel pipe piles guarantee the optimum transfer of the centrifugal force to the pile foot.
Optional gear oil cooling circuits available for 100% duty cycles i.e. for soil compaction, cut-off wall application and wick drain installation.
Model | MRZV 12VV | MRZV 16VV | MRZV 20VV | MRZV 25VV | MRZV 30VV | MRZV 36VV | |
---|---|---|---|---|---|---|---|
Standard clamp assembly | SKZ 720 | SKZ 900 | SKZ 1120 | SKZ 1120 | SKZ 1120 / SKZ 1800 | SKZ 1800 | |
Docking-system | D6/4 | D6/4 | D6 | D6 | D6 | D6 | |
Static moment | kgm | 0-12 | 0-16 | 0-20 | 0-25 | 0-30 | 0-36 |
Dynamic mass | kg | 2,135 | 2,400 | 2,820 | 2,825 | 3,280 / 3,985 | 3,985 |
Nominal revolutions | min⁻¹ | 2,135 | 2,070 | 2,135 | 1,910 | 1,745 / 2,140 | 1,950 |
Maximum revolutions | min⁻¹ | 2,600 | 2,600 | 2,600 | 2,600 | 2,600 | 2,600 |
Centrifugal force at nominal freq. | kN | 600 | 750 | 1,000 | 1,000 | 1,000 / 1,500 | 1,500 |
Maximum centrifugal force | kN | 600 | 750 | 1,200 | 1,350 | 1,500 | 1,500 |
Static extraction force max. | kN | 200 | 200 | 240 | 280 | 300 | 300 |
Maximum oil pressure | MPa | 35 | 35 | 35 | 35 | 35 | 35 |
Recommended power of carrier ~ | kW | 200 - 260 | 250 - 300 | 300 - 470 | 430 - 470 | 470 - 570 | 470 - 570 |
Total weight | kg | 3,300 | 3,650 | 4,240 | 4,165 | 4,710 / 5,390 | 5,410 |
Transport weight | kg | 3,520 | 3,910 | 4,460 | 4,660 | 5,230 / 5,880 | 5,925 |
Height H | mm | 2,920 | 2,920 | 3,235 | 3,220 | 3,280 / 3,405 | 3,405 |
Width B1 | mm | 790 | 790 | 790 | 790 | 790 | 790 |
Depth T | mm | 1,465 | 1,280 | 1,495 | 1,185 | 1,465 | 1,465 |
B2 | mm | 460 | 520 | 460 | 505 | 510 | 510 |
R | mm | 360 | 360 | 435 | 360 | 360 | 360 |
U | mm | 910 | 730 | 870 | 635 | 910 | 910 |
S | mm | 2,705 | 2,710 | 3,020 | 3,010 | 3,065 / 3,190 | 3,190 |
X | mm | 2,110 | 2,110 | 2,375 | 2,350 | 2,410 | 2,410 |
Transport dimensions: | |||||||
Height h | mm | 3,070 | 3,100 | 3,370 | 3,860 | 3,580 / 3,630 | 3,630 |
Width b | mm | 1,040 | 1,000 | 1,040 | 1,480 | 1,480 | 1,480 |
Depth t | mm | 1,600 | 1,340 | 1,635 | 1,545 | 1,770 | 1,770 |
ABI MRZV 12VV | |
---|---|
Standard clamp assembly | SKZ 720 |
Docking-system | D6/4 |
Static moment | 0-12 kgm |
Dynamic mass | 2,135 kg |
Nominal revolutions | 2,135 min⁻¹ |
Maximum revolutions | 2,600 min⁻¹ |
Centrifugal force at nominal freq. | 600 kN |
Maximum centrifugal force | 600 kN |
Static extraction force max. | 200 kN |
Maximum oil pressure | 35 MPa |
Recommended power of carrier ~ | 200 - 260 kW |
Total weight | 3,300 kg |
Transport weight | 3,520 kg |
Height H | 2,920 mm |
Width B1 | 790 mm |
Depth T | 1,465 mm |
B2 | 460 mm |
R | 360 mm |
U | 910 mm |
S | 2,705 mm |
X | 2,110 mm |
Transport dimensions: | |
Height h | 3,070 mm |
Width b | 1,040 mm |
Depth t | 1,600 mm |
ABI MRZV 16VV | |
Standard clamp assembly | SKZ 900 |
Docking-system | D6/4 |
Static moment | 0-16 kgm |
Dynamic mass | 2,400 kg |
Nominal revolutions | 2,070 min⁻¹ |
Maximum revolutions | 2,600 min⁻¹ |
Centrifugal force at nominal freq. | 750 kN |
Maximum centrifugal force | 750 kN |
Static extraction force max. | 200 kN |
Maximum oil pressure | 35 MPa |
Recommended power of carrier ~ | 250 - 300 kW |
Total weight | 3,650 kg |
Transport weight | 3,910 kg |
Height H | 2,920 mm |
Width B1 | 790 mm |
Depth T | 1,280 mm |
B2 | 520 mm |
R | 360 mm |
U | 730 mm |
S | 2,710 mm |
X | 2,110 mm |
Transport dimensions: | |
Height h | 3,100 mm |
Width b | 1,000 mm |
Depth t | 1,340 mm |

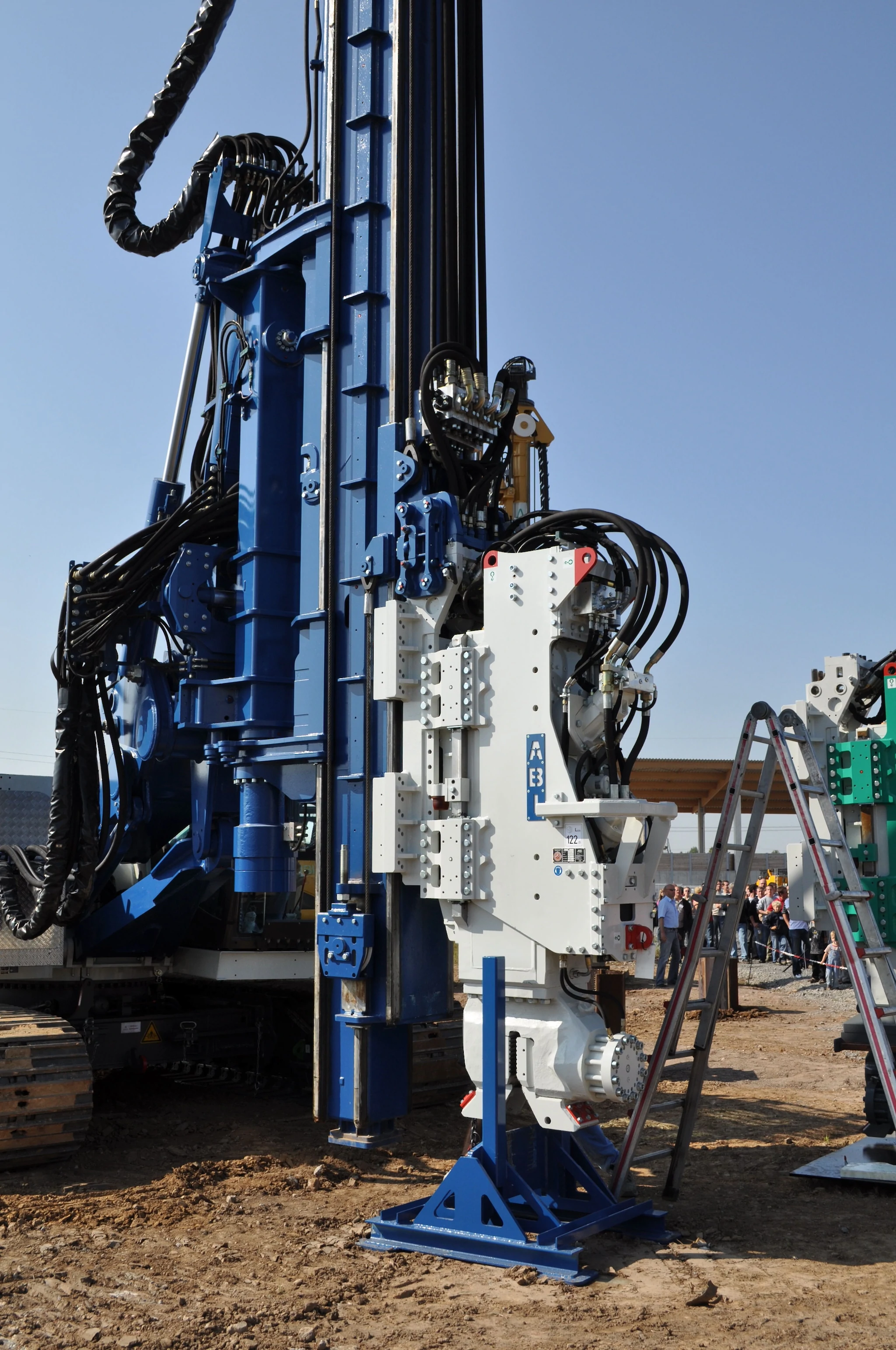

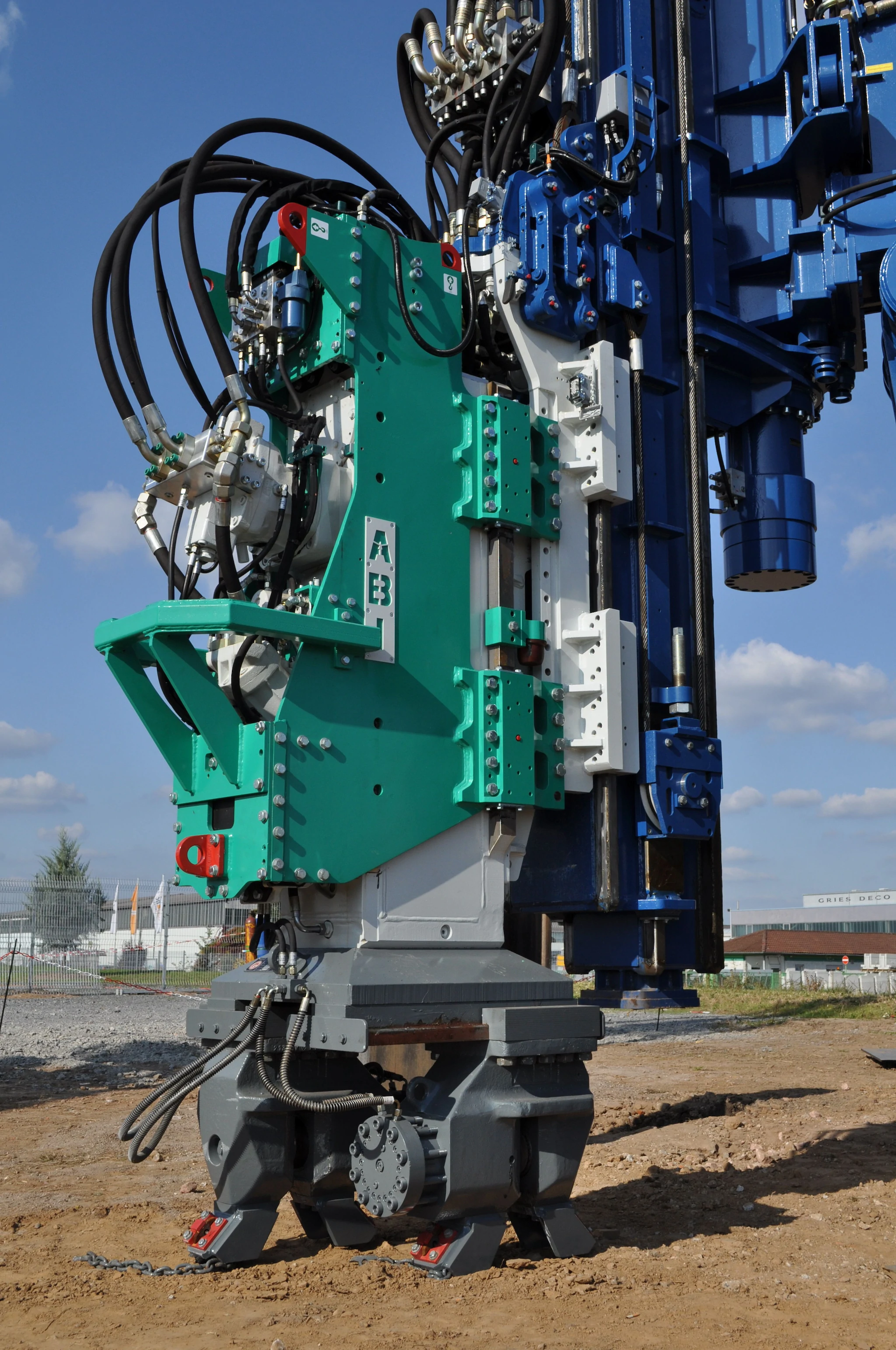

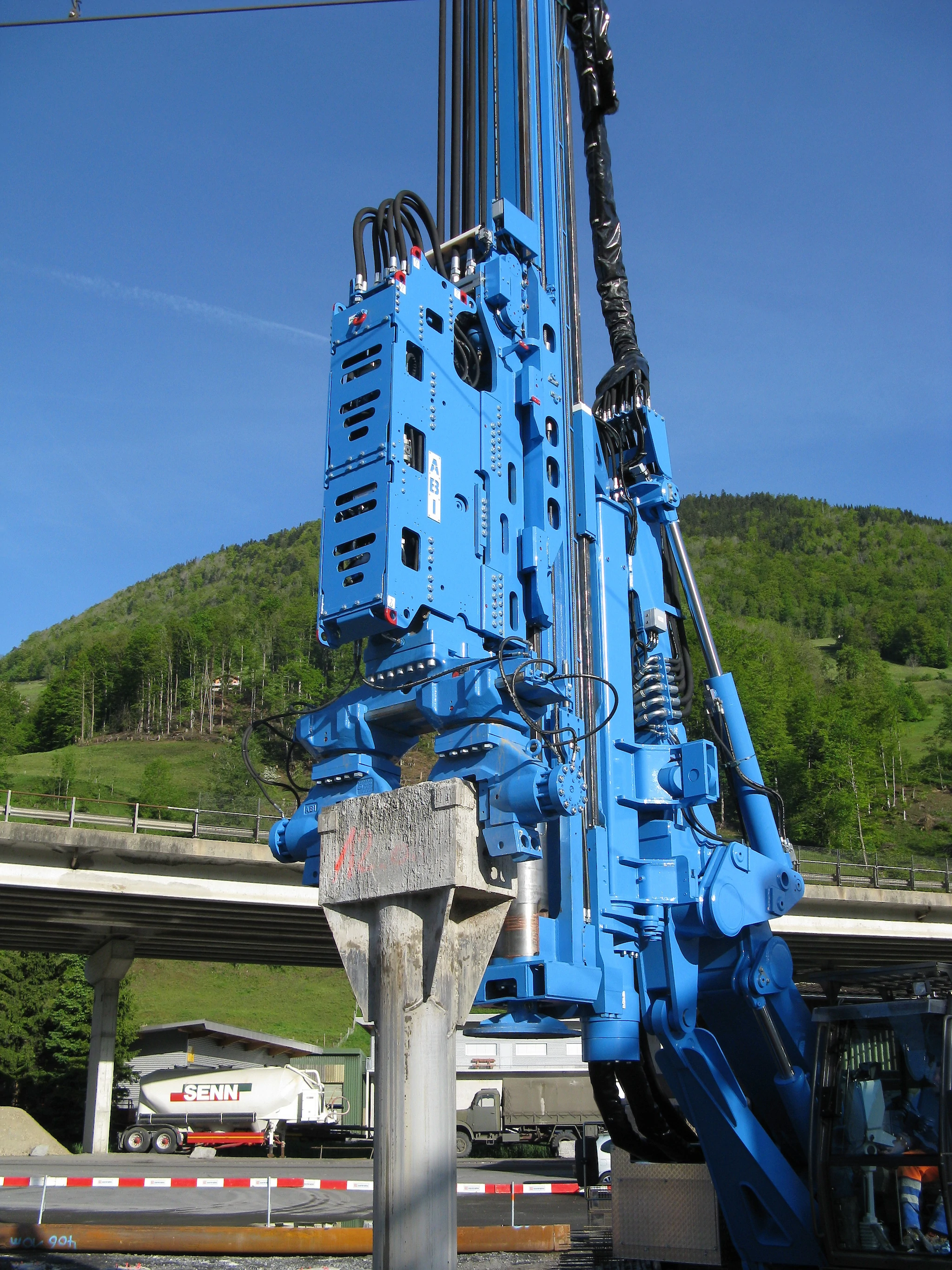

ABI MRZV 20VV | |
Standard clamp assembly | SKZ 1120 |
Docking-system | D6 |
Static moment | 0-20 kgm |
Dynamic mass | 2,820 kg |
Nominal revolutions | 2,135 min⁻¹ |
Maximum revolutions | 2,600 min⁻¹ |
Centrifugal force at nominal freq. | 1,000 kN |
Maximum centrifugal force | 1,200 kN |
Static extraction force max. | 240 kN |
Maximum oil pressure | 35 MPa |
Recommended power of carrier ~ | 300 - 470 kW |
Total weight | 4,240 kg |
Transport weight | 4,460 kg |
Height H | 3,235 mm |
Width B1 | 790 mm |
Depth T | 1,495 mm |
B2 | 460 mm |
R | 435 mm |
U | 870 mm |
S | 3,020 mm |
X | 2,375 mm |
Transport dimensions: | |
Height h | 3,370 mm |
Width b | 1,040 mm |
Depth t | 1,635 mm |
ABI MRZV 25VV | |
Standard clamp assembly | SKZ 1120 |
Docking-system | D6 |
Static moment | 0-25 kgm |
Dynamic mass | 2,825 kg |
Nominal revolutions | 1,910 min⁻¹ |
Maximum revolutions | 2,600 min⁻¹ |
Centrifugal force at nominal freq. | 1,000 kN |
Maximum centrifugal force | 1,350 kN |
Static extraction force max. | 280 kN |
Maximum oil pressure | 35 MPa |
Recommended power of carrier ~ | 430 - 470 kW |
Total weight | 4,165 kg |
Transport weight | 4,660 kg |
Height H | 3,220 mm |
Width B1 | 790 mm |
Depth T | 1,185 mm |
B2 | 505 mm |
R | 360 mm |
U | 635 mm |
S | 3,010 mm |
X | 2,350 mm |
Transport dimensions: | |
Height h | 3,860 mm |
Width b | 1,480 mm |
Depth t | 1,545 mm |
ABI MRZV 30VV | |
Standard clamp assembly | SKZ 1120 / SKZ 1800 |
Docking-system | D6 |
Static moment | 0-30 kgm |
Dynamic mass | 3,280 / 3,985 kg |
Nominal revolutions | 1,745 / 2,140 min⁻¹ |
Maximum revolutions | 2,600 min⁻¹ |
Centrifugal force at nominal freq. | 1,000 / 1,500 kN |
Maximum centrifugal force | 1,500 kN |
Static extraction force max. | 300 kN |
Maximum oil pressure | 35 MPa |
Recommended power of carrier ~ | 470 - 570 kW |
Total weight | 4,710 / 5,390 kg |
Transport weight | 5,230 / 5,880 kg |
Height H | 3,280 / 3,405 mm |
Width B1 | 790 mm |
Depth T | 1,465 mm |
B2 | 510 mm |
R | 360 mm |
U | 910 mm |
S | 3,065 / 3,190 mm |
X | 2,410 mm |
Transport dimensions: | |
Height h | 3,580 / 3,630 mm |
Width b | 1,480 mm |
Depth t | 1,770 mm |

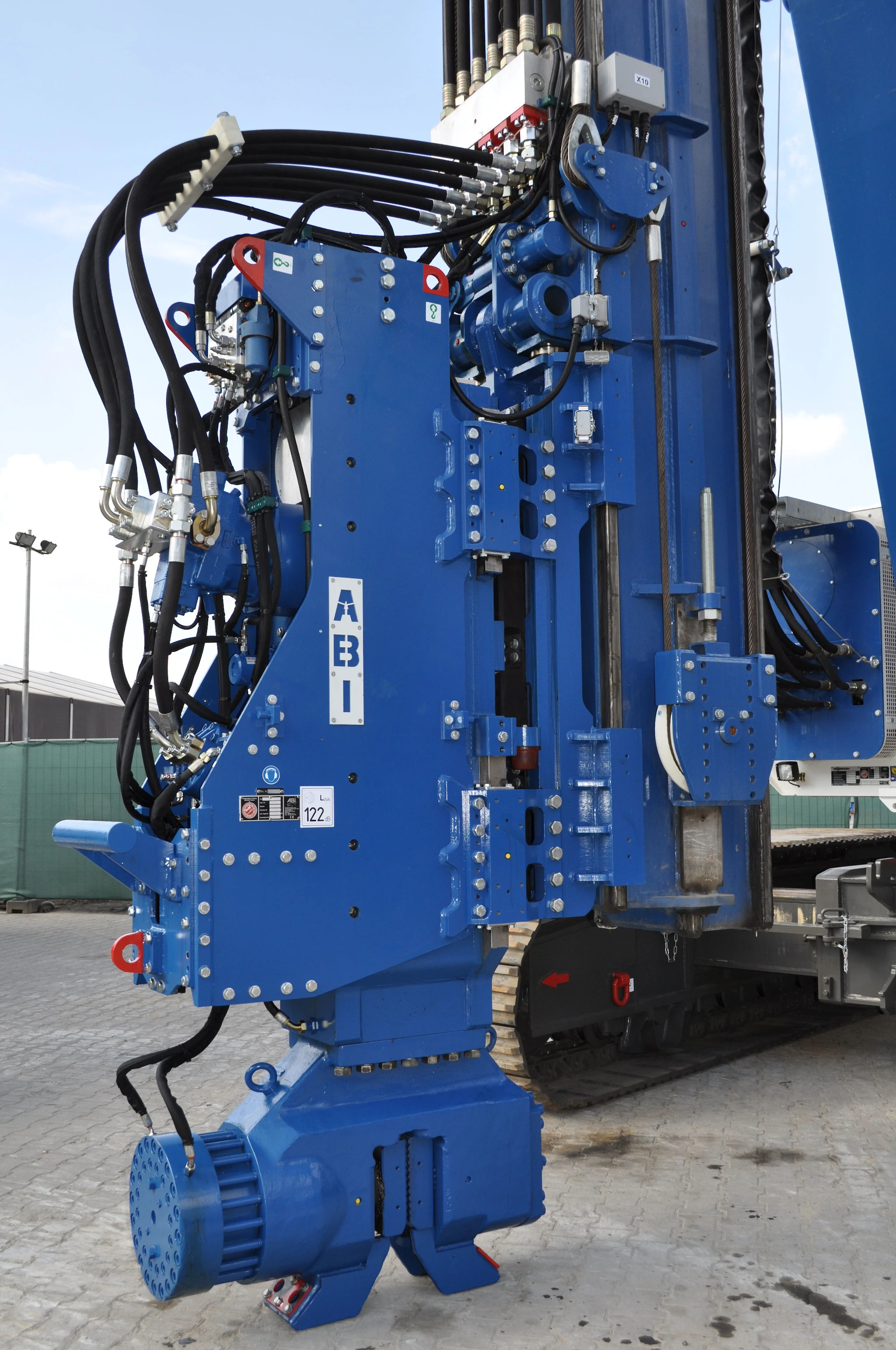

ABI MRZV 36VV | |
Standard clamp assembly | SKZ 1800 |
Docking-system | D6 |
Static moment | 0-36 kgm |
Dynamic mass | 3,985 kg |
Nominal revolutions | 1,950 min⁻¹ |
Maximum revolutions | 2,600 min⁻¹ |
Centrifugal force at nominal freq. | 1,500 kN |
Maximum centrifugal force | 1,500 kN |
Static extraction force max. | 300 kN |
Maximum oil pressure | 35 MPa |
Recommended power of carrier ~ | 470 - 570 kW |
Total weight | 5,410 kg |
Transport weight | 5,925 kg |
Height H | 3,405 mm |
Width B1 | 790 mm |
Depth T | 1,465 mm |
B2 | 510 mm |
R | 360 mm |
U | 910 mm |
S | 3,190 mm |
X | 2,410 mm |
Transport dimensions: | |
Height h | 3,630 mm |
Width b | 1,480 mm |
Depth t | 1,770 mm |
