APE Hydraulic Vibrators with Fixed Moment
Updated: 16.02.2024
6 images
Our series of small to large sized hydraulic vibrators is specially designed to drive and to extract trench sheets and sheet piles, H-piles, as well as small diameter steel pipes.
Our vibrators offer following special features:
- Patented multi-stage suppressor for maximum pulling force
- One piece eccentrics with heavy metal for maximum eccentric moment
- Giant spherical bearings are up to five times larger than any other vibrator
- Rifle bored top plate eliminates all hoses on suppressor
- Designed for easy, fast field service
- Computer designed gearbox with low center of gravity
- Completely sealed for underwater work
- One year warranty plus special programs for life long operation
- Center safety pin shows pile crew and crane operator how much line pull is on pile and crane
- Only vibrator on market with detachable suppressor housings to fit any height and weight requirements
Our line of standard hydraulic vibrators offers top performance at reasonable prices. All vibros can be equipped with turning plate, wood clamps and casing clamps. A wide range of hydraulic drills and impact hammers is also available.
Model | 50 | 100 | 150 | 200 | 200-6 | 300 | 400 | 600 | |
---|---|---|---|---|---|---|---|---|---|
Eccentric moment | kgm | 14.98 | 25.35 | 25.35 | 50.69 | 76.04 | 66.25 | 132.49 | 198.17 |
Centrifugal force | kN | 447 | 757 | 757 | 1,513 | 2,270 | 1,424 | 2,648 | 3,960 |
Frequency max. | rpm | 1,650 | 1,650 | 1,650 | 1,650 | 1,650 | 1,400 | 1,350 | 1,350 |
Line pull max. | kN | 98 | 400 | 961 | 1,183 | 1,646 | 1,334 | 2,082 | 3,123 |
Weight w/o clamp | kg | 2,064 | 2,676 | 3,778 | 5,788 | 8,573 | 8,845 | 14,320 | 21,999 |
Throat width | mm | 371 | 368 | 362 | 375 | 375 | 356 | 838 | 940 |
Length | mm | 1,454 | 1,572 | 2,254 | 2,642 | 3,556 | 2,794 | 3,581 | 4,572 |
Height w/o clamp | mm | 1,359 | 1,375 | 1,838 | 1,664 | 1,905 | 2,692 | 2,248 | 2,654 |

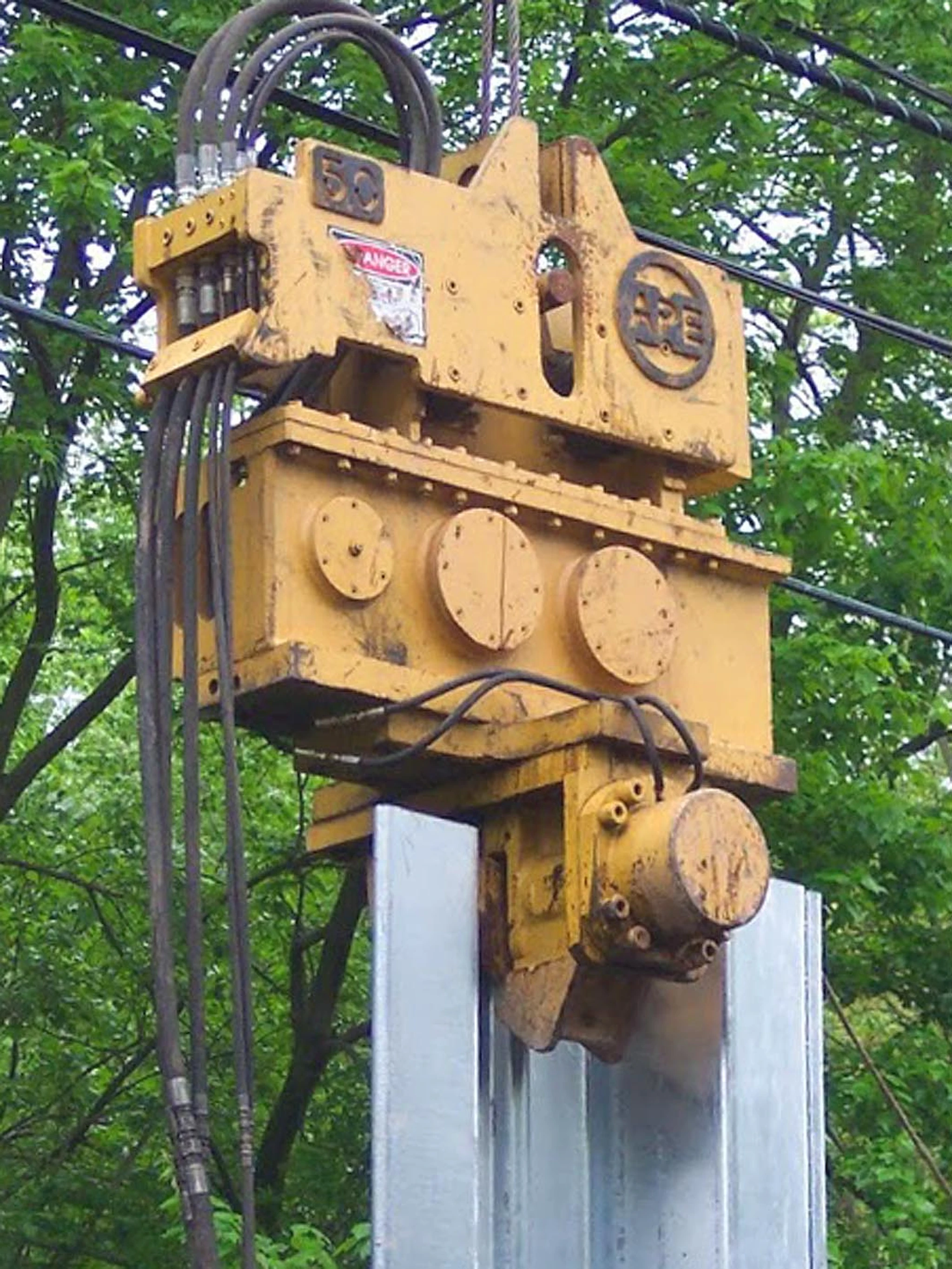

APE 50 | |
---|---|
Eccentric moment | 14.98 kgm |
Centrifugal force | 447 kN |
Frequency max. | 1,650 rpm |
Line pull max. | 98 kN |
Weight w/o clamp | 2,064 kg |
Throat width | 371 mm |
Length | 1,454 mm |
Height w/o clamp | 1,359 mm |
APE 100 | |
Eccentric moment | 25.35 kgm |
Centrifugal force | 757 kN |
Frequency max. | 1,650 rpm |
Line pull max. | 400 kN |
Weight w/o clamp | 2,676 kg |
Throat width | 368 mm |
Length | 1,572 mm |
Height w/o clamp | 1,375 mm |

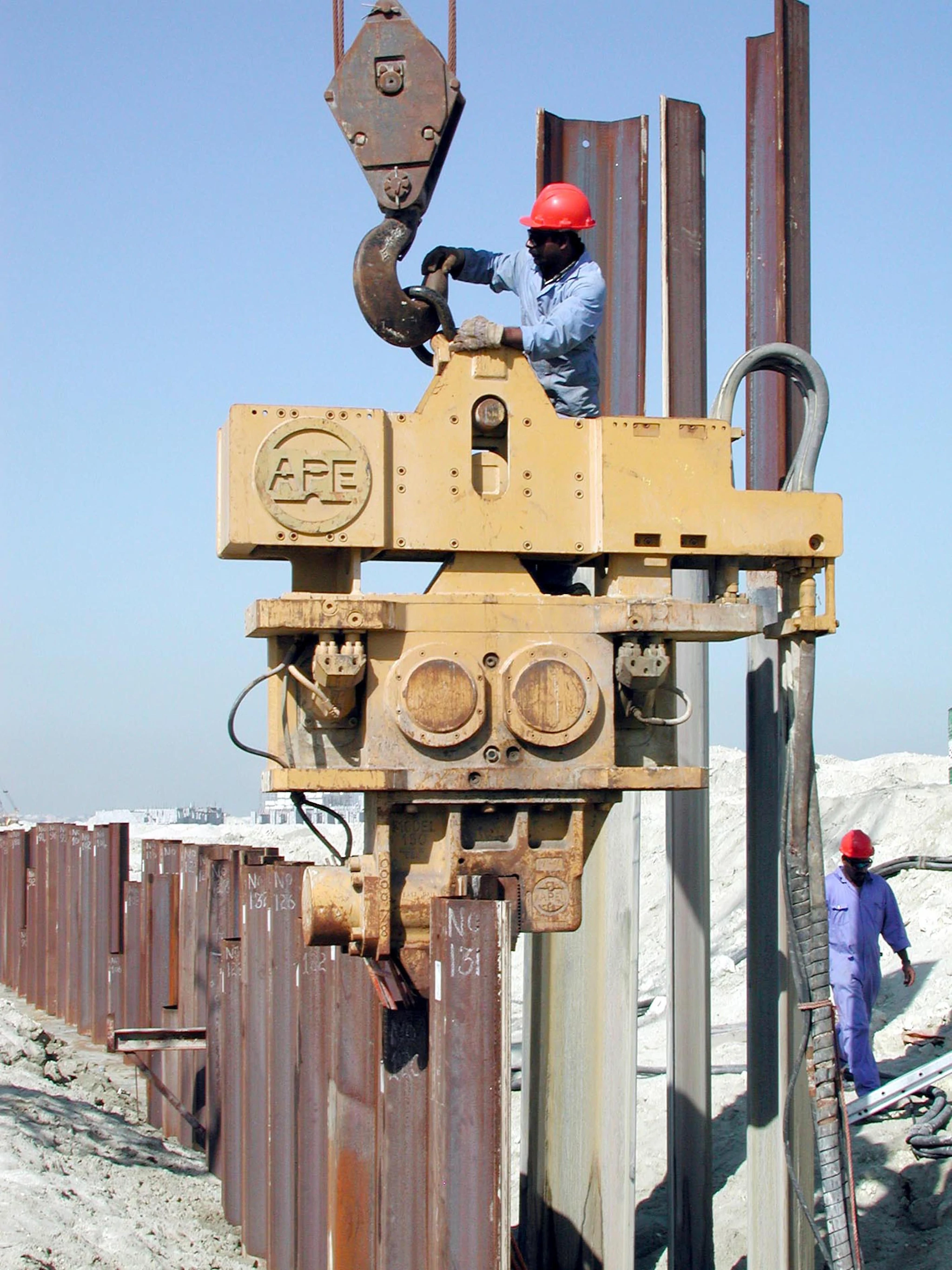

APE 150 | |
Eccentric moment | 25.35 kgm |
Centrifugal force | 757 kN |
Frequency max. | 1,650 rpm |
Line pull max. | 961 kN |
Weight w/o clamp | 3,778 kg |
Throat width | 362 mm |
Length | 2,254 mm |
Height w/o clamp | 1,838 mm |

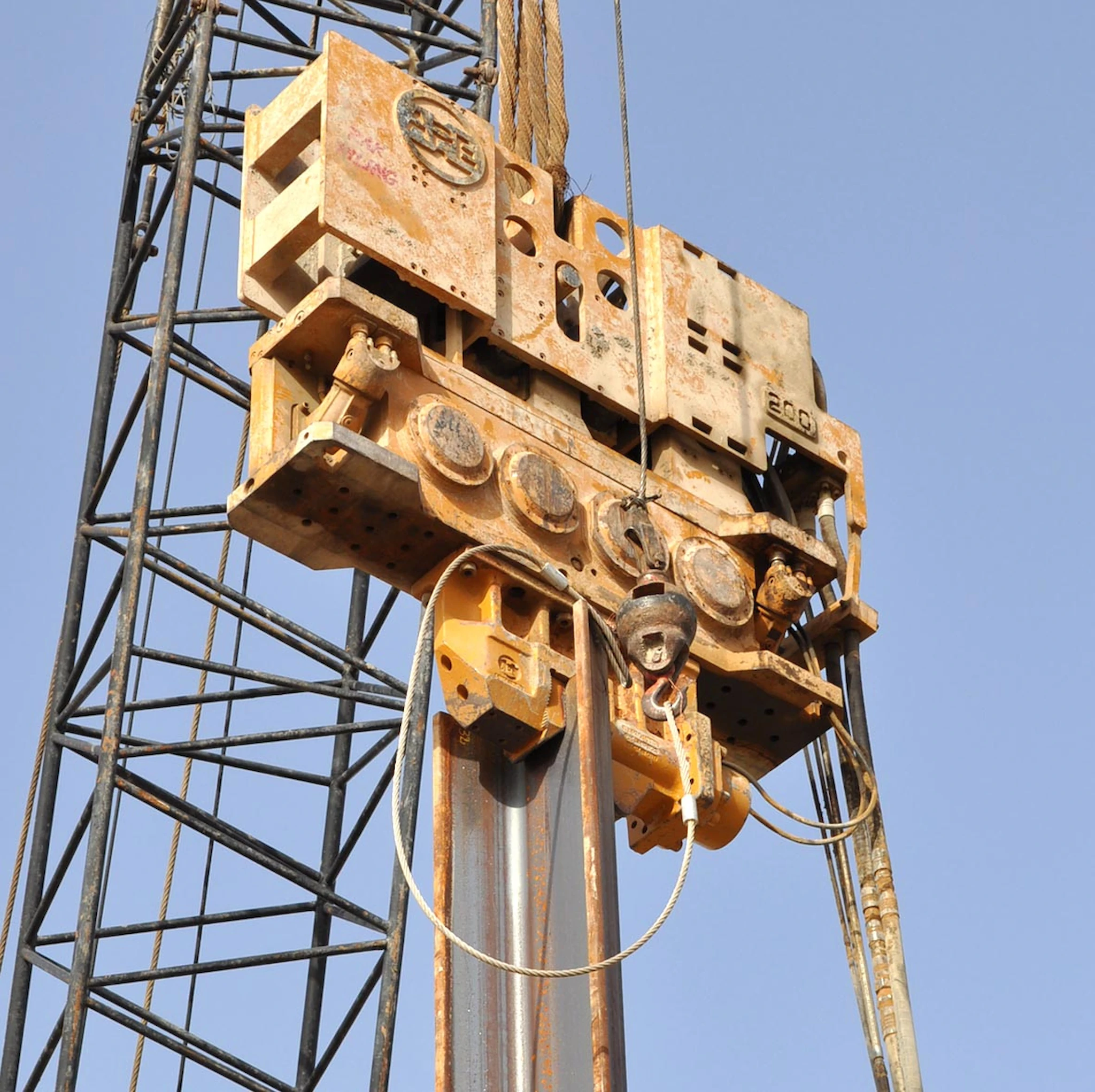

APE 200 | |
Eccentric moment | 50.69 kgm |
Centrifugal force | 1,513 kN |
Frequency max. | 1,650 rpm |
Line pull max. | 1,183 kN |
Weight w/o clamp | 5,788 kg |
Throat width | 375 mm |
Length | 2,642 mm |
Height w/o clamp | 1,664 mm |

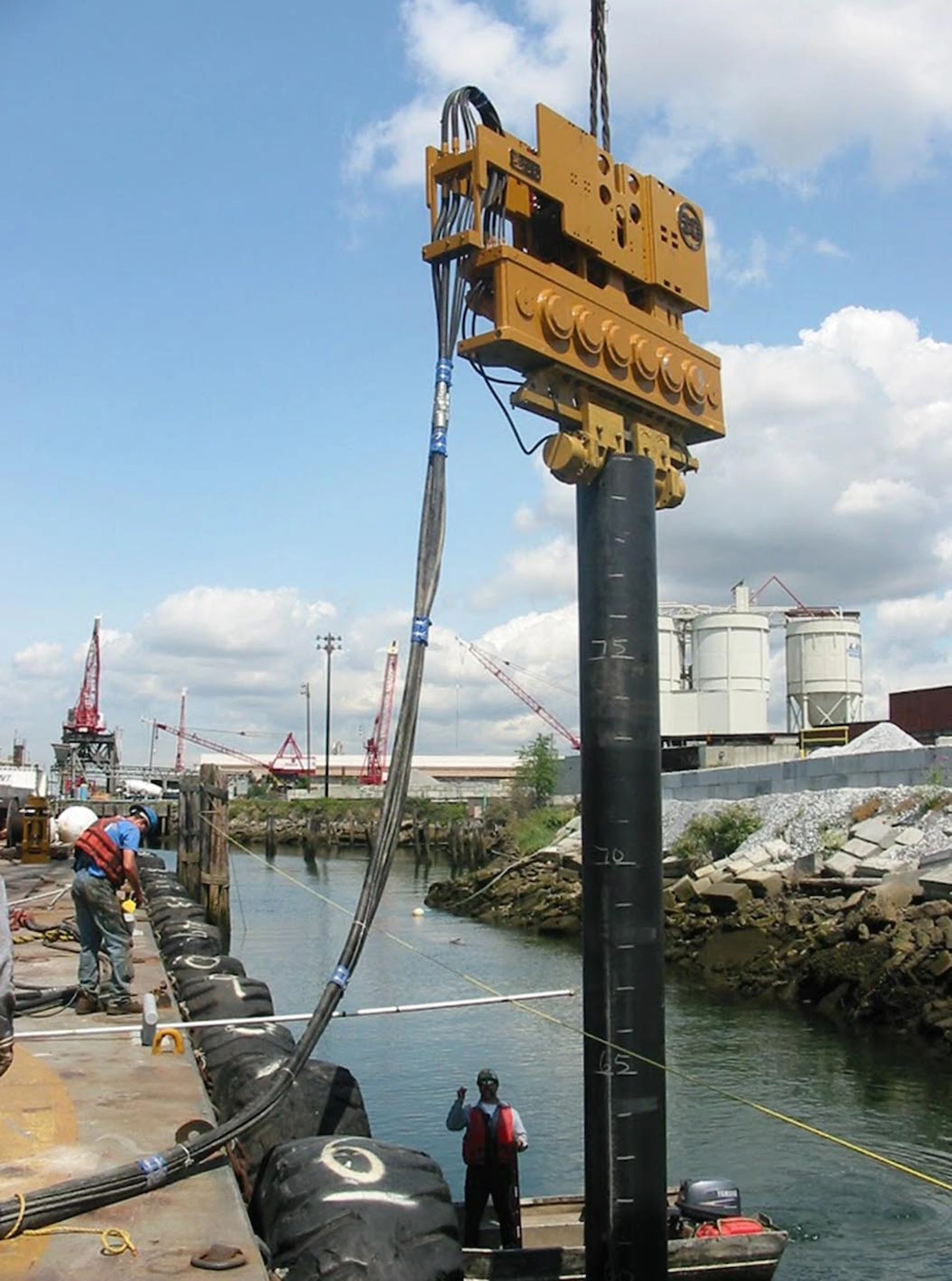

APE 200-6 | |
Eccentric moment | 76.04 kgm |
Centrifugal force | 2,270 kN |
Frequency max. | 1,650 rpm |
Line pull max. | 1,646 kN |
Weight w/o clamp | 8,573 kg |
Throat width | 375 mm |
Length | 3,556 mm |
Height w/o clamp | 1,905 mm |
APE 300 | |
Eccentric moment | 66.25 kgm |
Centrifugal force | 1,424 kN |
Frequency max. | 1,400 rpm |
Line pull max. | 1,334 kN |
Weight w/o clamp | 8,845 kg |
Throat width | 356 mm |
Length | 2,794 mm |
Height w/o clamp | 2,692 mm |
APE 400 | |
Eccentric moment | 132.49 kgm |
Centrifugal force | 2,648 kN |
Frequency max. | 1,350 rpm |
Line pull max. | 2,082 kN |
Weight w/o clamp | 14,320 kg |
Throat width | 838 mm |
Length | 3,581 mm |
Height w/o clamp | 2,248 mm |

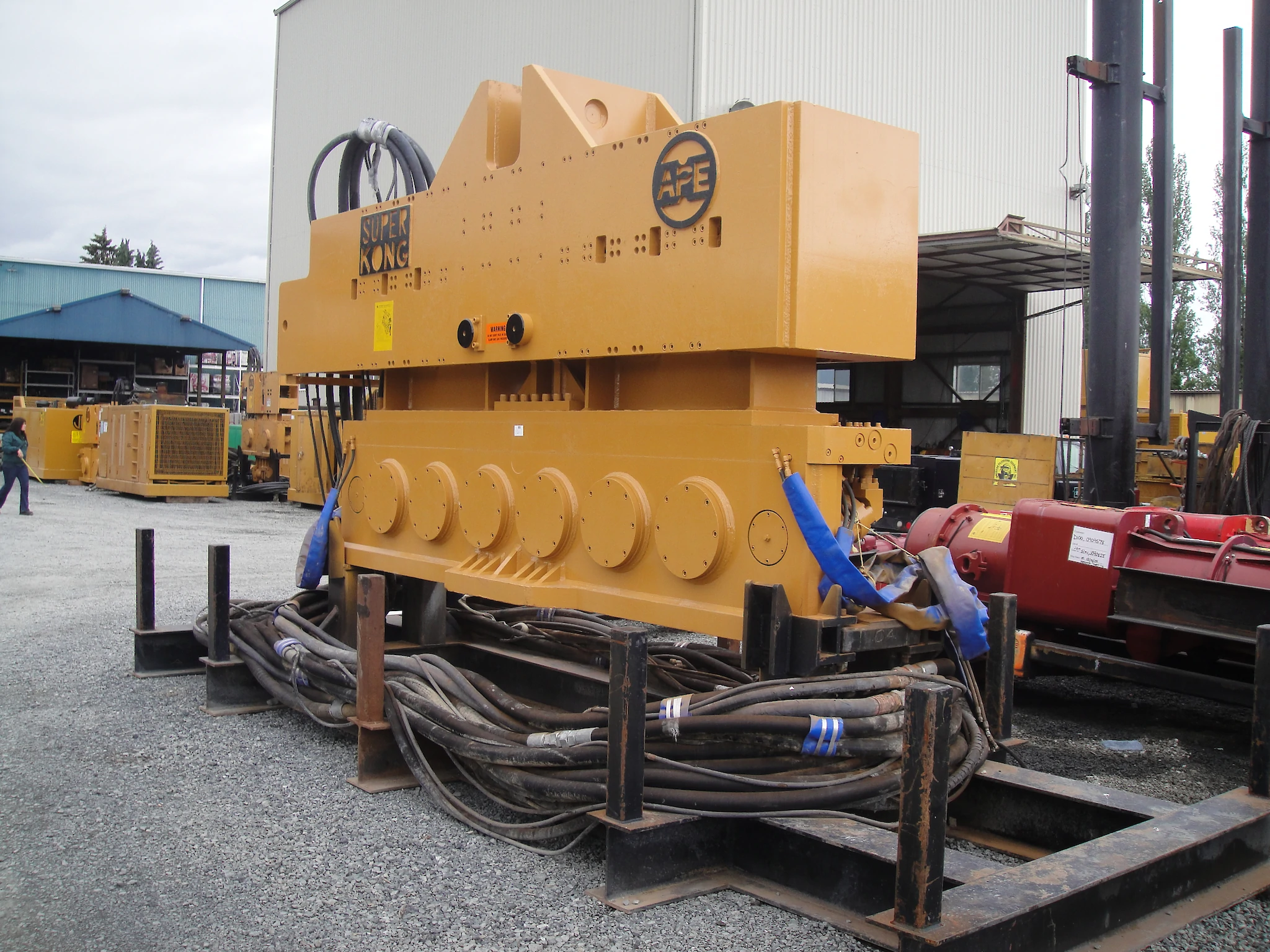

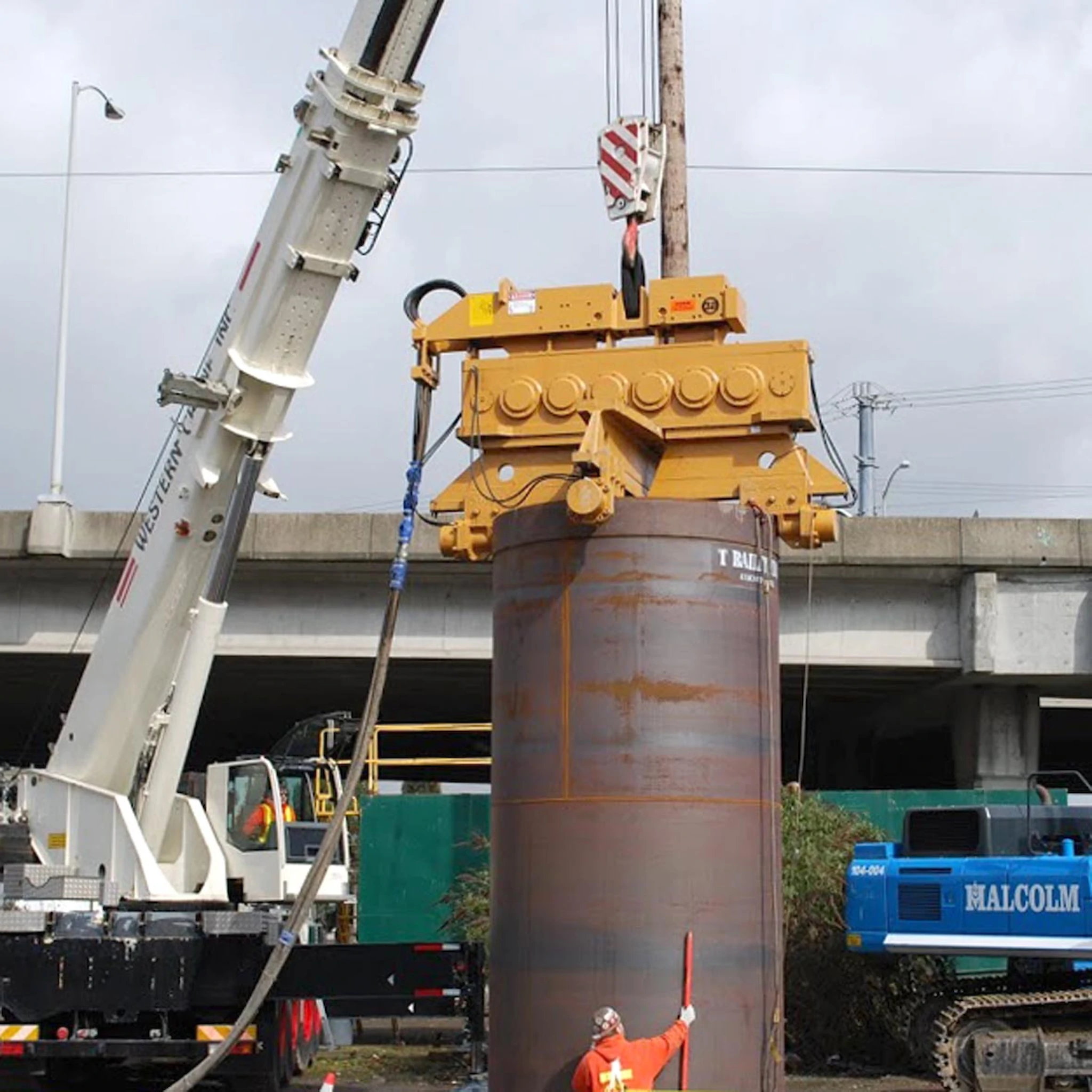

APE 600 | |
Eccentric moment | 198.17 kgm |
Centrifugal force | 3,960 kN |
Frequency max. | 1,350 rpm |
Line pull max. | 3,123 kN |
Weight w/o clamp | 21,999 kg |
Throat width | 940 mm |
Length | 4,572 mm |
Height w/o clamp | 2,654 mm |
