ABI RHP Leader Guided Auger Drives
1 image

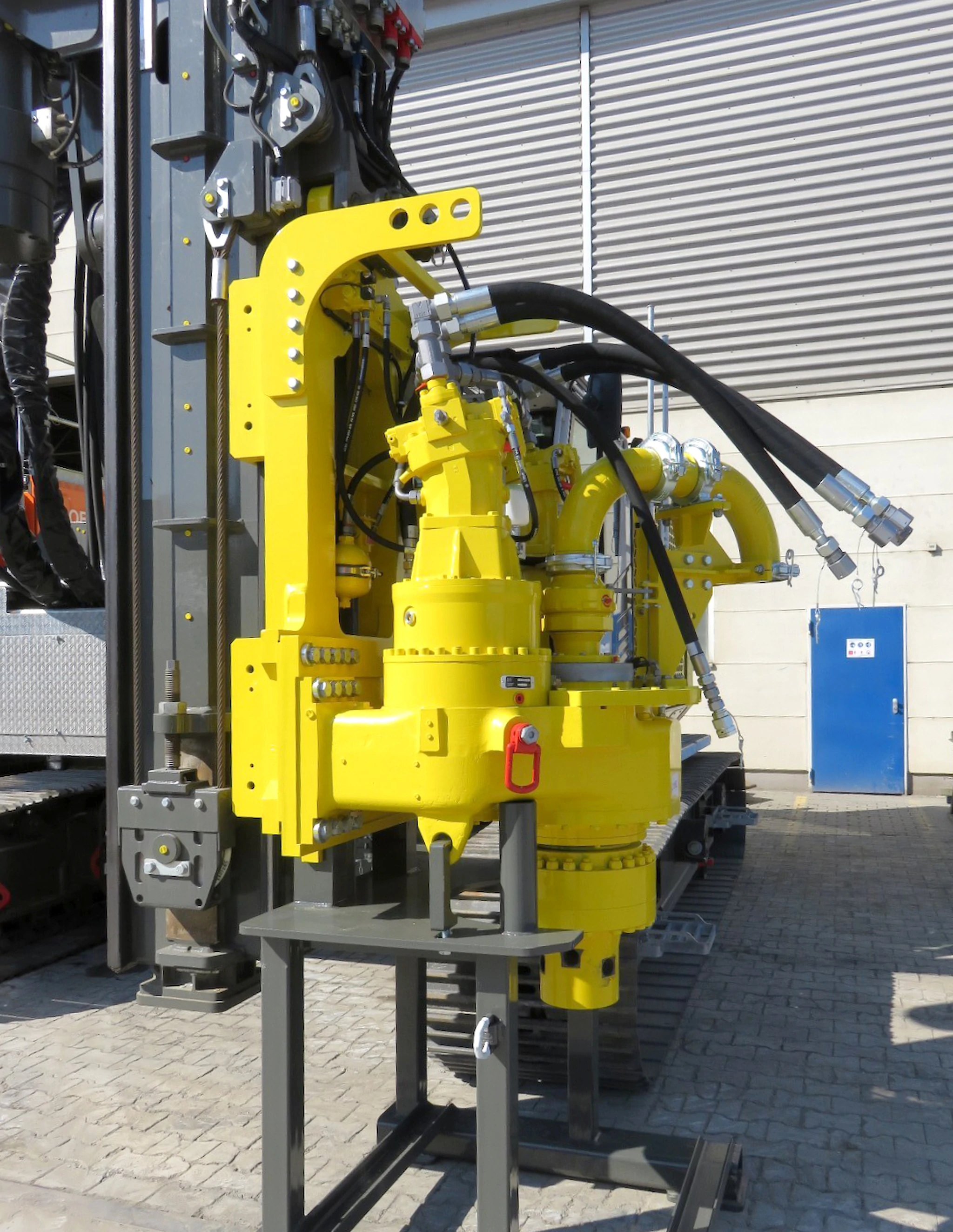

The RHP auger drives are high-torque top drives mainly for soil mixing with large diameter mixing tools and for full displacement piles. The equipment can be mounted to telescopic leaders with high torque acceptance such as TM22 and TM26 or to machines with fixed leader masts.

ModelRHP 150RHP 150SRHP 200
Docking-SystemD6D6D6
TorquekNm154 / 60179 / 41209 / 99
Revolutionsmin⁻¹28 / 7123 / 10020 / 43
Hydraulic flow ratel/min820820820
Required hydr. power at auger drivekW450450450
Static extraction force max.kN300300300
Nominal oil pressureMPa333333
Total weightkg3,2503,3503,250
Transport weightkg3,5503,6503,550
Concrete swivel (optional) Inner diametermmDN 125DN 125DN 125
Dimensions Xmm280280310
RHP 150
Docking-SystemD6
Torque154 / 60 kNm
Revolutions28 / 71 min⁻¹
Hydraulic flow rate820 l/min
Required hydr. power at auger drive450 kW
Static extraction force max.300 kN
Nominal oil pressure33 MPa
Total weight3,250 kg
Transport weight3,550 kg
Concrete swivel (optional) Inner diameterDN 125 mm
Dimensions X280 mm

RHP 150S
Docking-SystemD6
Torque179 / 41 kNm
Revolutions23 / 100 min⁻¹
Hydraulic flow rate820 l/min
Required hydr. power at auger drive450 kW
Static extraction force max.300 kN
Nominal oil pressure33 MPa
Total weight3,350 kg
Transport weight3,650 kg
Concrete swivel (optional) Inner diameterDN 125 mm
Dimensions X280 mm

RHP 200
Docking-SystemD6
Torque209 / 99 kNm
Revolutions20 / 43 min⁻¹
Hydraulic flow rate820 l/min
Required hydr. power at auger drive450 kW
Static extraction force max.300 kN
Nominal oil pressure33 MPa
Total weight3,250 kg
Transport weight3,550 kg
Concrete swivel (optional) Inner diameterDN 125 mm
Dimensions X310 mm
