Ductile Iron Piles
Description

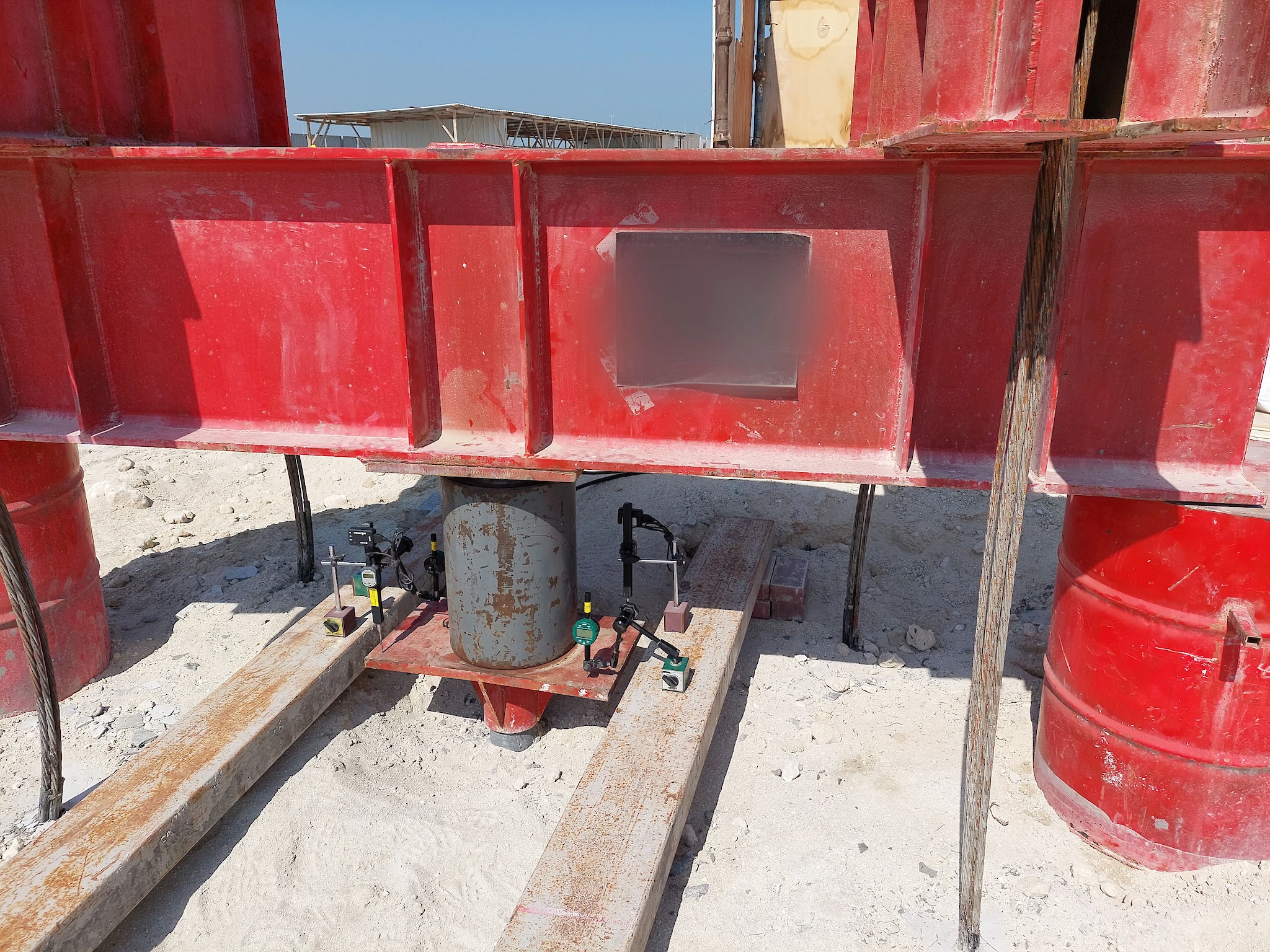

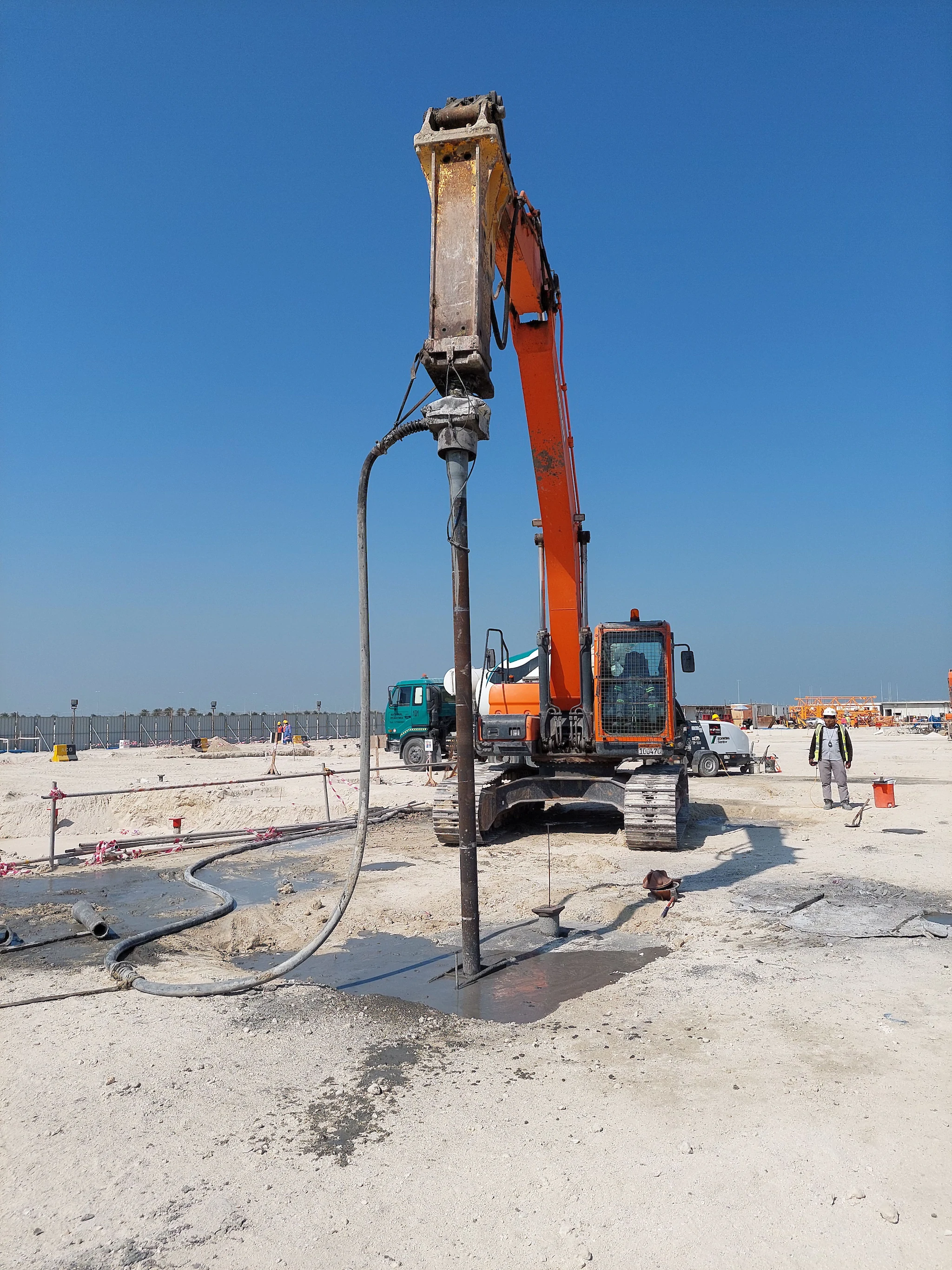

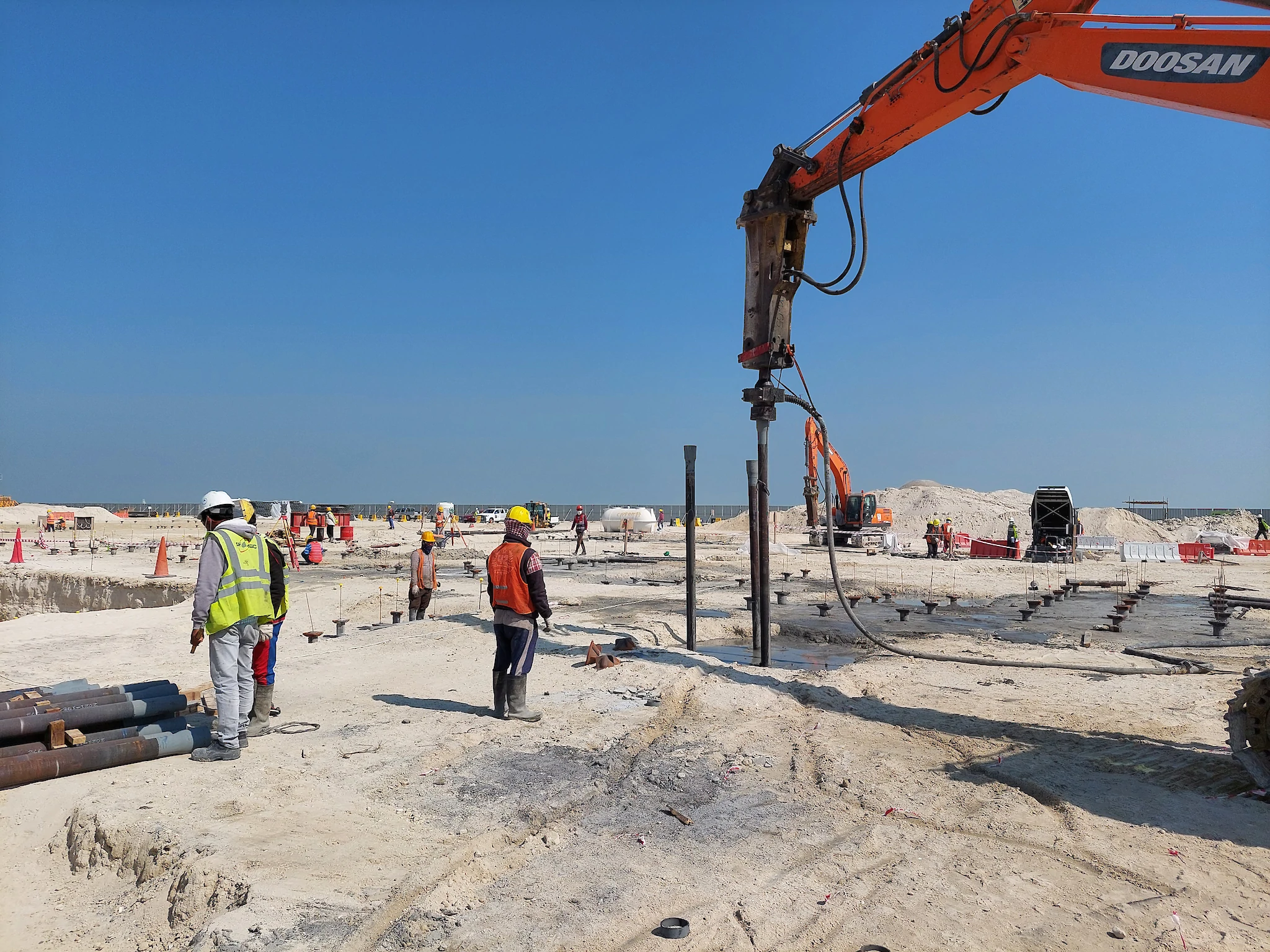

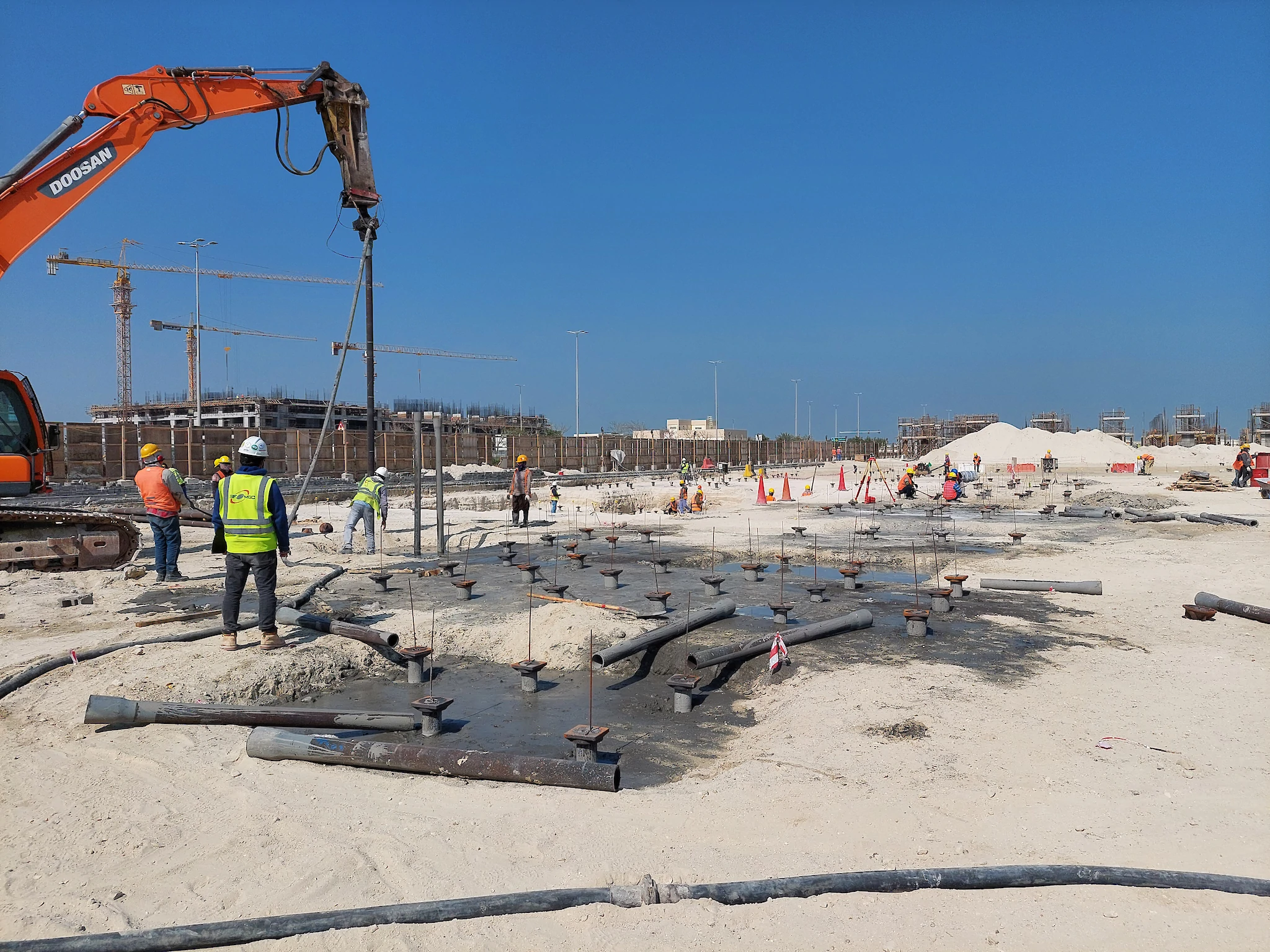

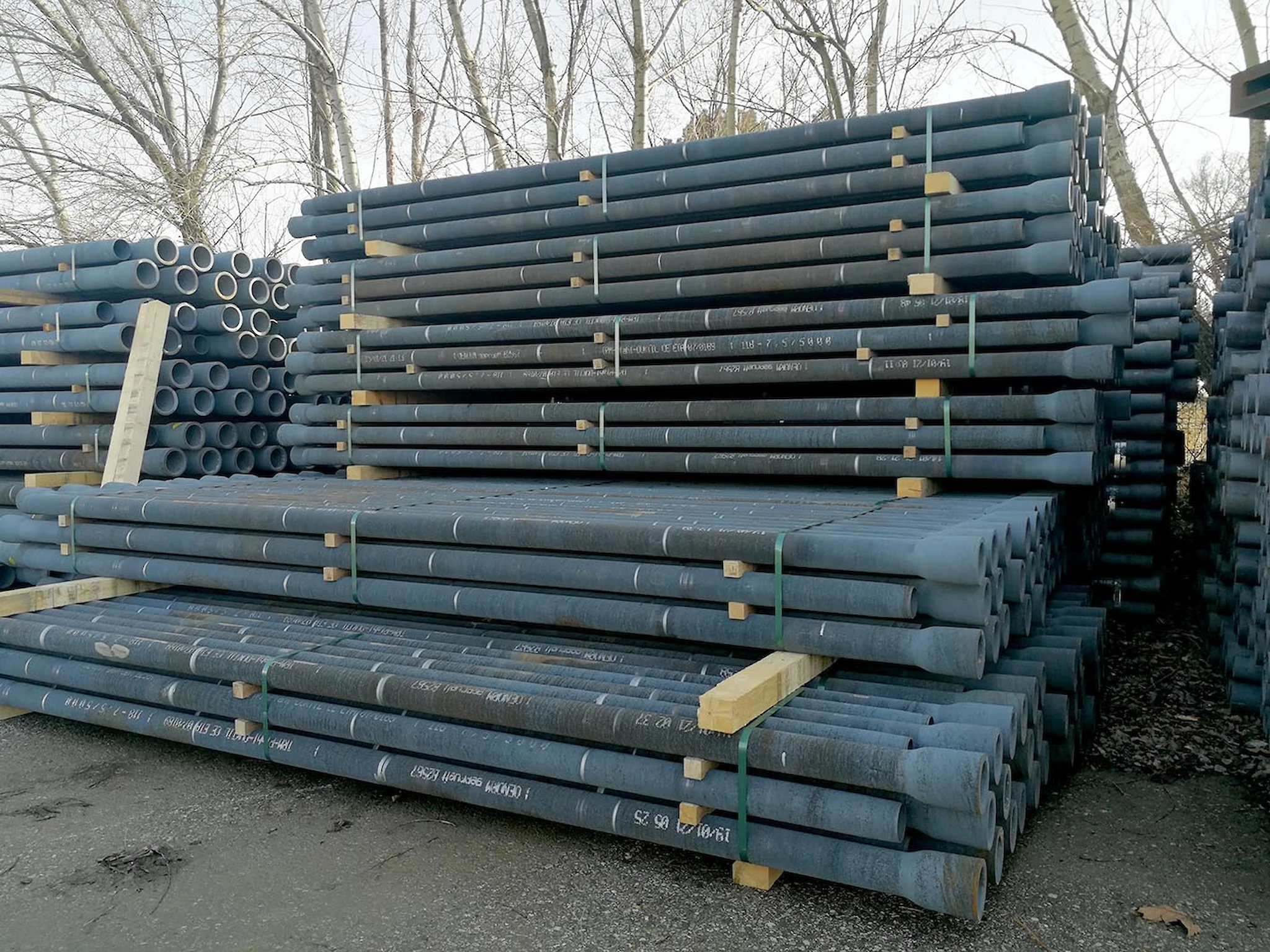

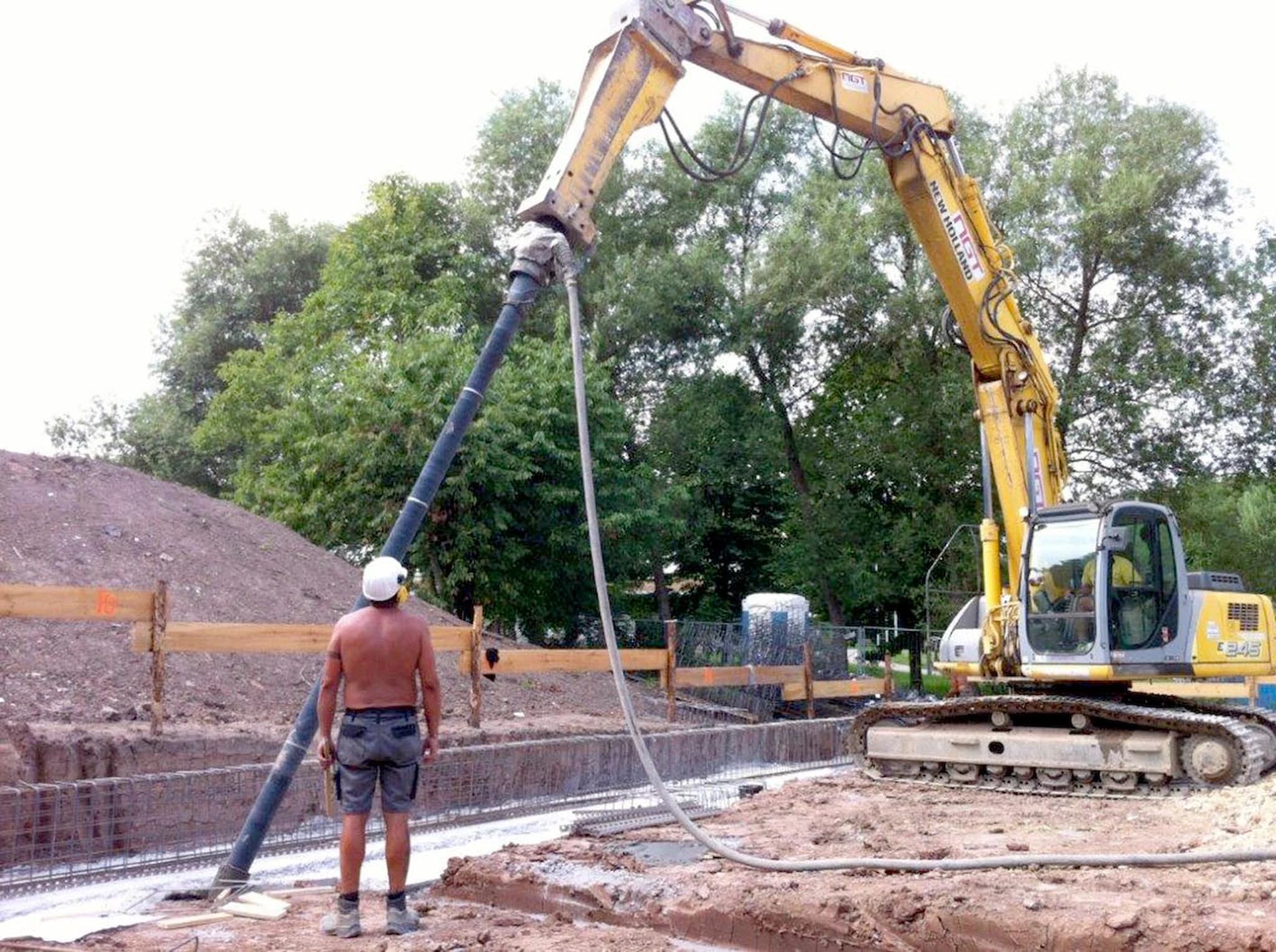

Ductile iron piles are made from cast iron GJS 450-10 in sections of 5.00 or 5.65 m working length (for container loading) and driven into the soil by an excavator with a suitable hydaulic hammer. Non-grouted end bearing piles are mainly for projects with a solid stratum while grouted piles are used where skin friction can be activated.
We offer the complete system including pile driving shoes for grouted and non-grouted piles as well as different adapters to connect the pile top to the hydraulic hammer.
Applications
- Foundation of buildings
- Foundation of prefabricated structures
- Bridge construction
- Slope stabilisation
- Uplift protection
- Underpinning foundations
- Retaining walls
- Tall structures (silos, transmission towers, etc)
Advantages

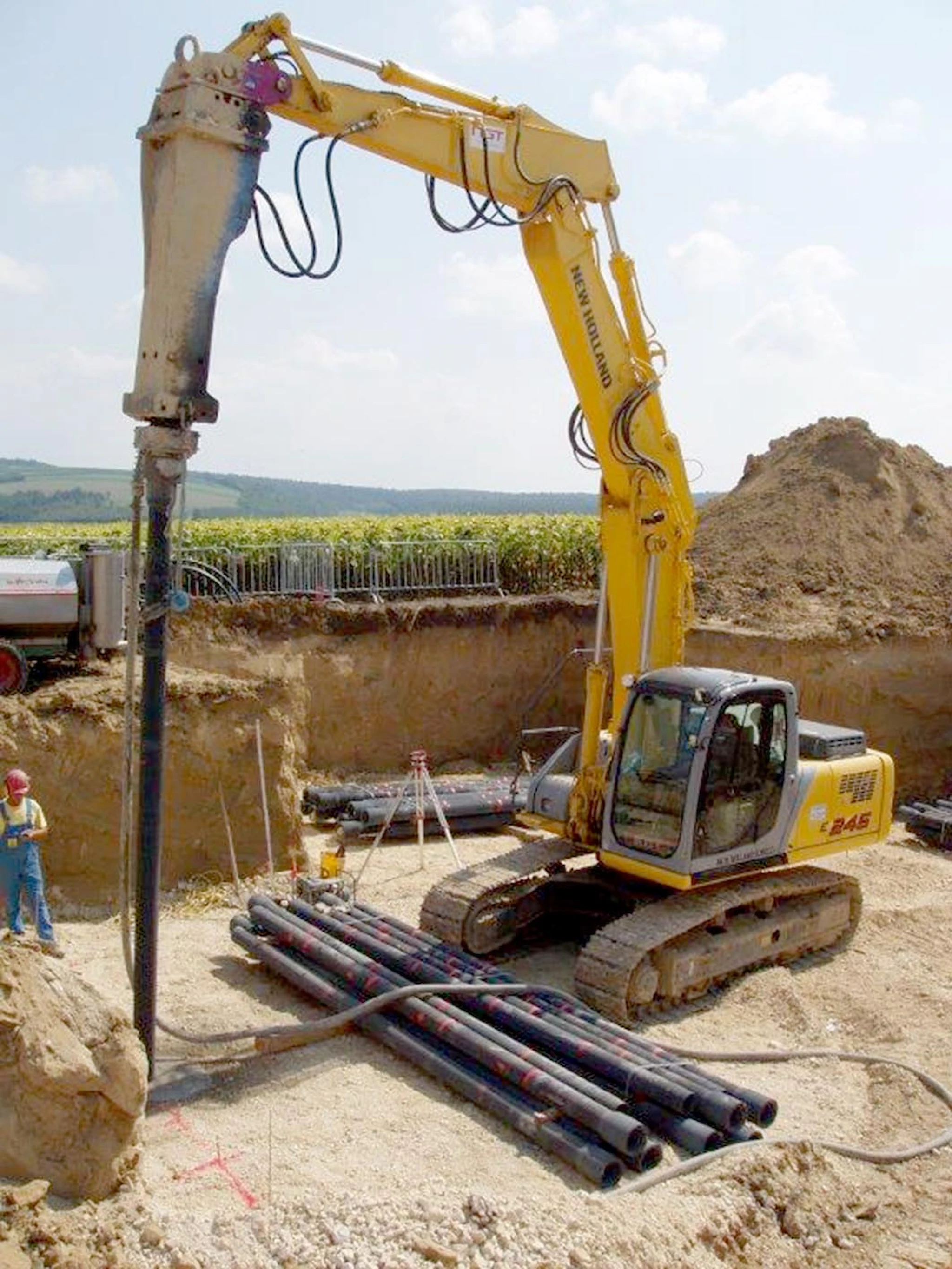

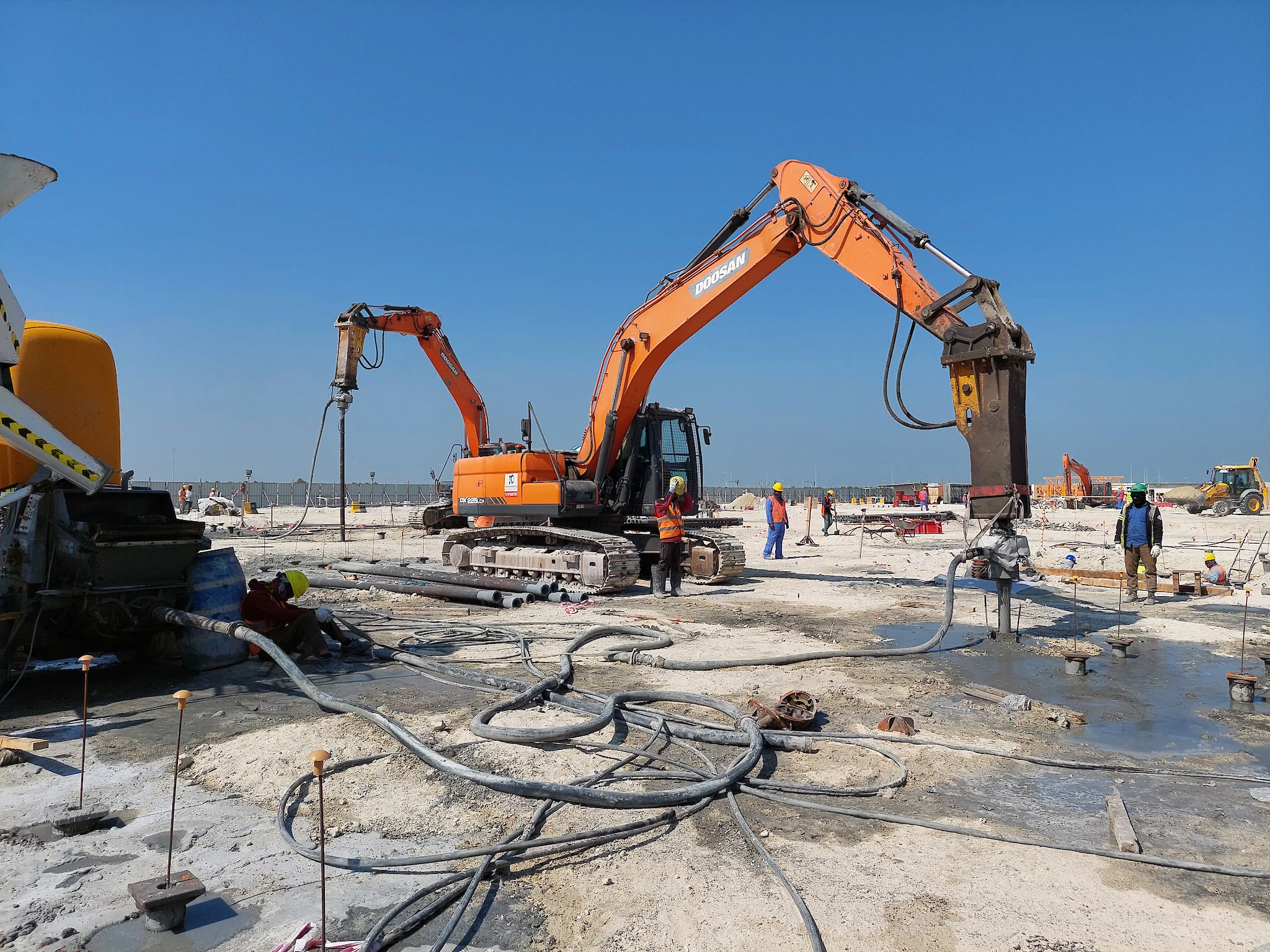

- Ductile iron piles can be driven by standard hydraulic excavators of 25 - 35 tons operating weight

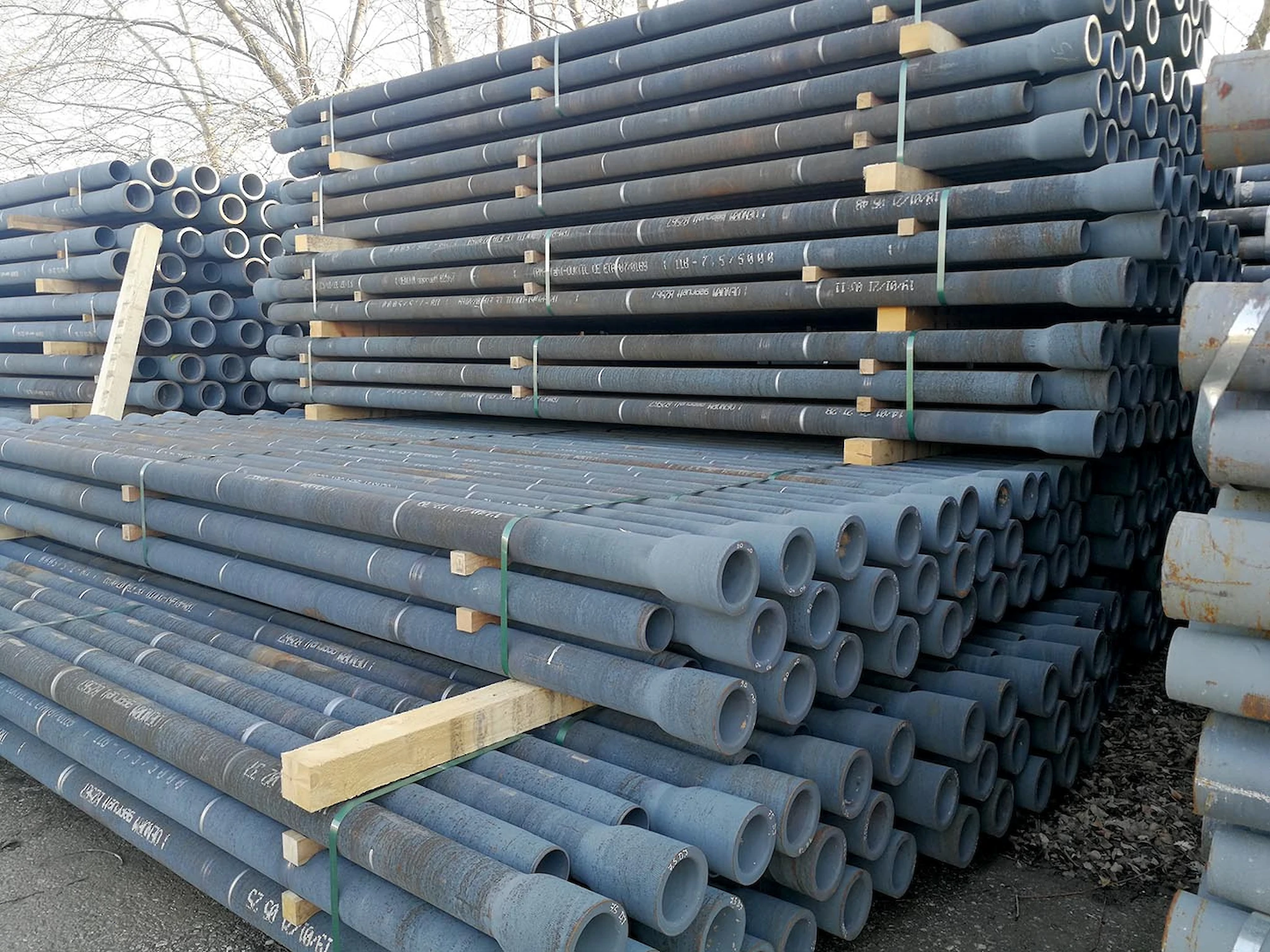

- The socket and spigot connection is fast, reliable and does not need any welding
- Therefore the pile length can easily be adjusted to meet different ground conditions and load requirements

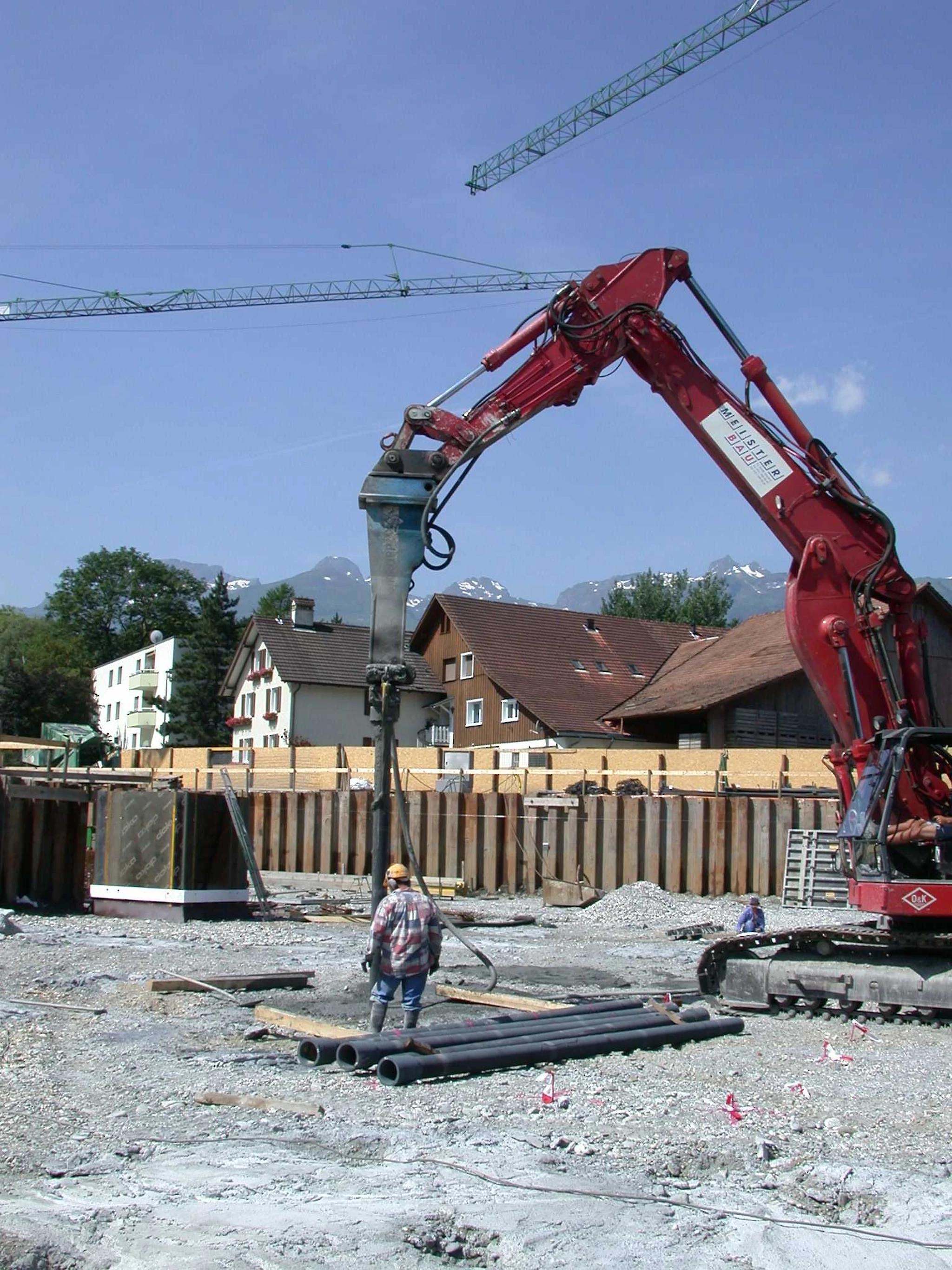

- Low vibration by the hydraulic hammer allows installation of piles close to existing structures
- Due to high carbon and silicon content ductile iron has higher corrosion resistence than steel
- Excellent driving performance make these piles a very economical foundation solution for many applications
| Model | 118/7.5 | 118/9.0 | 118/10.6 | 170/7.5 | 170/9.0 | 170/10.6 | 170/13.0 | |
|---|---|---|---|---|---|---|---|---|
| Outer diameter | mm | 118 | 118 | 118 | 170 | 170 | 170 | 170 |
| Wall thickness | mm | 7.5 | 9.0 | 10.6 | 7.5 | 9.0 | 10.6 | 13.0 |
| Weight | kg/m | 21.0 | 24.4 | 28.0 | 33.8 | 37.1 | 42.5 | 50.4 |
| Internal load bearing capacity | kN | 833 | 986 | 1,144 | 1,225 | 1,457 | 1,699 | 2,052 |
| Load bearing with concrete C20/25 | kN | 944 | 1,091 | 1,243 | 1,477 | 1,699 | 1,930 | 2,269 |
| 118/7.5 | |
|---|---|
| Outer diameter | 118 mm |
| Wall thickness | 7.5 mm |
| Weight | 21.0 kg/m |
| Internal load bearing capacity | 833 kN |
| Load bearing with concrete C20/25 | 944 kN |
| 118/9.0 | |
| Outer diameter | 118 mm |
| Wall thickness | 9.0 mm |
| Weight | 24.4 kg/m |
| Internal load bearing capacity | 986 kN |
| Load bearing with concrete C20/25 | 1,091 kN |
| 118/10.6 | |
| Outer diameter | 118 mm |
| Wall thickness | 10.6 mm |
| Weight | 28.0 kg/m |
| Internal load bearing capacity | 1,144 kN |
| Load bearing with concrete C20/25 | 1,243 kN |
| 170/7.5 | |
| Outer diameter | 170 mm |
| Wall thickness | 7.5 mm |
| Weight | 33.8 kg/m |
| Internal load bearing capacity | 1,225 kN |
| Load bearing with concrete C20/25 | 1,477 kN |
| 170/9.0 | |
| Outer diameter | 170 mm |
| Wall thickness | 9.0 mm |
| Weight | 37.1 kg/m |
| Internal load bearing capacity | 1,457 kN |
| Load bearing with concrete C20/25 | 1,699 kN |
| 170/10.6 | |
| Outer diameter | 170 mm |
| Wall thickness | 10.6 mm |
| Weight | 42.5 kg/m |
| Internal load bearing capacity | 1,699 kN |
| Load bearing with concrete C20/25 | 1,930 kN |
| 170/13.0 | |
| Outer diameter | 170 mm |
| Wall thickness | 13.0 mm |
| Weight | 50.4 kg/m |
| Internal load bearing capacity | 2,052 kN |
| Load bearing with concrete C20/25 | 2,269 kN |
The internal load bearing capacity is calculated according to the requirements in the EAD, section 2.2.1. The safety coefficient Ymo is set to 1 according to EN 1993-1-1. The load bearing capacity is calculated for the cross section, buckling is not taken into account.
