Hydraulic Drum Cutter
Updated: 13.02.2024
6 images

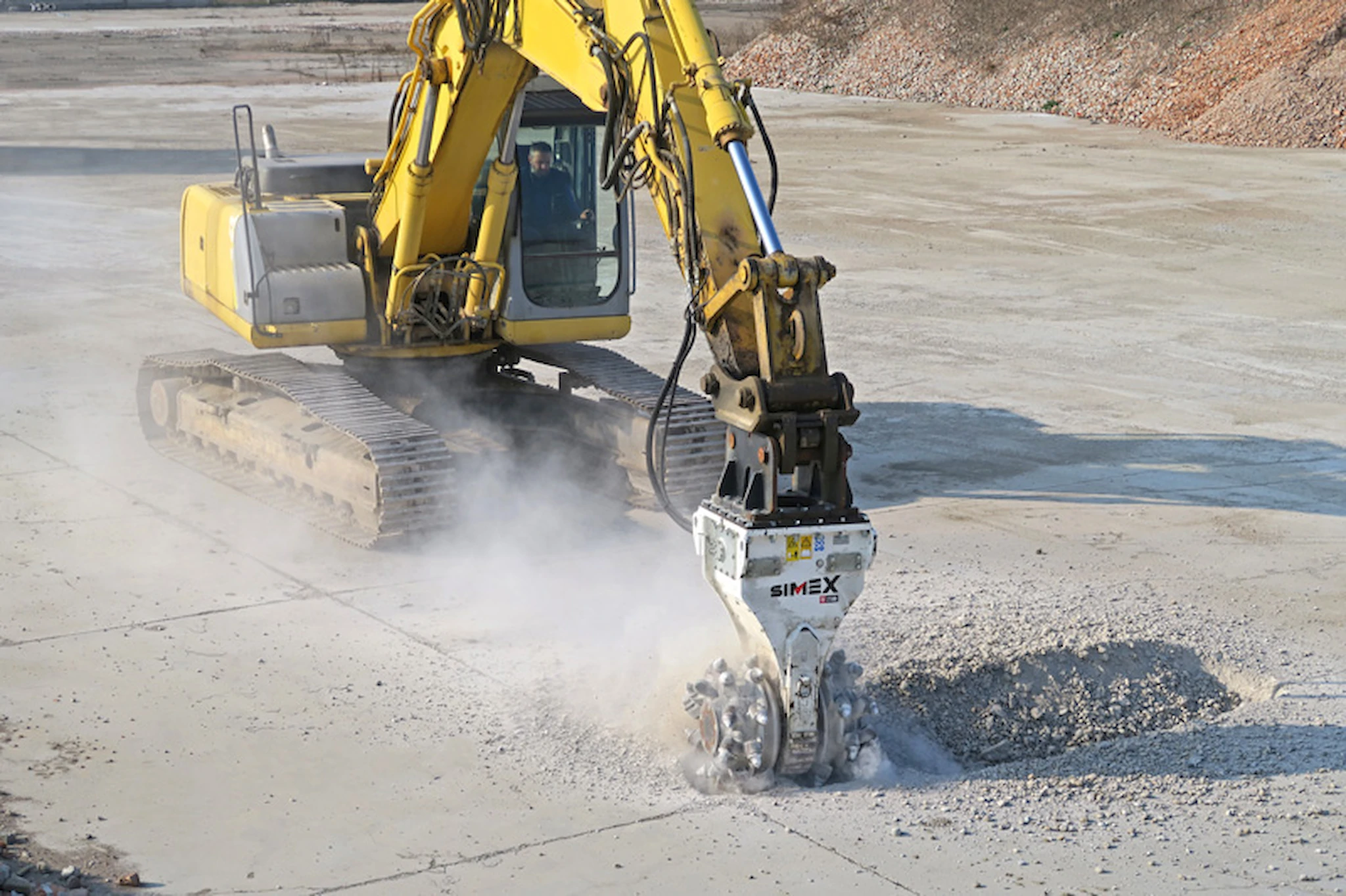

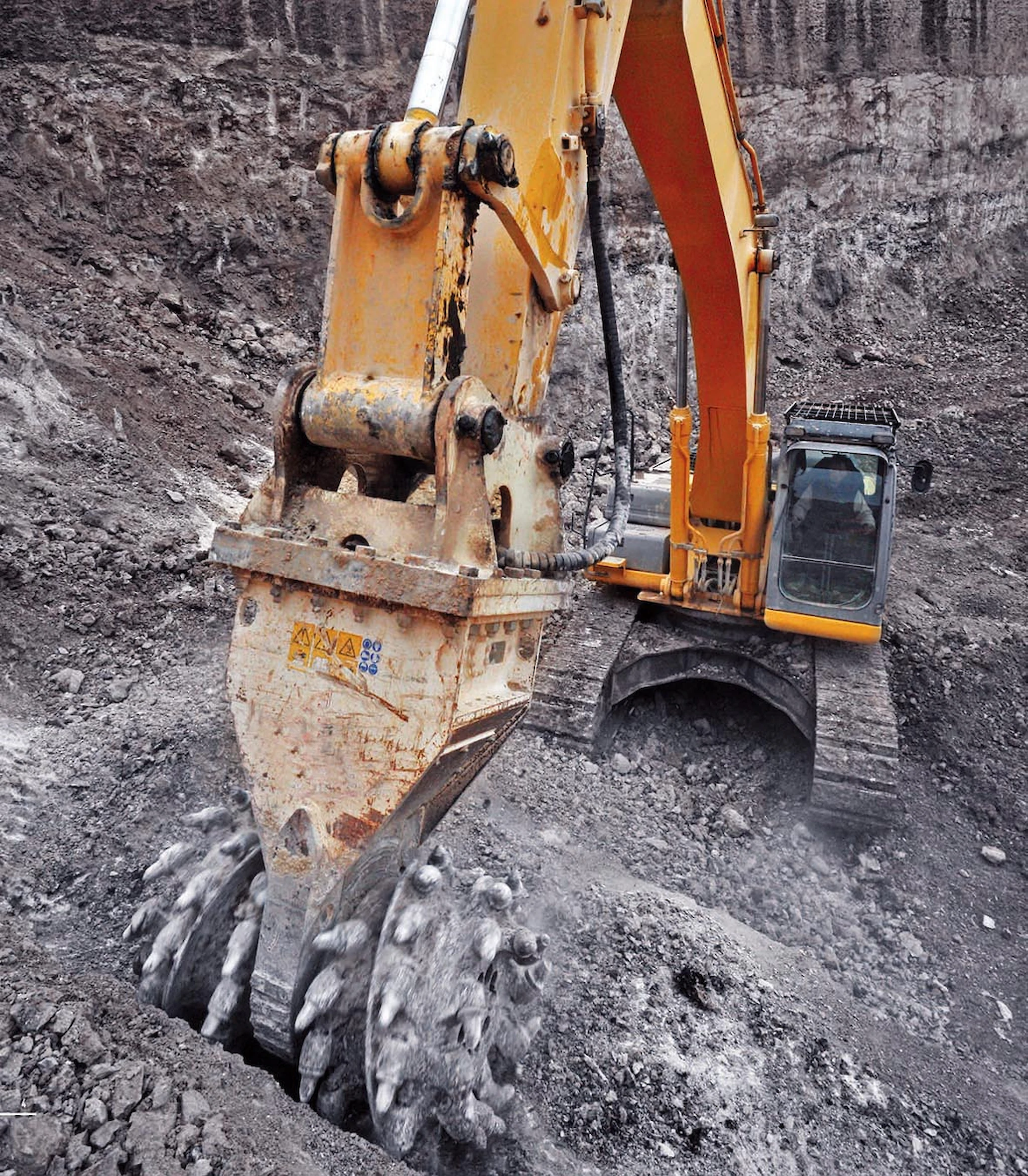

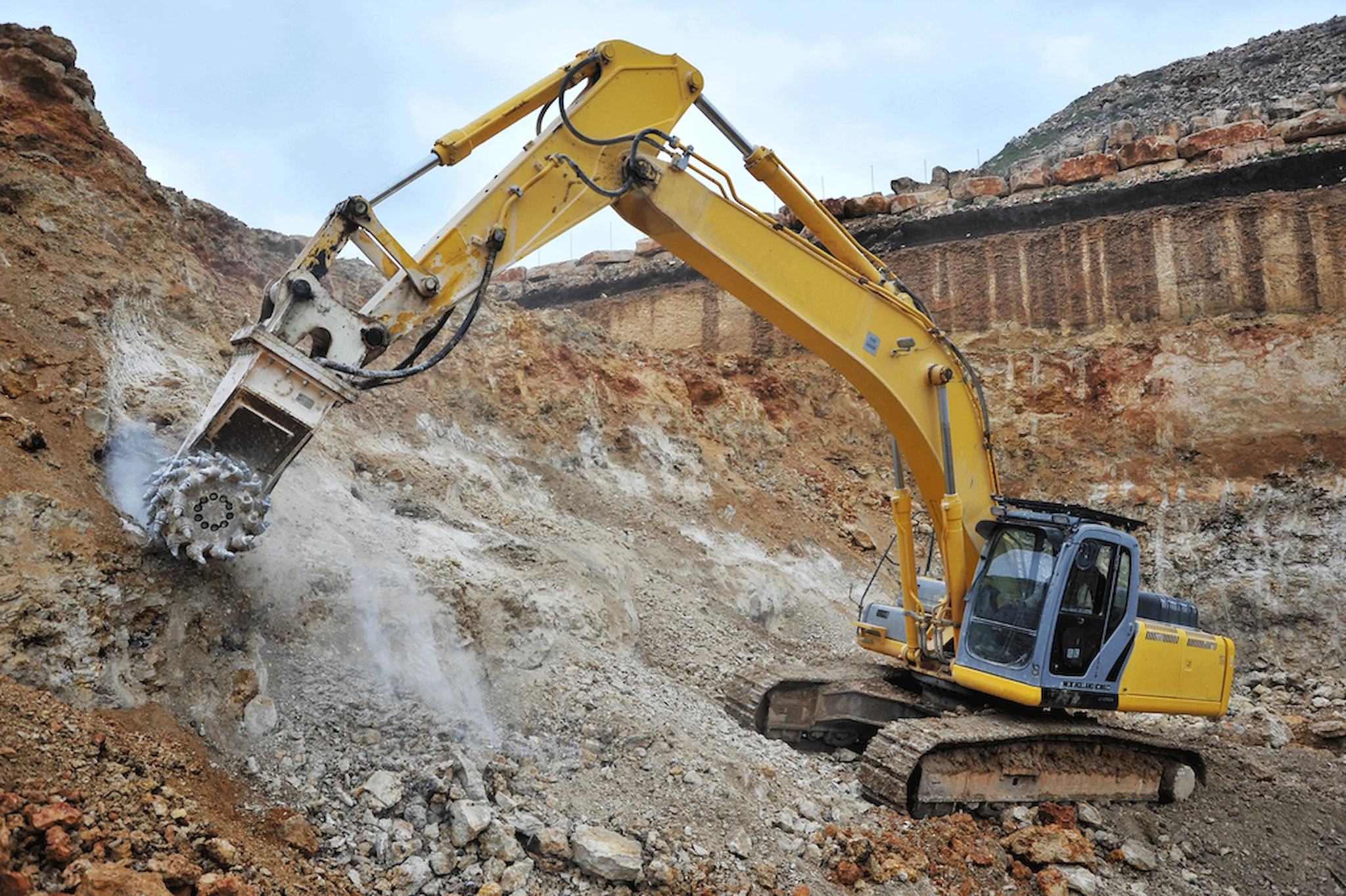

Simex TF cutter heads mounted to the boom stick of an hydraulic excavator are ideal for trenching, profiling rock and cement walls, tunneling, quarrying, demolition, dredging, finishing operations and underwater works. They are highly effective where conventional excavation systems are too weak and percussion systems have little effect. Their quiet operation allows them to be put to work near sensitive areas (residential zones, hospitals, schools, bridges and infrastructure).
Model | TF 650 | TF 850 | TF 1100 | TF 2100 | TF 2500 | TF 3100 | |
---|---|---|---|---|---|---|---|
Recommended excavator weight | t | 9 - 16 | 14 - 22 | 20 - 34 | 28 - 45 | 40 - 55 | 50 - 70 |
Weight without bracket | kg | 650 | 1,100 | 1,340 | 2,380 | 2,700 | 2,940 |
Nominal power | kW | 50 | 70 | 90 | 120 | 150 | 185 |
Rotation torque | kNm | 7.4 | 12.1 | 20 | 26.7 | 36.1 | 48 |
Cutting force | kN | 30.5 | 40.2 | 61 | 71 | 96.4 | 128 |
Pressure max. | bar | 350 | 400 | 400 | 400 | 400 | 400 |
Required oil flow | l/min | 90 - 150 | 140 - 190 | 170 - 250 | 240 - 340 | 280 - 400 | 350 - 500 |
Drum width (HP) A | mm | 700 | 800 | 865 | 965 | 1,000 | 1,270 |
Drum width (GP) A | mm | - | 890 | 1,000 | 1,100 | 1,150 | 1,350 |
Drum width (WP) A | mm | 850 | 920 | 1,200 | - | - | - |
HP drum diameter HP B | mm | 500 | 595 | 660 | 750 | 750 | 750 |
Height without bracket C | mm | 1,005 | 1,270 | 1,335 | 1,570 | 1,675 | 1,825 |
Drum distance D | mm | 135 | 180 | 190 | 250 | 250 | 330 |
Tooth holder diameter | mm | 22 | 38 / 30 | 38 / 30 | 38 / 30 | 38 / 30 | 38 / 30 |
TF 650 | |
---|---|
Recommended excavator weight | 9 - 16 t |
Weight without bracket | 650 kg |
Nominal power | 50 kW |
Rotation torque | 7.4 kNm |
Cutting force | 30.5 kN |
Pressure max. | 350 bar |
Required oil flow | 90 - 150 l/min |
Drum width (HP) A | 700 mm |
Drum width (GP) A | - mm |
Drum width (WP) A | 850 mm |
HP drum diameter HP B | 500 mm |
Height without bracket C | 1,005 mm |
Drum distance D | 135 mm |
Tooth holder diameter | 22 mm |

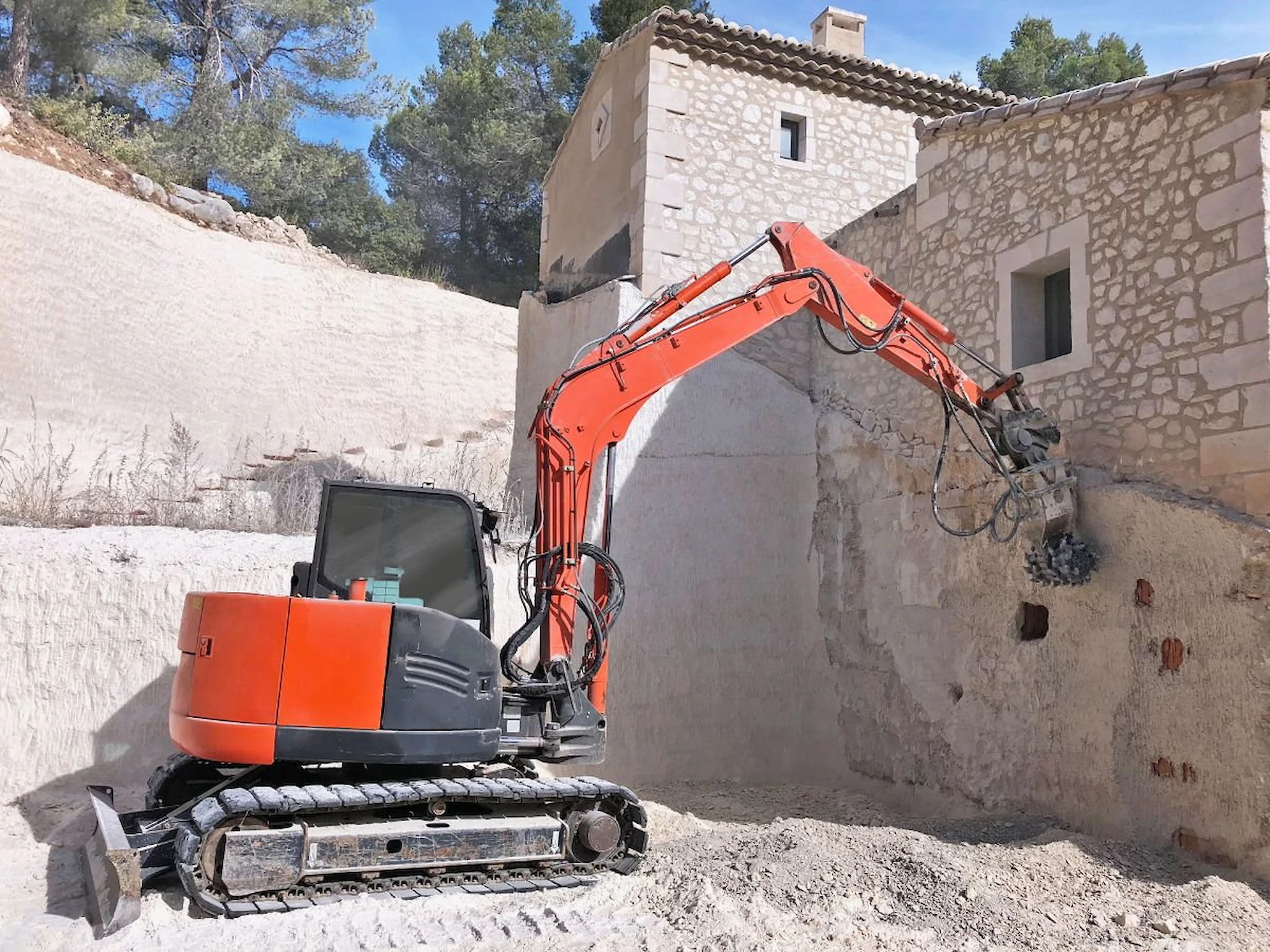

TF 850 | |
Recommended excavator weight | 14 - 22 t |
Weight without bracket | 1,100 kg |
Nominal power | 70 kW |
Rotation torque | 12.1 kNm |
Cutting force | 40.2 kN |
Pressure max. | 400 bar |
Required oil flow | 140 - 190 l/min |
Drum width (HP) A | 800 mm |
Drum width (GP) A | 890 mm |
Drum width (WP) A | 920 mm |
HP drum diameter HP B | 595 mm |
Height without bracket C | 1,270 mm |
Drum distance D | 180 mm |
Tooth holder diameter | 38 / 30 mm |

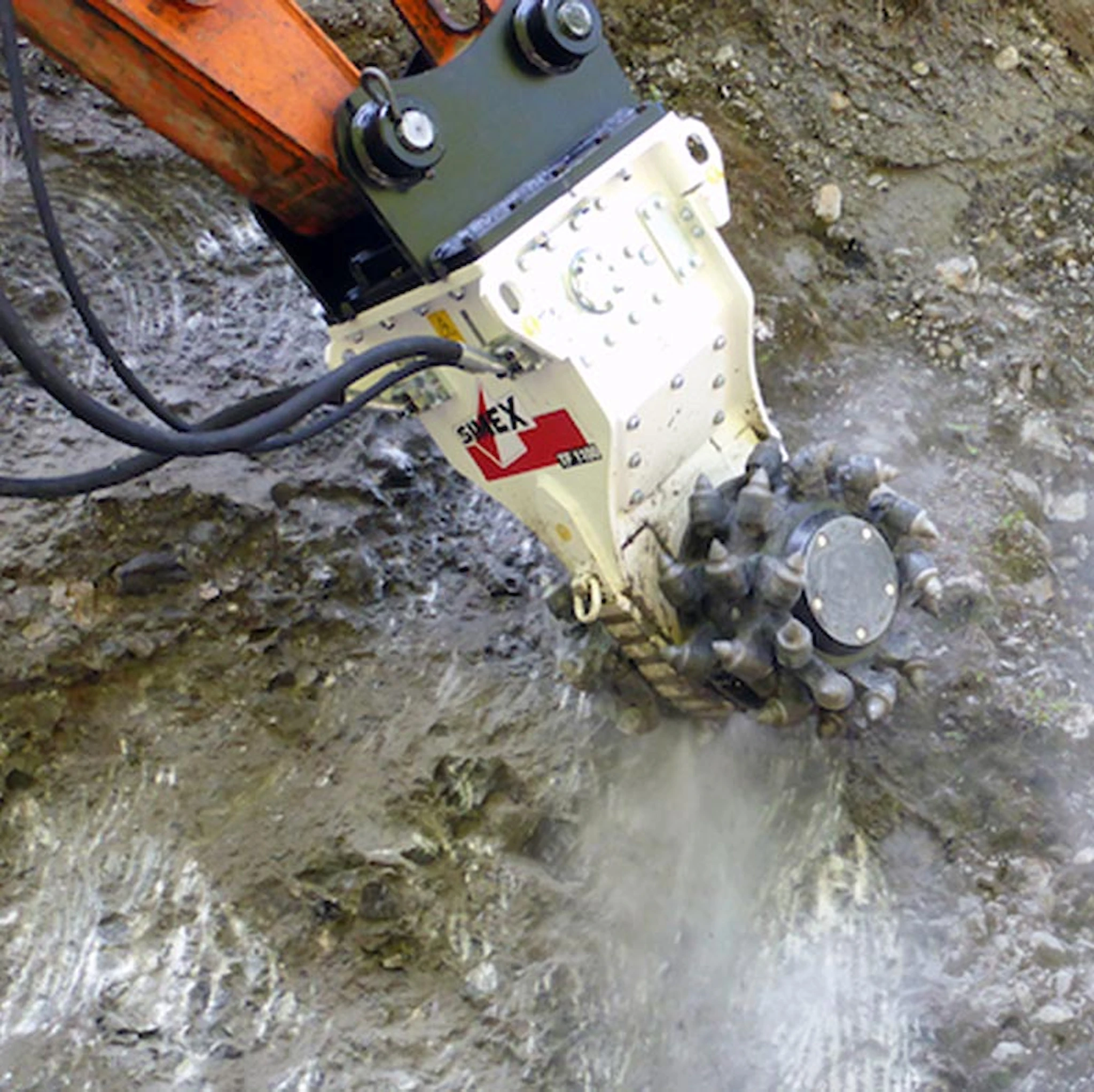

TF 1100 | |
Recommended excavator weight | 20 - 34 t |
Weight without bracket | 1,340 kg |
Nominal power | 90 kW |
Rotation torque | 20 kNm |
Cutting force | 61 kN |
Pressure max. | 400 bar |
Required oil flow | 170 - 250 l/min |
Drum width (HP) A | 865 mm |
Drum width (GP) A | 1,000 mm |
Drum width (WP) A | 1,200 mm |
HP drum diameter HP B | 660 mm |
Height without bracket C | 1,335 mm |
Drum distance D | 190 mm |
Tooth holder diameter | 38 / 30 mm |

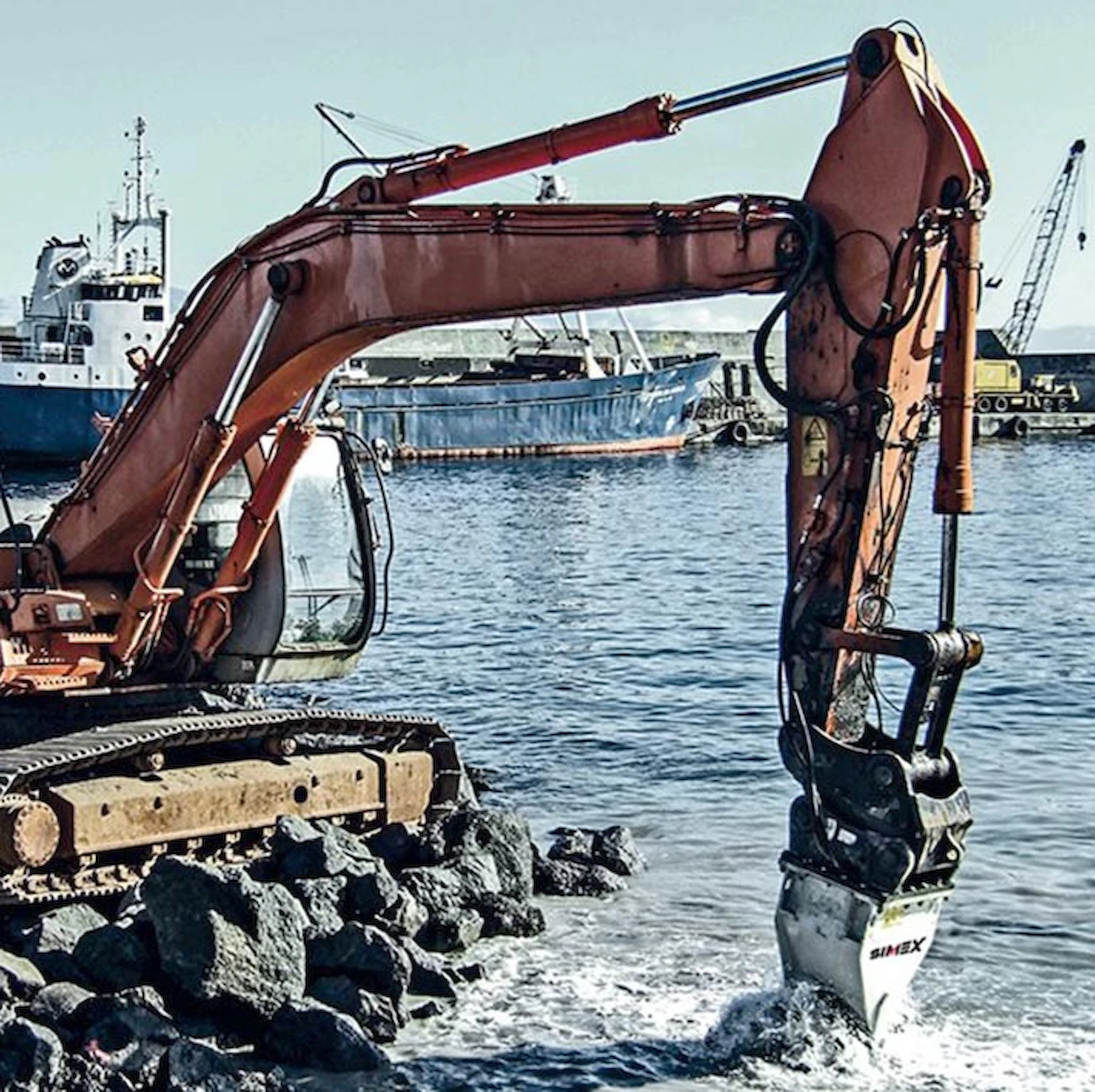

TF 2100 | |
Recommended excavator weight | 28 - 45 t |
Weight without bracket | 2,380 kg |
Nominal power | 120 kW |
Rotation torque | 26.7 kNm |
Cutting force | 71 kN |
Pressure max. | 400 bar |
Required oil flow | 240 - 340 l/min |
Drum width (HP) A | 965 mm |
Drum width (GP) A | 1,100 mm |
Drum width (WP) A | - mm |
HP drum diameter HP B | 750 mm |
Height without bracket C | 1,570 mm |
Drum distance D | 250 mm |
Tooth holder diameter | 38 / 30 mm |
TF 2500 | |
Recommended excavator weight | 40 - 55 t |
Weight without bracket | 2,700 kg |
Nominal power | 150 kW |
Rotation torque | 36.1 kNm |
Cutting force | 96.4 kN |
Pressure max. | 400 bar |
Required oil flow | 280 - 400 l/min |
Drum width (HP) A | 1,000 mm |
Drum width (GP) A | 1,150 mm |
Drum width (WP) A | - mm |
HP drum diameter HP B | 750 mm |
Height without bracket C | 1,675 mm |
Drum distance D | 250 mm |
Tooth holder diameter | 38 / 30 mm |
TF 3100 | |
Recommended excavator weight | 50 - 70 t |
Weight without bracket | 2,940 kg |
Nominal power | 185 kW |
Rotation torque | 48 kNm |
Cutting force | 128 kN |
Pressure max. | 400 bar |
Required oil flow | 350 - 500 l/min |
Drum width (HP) A | 1,270 mm |
Drum width (GP) A | 1,350 mm |
Drum width (WP) A | - mm |
HP drum diameter HP B | 750 mm |
Height without bracket C | 1,825 mm |
Drum distance D | 330 mm |
Tooth holder diameter | 38 / 30 mm |
