Hydraulic Pile Breakers
Updated: 13.02.2024
3 images

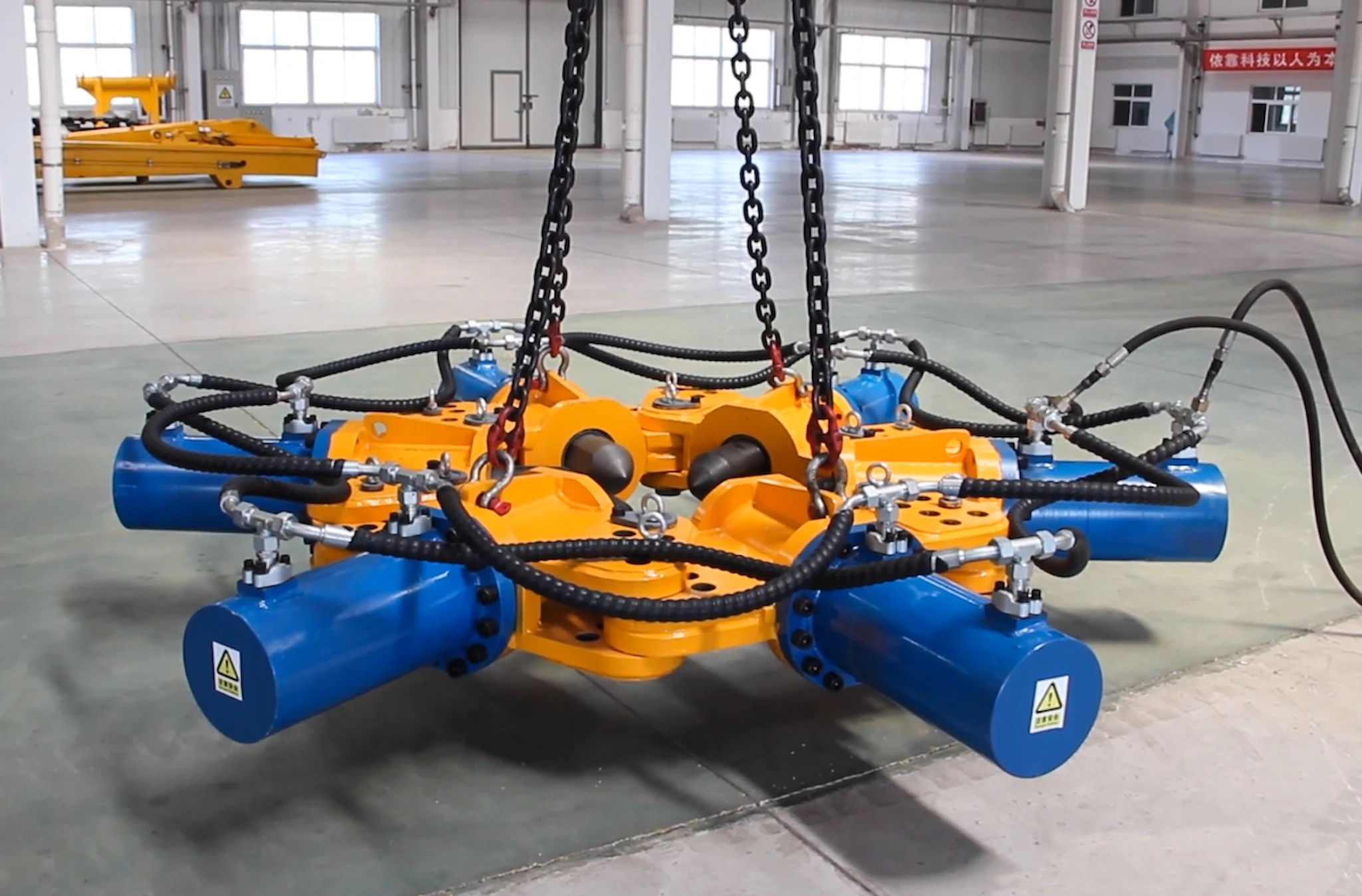

Our new series of hydraulic pile breakers for circular piles offer following advantages:
- Up to ten times faster than conventional methods and up to 80 piles per day.
- Very compact dimensions
- Low cut-off level
- Easy to operate
- No noise, no vibrations
- No cracks below cut level
- The reinforcement remains fully undamaged and intact
- Leaves a perfect horizontal concrete fracture
- Excellent service and spare parts availability
- Quick diameter adjustment
Working procedure:

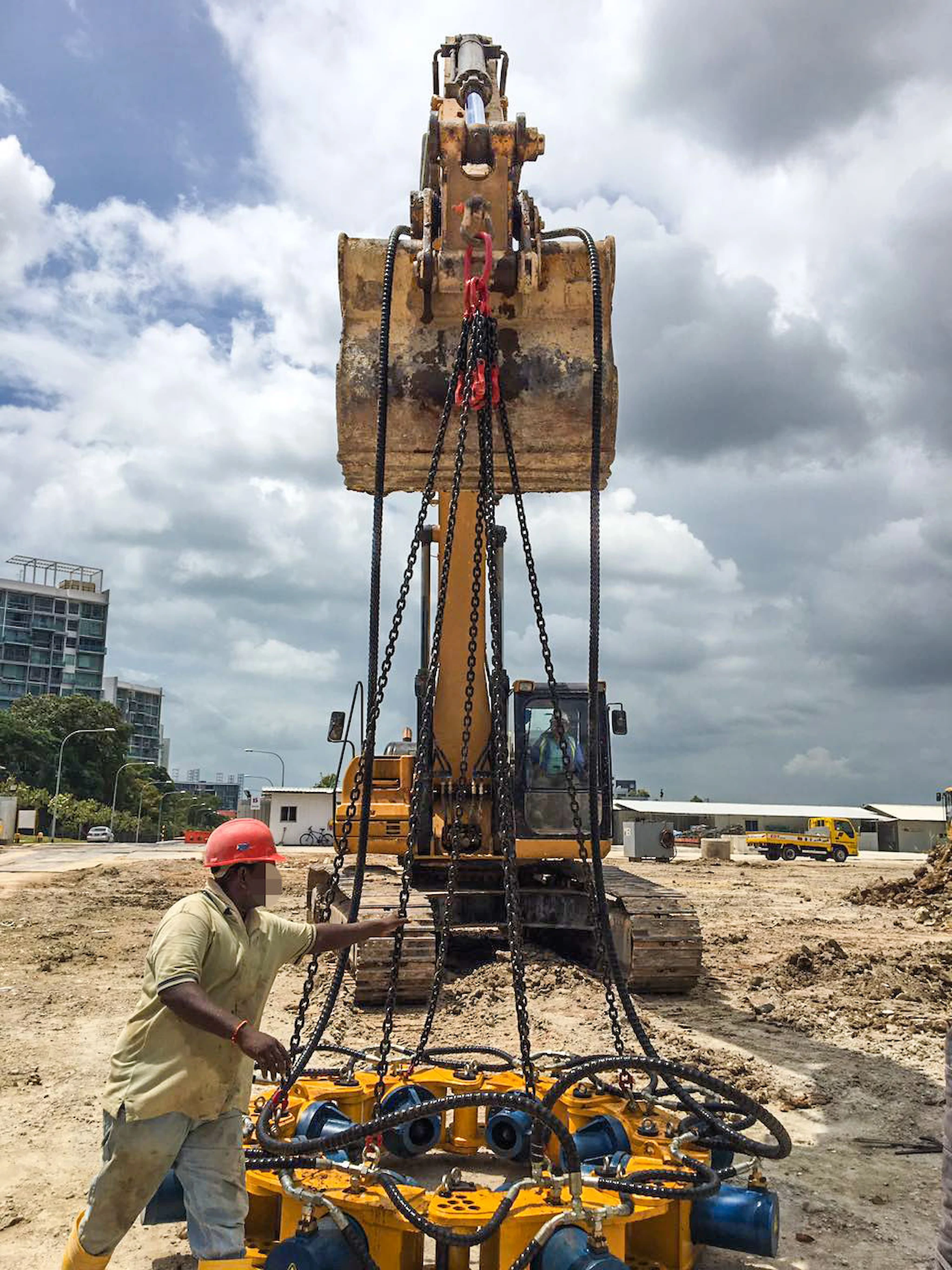

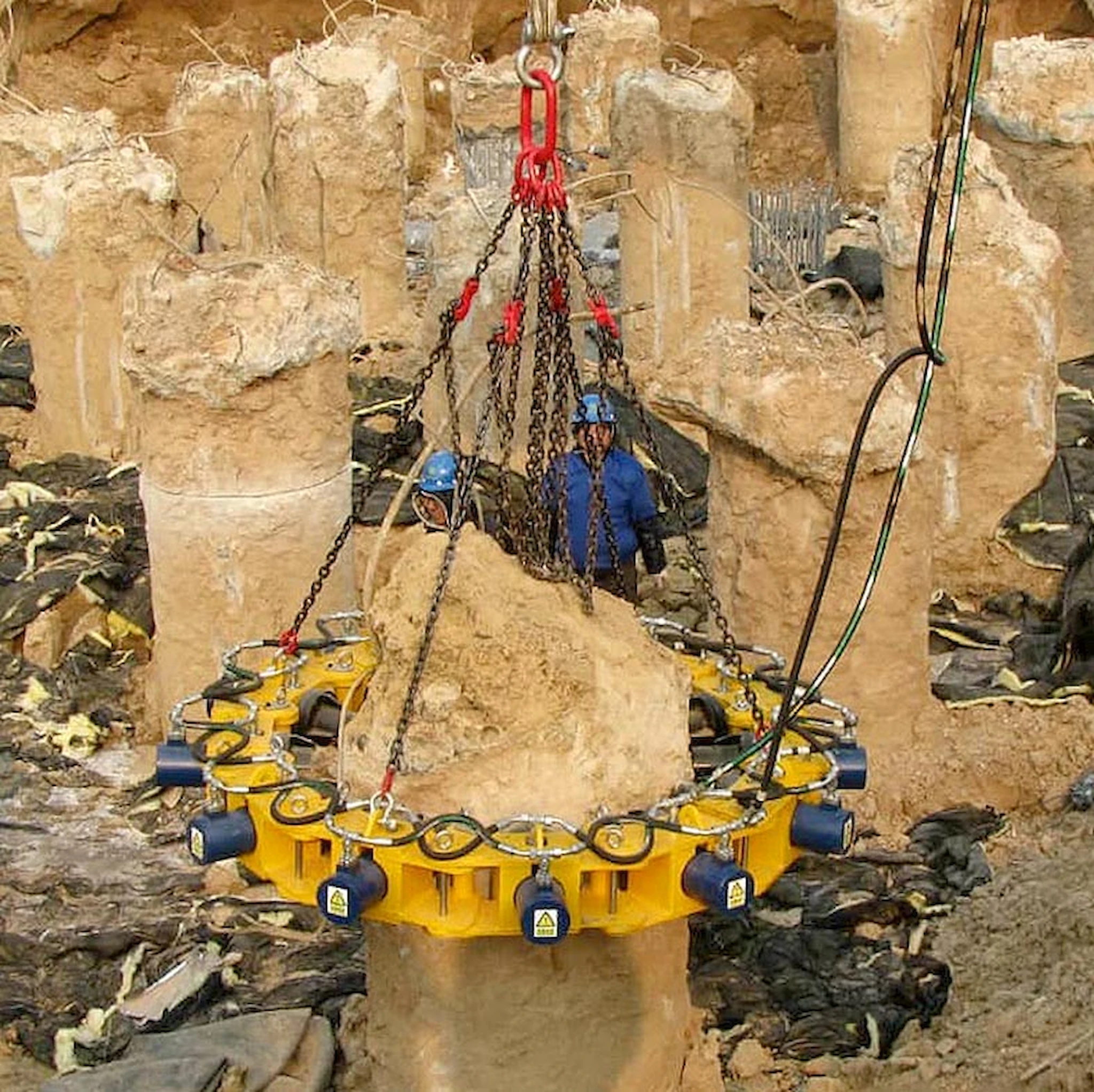

The excavator lifts the pile breaker over the pile and at first stage a complete horizontal fracture is made. The chisels penetrate in horizontal direction up to the re-bars for about 25 seconds to make the fracture. At second stage the chisels penetrate further (usually 25-40 mm) and due to the shape of the chisels and the reaction forces by the rebars, the concrete will break in pieces and can easily be lifted off the pile.
Model | Modules | Diameter | Excavator weight | Pile breaker weight |
---|---|---|---|---|
mm | t | kg | ||
SPA8-6 | 6 | 500 - 600 | 20 | 2,335 |
SPA8-7 | 7 | 650 - 800 | 22 | 2,720 |
SPA8-8 | 8 | 850 - 1,000 | 26 | 3,100 |
SPA8-9 | 9 | 1,050 - 1,200 | 27 | 3,480 |
SPA8-10 | 10 | 1,250 - 1,400 | 30 | 3,860 |
SPA8-11 | 11 | 1,450 - 1,600 | 32.5 | 4,240 |
SPA8-12 | 12 | 1,650 - 1,800 | 35 | 4,620 |
SPA8-13 | 13 | 1,850 - 2,000 | 36 | 5,000 |
SPA8-6 | |
---|---|
Modules | 6 |
Diameter | 500 - 600 mm |
Excavator weight | 20 t |
Pile breaker weight | 2,335 kg |
SPA8-7 | |
Modules | 7 |
Diameter | 650 - 800 mm |
Excavator weight | 22 t |
Pile breaker weight | 2,720 kg |
SPA8-8 | |
Modules | 8 |
Diameter | 850 - 1,000 mm |
Excavator weight | 26 t |
Pile breaker weight | 3,100 kg |
SPA8-9 | |
Modules | 9 |
Diameter | 1,050 - 1,200 mm |
Excavator weight | 27 t |
Pile breaker weight | 3,480 kg |
SPA8-10 | |
Modules | 10 |
Diameter | 1,250 - 1,400 mm |
Excavator weight | 30 t |
Pile breaker weight | 3,860 kg |
SPA8-11 | |
Modules | 11 |
Diameter | 1,450 - 1,600 mm |
Excavator weight | 32.5 t |
Pile breaker weight | 4,240 kg |
SPA8-12 | |
Modules | 12 |
Diameter | 1,650 - 1,800 mm |
Excavator weight | 35 t |
Pile breaker weight | 4,620 kg |
SPA8-13 | |
Modules | 13 |
Diameter | 1,850 - 2,000 mm |
Excavator weight | 36 t |
Pile breaker weight | 5,000 kg |
