Simex TF 1100
Updated: 09.11.2023
| TF 1100 | |
|---|---|
| Recommended excavator weight | 20 - 34 t |
| Weight without bracket | 1,340 kg |
| Nominal power | 90 kW |
| Rotation torque | 20 kNm |
| Cutting force | 61 kN |
| Pressure max. | 400 bar |
| Required oil flow | 170 - 250 l/min |

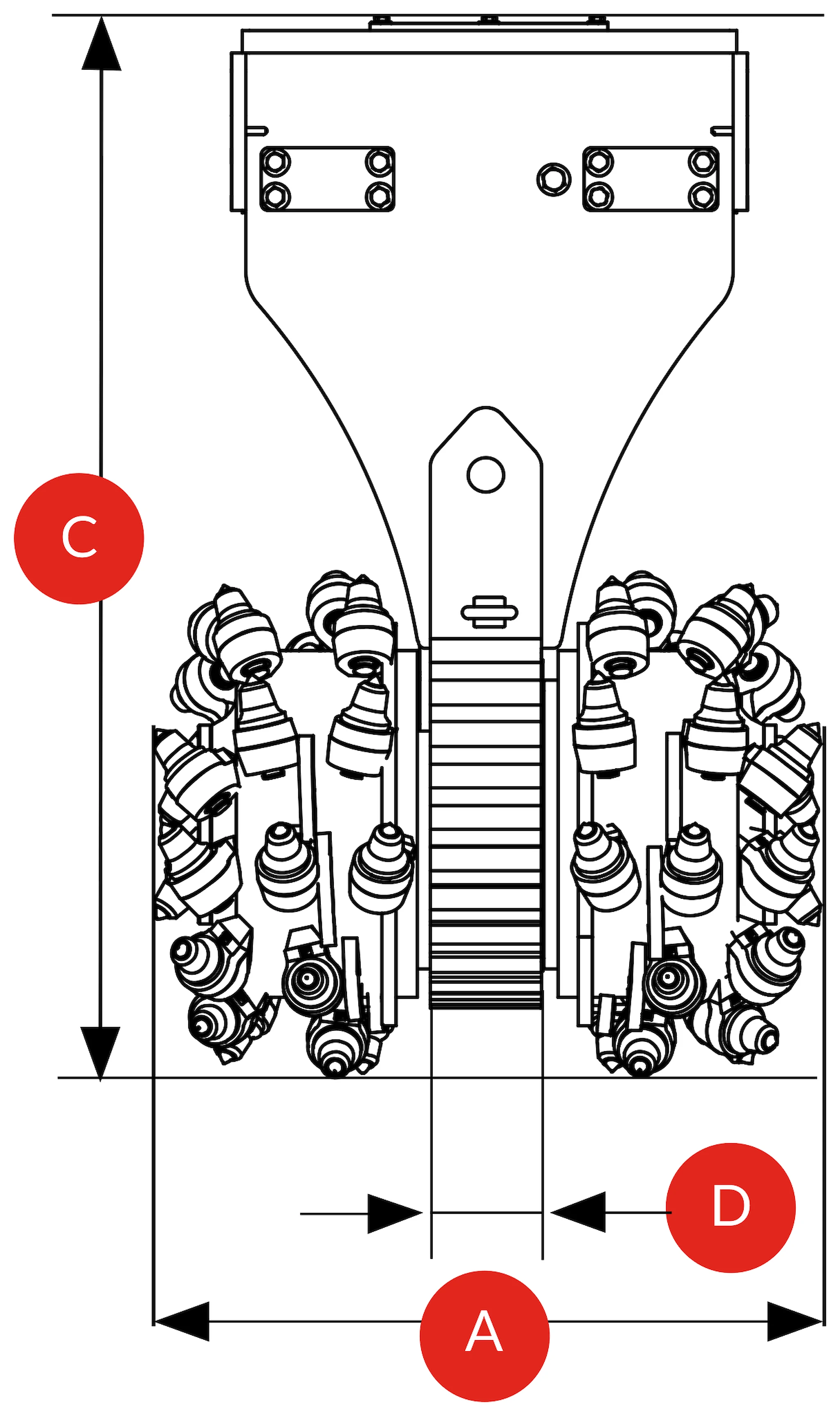

| Drum width (HP) A | 865 mm |
| Drum width (GP) A | 1,000 mm |
| Drum width (WP) A | 1,200 mm |

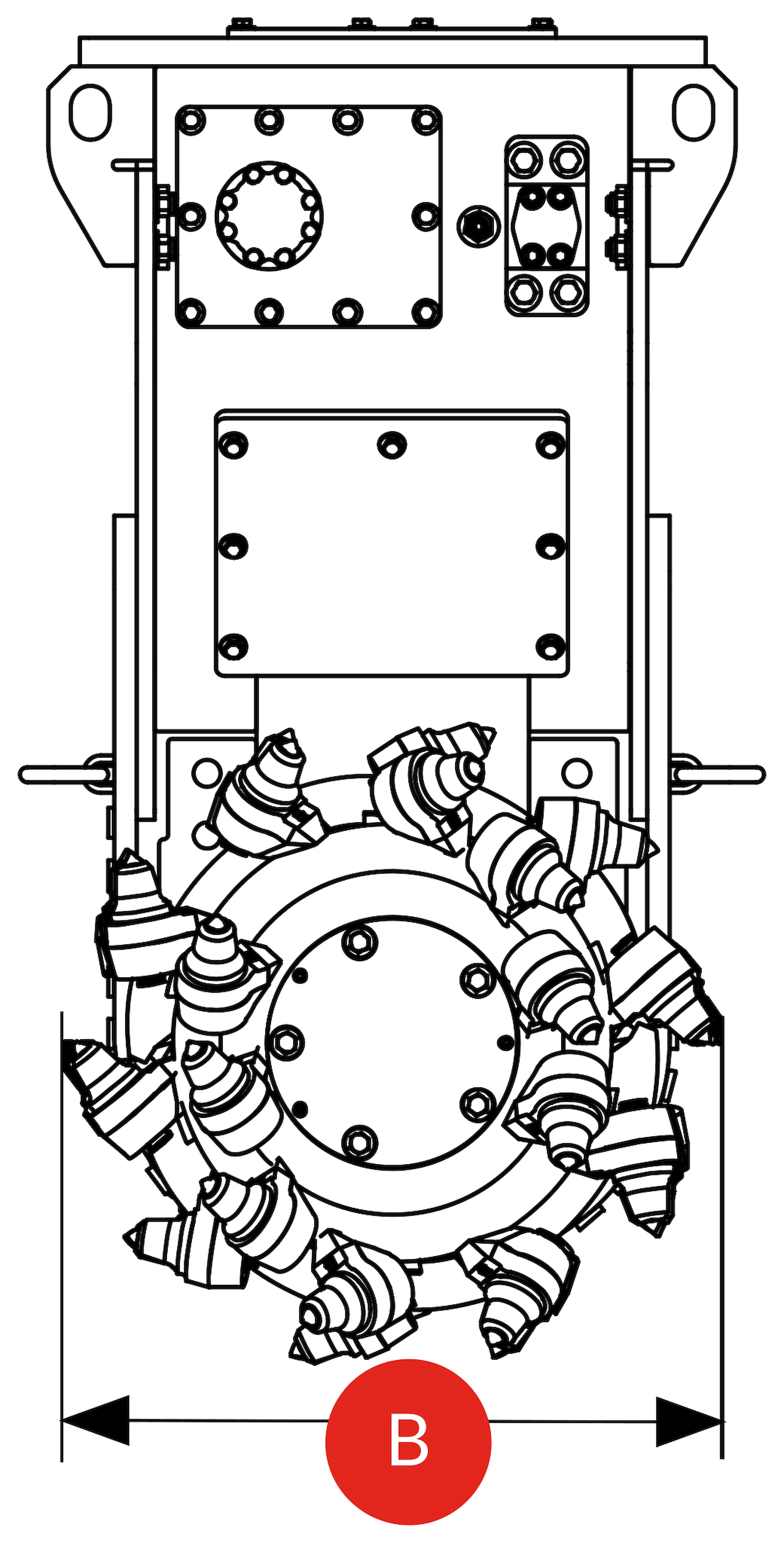

| HP drum diameter HP B | 660 mm |
| Height without bracket C | 1,335 mm |
| Drum distance D | 190 mm |
| Tooth holder diameter | 38 / 30 mm |
