Simex TF 850
Updated: 09.11.2023
| TF 850 | |
|---|---|
| Recommended excavator weight | 14 - 22 t |
| Weight without bracket | 1,100 kg |
| Nominal power | 70 kW |
| Rotation torque | 12.1 kNm |
| Cutting force | 40.2 kN |
| Pressure max. | 400 bar |
| Required oil flow | 140 - 190 l/min |

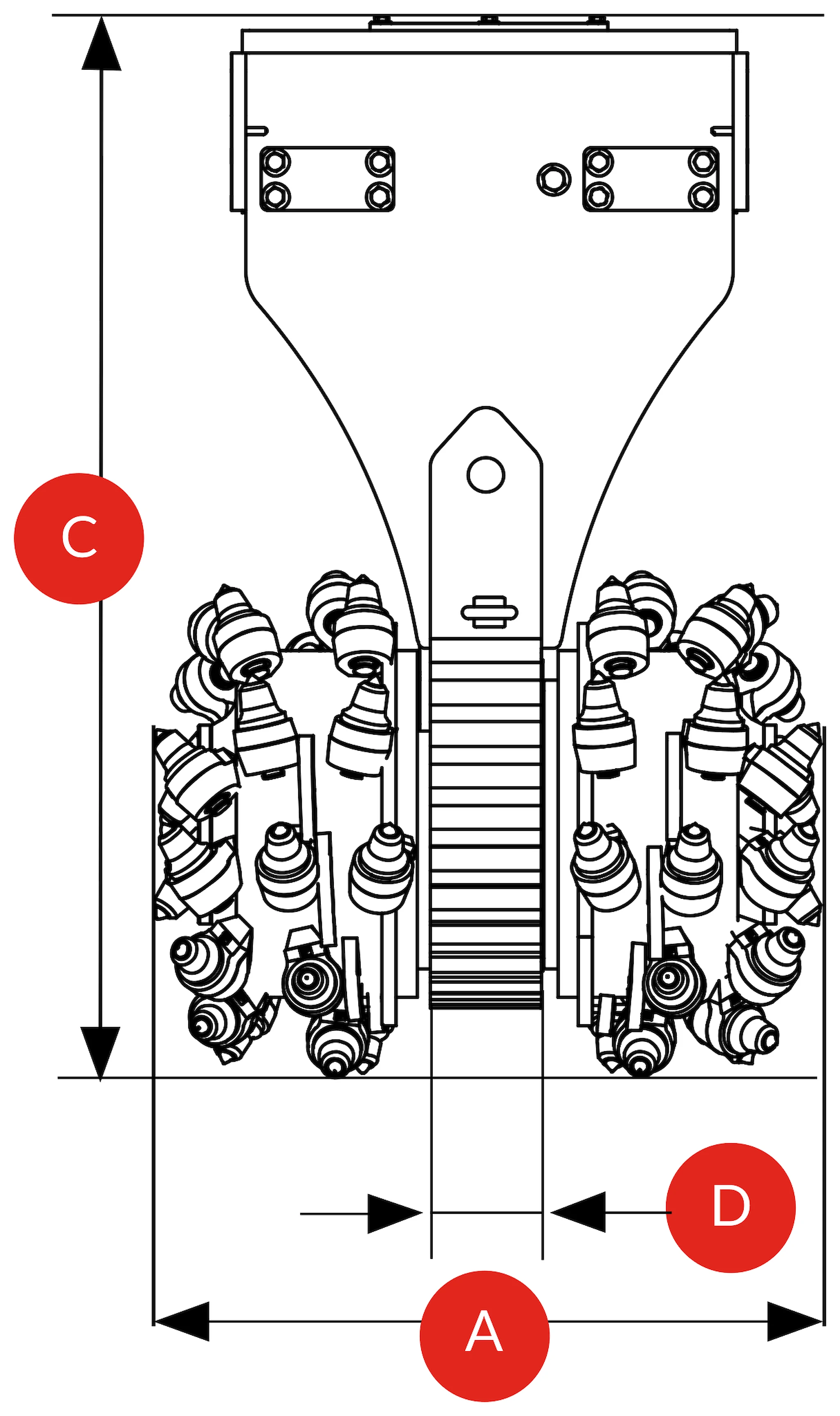

| Drum width (HP) A | 800 mm |
| Drum width (GP) A | 890 mm |
| Drum width (WP) A | 920 mm |

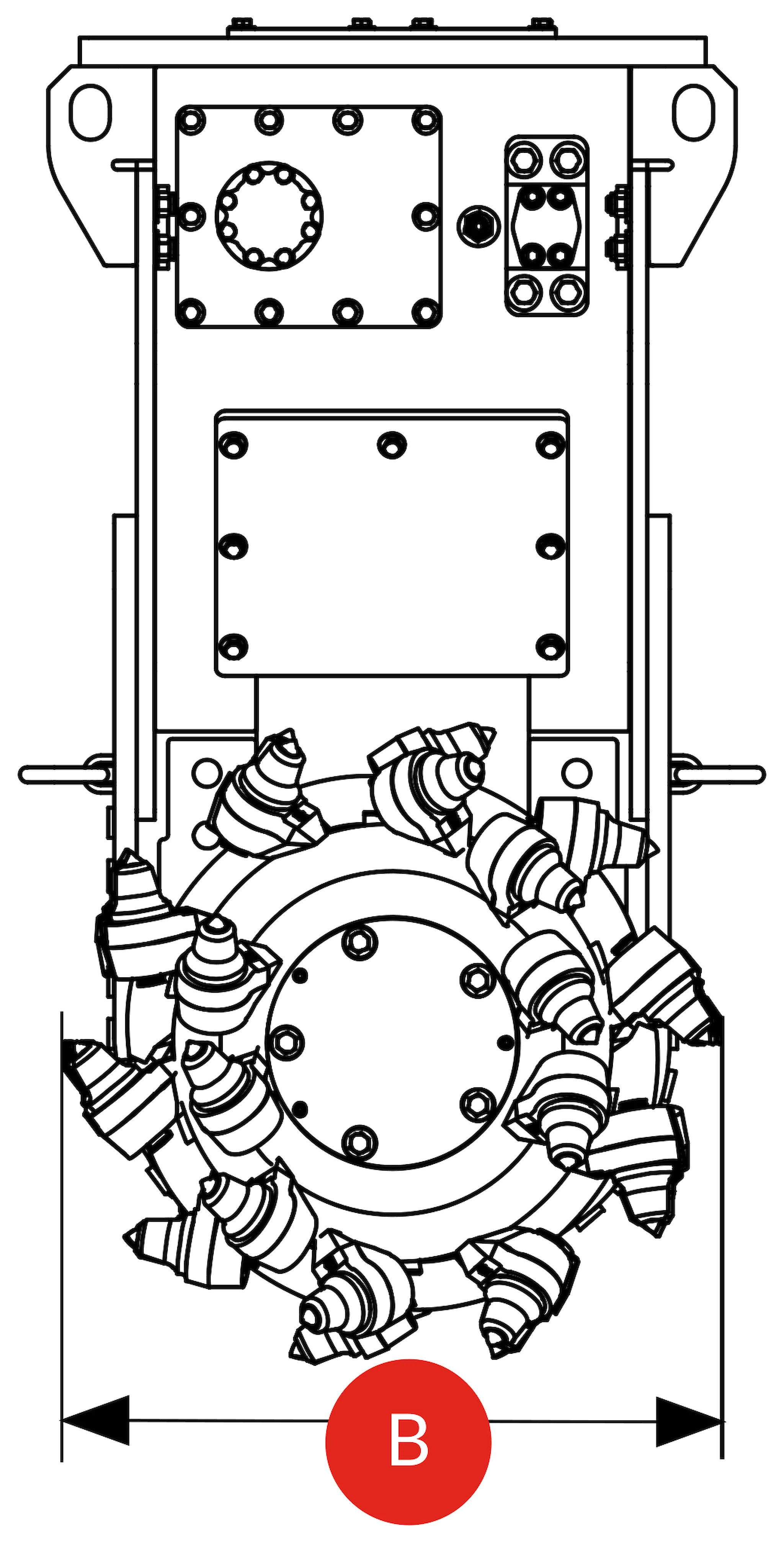

| HP drum diameter HP B | 595 mm |
| Height without bracket C | 1,270 mm |
| Drum distance D | 180 mm |
| Tooth holder diameter | 38 / 30 mm |
