Simex TF 2500
Updated: 09.11.2023
| TF 2500 | |
|---|---|
| Recommended excavator weight | 40 - 55 t |
| Weight without bracket | 2,700 kg |
| Nominal power | 150 kW |
| Rotation torque | 36.1 kNm |
| Cutting force | 96.4 kN |
| Pressure max. | 400 bar |
| Required oil flow | 280 - 400 l/min |

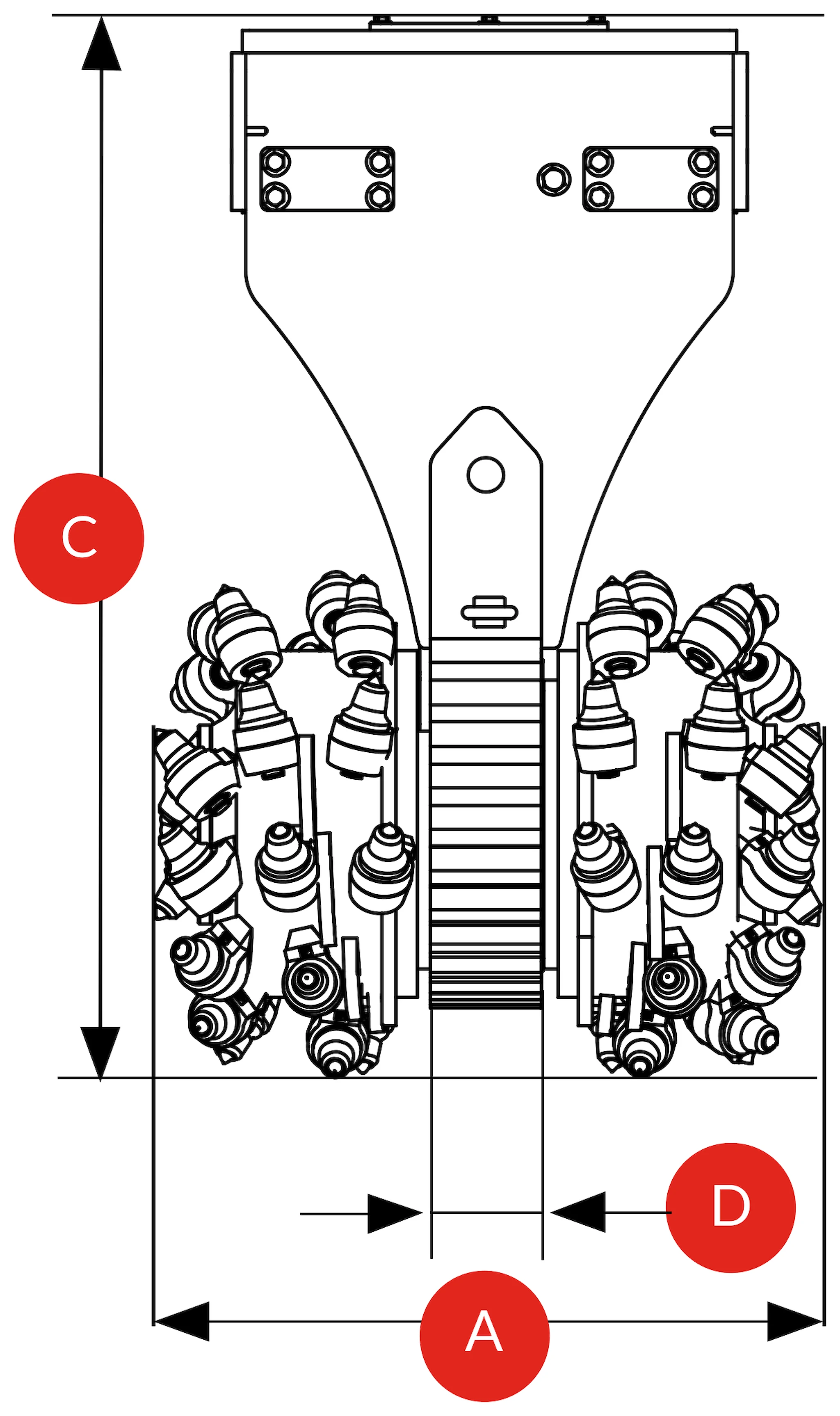

| Drum width (HP) A | 1,000 mm |
| Drum width (GP) A | 1,150 mm |
| Drum width (WP) A | - mm |

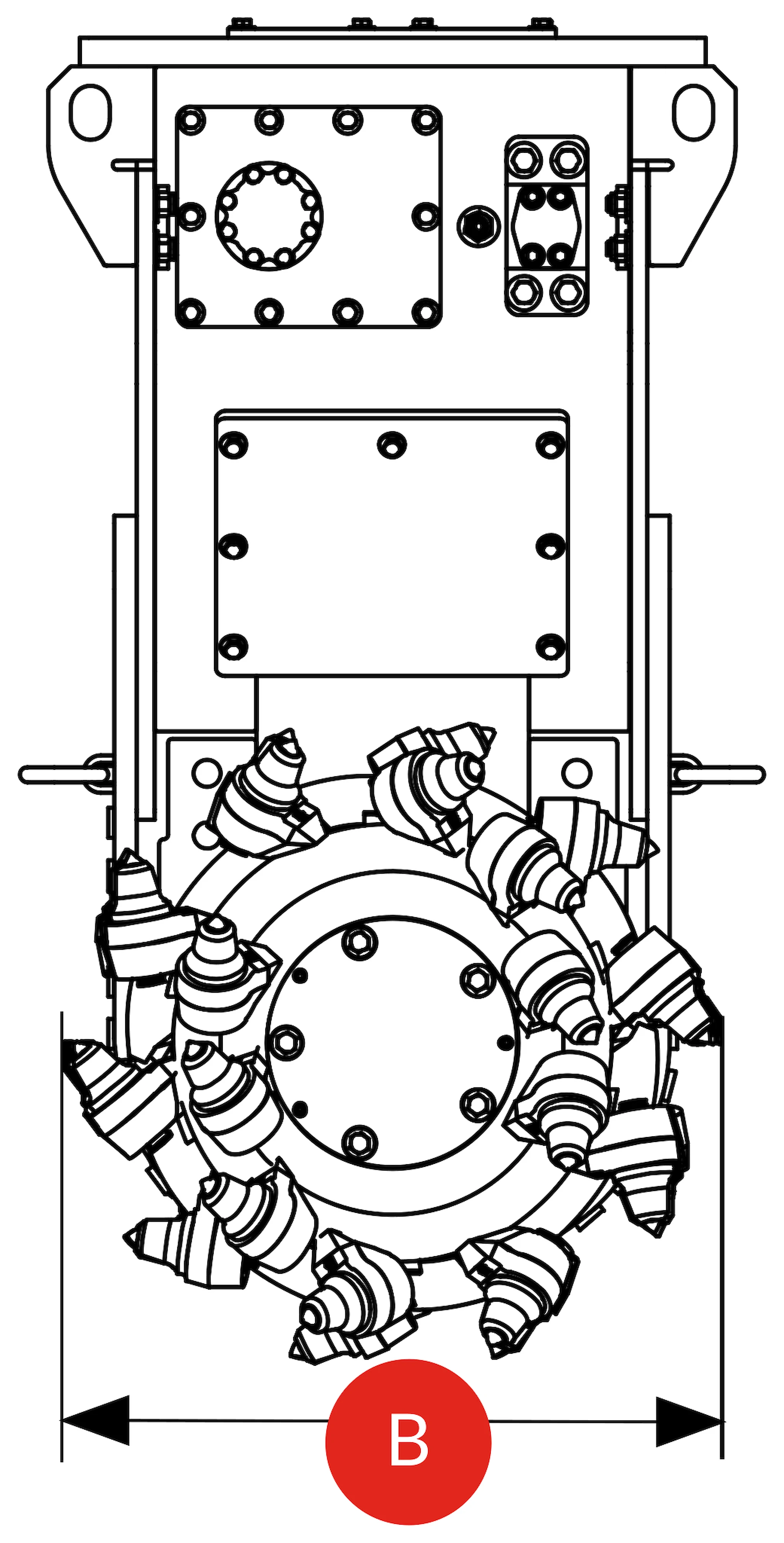

| HP drum diameter HP B | 750 mm |
| Height without bracket C | 1,675 mm |
| Drum distance D | 250 mm |
| Tooth holder diameter | 38 / 30 mm |
