Simex TF 3100
Updated: 09.11.2023
| TF 3100 | |
|---|---|
| Recommended excavator weight | 50 - 70 t |
| Weight without bracket | 2,940 kg |
| Nominal power | 185 kW |
| Rotation torque | 48 kNm |
| Cutting force | 128 kN |
| Pressure max. | 400 bar |
| Required oil flow | 350 - 500 l/min |

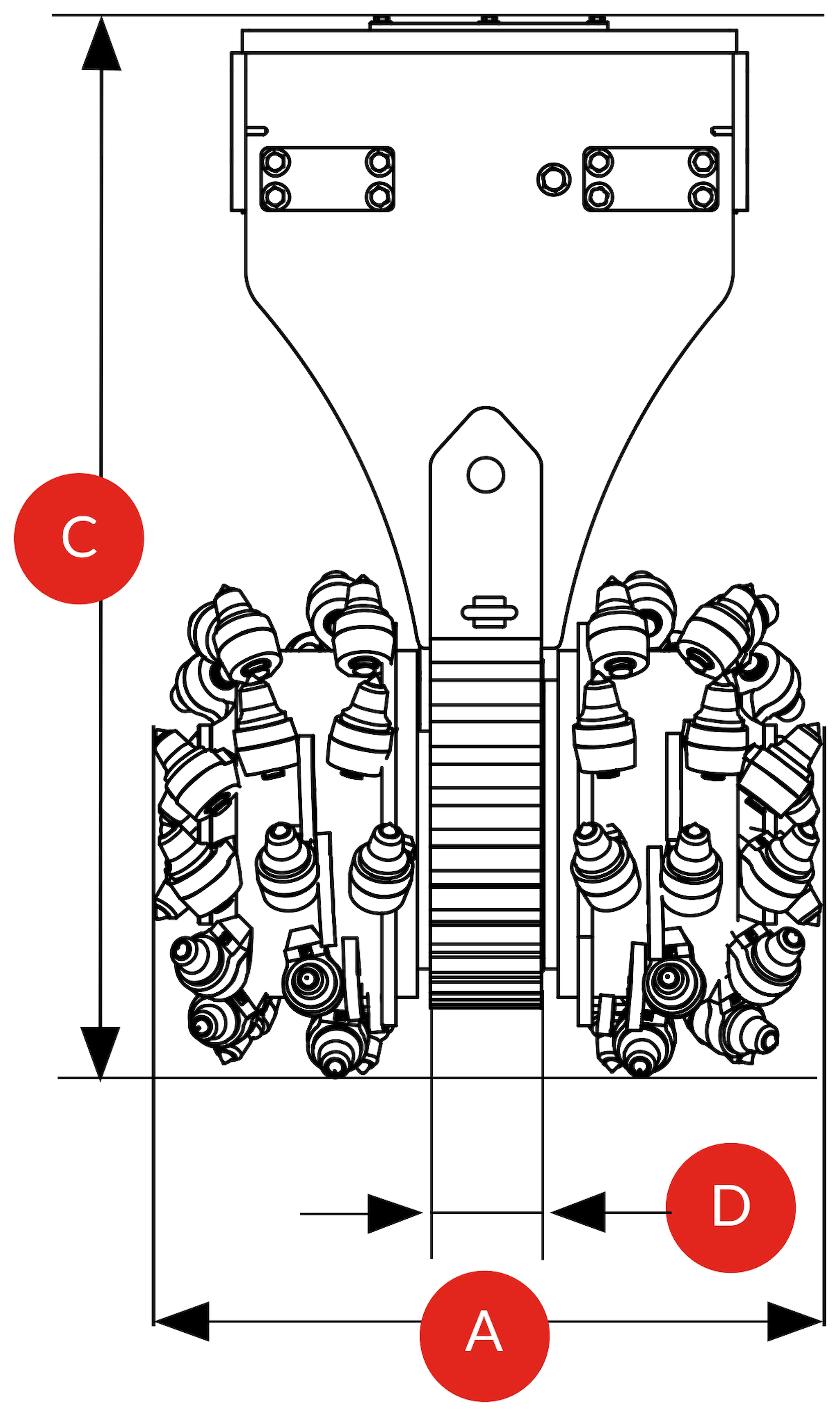

| Drum width (HP) A | 1,270 mm |
| Drum width (GP) A | 1,350 mm |
| Drum width (WP) A | - mm |

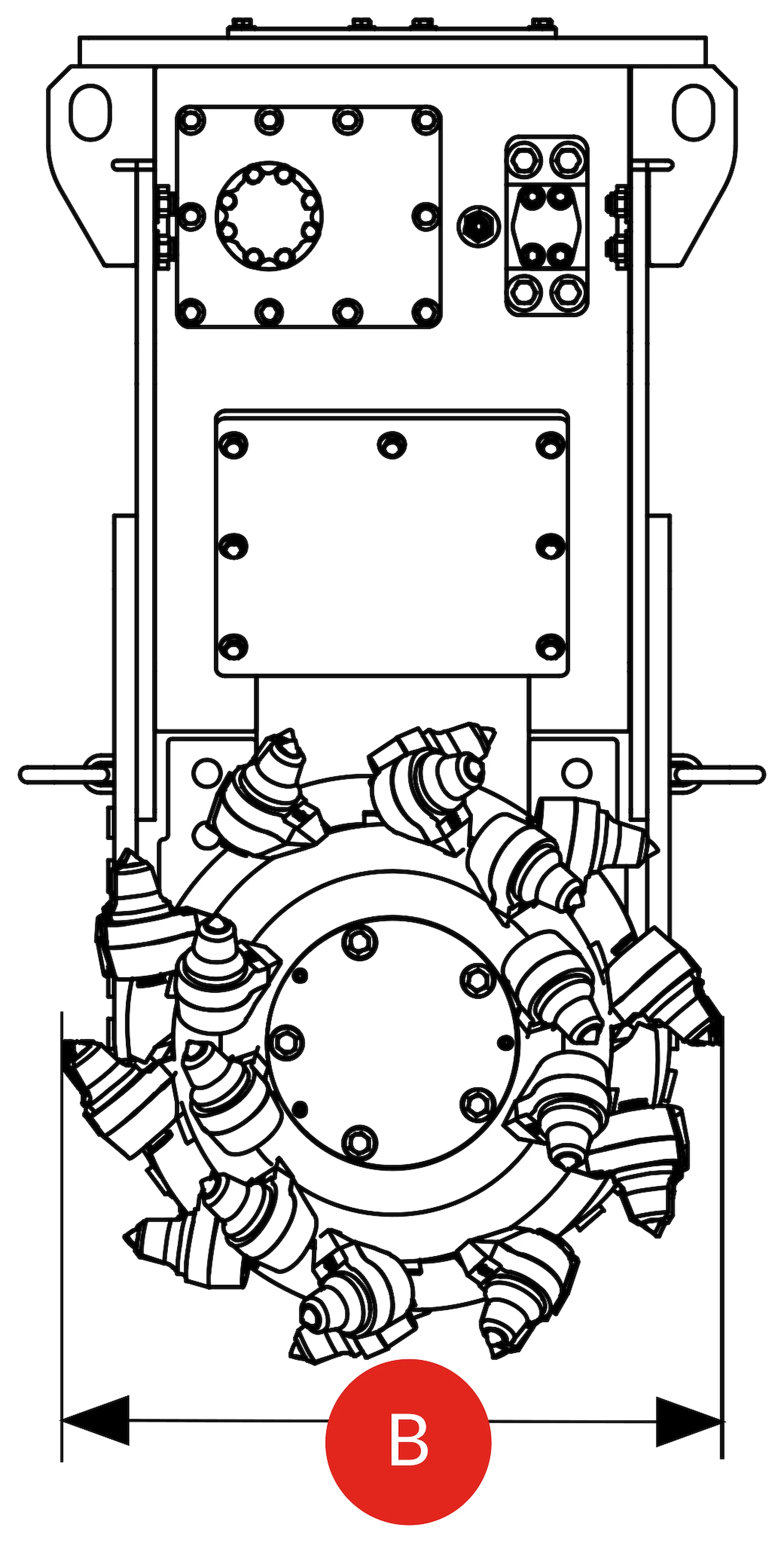

| HP drum diameter HP B | 750 mm |
| Height without bracket C | 1,825 mm |
| Drum distance D | 330 mm |
| Tooth holder diameter | 38 / 30 mm |
