Simex TF 650
Updated: 09.11.2023
| TF 650 | |
|---|---|
| Recommended excavator weight | 9 - 16 t |
| Weight without bracket | 650 kg |
| Nominal power | 50 kW |
| Rotation torque | 7.4 kNm |
| Cutting force | 30.5 kN |
| Pressure max. | 350 bar |
| Required oil flow | 90 - 150 l/min |

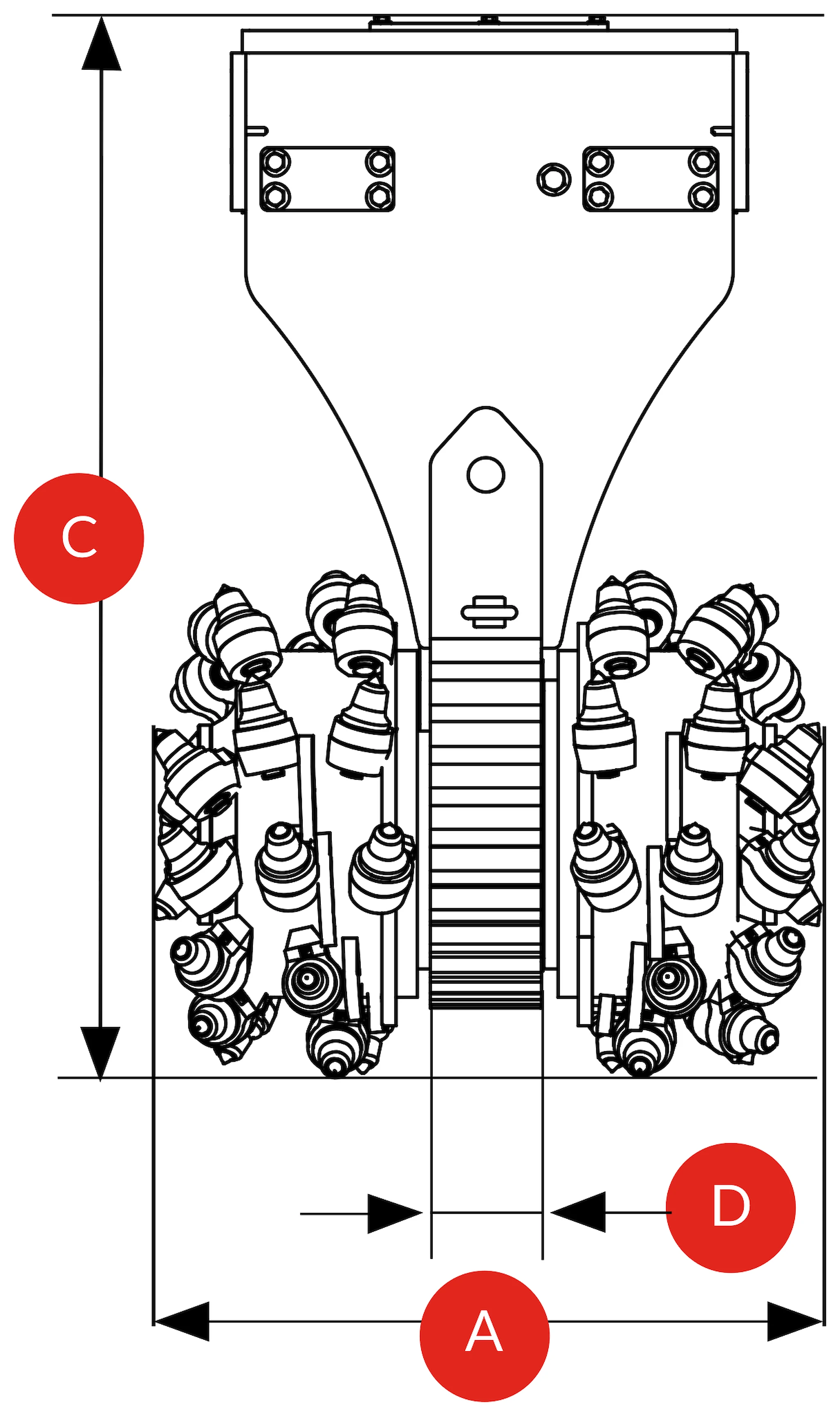

| Drum width (HP) A | 700 mm |
| Drum width (GP) A | - mm |
| Drum width (WP) A | 850 mm |

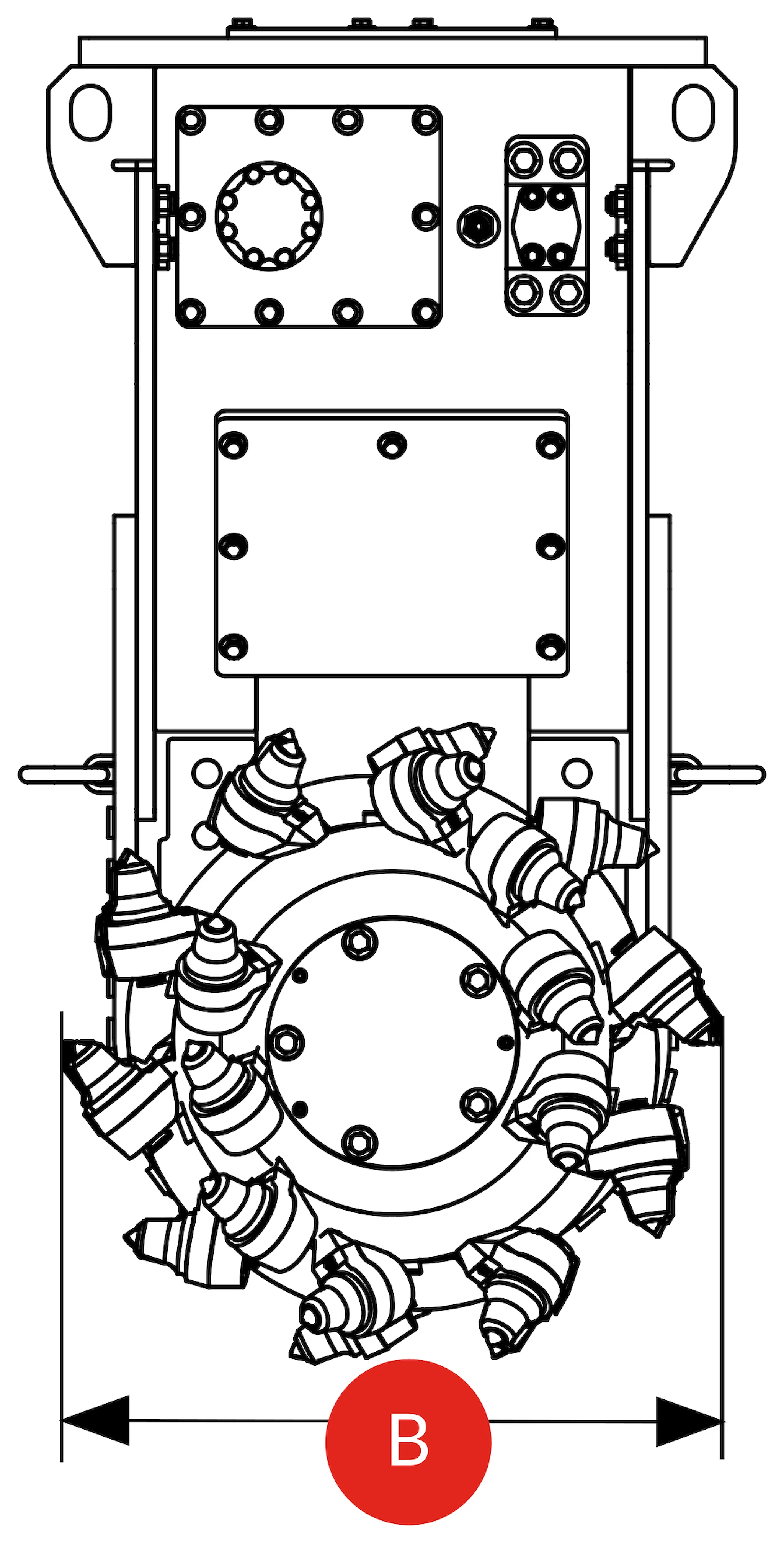

| HP drum diameter HP B | 500 mm |
| Height without bracket C | 1,005 mm |
| Drum distance D | 135 mm |
| Tooth holder diameter | 22 mm |
