Omnicut Rock Saws
Updated: 13.02.2024
1 image

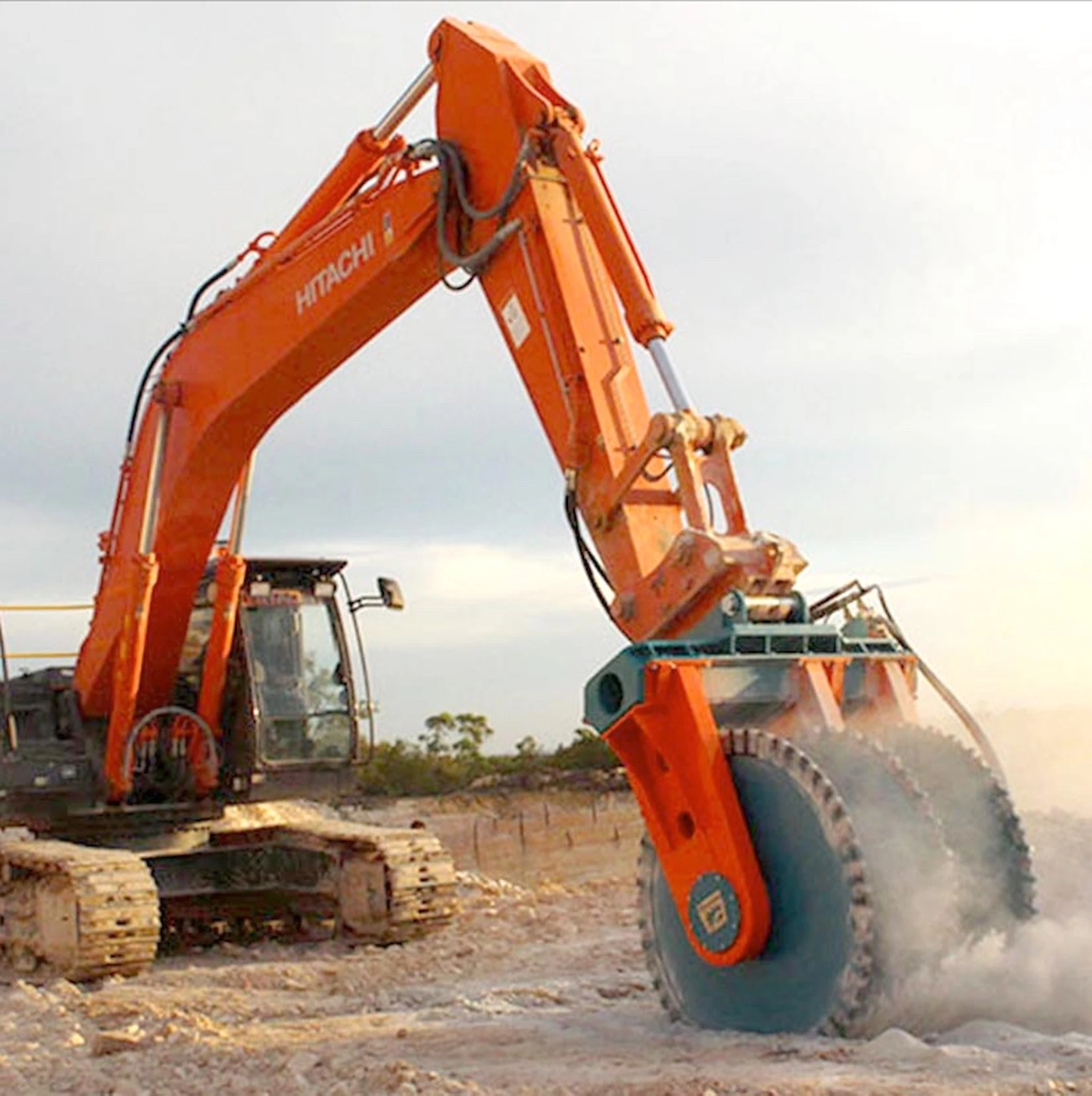

The revolutionary Omnicut Rocksaws in single or multi-blade version combine the hardness of diamonds with the robustness of tungsten carbide. They cut up to 10 times faster than tungsten carbide blades and are suitable for all materials, from soft rock to steel-reinforced concrete and for hard rock up to 60 MPa. Omnicut Rocksaws are available for excavators from 1-100 ton and with blade diameters up to 4000 mm.
Model | Excavator range | Blade diameter range | Continuous power max. | Continuous pressure max. | Continuous flow | Case drain required | Automatic blade brake |
---|---|---|---|---|---|---|---|
t | mm | kW | MPa | l/min | |||
O1S | 1 - 4 | 900 - 1,100 | 12 | 20 | 60 | no | optional |
O2S | 3 - 6 | 900 - 1,300 | 16 | 20 | 80 | no | optional |
O3S | 6 - 12 | 1,100 - 1,500 | 27 | 20 | 120 | no | optional |
O2HP | 8 - 20 | 1,300 - 1,900 | 120 | 32 | 240 | yes | optional |
O4HP | 16 - 25 | 1,500 - 2,100 | 160 | 32 | 370 | yes | optional |
O5HP | 16 - 32 | 1,500 - 2,500 | 200 | 32 | 480 | yes | optional |
O6HP | 30 - 60 | 1,800 - 3,500 | 340 | 32 | 620 | yes | optional |
O7HP | 45 - 70 | 2,900 - 4,000 | 450 | 32 | 840 | yes | optional |
O8HP | 50 - 100 | 2,500 - 4,000 | - | - | - | yes | optional |
O1S | |
---|---|
Excavator range | 1 - 4 t |
Blade diameter range | 900 - 1,100 mm |
Continuous power max. | 12 kW |
Continuous pressure max. | 20 MPa |
Continuous flow | 60 l/min |
Case drain required | no |
Automatic blade brake | optional |
O2S | |
Excavator range | 3 - 6 t |
Blade diameter range | 900 - 1,300 mm |
Continuous power max. | 16 kW |
Continuous pressure max. | 20 MPa |
Continuous flow | 80 l/min |
Case drain required | no |
Automatic blade brake | optional |
O3S | |
Excavator range | 6 - 12 t |
Blade diameter range | 1,100 - 1,500 mm |
Continuous power max. | 27 kW |
Continuous pressure max. | 20 MPa |
Continuous flow | 120 l/min |
Case drain required | no |
Automatic blade brake | optional |
O2HP | |
Excavator range | 8 - 20 t |
Blade diameter range | 1,300 - 1,900 mm |
Continuous power max. | 120 kW |
Continuous pressure max. | 32 MPa |
Continuous flow | 240 l/min |
Case drain required | yes |
Automatic blade brake | optional |
O4HP | |
Excavator range | 16 - 25 t |
Blade diameter range | 1,500 - 2,100 mm |
Continuous power max. | 160 kW |
Continuous pressure max. | 32 MPa |
Continuous flow | 370 l/min |
Case drain required | yes |
Automatic blade brake | optional |
O5HP | |
Excavator range | 16 - 32 t |
Blade diameter range | 1,500 - 2,500 mm |
Continuous power max. | 200 kW |
Continuous pressure max. | 32 MPa |
Continuous flow | 480 l/min |
Case drain required | yes |
Automatic blade brake | optional |
O6HP | |
Excavator range | 30 - 60 t |
Blade diameter range | 1,800 - 3,500 mm |
Continuous power max. | 340 kW |
Continuous pressure max. | 32 MPa |
Continuous flow | 620 l/min |
Case drain required | yes |
Automatic blade brake | optional |
O7HP | |
Excavator range | 45 - 70 t |
Blade diameter range | 2,900 - 4,000 mm |
Continuous power max. | 450 kW |
Continuous pressure max. | 32 MPa |
Continuous flow | 840 l/min |
Case drain required | yes |
Automatic blade brake | optional |
O8HP | |
Excavator range | 50 - 100 t |
Blade diameter range | 2,500 - 4,000 mm |
Continuous power max. | - kW |
Continuous pressure max. | - MPa |
Continuous flow | - l/min |
Case drain required | yes |
Automatic blade brake | optional |
