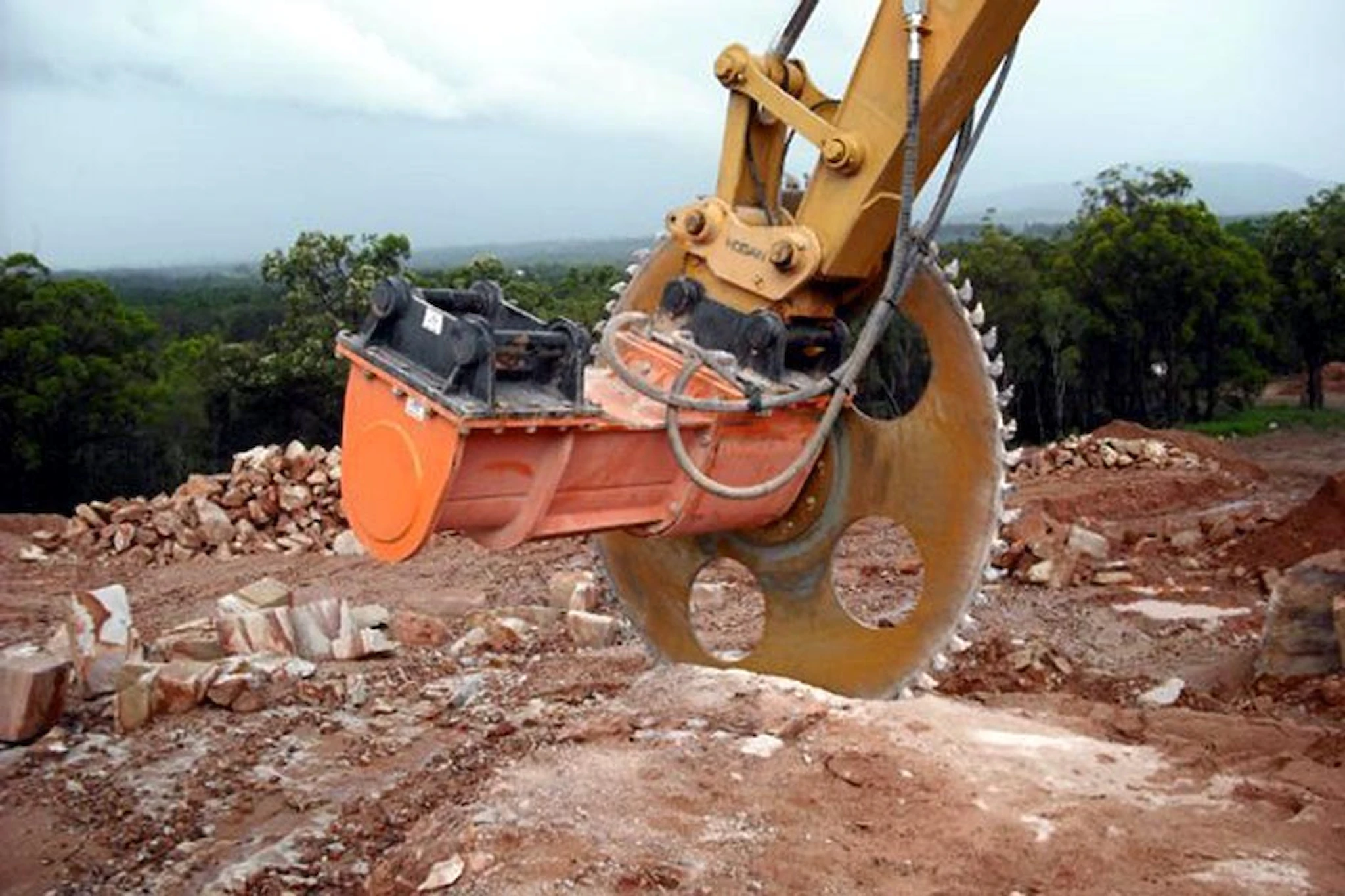

Tungsten-Carbide Rock Saws
Updated: 13.02.2024
1 image
Tungsten carbide saws are ideal for materials not harder than 60 MPa and where is no cooling water available. They are better suited for soft materials than diamond saws, operators need less skill to achieve good results and worn picks can be easily replaced. Several models are available for excavators from 1-70 tons and blade diameters up to 3500 mm.
Model | Excavator range | Blade diameter | Cutting depth | Tip cutting speed | Tip cutting speed | Spindle torque max. | Mass with blade | Oil pressure |
---|---|---|---|---|---|---|---|---|
t | mm | mm | m/s | rpm | Nm | kg | MPa | |
C4 | 12 -15 | 2,000 | 750 | 3.8 | 60 | 12,000 | 650 | 26 |
C5 | 20 - 30 | 2,000 - 3,000 | 1,300 | 4 | 30 | 30,000 | 2,650 | 35 |
C6 | 2,500 - 3,500 | 1,550 | 4 | 25 | 45,000 | 3,100 | 42 |
C4 | |
---|---|
Excavator range | 12 -15 t |
Blade diameter | 2,000 mm |
Cutting depth | 750 mm |
Tip cutting speed | 3.8 m/s |
Tip cutting speed | 60 rpm |
Spindle torque max. | 12,000 Nm |
Mass with blade | 650 kg |
Oil pressure | 26 MPa |
C5 | |
Excavator range | 20 - 30 t |
Blade diameter | 2,000 - 3,000 mm |
Cutting depth | 1,300 mm |
Tip cutting speed | 4 m/s |
Tip cutting speed | 30 rpm |
Spindle torque max. | 30,000 Nm |
Mass with blade | 2,650 kg |
Oil pressure | 35 MPa |
C6 | |
Blade diameter | 2,500 - 3,500 mm |
Cutting depth | 1,550 mm |
Tip cutting speed | 4 m/s |
Tip cutting speed | 25 rpm |
Spindle torque max. | 45,000 Nm |
Mass with blade | 3,100 kg |
Oil pressure | 42 MPa |
