Metax Jetgrouting Pumps
Our high pressure jet grouting pumps are available either skid-base mounted with sound-proof engine chassis or fully protected in a 20 foot container (2400x2400x6000 mm). High quality components, excellent workmanship and international experience make our pumps the ideal choice for all kinds of ground consolidation works where continuous and high-pressure grout is required. The ISO 9000 quality certificate offers additional confidence in our jetgrouting pumps. Together with our line of grout mixing plants (manual or computerised) we offer complete systems for every grouting and jetgrouting application.
| Model | MP3 | MP4 | MP5 | MP7 | MP7ST | MP9ST | |
|---|---|---|---|---|---|---|---|
| Pressure max. | bar | 80 | 700 | 800 | 900 | 900 | 570 |
| Flow rate max. | l/min | 240 | 430 | 500 | 550 | 550 | 1,000 |
| Engine power max. | kW | 29 | 250 | 375 | 600 | 600 | 700 |
| Piston diameter | mm | 58 - 80 | 63 - 115 | 75 - 115 | 75 - 115 | 75 - 115 | 88.9 - 125 |
| Suction diameter | mm | 50 | 80 | 100 | 100 | 100 | 100 |
| Output | mm | 40 | 32 | 32 | 40 | 40 | 75 |
| Weight | kg | 950 | 11,500 | 12,500 | 16,000 | 16,000 | 30,000 |
| Automatic gear box | - | - | - | - | MP7ST | yes |
| MP3 | |
|---|---|
| Pressure max. | 80 bar |
| Flow rate max. | 240 l/min |
| Engine power max. | 29 kW |
| Piston diameter | 58 - 80 mm |
| Suction diameter | 50 mm |
| Output | 40 mm |
| Weight | 950 kg |
| Automatic gear box | - |

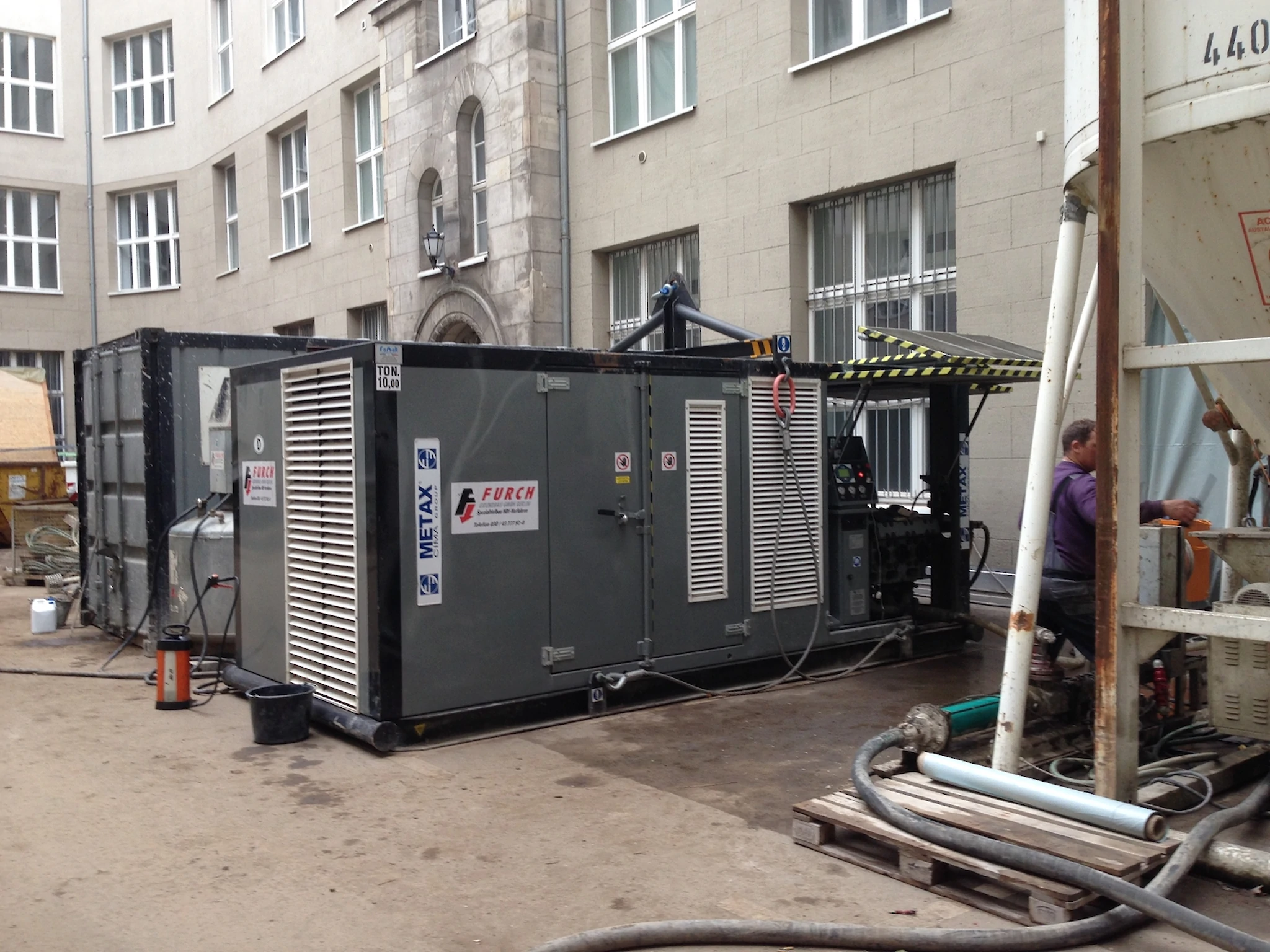

| MP4 | |
| Pressure max. | 700 bar |
| Flow rate max. | 430 l/min |
| Engine power max. | 250 kW |
| Piston diameter | 63 - 115 mm |
| Suction diameter | 80 mm |
| Output | 32 mm |
| Weight | 11,500 kg |
| Automatic gear box | - |

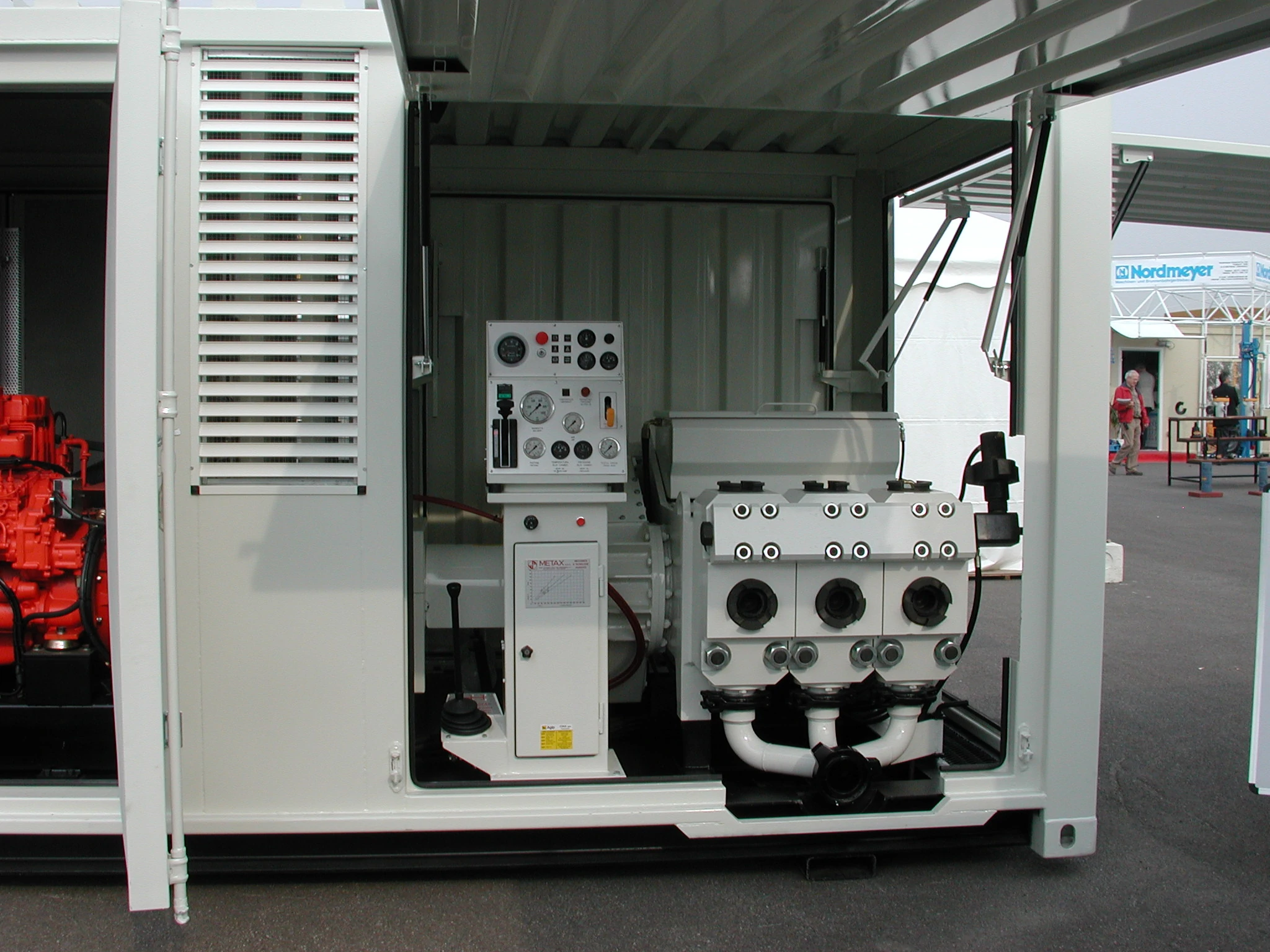

| MP5 | |
| Pressure max. | 800 bar |
| Flow rate max. | 500 l/min |
| Engine power max. | 375 kW |
| Piston diameter | 75 - 115 mm |
| Suction diameter | 100 mm |
| Output | 32 mm |
| Weight | 12,500 kg |
| Automatic gear box | - |

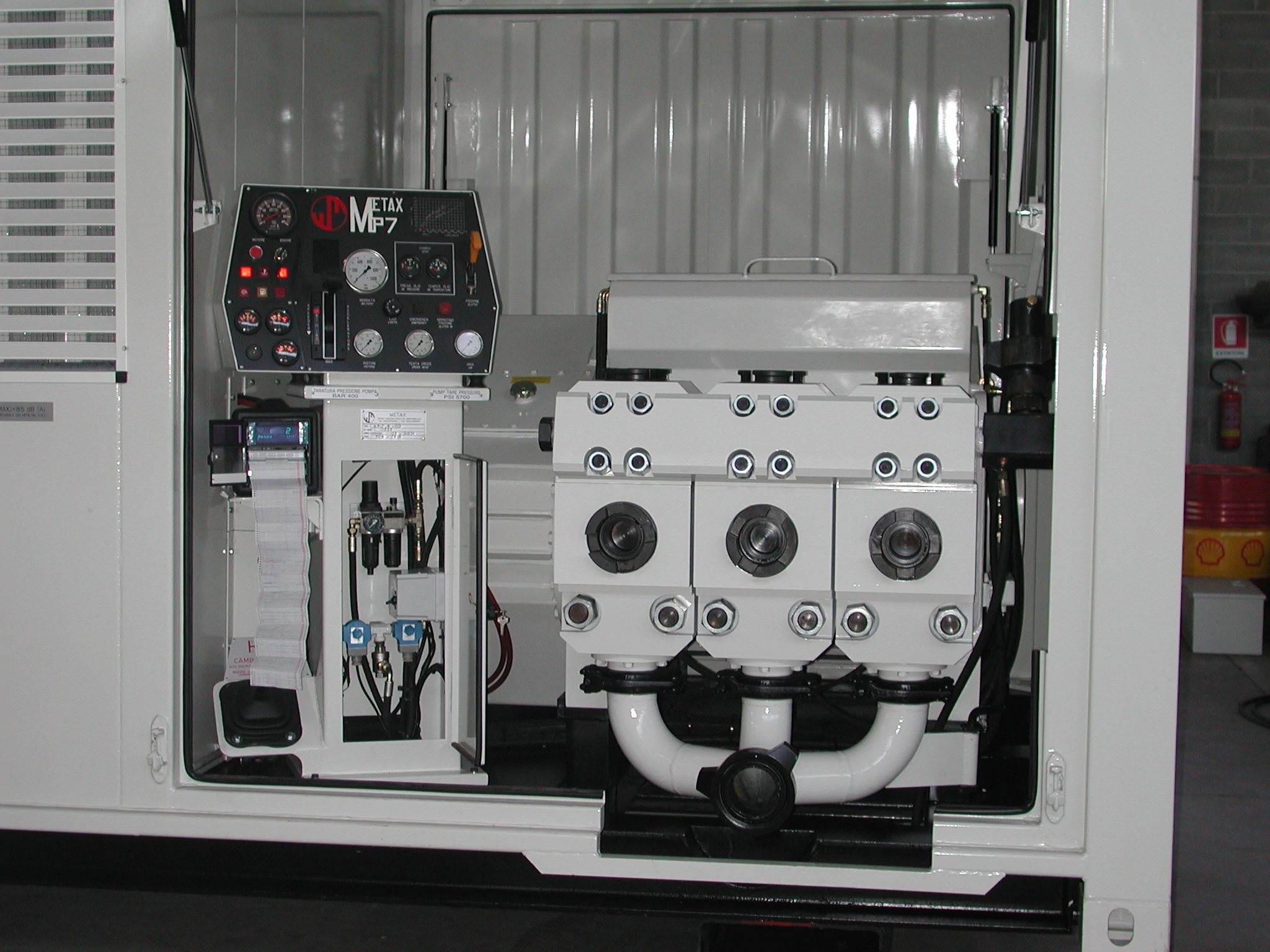

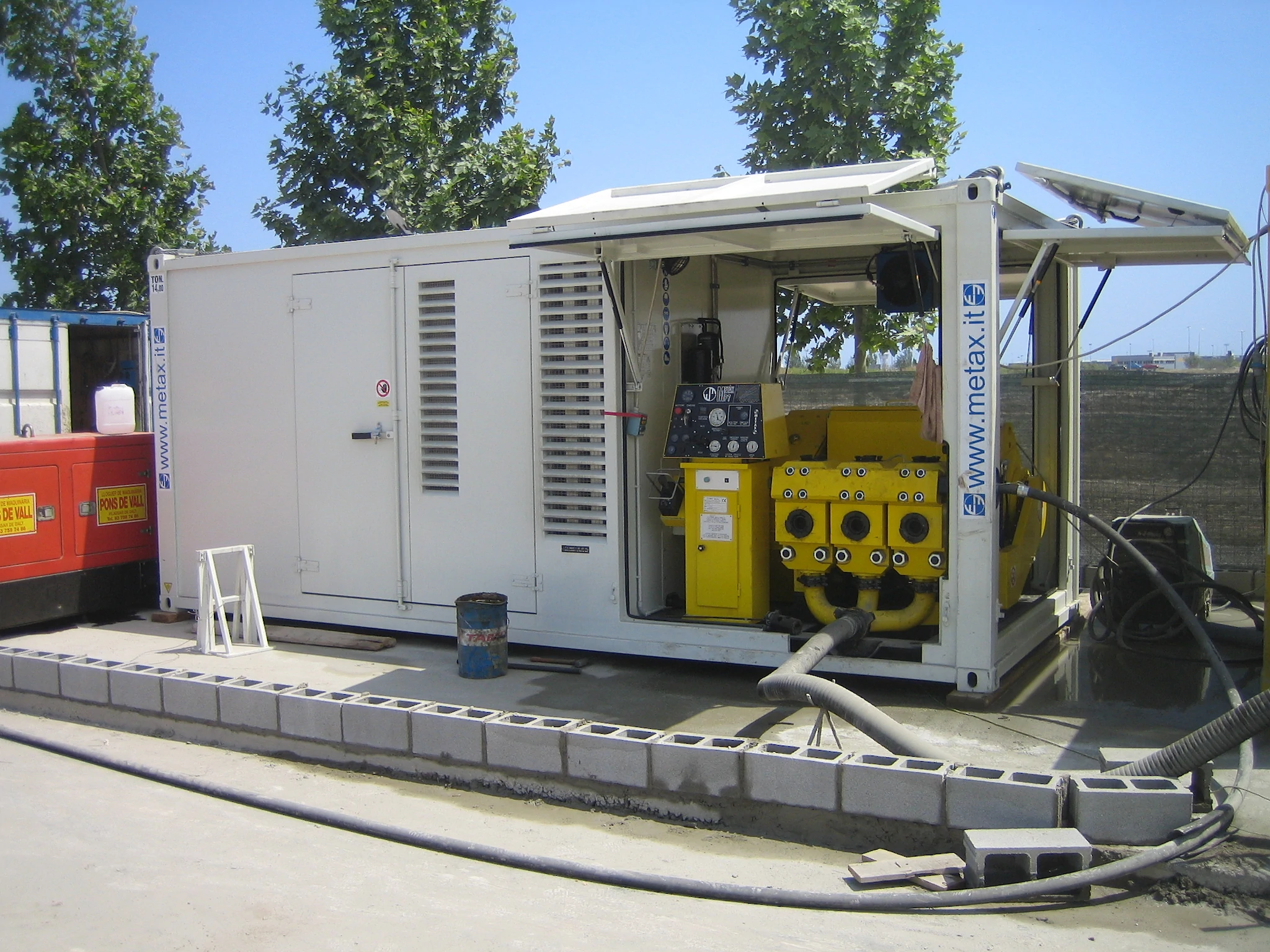

| MP7 | |
| Pressure max. | 900 bar |
| Flow rate max. | 550 l/min |
| Engine power max. | 600 kW |
| Piston diameter | 75 - 115 mm |
| Suction diameter | 100 mm |
| Output | 40 mm |
| Weight | 16,000 kg |
| Automatic gear box | - |
| MP7ST | |
| Pressure max. | 900 bar |
| Flow rate max. | 550 l/min |
| Engine power max. | 600 kW |
| Piston diameter | 75 - 115 mm |
| Suction diameter | 100 mm |
| Output | 40 mm |
| Weight | 16,000 kg |
| Automatic gear box | MP7ST |
| MP9ST | |
| Pressure max. | 570 bar |
| Flow rate max. | 1,000 l/min |
| Engine power max. | 700 kW |
| Piston diameter | 88.9 - 125 mm |
| Suction diameter | 100 mm |
| Output | 75 mm |
| Weight | 30,000 kg |
| Automatic gear box | yes |
We install diesel engines from Deutz, Mercedes or Scania.
Due to the fact that all parts are manufactured inhouse spare parts availability is guaranteed.
Other grouting equipment and mixing plants as well as Bentonite desanders are available on request.
