Micropiles of Full Thread Bars
Updated: 14.06.2024
Advantages and Characteristics

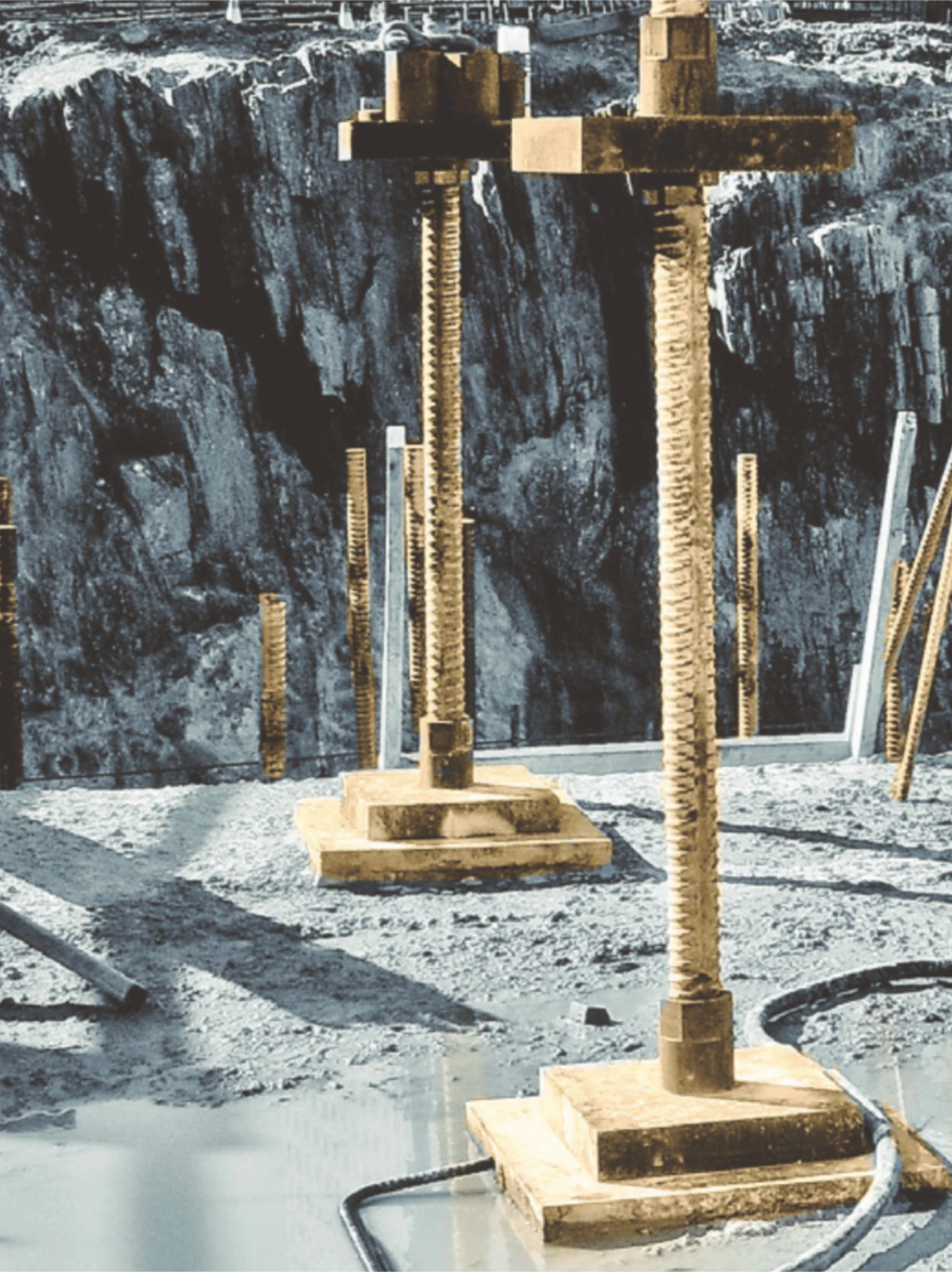

The SAH pile is a drilled micropile with a steel core made of the SAH bar with hot-rolled, continuous thread deformations on both sides, the so called SAH thread. The steel core is mantled by cement grout which acts both as corrosion protection and load transfer into the soil or rock.
- Robust coarse thread remains threadable even when dirty or damaged
- Can be cut off and spliced at any given point
- Excellent load transfer into concrete structures by various anchoring elements
- A comparatively small drill hole diameter allows the use of economical drilling equipment
- Tensile, compression and alternating loads can be transferred to the same extend
- The coarse SAH thread guarantees maximum bond between steel and cement grout
- The stress-strain curve of the SAH bar shows high ductility
- Continuous settlements can be stopped by using preloaded SAH piles
- Load transferred into the soil is optimized by the post-grouting system
- Double corrosion protected piles can be used in aggressive media such as sea water or water leaking from dump sites
| Model | Diameter | Yield load | Ultimate load | Min. drill hole Ø |
|---|---|---|---|---|
| mm | kN | kN | mm | |
| 25 | 25 | 329 | 393 | 80 |
| 28 | 28 | 413 | 493 | 85 |
| 30 | 30 | 474 | 565 | 90 |
| 35 | 35 | 645 | 770 | 100 |
| 43 | 43 | 973 | 1,162 | 115 |
| 57.5 | 57.5 | 1,740 | 2,077 | 140 |
| 63.5 | 63.5 | 2,122 | 2,534 | 150 |
| 75 | 75 | 2,960 | 3,535 | 145 |
| 25 | |
|---|---|
| Diameter | 25 mm |
| Yield load | 329 kN |
| Ultimate load | 393 kN |
| Min. drill hole Ø | 80 mm |
| 28 | |
| Diameter | 28 mm |
| Yield load | 413 kN |
| Ultimate load | 493 kN |
| Min. drill hole Ø | 85 mm |
| 30 | |
| Diameter | 30 mm |
| Yield load | 474 kN |
| Ultimate load | 565 kN |
| Min. drill hole Ø | 90 mm |
| 35 | |
| Diameter | 35 mm |
| Yield load | 645 kN |
| Ultimate load | 770 kN |
| Min. drill hole Ø | 100 mm |
| 43 | |
| Diameter | 43 mm |
| Yield load | 973 kN |
| Ultimate load | 1,162 kN |
| Min. drill hole Ø | 115 mm |
| 57.5 | |
| Diameter | 57.5 mm |
| Yield load | 1,740 kN |
| Ultimate load | 2,077 kN |
| Min. drill hole Ø | 140 mm |
| 63.5 | |
| Diameter | 63.5 mm |
| Yield load | 2,122 kN |
| Ultimate load | 2,534 kN |
| Min. drill hole Ø | 150 mm |
| 75 | |
| Diameter | 75 mm |
| Yield load | 2,960 kN |
| Ultimate load | 3,535 kN |
| Min. drill hole Ø | 145 mm |
