Delmag RH 34
Updated: 24.10.2022
| RH 34 | |
|---|---|
| Rotary head: | |
| Model | BT 340 |
| Rotary torque | 340 @ 330 bar kNm |
| Revolutions | 0-40 rpm |
| Weight of rotary | 7,950 kg |
| Leader mast: | |

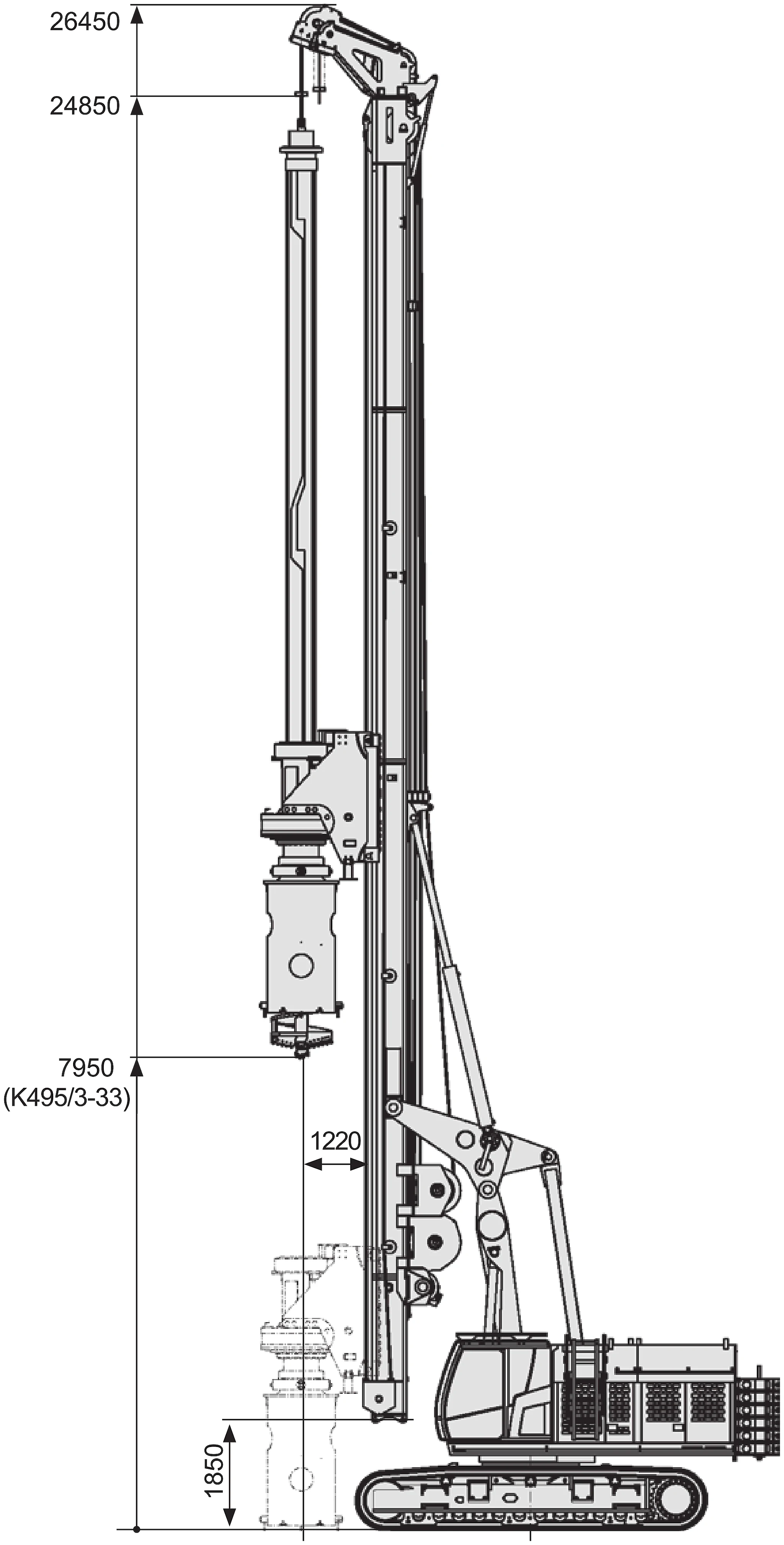

| Total height | 26,450 mm |
| Drilling distance max. (center) | 5,000 mm |
| Ground clearence-mast foot | 1,850 mm |
| Inclination forward / backward | 4 / 14 deg |
| Inclination left / right | 9.5 / 9.5 deg |
| Stroke | 18,500 mm |
| Crowd winch force up / down | 420 / 330 kN |
| Crowd winch speed rapid / working | 28.5 / 5.5 m/min |
| Kelly winch line pull | 250 kN |
| Kelly winch rope speed | 68 m/min |
| Service winch line pull | 100 kN |
| Service winch rope speed | 60 m/min |
| Base carrier: | |
| Model | T 100 D-A |
| Engine | CAT C13B |
| Engine power | 400 kW |
| Track shoes | 900 mm |

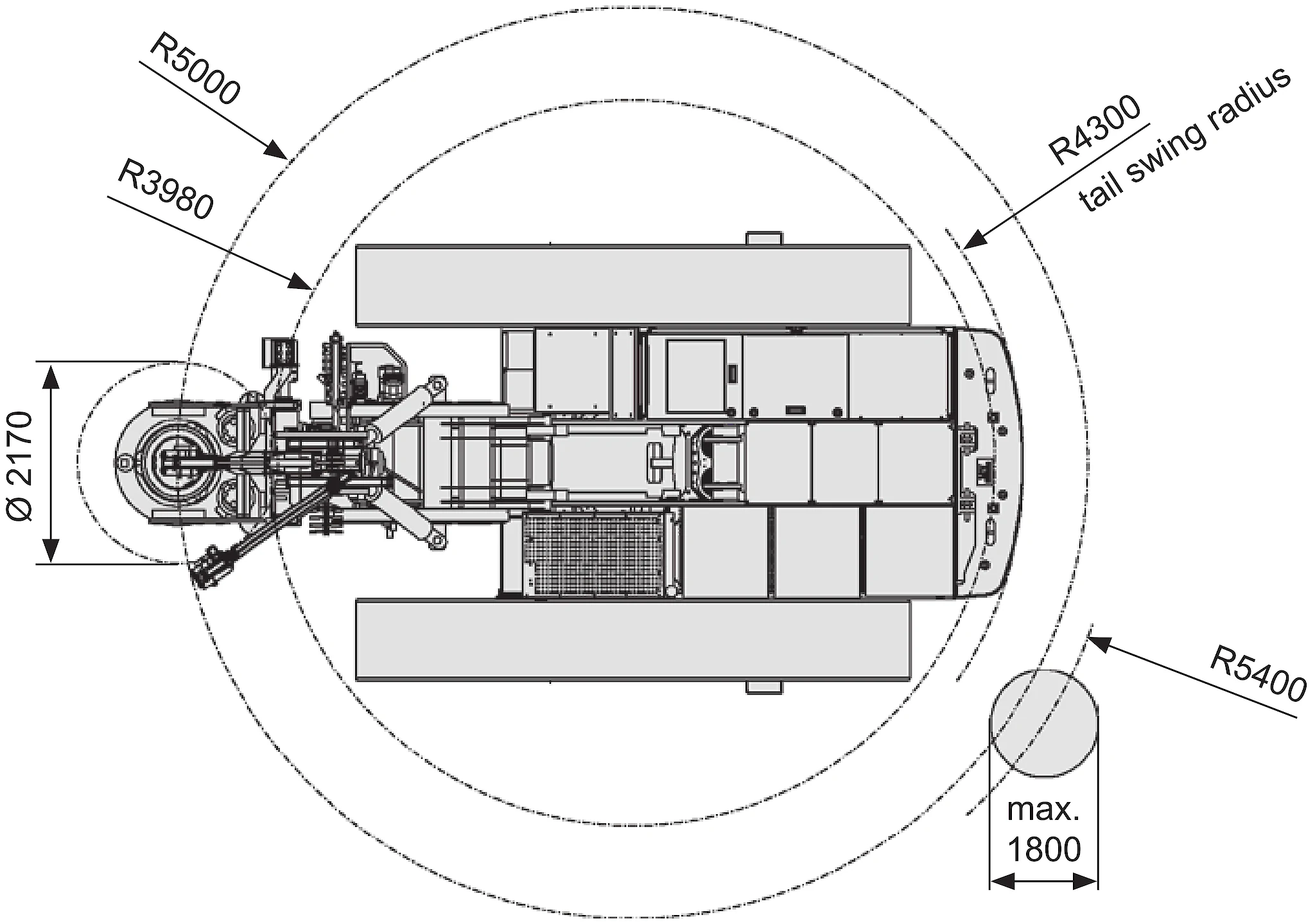

| Back pivoting radius | 4,300 mm |
| Transport weight: | |
| Weight | 89.3 t |

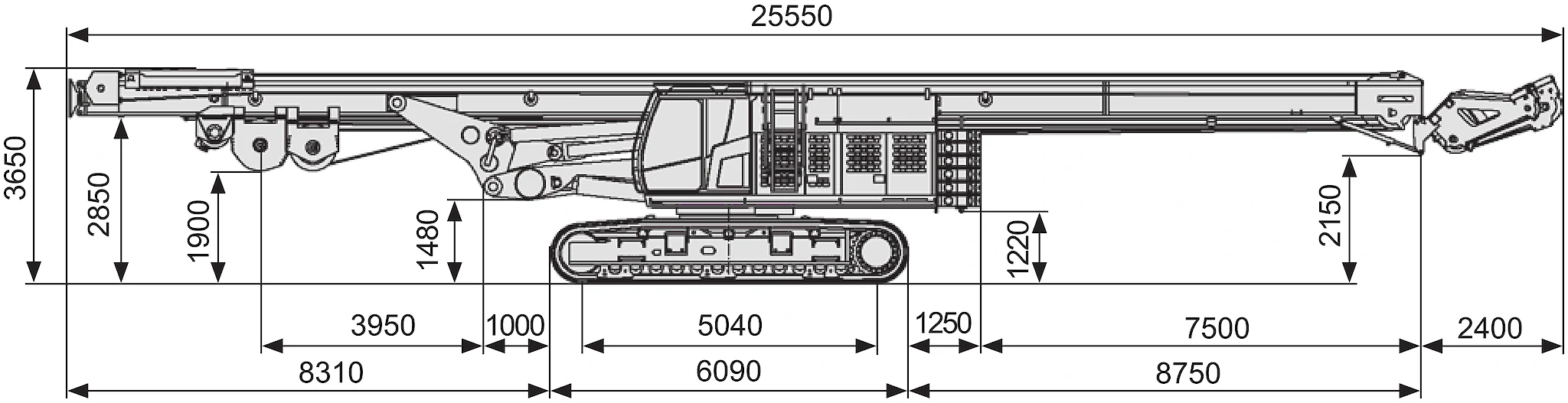

| Transport dimensions: | |
| Length | 25,550 mm |

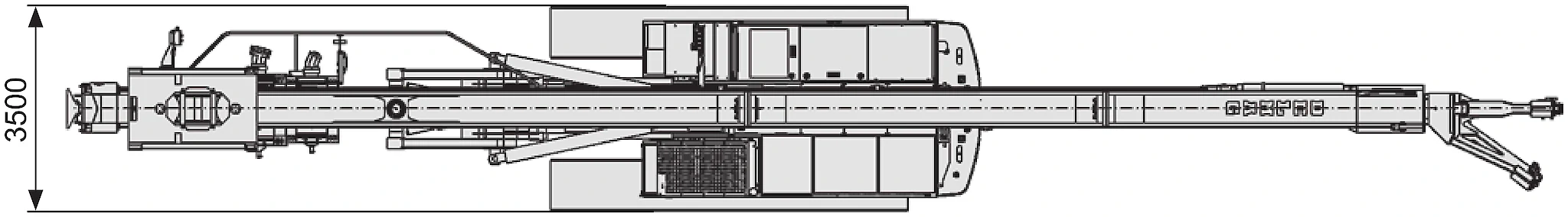

| Width | 3,500 mm |
| Height | 3,650 mm |
