ABI MRZV 12VV
Updated: 24.10.2022
| ABI MRZV 12VV | |
|---|---|
| Standard clamp assembly | SKZ 720 |
| Docking-system | D6/4 |
| Static moment | 0-12 kgm |
| Dynamic mass | 2,135 kg |
| Nominal revolutions | 2,135 min⁻¹ |
| Maximum revolutions | 2,600 min⁻¹ |
| Centrifugal force at nominal freq. | 600 kN |
| Maximum centrifugal force | 600 kN |
| Static extraction force max. | 200 kN |
| Maximum oil pressure | 35 MPa |
| Recommended power of carrier ~ | 200 - 260 kW |
| Total weight | 3,300 kg |
| Transport weight | 3,520 kg |

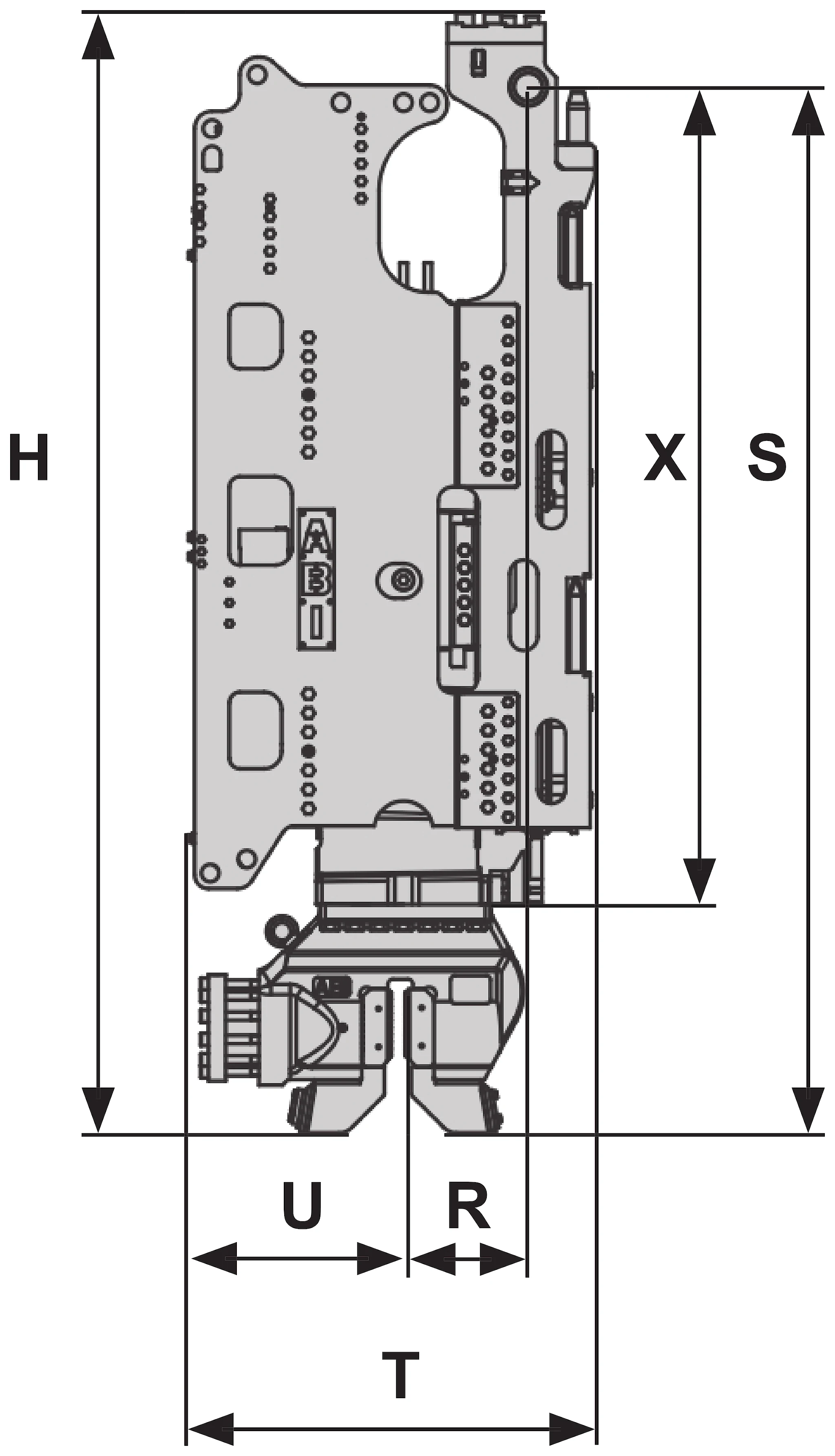

| Height H | 2,920 mm |

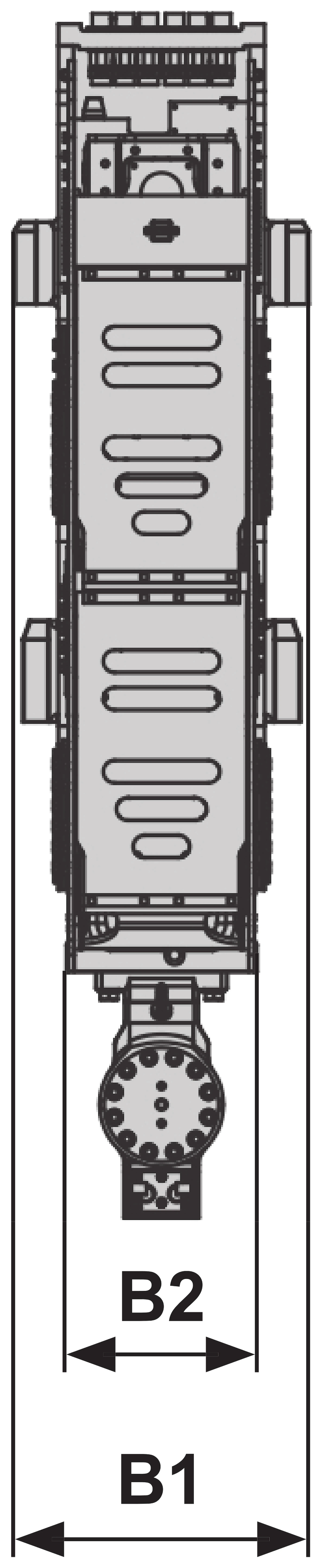

| Width B1 | 790 mm |
| Depth T | 1,465 mm |
| B2 | 460 mm |
| R | 360 mm |
| U | 910 mm |
| S | 2,705 mm |
| X | 2,110 mm |
| Transport dimensions: | |

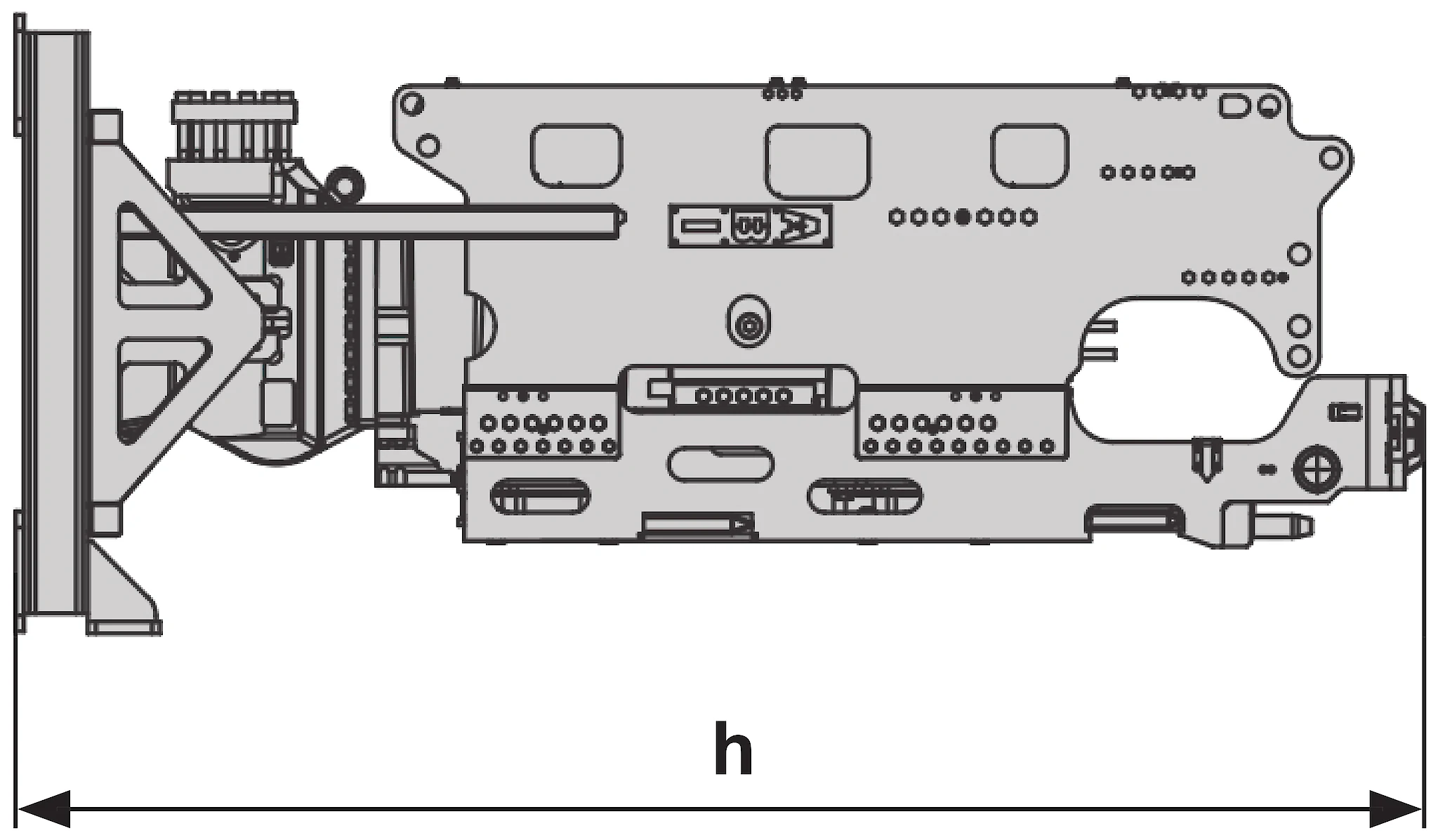

| Height h | 3,070 mm |

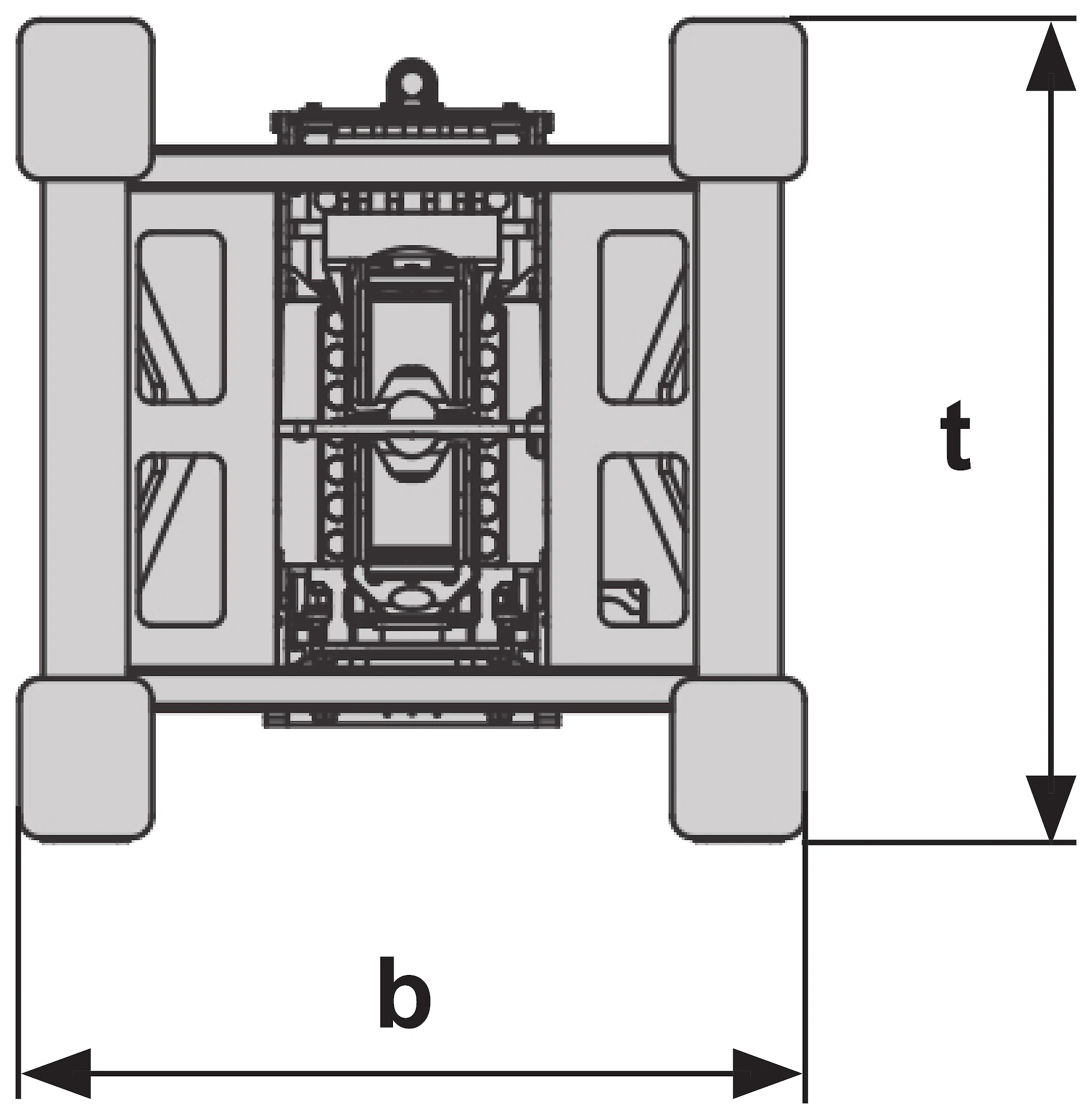

| Width b | 1,040 mm |
| Depth t | 1,600 mm |
