ABI MRZV 16VV
Updated: 24.10.2022
| ABI MRZV 16VV | |
|---|---|
| Standard clamp assembly | SKZ 900 |
| Docking-system | D6/4 |
| Static moment | 0-16 kgm |
| Dynamic mass | 2,400 kg |
| Nominal revolutions | 2,070 min⁻¹ |
| Maximum revolutions | 2,600 min⁻¹ |
| Centrifugal force at nominal freq. | 750 kN |
| Maximum centrifugal force | 750 kN |
| Static extraction force max. | 200 kN |
| Maximum oil pressure | 35 MPa |
| Recommended power of carrier ~ | 250 - 300 kW |
| Total weight | 3,650 kg |
| Transport weight | 3,910 kg |

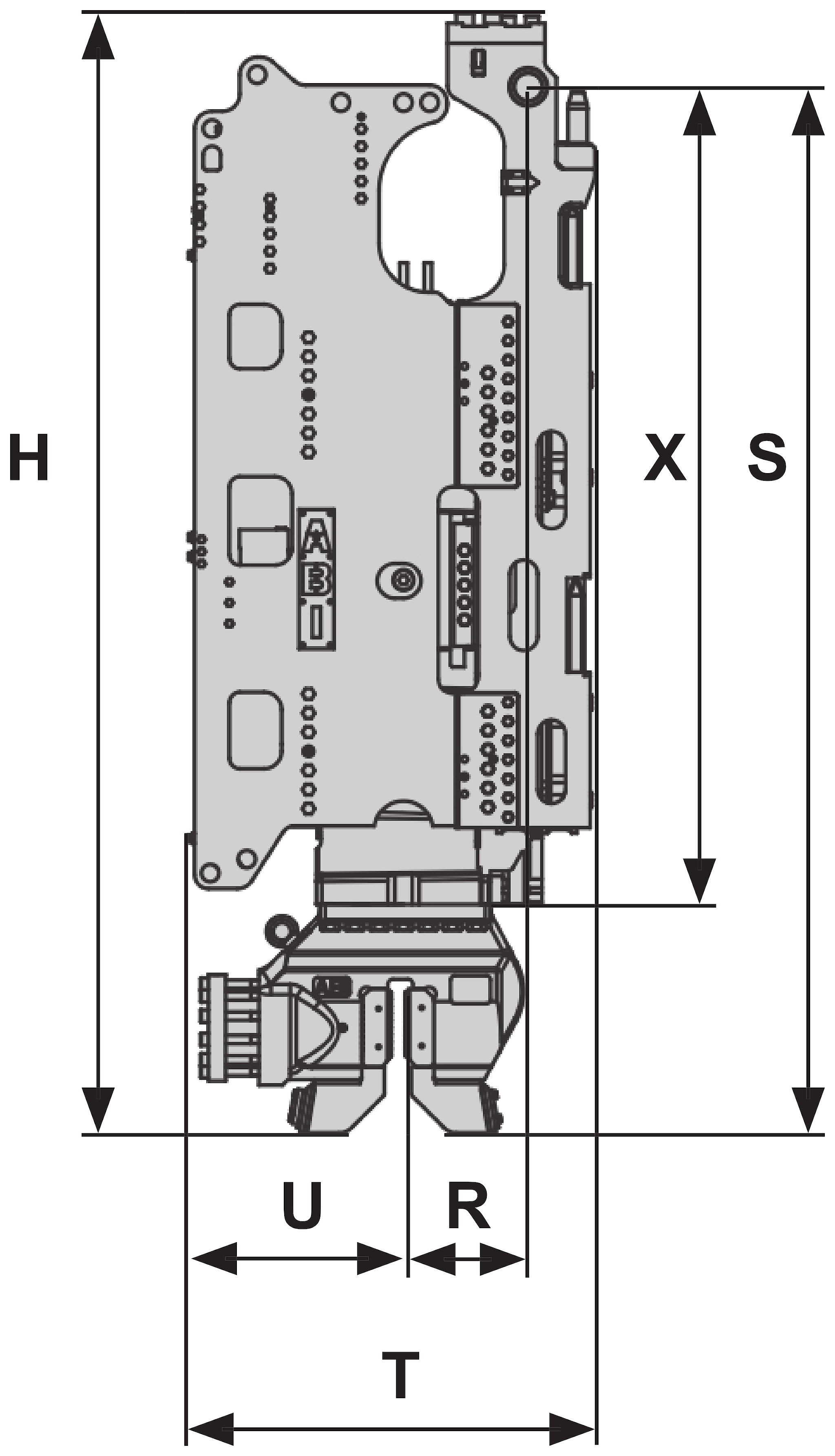

| Height H | 2,920 mm |

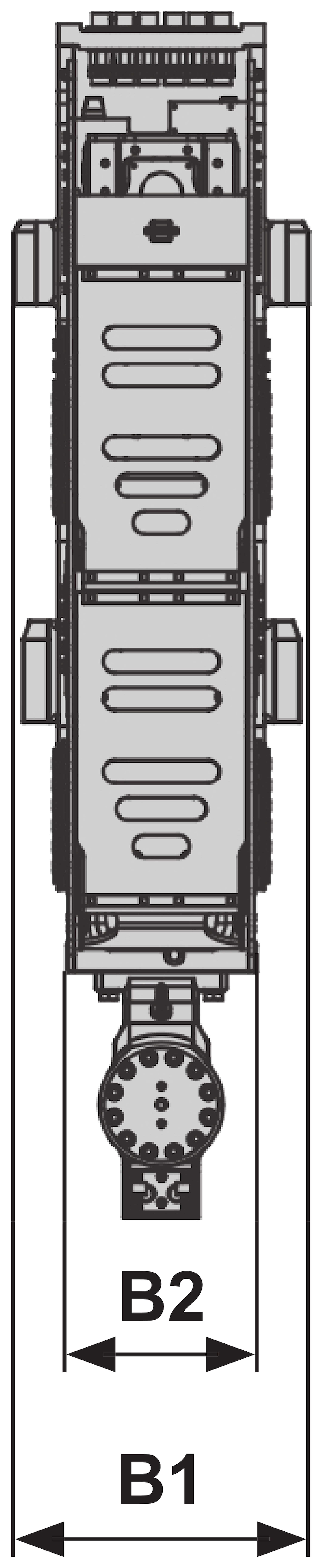

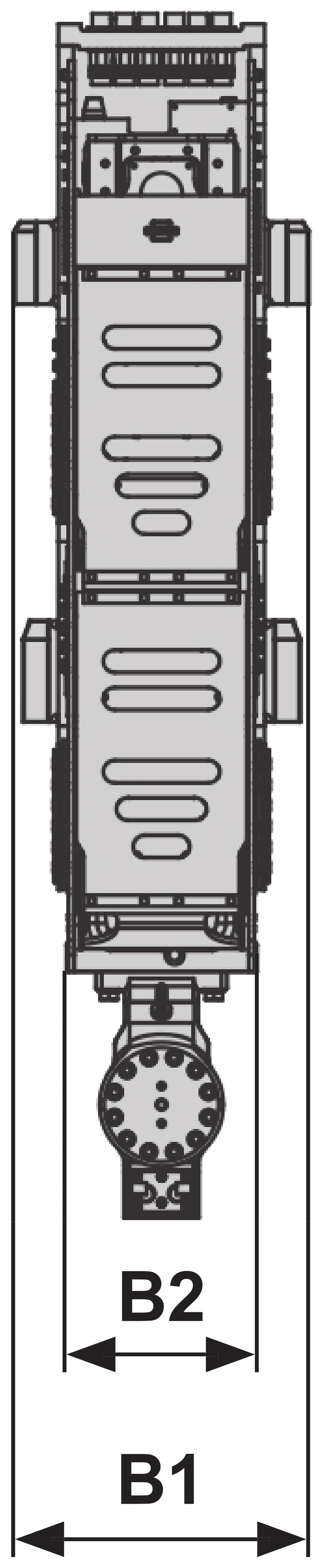

| Width B1 | 790 mm |
| Depth T | 1,280 mm |
| B2 | 520 mm |
| R | 360 mm |
| U | 730 mm |
| S | 2,710 mm |
| X | 2,110 mm |

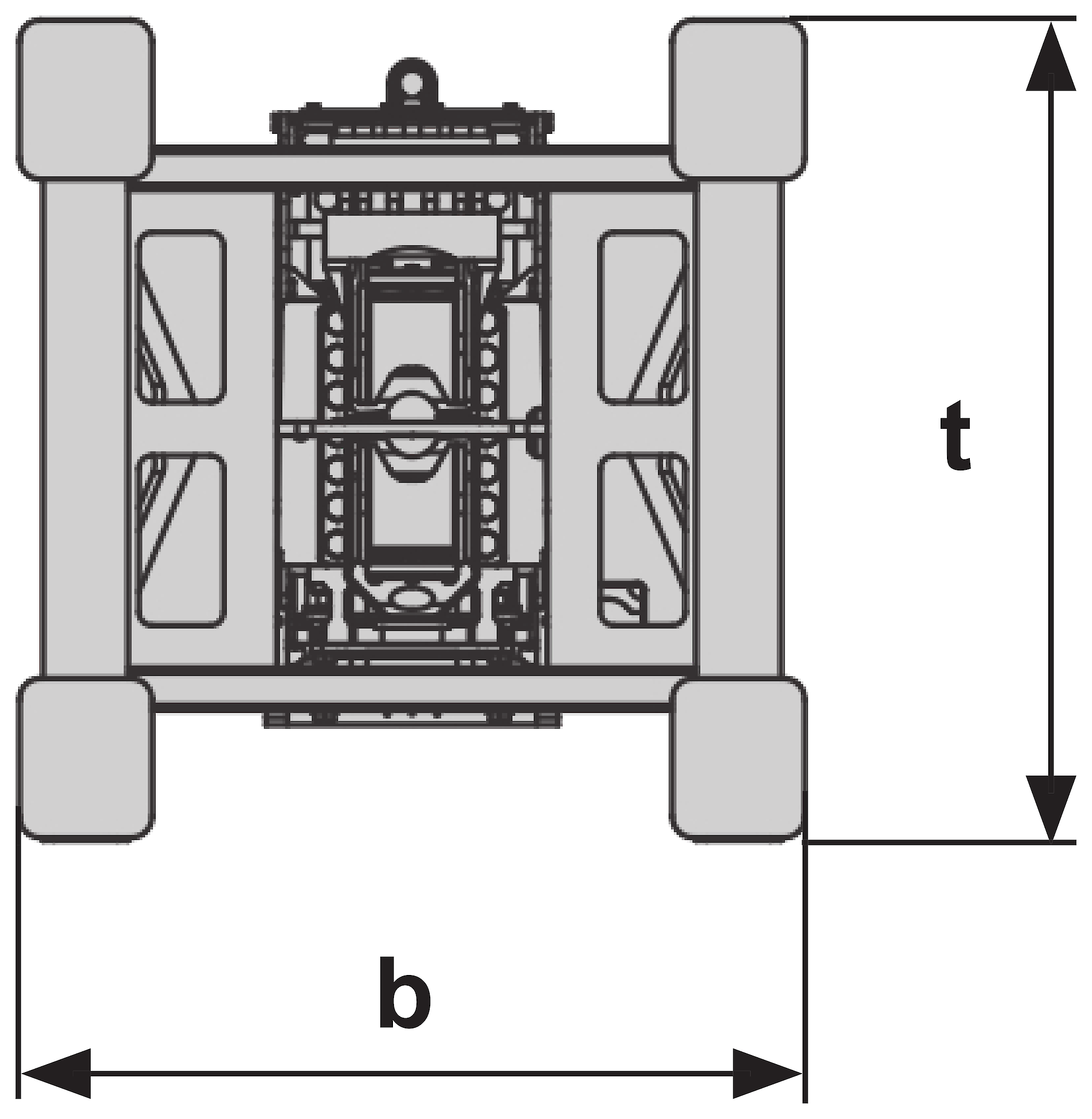

| Transport dimensions: | |

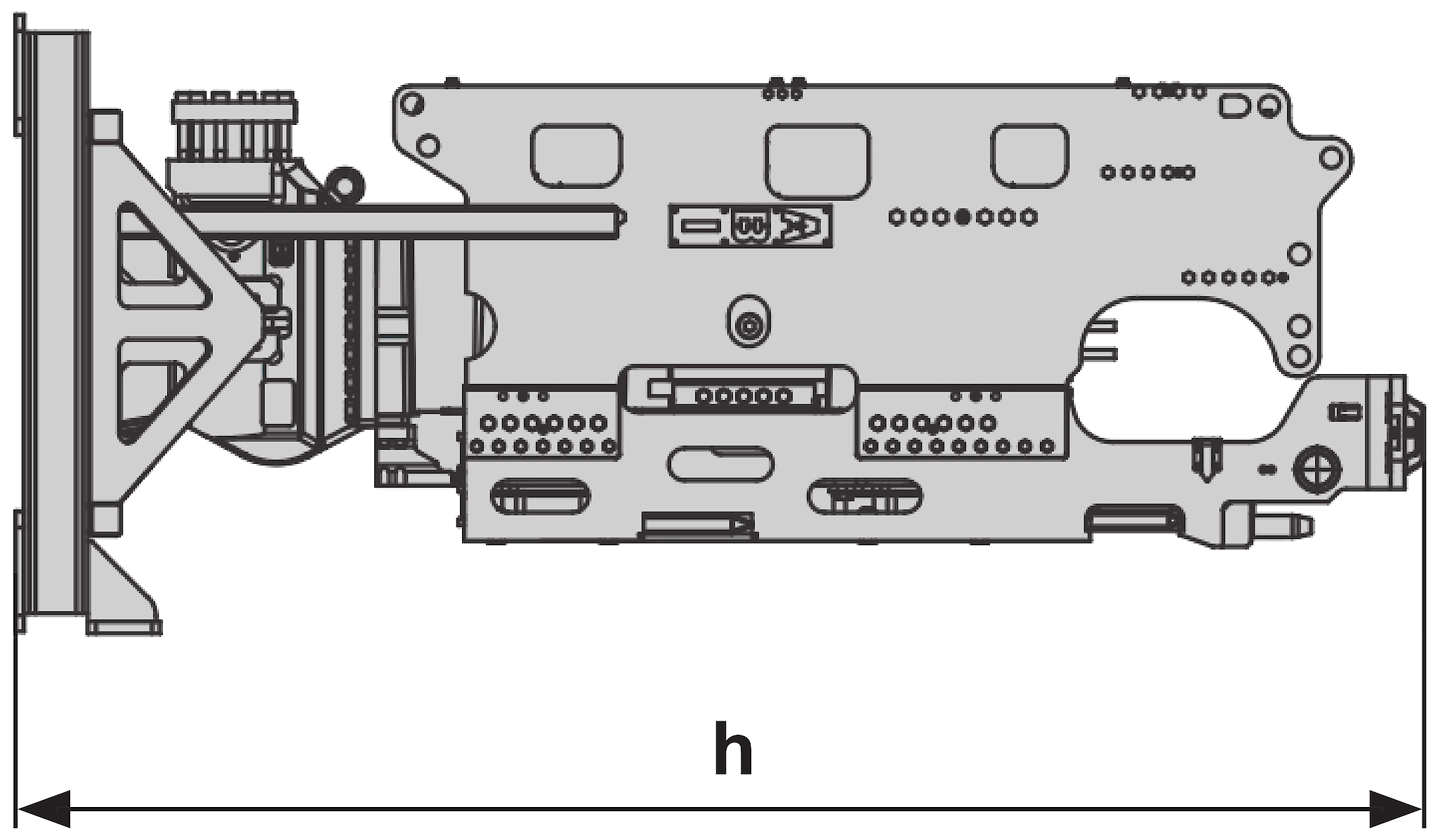

| Height h | 3,100 mm |
| Width b | 1,000 mm |
| Depth t | 1,340 mm |
