ABI MRZV 20VV
Updated: 16.10.2023
| ABI MRZV 20VV | |
|---|---|
| Standard clamp assembly | SKZ 1120 |
| Docking-system | D6 |
| Static moment | 0-20 kgm |
| Dynamic mass | 2,820 kg |
| Nominal revolutions | 2,135 min⁻¹ |
| Maximum revolutions | 2,600 min⁻¹ |
| Centrifugal force at nominal freq. | 1,000 kN |
| Maximum centrifugal force | 1,200 kN |
| Static extraction force max. | 240 kN |
| Maximum oil pressure | 35 MPa |
| Recommended power of carrier ~ | 300 - 470 kW |
| Total weight | 4,240 kg |
| Transport weight | 4,460 kg |

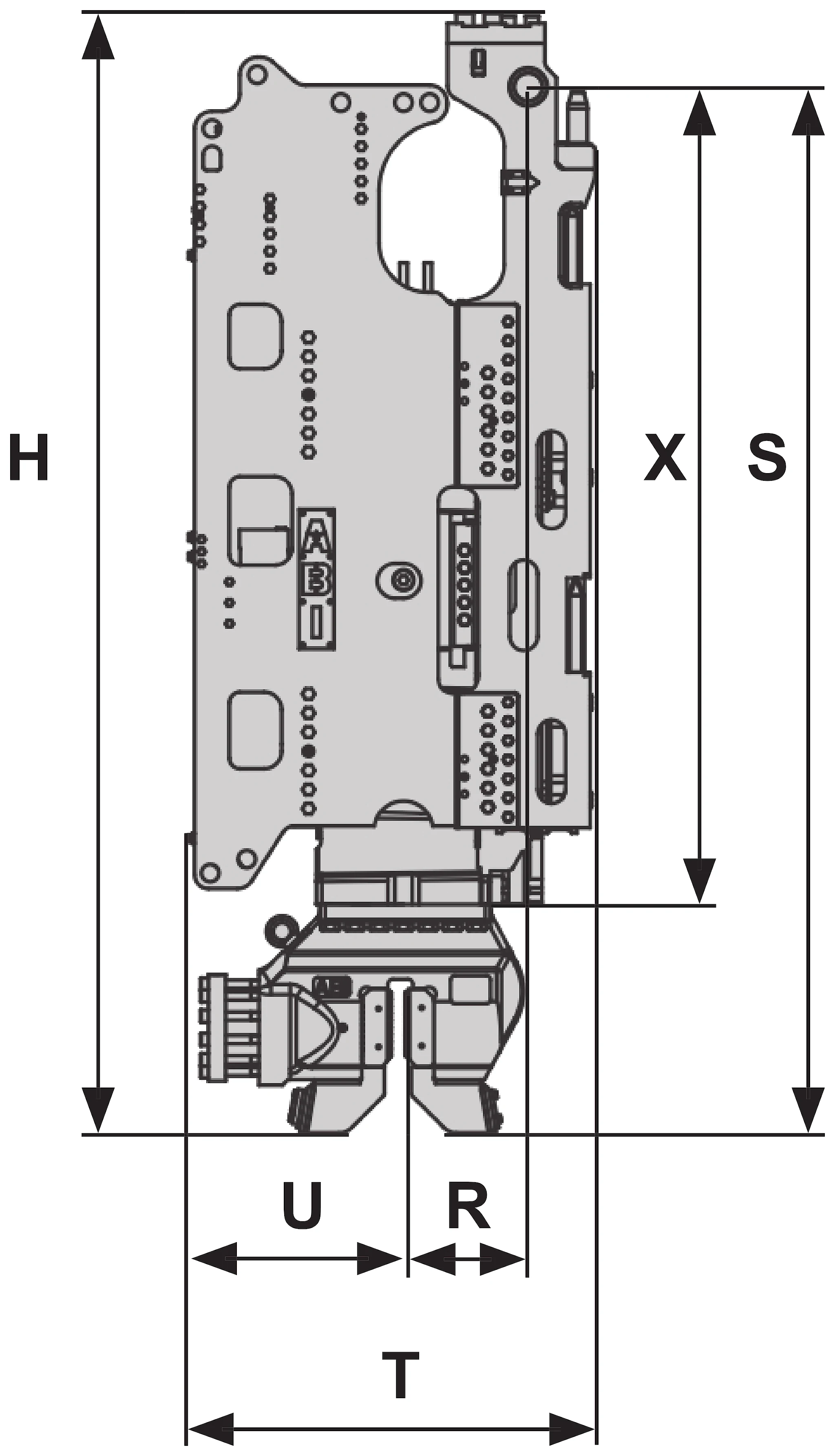

| Height H | 3,235 mm |

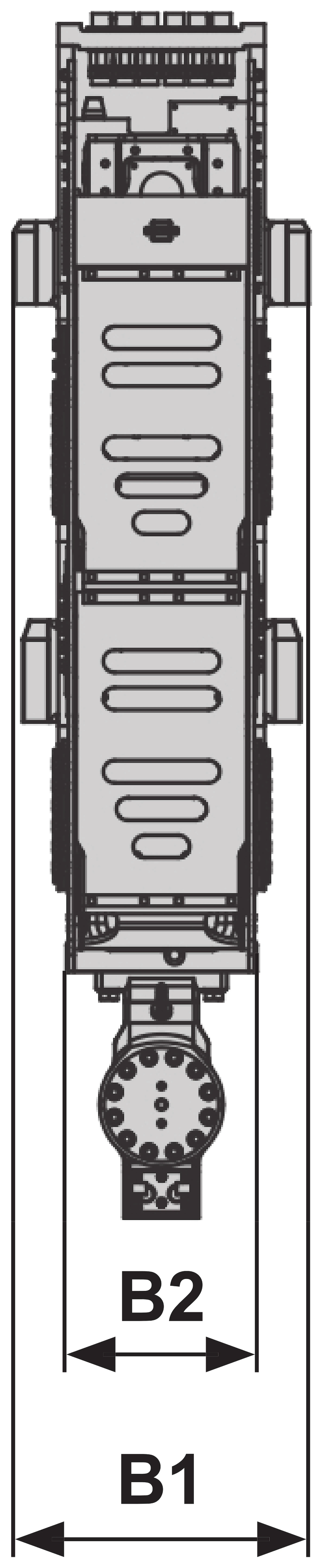

| Width B1 | 790 mm |
| Depth T | 1,495 mm |
| B2 | 460 mm |
| R | 435 mm |
| U | 870 mm |
| S | 3,020 mm |
| X | 2,375 mm |

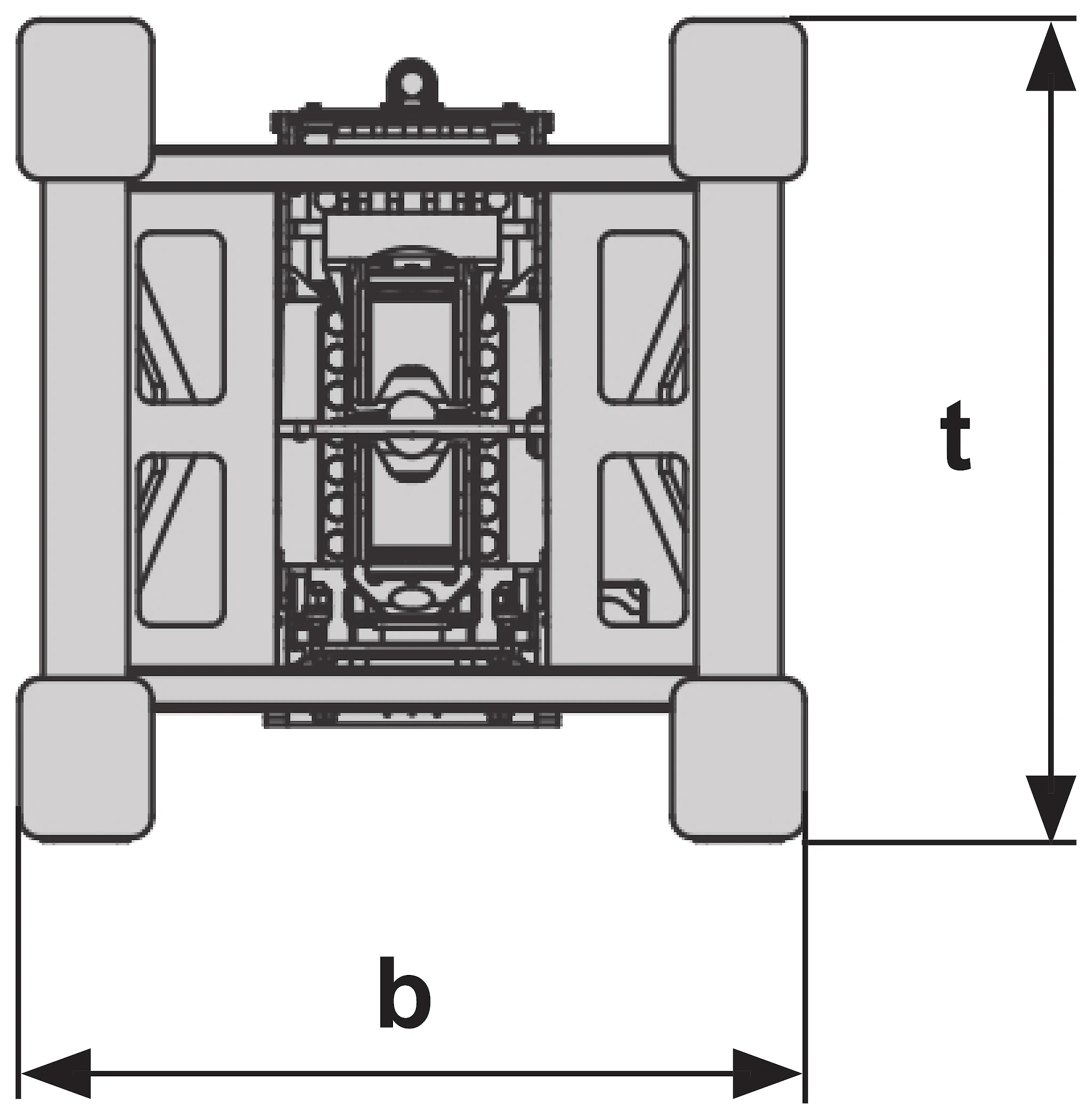

| Transport dimensions: | |

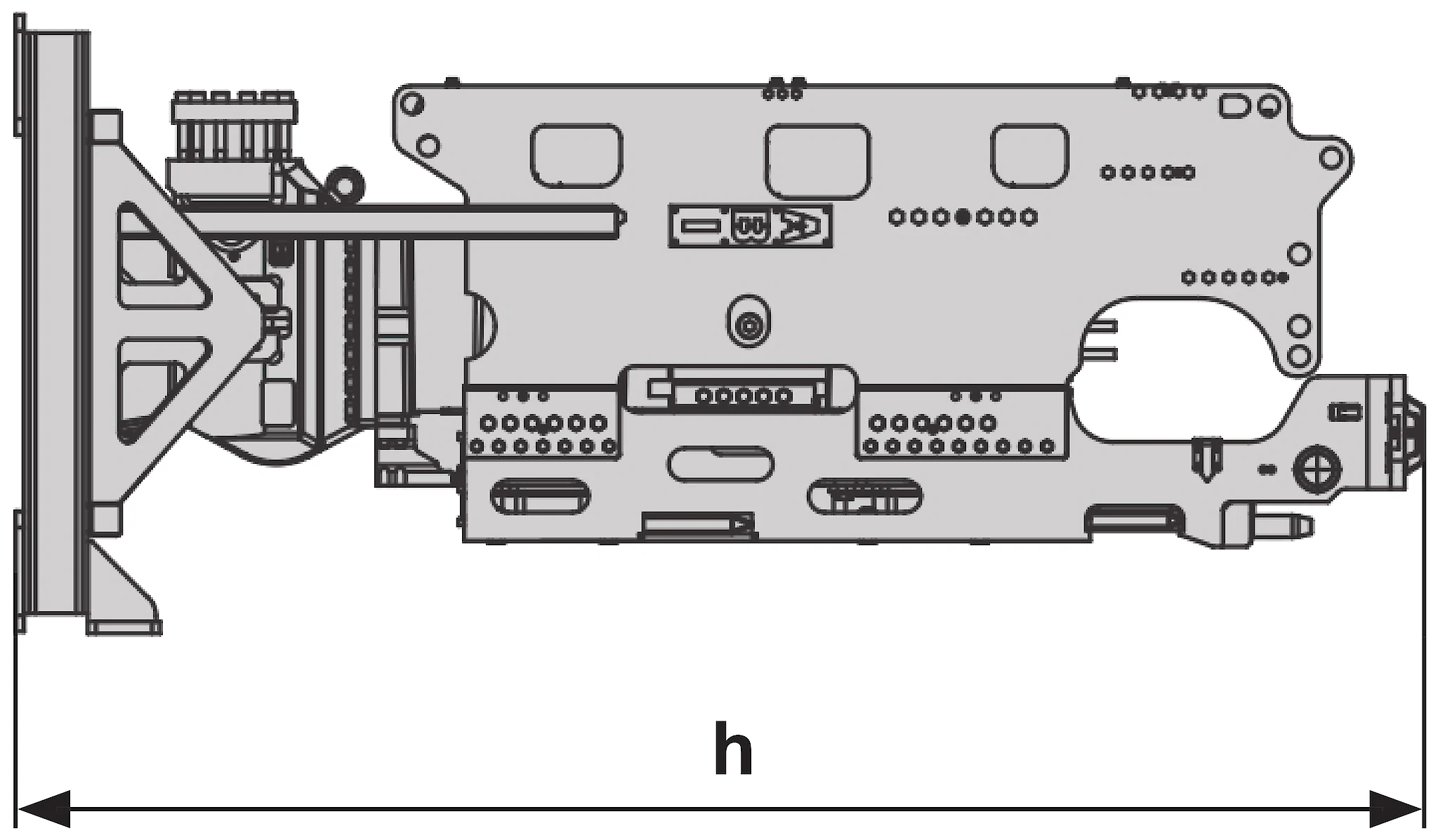

| Height h | 3,370 mm |
| Width b | 1,040 mm |
| Depth t | 1,635 mm |
