ABI TM 13/16 SL
Updated: 11.10.2023
| ABI TM 13/16 SL | |
|---|---|
| Leader mast: | |

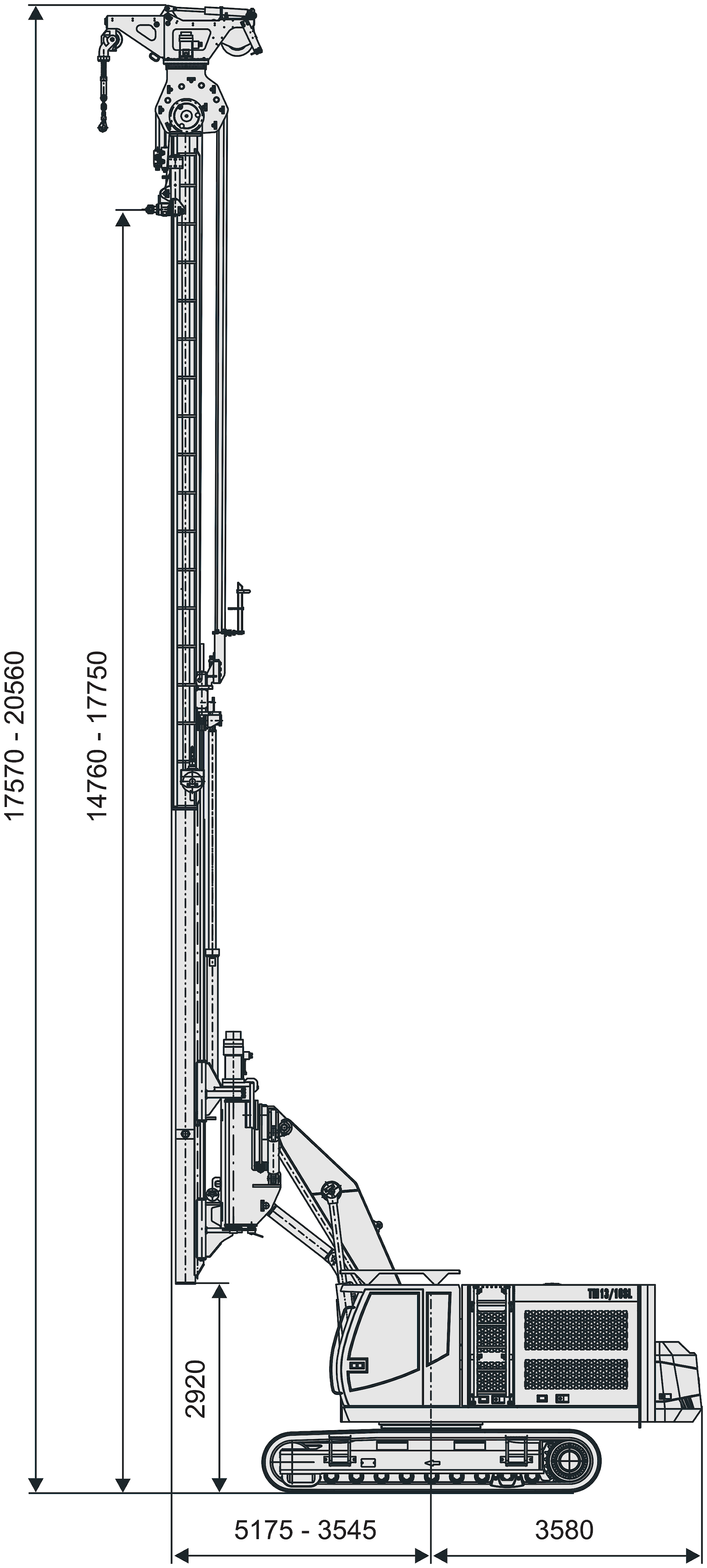

| Total height | 20,520 mm |
| Inclination left / right | 4 / 4 deg |
| Inclination forward / backward | 4 / 5 deg |
| Stroke guiding carriage | 16,000 mm |
| Extraction force up | 175 kN |
| Feed force down | 90 kN |
| Torque absorption max. | 45 kNm |
| Load capacity max. | 7,500 kg |
| Auxiliary winch (option): | |
| Line pull at min. reach | 50 kN |
| Speed, adjusted | 35 m/min |
| Base carrier: | |
| Model | SR 30 T-E |
| Engine | Scania DC9 |
| Engine power | 294 kW |
| Hydraulic pumps (set at) | 2 x 270, 1 x 200 l/min |
| Working pressure | 330 bar |
| Transport weight: | |
| Weight | 49,200 kg |

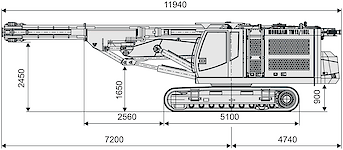

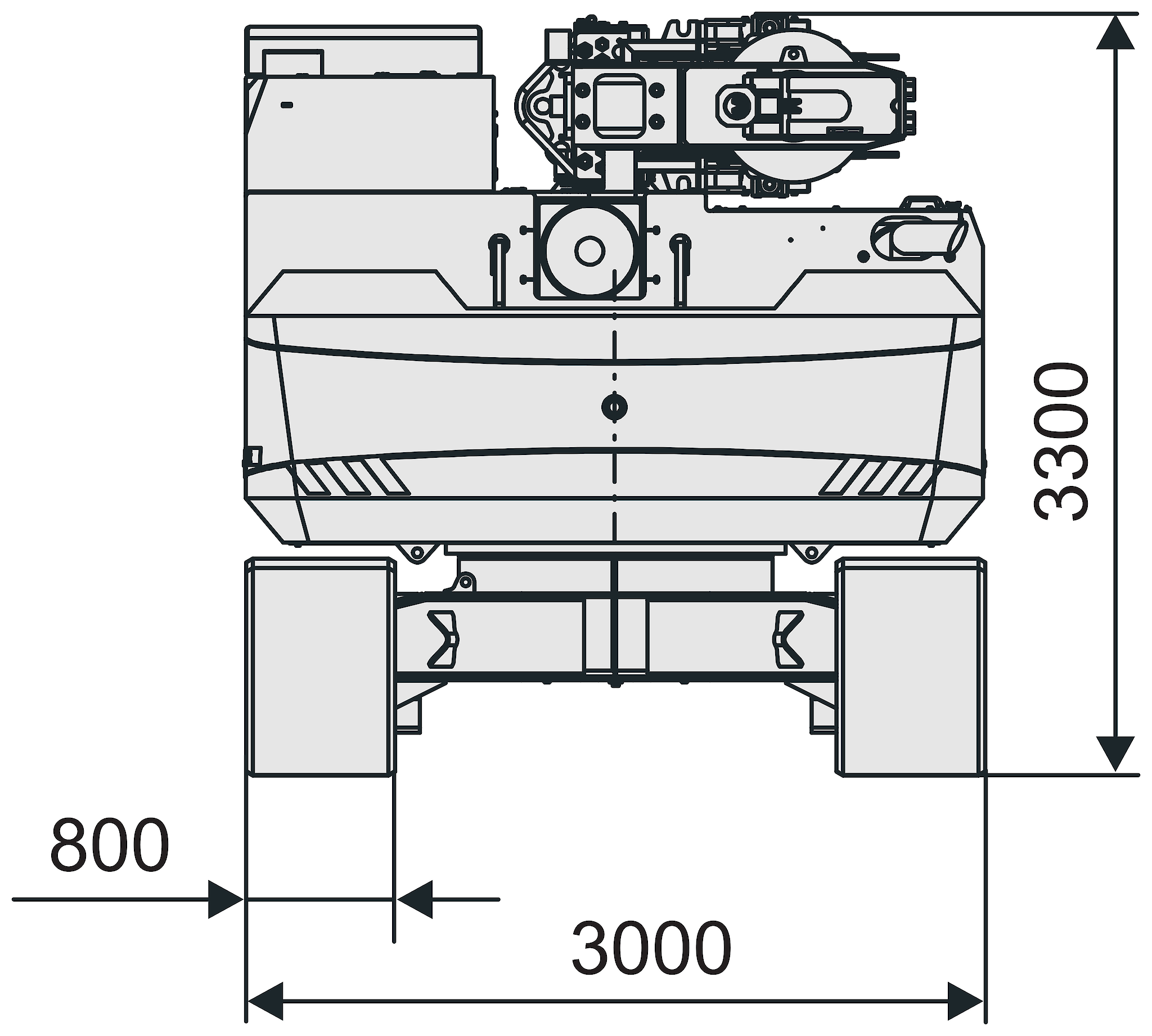

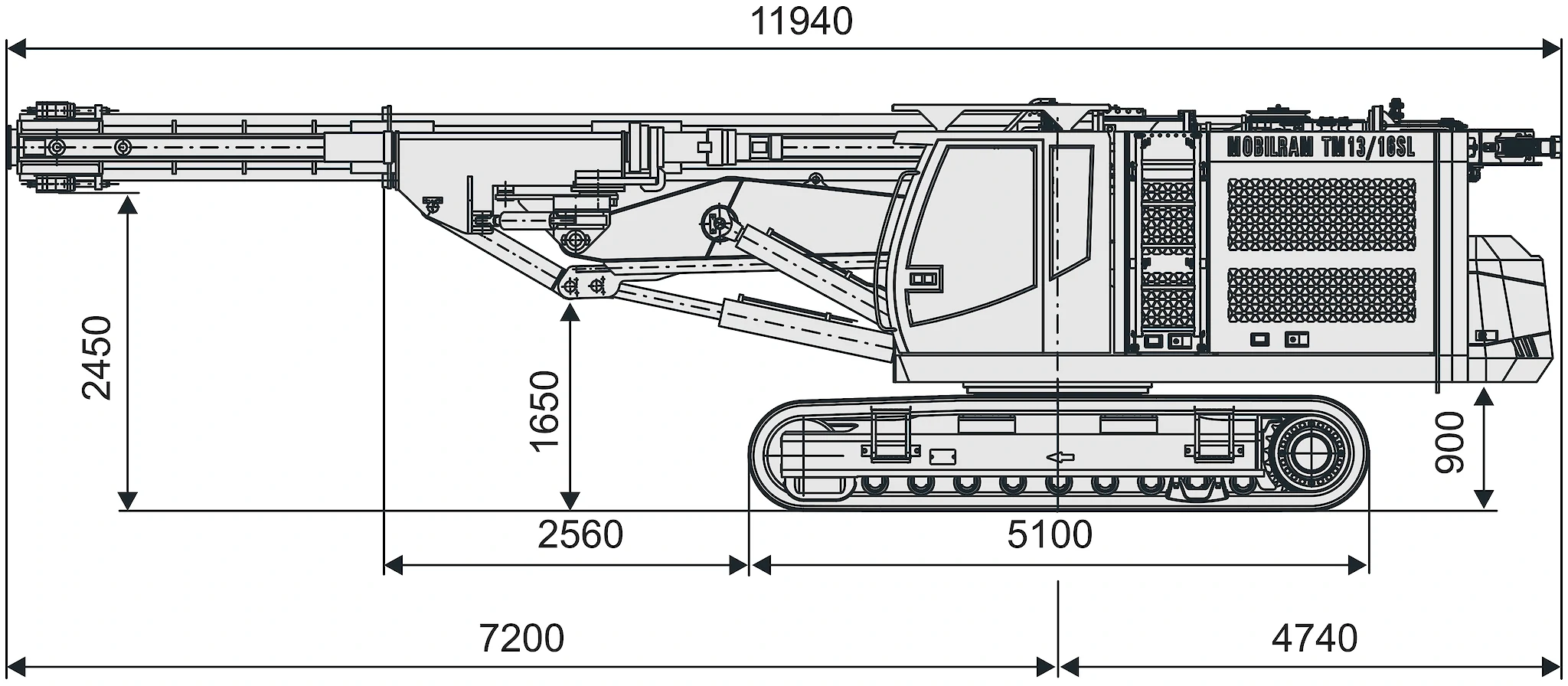

| Transport dimensions: | |
| Length | 11,770 mm |
| Width | 3,000 mm |
| Height | 3,300 mm |
Categories:

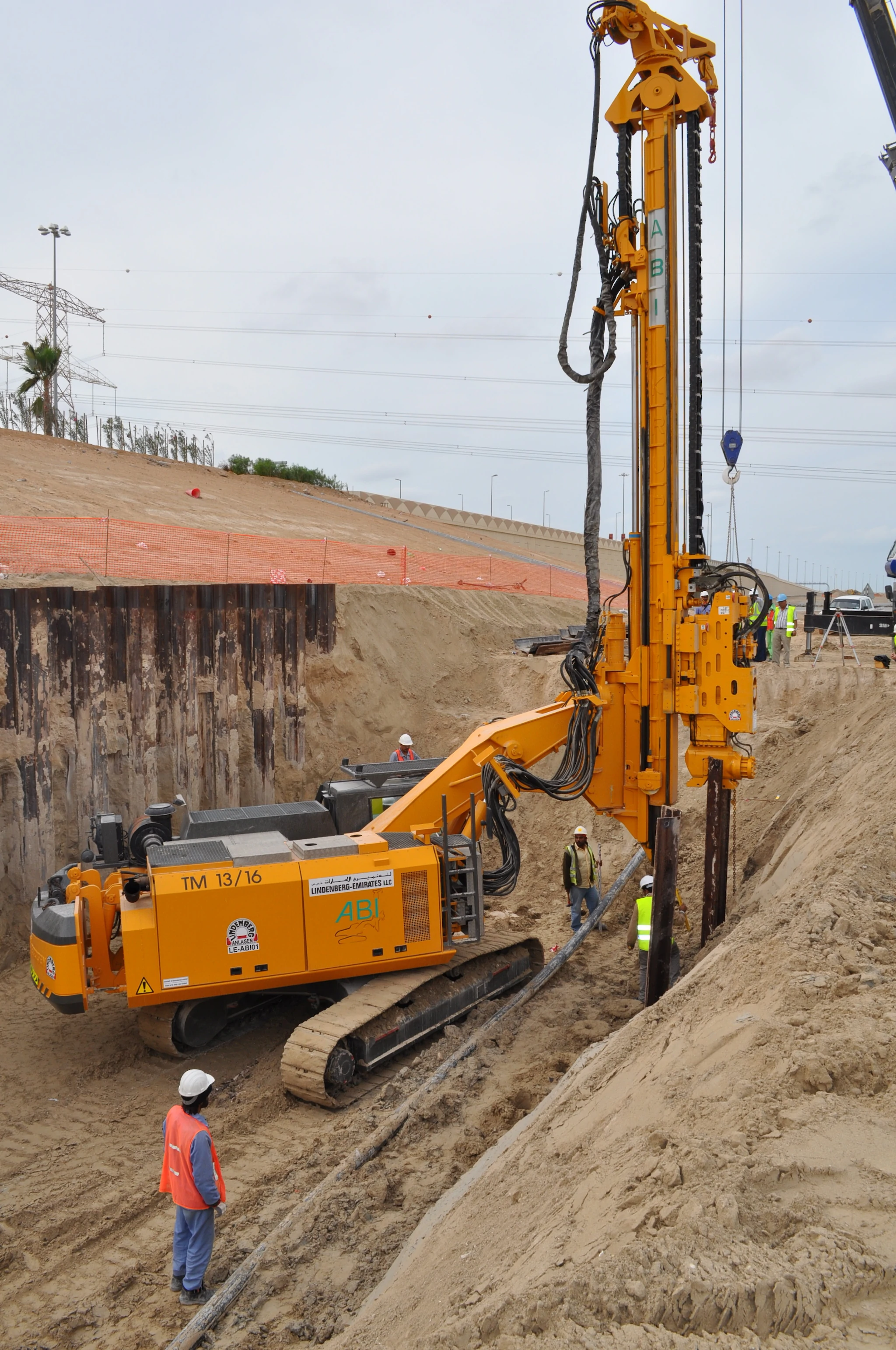

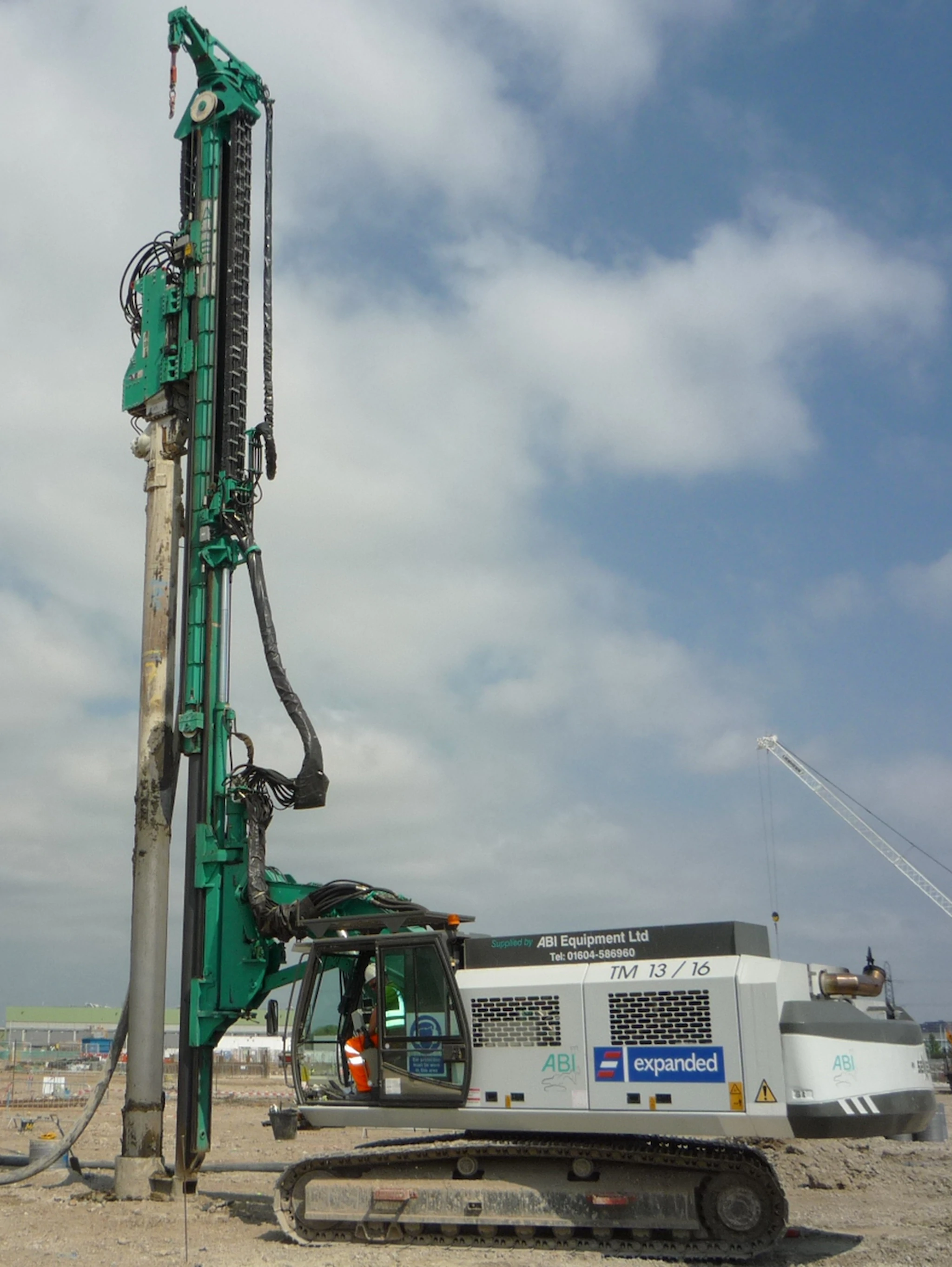

Attachment examples:
