ABI SM 14/18 HD
Updated: 24.10.2022
| ABI SM 14/18 HD | |
|---|---|
| Leader mast: | |
| Total height | 24,050 mm |
| Inclination left / right | 4 / 4 deg |
| Inclination up / down | 4 / 5 deg |
| Stroke guiding carriage | 18,000 mm |
| Feed force up | 400 kN |
| Feed force down | 150 kN |
| Torque absorption max. | 200 kNm |
| Load capacity max. | 15,000 kg |
| Auxiliary winch (option): | |
| Line pull at min. reach | 50 kN |
| Speed, adjusted | 35 m/min |
| Kelly winch (option): | |
| Line pull at min. reach | 120 kN |
| Speed, adjusted | 65 m/min |
| Base carrier: | |
| Model | SR 35 T-E |
| Engine | CAT C18 |
| Engine power | 470 kW |
| Hydraulic pumps (set at) | 2 x 410, 1 x 200, 1 x 125 l/min |
| Working pressure | 330 bar |
| Transport weight: | |
| Weight | 79,000 kg |

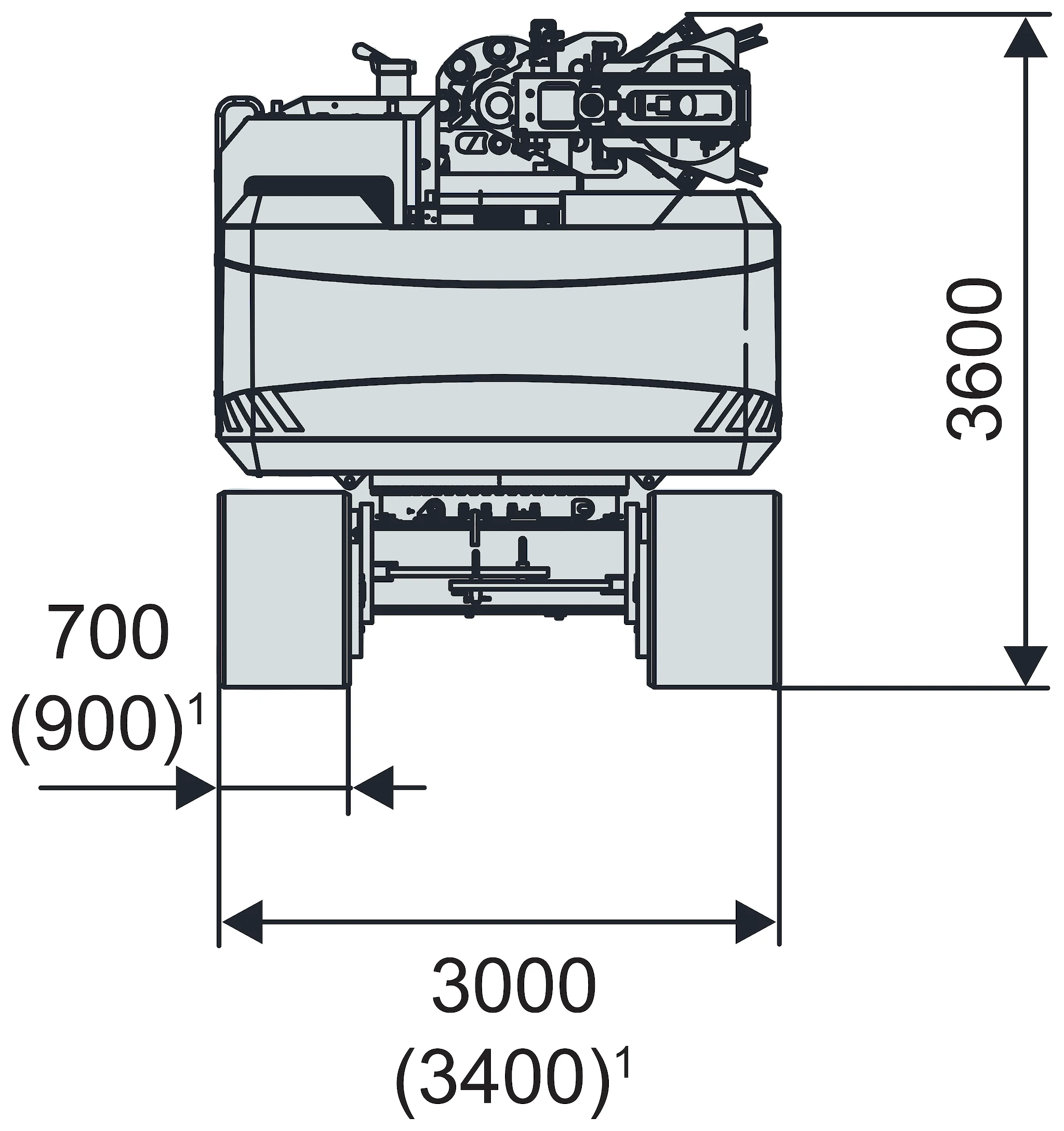

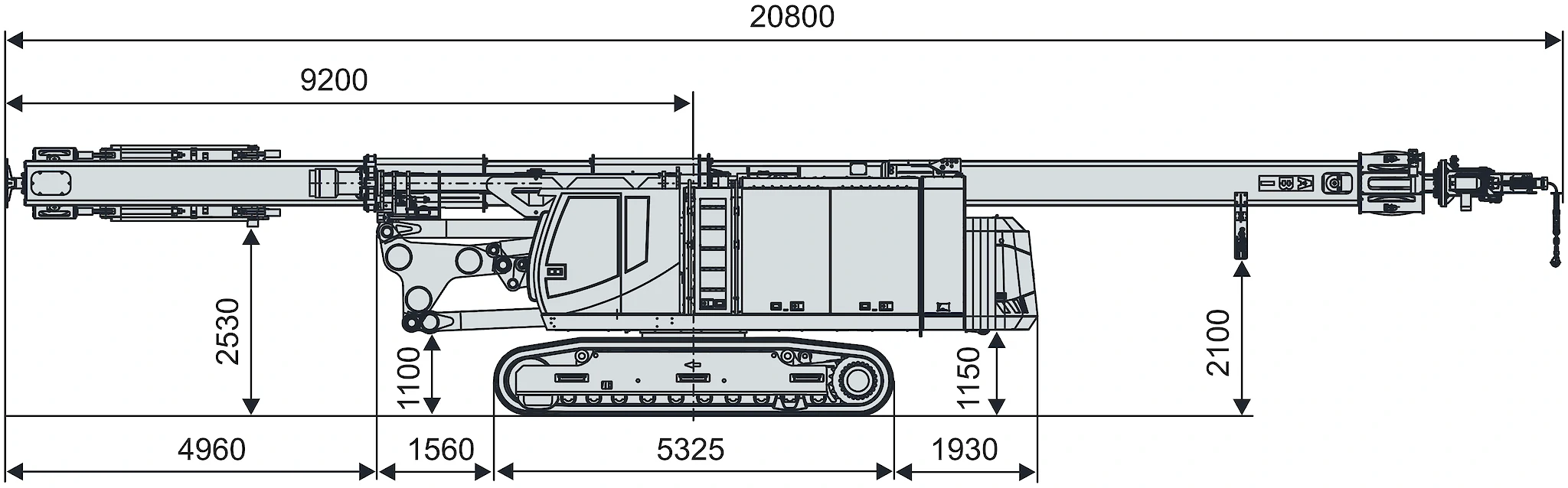

| Transport dimensions: | |
| Length | 20,800 mm |
| Width | 3,000 mm |
| Height | 3,600 mm |
