ABI SM 18/22 HD
Updated: 16.10.2023
| ABI SM 18/22 HD | |
|---|---|
| Leader mast: | |
| Total height | 27,410 mm |
| Inclination left / right | 4 / 4 deg |
| Inclination up / down | 4 / 5 deg |
| Stroke guiding carriage | 22,000 mm |
| Feed force up | 300 kN |
| Feed force down | 200 kN |
| Torque absorption max. | 200 kNm |
| Load capacity max. | 15,000 kg |
| Auxiliary winch (option): | |
| Line pull at min. reach | 50 kN |
| Speed, adjusted | 35 m/min |
| Kelly winch (option): | |
| Line pull at min. reach | kN |
| Speed, adjusted | m/min |
| Base carrier: | |
| Model | SR 45 D |
| Engine | CAT C18 |
| Engine power | 563 kW |
| Hydraulic pumps (set at) | 2 x 460, 2x 200 l/min |
| Working pressure | 330 bar |
| Transport weight: | |
| Weight | 86,200 kg |

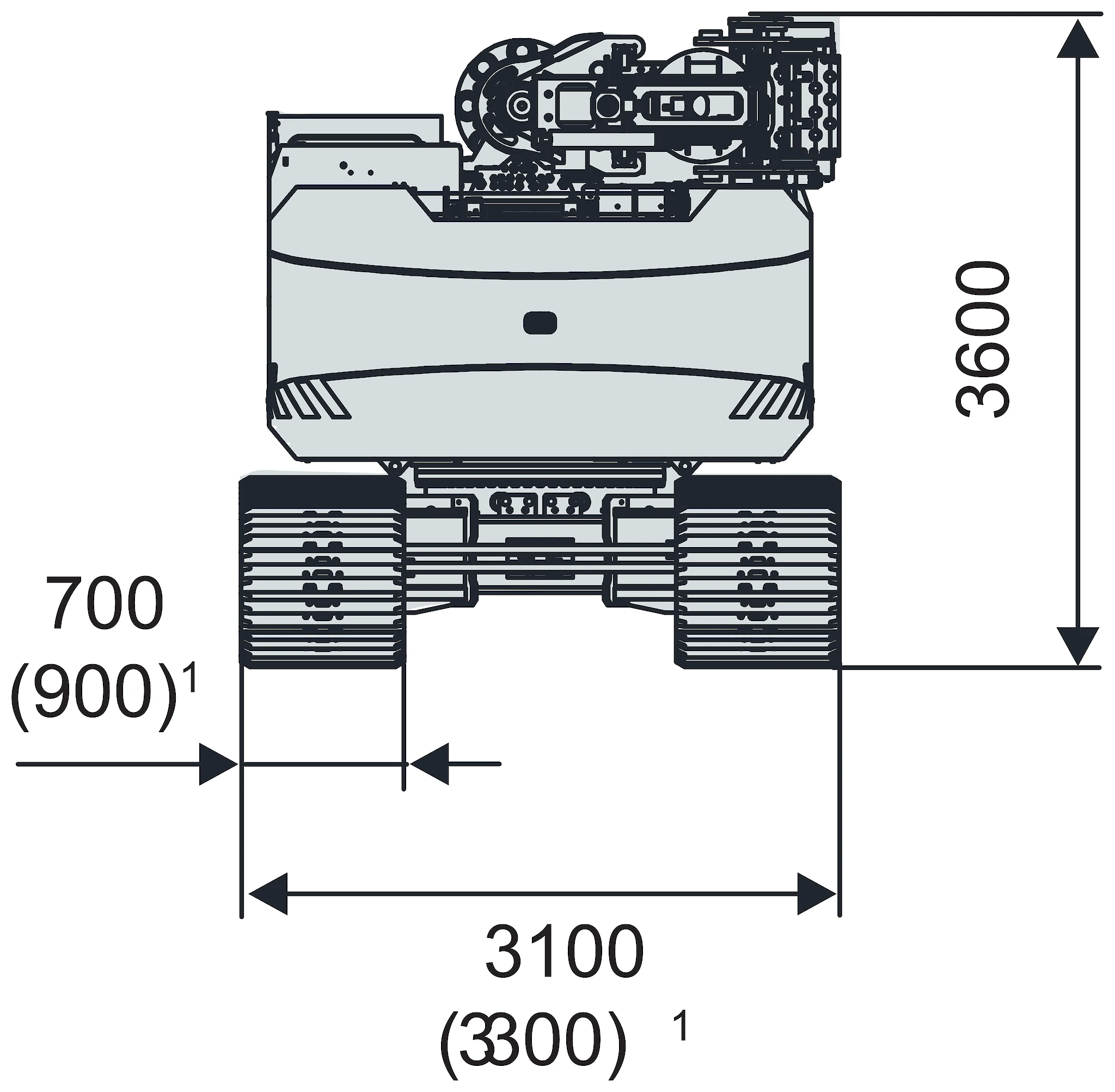

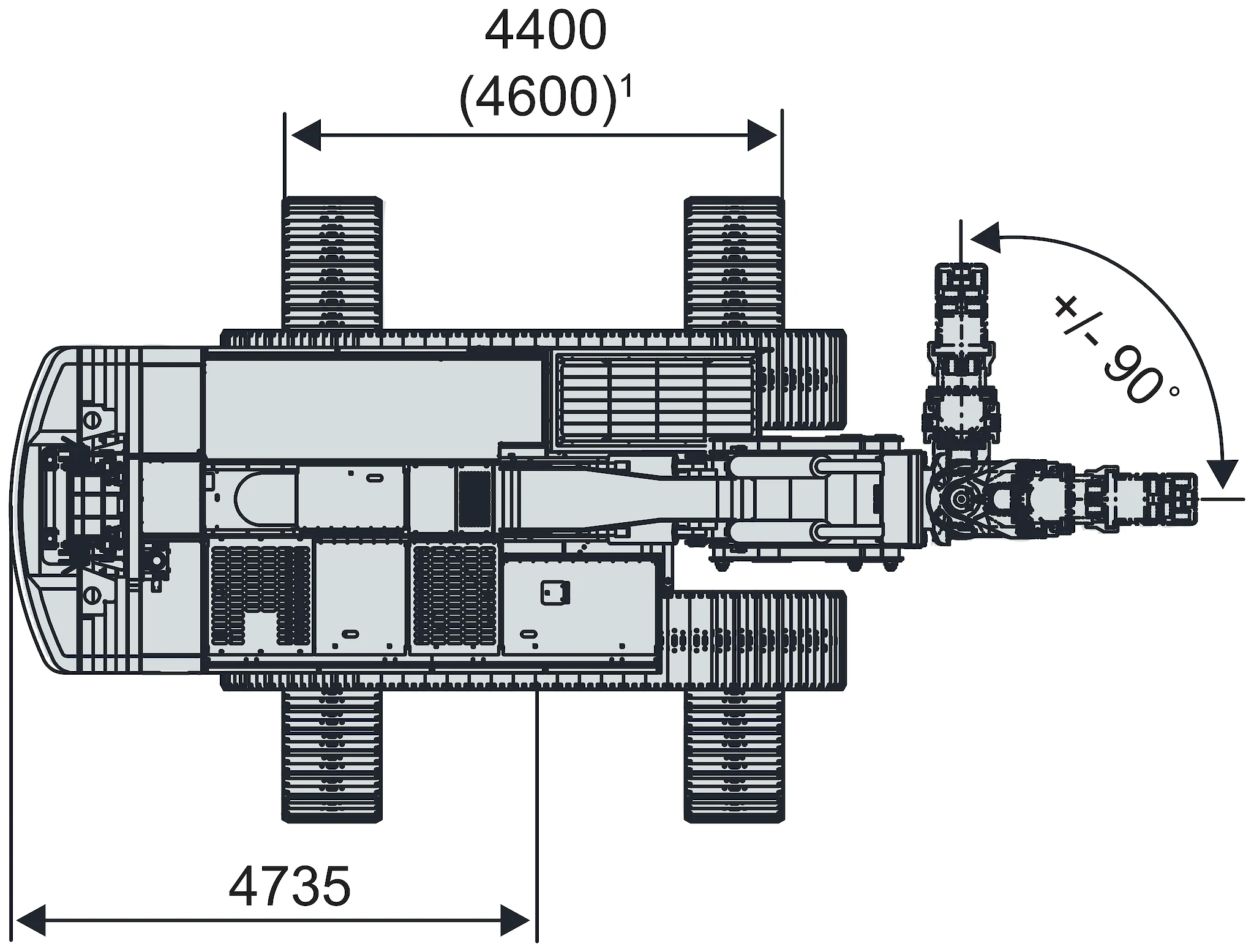

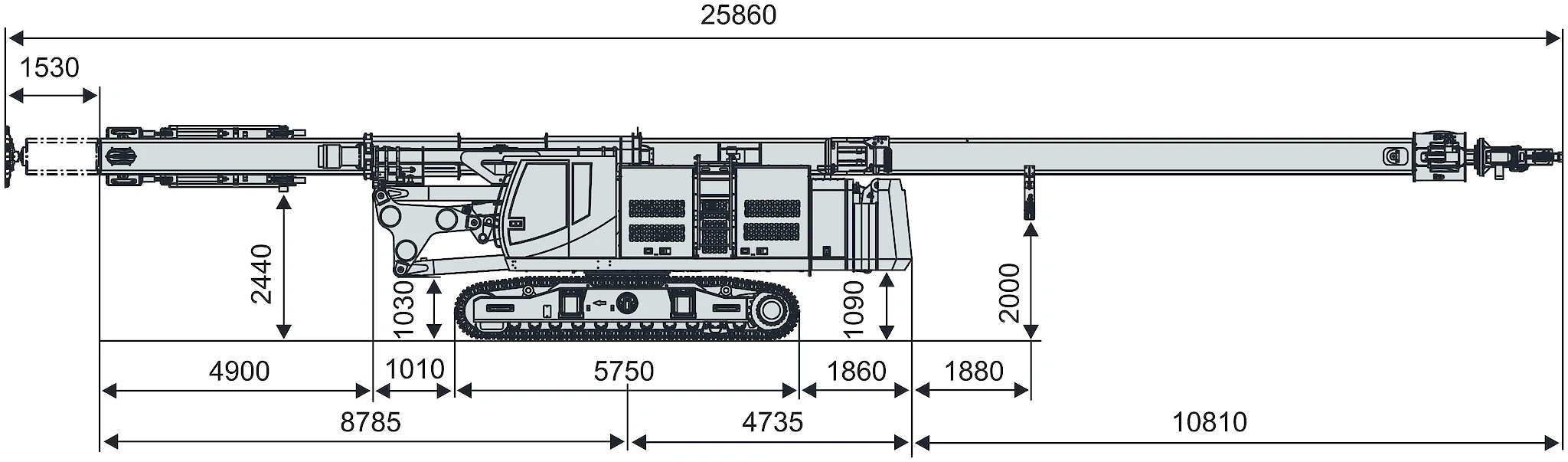

| Transport dimensions: | |
| Length | 25,860 mm |
| Width | 3,100 mm |
| Height | 3,600 mm |
