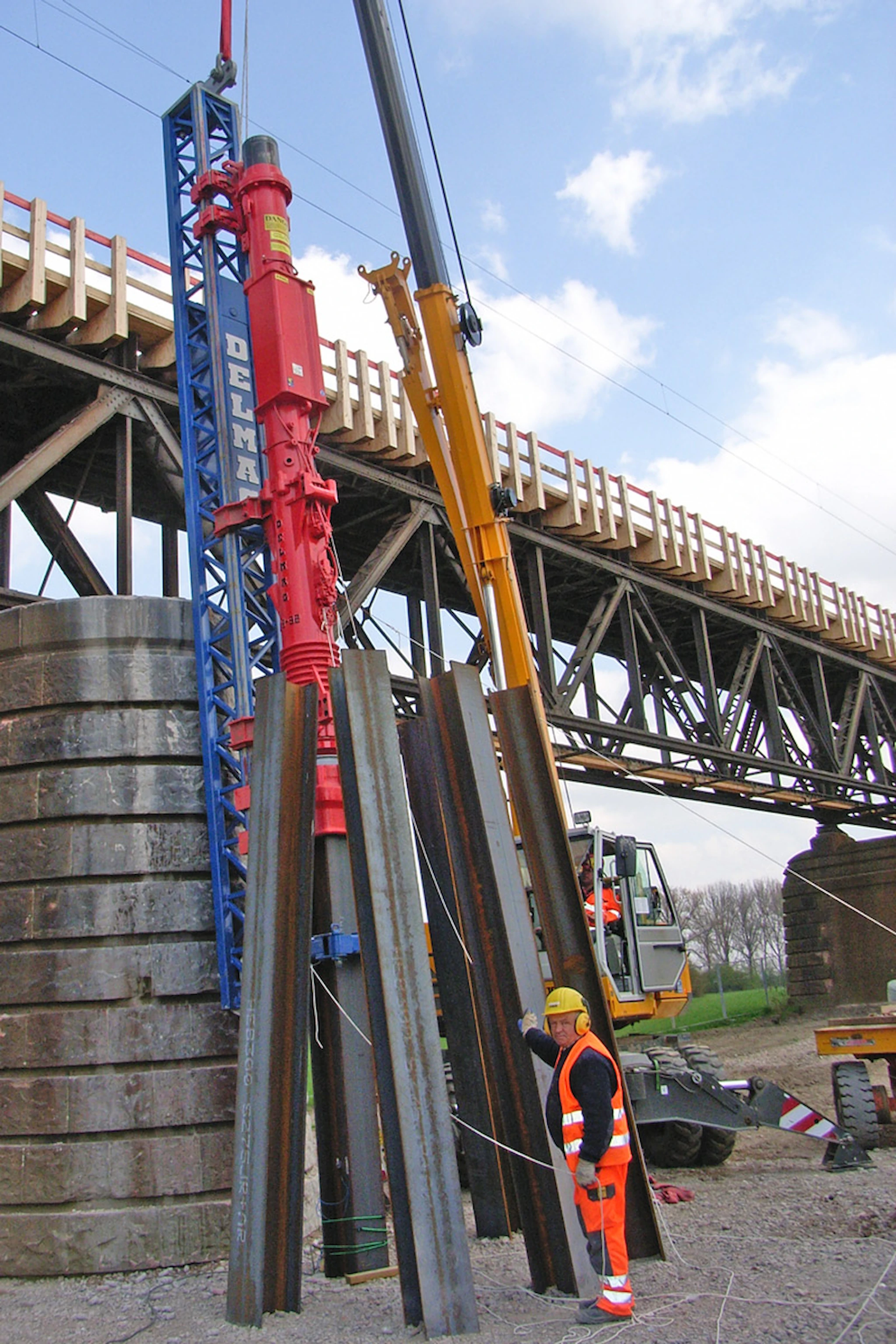

Delmag D19-42
Updated: 16.05.2023
| D19-42 | |
|---|---|
| Impact weight | 1,820 kg |
| Energy per blow max. | 66 kNm |
| Number of blows max. | 52 min⁻¹ |
| Suitable for driving piles | 1.1 - 6 t |
| Consumption | |
| Diesel oil | 7.5 l/h |
| Lubricant | 0.5 l/h |
| Tank capacity | |
| Diesel oil tank | 32 l |
| Lube tank | 9 l |
| Weight | |
| Hammer weight | 3,840 kg |
| Tripping device weigth | 114 kg |
| Dimensions | |
| A | 5,160 mm |
| B | 440 mm |
| C | 480 mm |
| D | 320 mm |
| E | 345 mm |
| F | 280 mm |
| G | 700 mm |
| H | 360 mm |
