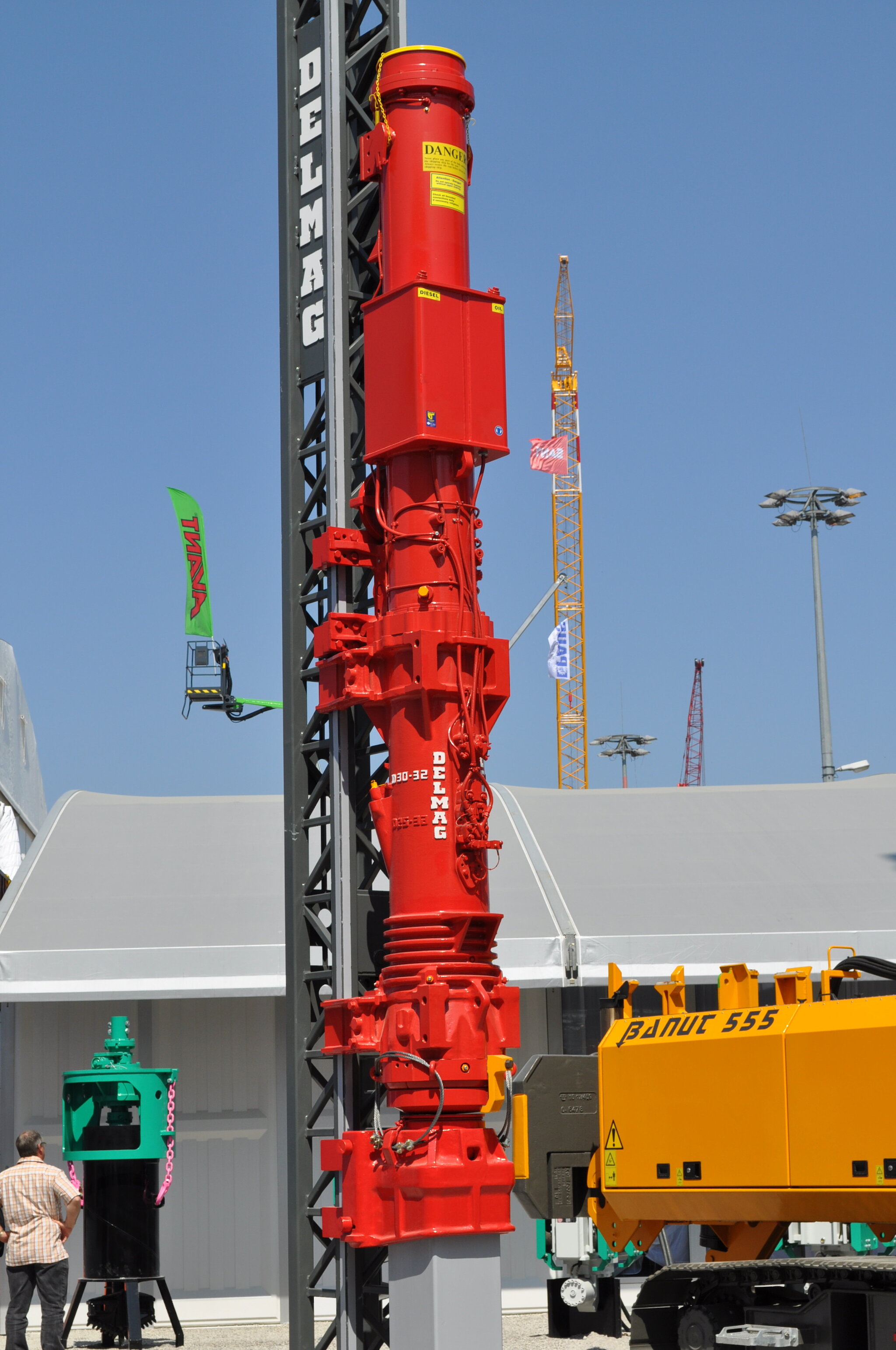

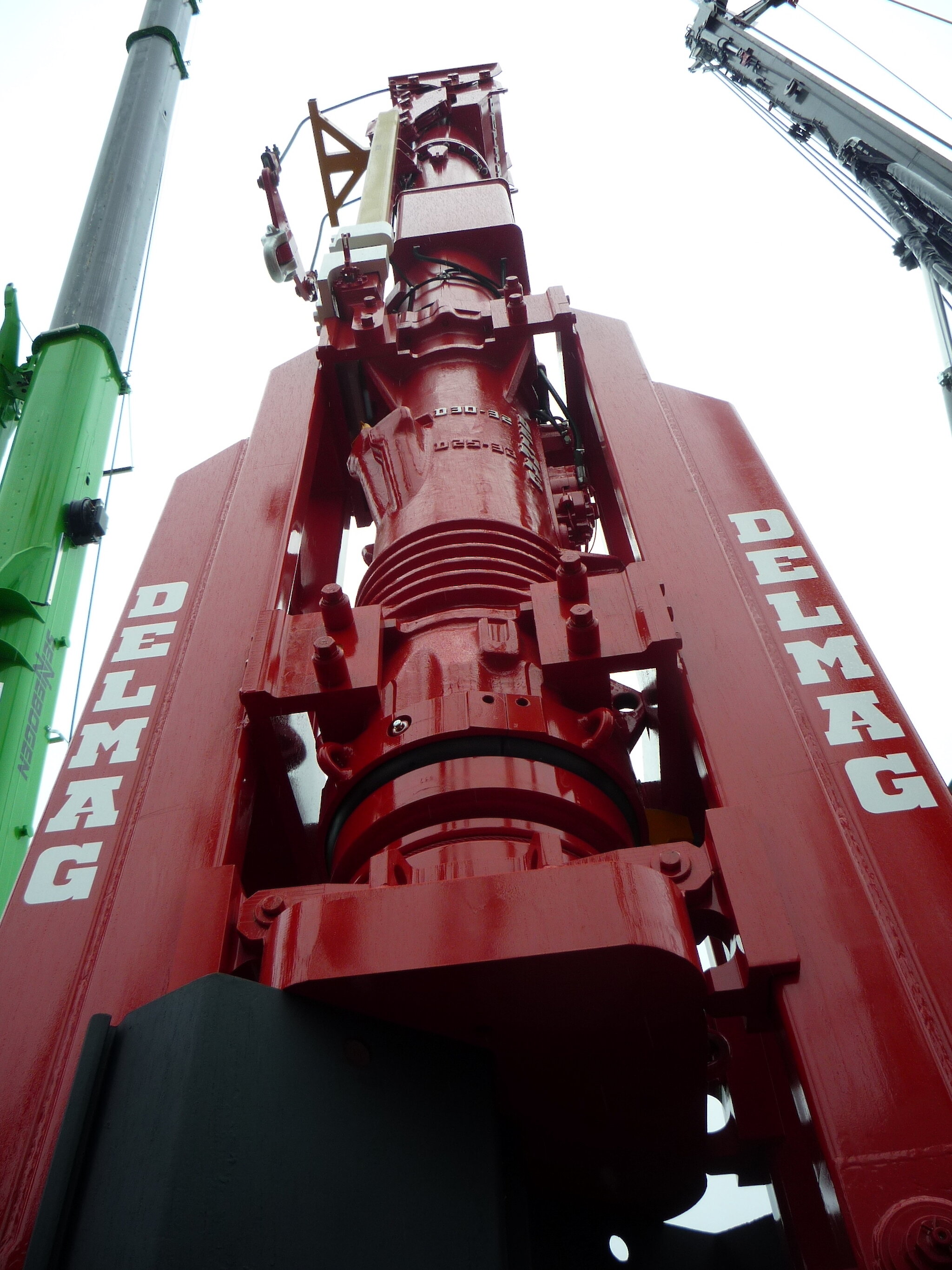

Delmag D30-32
Updated: 16.05.2023
| D30-32 | |
|---|---|
| Impact weight | 3,000 kg |
| Energy per blow max. | 103 kNm |
| Number of blows max. | 52 min⁻¹ |
| Suitable for driving piles | 2 - 9 t |
| Consumption | |
| Diesel oil | 10 l/h |
| Lubricant | 1 l/h |
| Tank capacity | |
| Diesel oil tank | 67 l |
| Lube tank | 19 l |
| Weight | |
| Hammer weight | 6,170 kg |
| Tripping device weigth | 186 kg |
| Dimensions | |
| A | 5,500 mm |
| B | 560 mm |
| C | 670 mm |
| D | 540 mm |
| E | 405 mm |
| F | 235 mm |
| G | 780 mm |
| H | 435 mm |
