TWF Trench Boxes Type 300
Updated: 07.09.2023
2 images

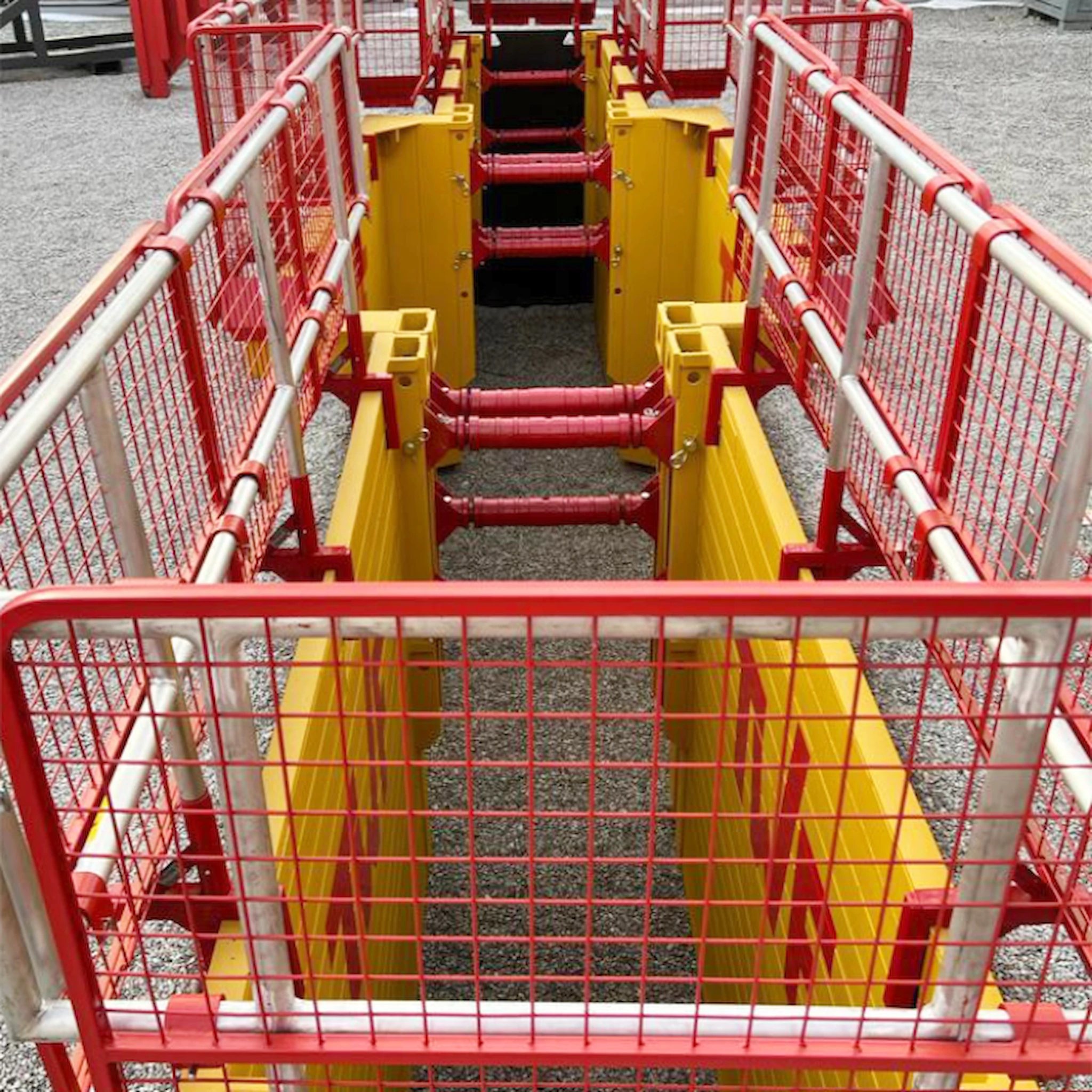

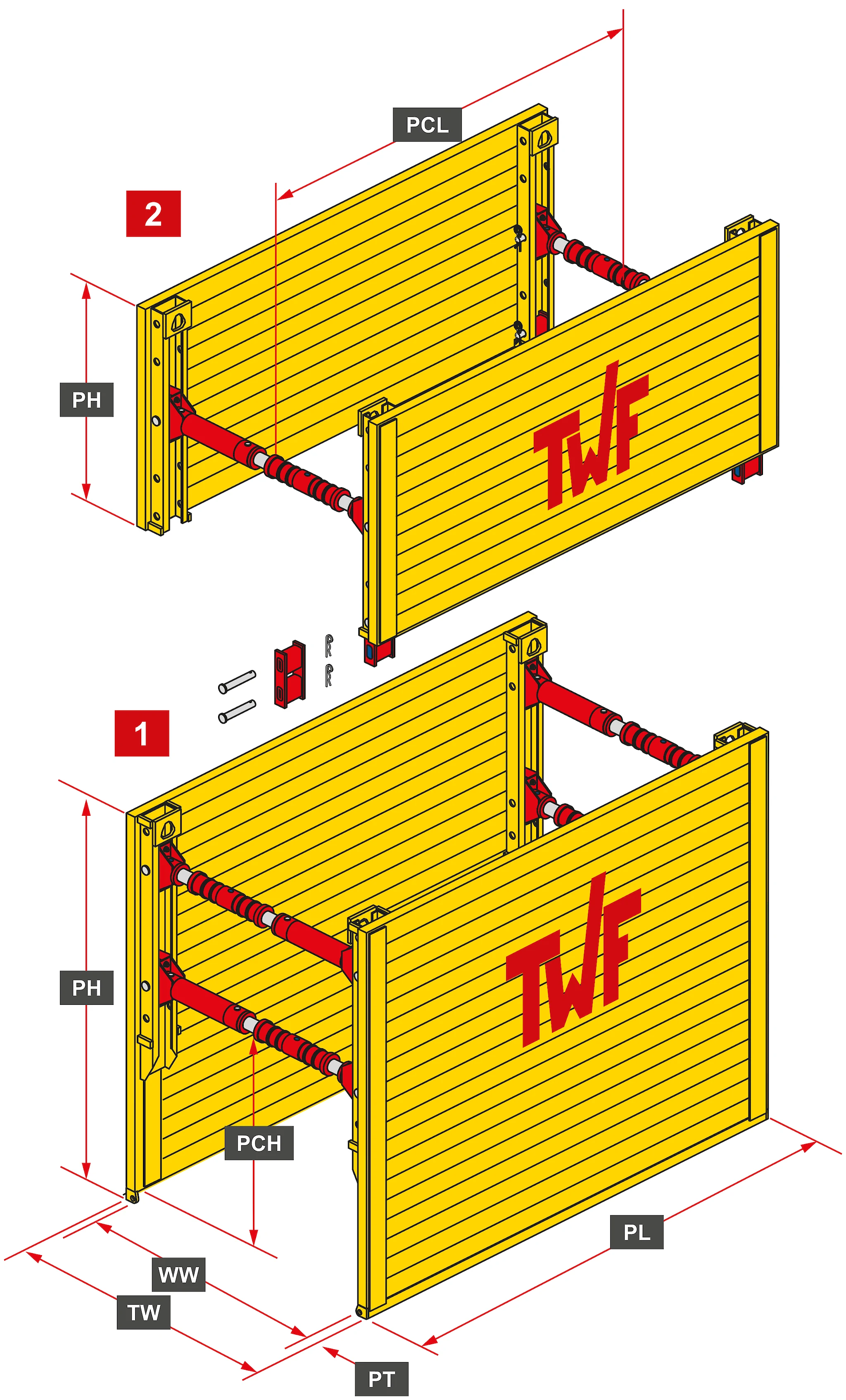

The Trench Boxes Type 300 are used for medium size projects and are a combination of light box plates of 60 mm thickness but with our Type 600, heavy duty spindle system which is also used in our Type 600 trench boxes. Consequently trenches of 980-3760 mm inner width can be supported with maximum safety and efficiency.
Trench Box Plates
Model | Element | Plate length | Plate height | Plate thickness | Pipe clearance length | Pipe clearance height | System resistance | Weight per box |
---|---|---|---|---|---|---|---|---|
m | m | mm | m | m | kN/m² | kg | ||
Base Plate | 1 | 2.5 | 2.0 | 60 | 2.1 | 1.14 | 55.4 | 1,245 |
Base Plate | 1 | 2.5 | 2.4 | 60 | 2.1 | 1.28 | 39.4 | 1,431 |
Top Plate | 2 | 2.5 | 1.4 | 60 | 2.1 | - | 55.4 | 797 |
Base Plate | 1 | 3.0 | 2.0 | 60 | 2.6 | 1.14 | 45.4 | 1,437 |
Base Plate | 1 | 3.0 | 2.4 | 60 | 2.6 | 1.28 | 32.9 | 1,661 |
Top Plate | 2 | 3.0 | 1.4 | 60 | 2.6 | - | 45.4 | 929 |
Base Plate | 1 | 3.5 | 2.0 | 60 | 3.1 | 1.14 | 34.3 | 1,539 |
Base Plate | 1 | 3.5 | 2.4 | 60 | 3.1 | 1.28 | 28.2 | 1,779 |
Top Plate | 2 | 3.5 | 1.4 | 60 | 3.1 | - | 34.3 | 1,061 |
Base Plate | |
---|---|
Element | 1 |
Plate length | 2.5 m |
Plate height | 2.0 m |
Plate thickness | 60 mm |
Pipe clearance length | 2.1 m |
Pipe clearance height | 1.14 m |
System resistance | 55.4 kN/m² |
Weight per box | 1,245 kg |
Base Plate | |
Element | 1 |
Plate length | 2.5 m |
Plate height | 2.4 m |
Plate thickness | 60 mm |
Pipe clearance length | 2.1 m |
Pipe clearance height | 1.28 m |
System resistance | 39.4 kN/m² |
Weight per box | 1,431 kg |
Top Plate | |
Element | 2 |
Plate length | 2.5 m |
Plate height | 1.4 m |
Plate thickness | 60 mm |
Pipe clearance length | 2.1 m |
Pipe clearance height | - m |
System resistance | 55.4 kN/m² |
Weight per box | 797 kg |
Base Plate | |
Element | 1 |
Plate length | 3.0 m |
Plate height | 2.0 m |
Plate thickness | 60 mm |
Pipe clearance length | 2.6 m |
Pipe clearance height | 1.14 m |
System resistance | 45.4 kN/m² |
Weight per box | 1,437 kg |
Base Plate | |
Element | 1 |
Plate length | 3.0 m |
Plate height | 2.4 m |
Plate thickness | 60 mm |
Pipe clearance length | 2.6 m |
Pipe clearance height | 1.28 m |
System resistance | 32.9 kN/m² |
Weight per box | 1,661 kg |
Top Plate | |
Element | 2 |
Plate length | 3.0 m |
Plate height | 1.4 m |
Plate thickness | 60 mm |
Pipe clearance length | 2.6 m |
Pipe clearance height | - m |
System resistance | 45.4 kN/m² |
Weight per box | 929 kg |
Base Plate | |
Element | 1 |
Plate length | 3.5 m |
Plate height | 2.0 m |
Plate thickness | 60 mm |
Pipe clearance length | 3.1 m |
Pipe clearance height | 1.14 m |
System resistance | 34.3 kN/m² |
Weight per box | 1,539 kg |
Base Plate | |
Element | 1 |
Plate length | 3.5 m |
Plate height | 2.4 m |
Plate thickness | 60 mm |
Pipe clearance length | 3.1 m |
Pipe clearance height | 1.28 m |
System resistance | 28.2 kN/m² |
Weight per box | 1,779 kg |
Top Plate | |
Element | 2 |
Plate length | 3.5 m |
Plate height | 1.4 m |
Plate thickness | 60 mm |
Pipe clearance length | 3.1 m |
Pipe clearance height | - m |
System resistance | 34.3 kN/m² |
Weight per box | 1,061 kg |

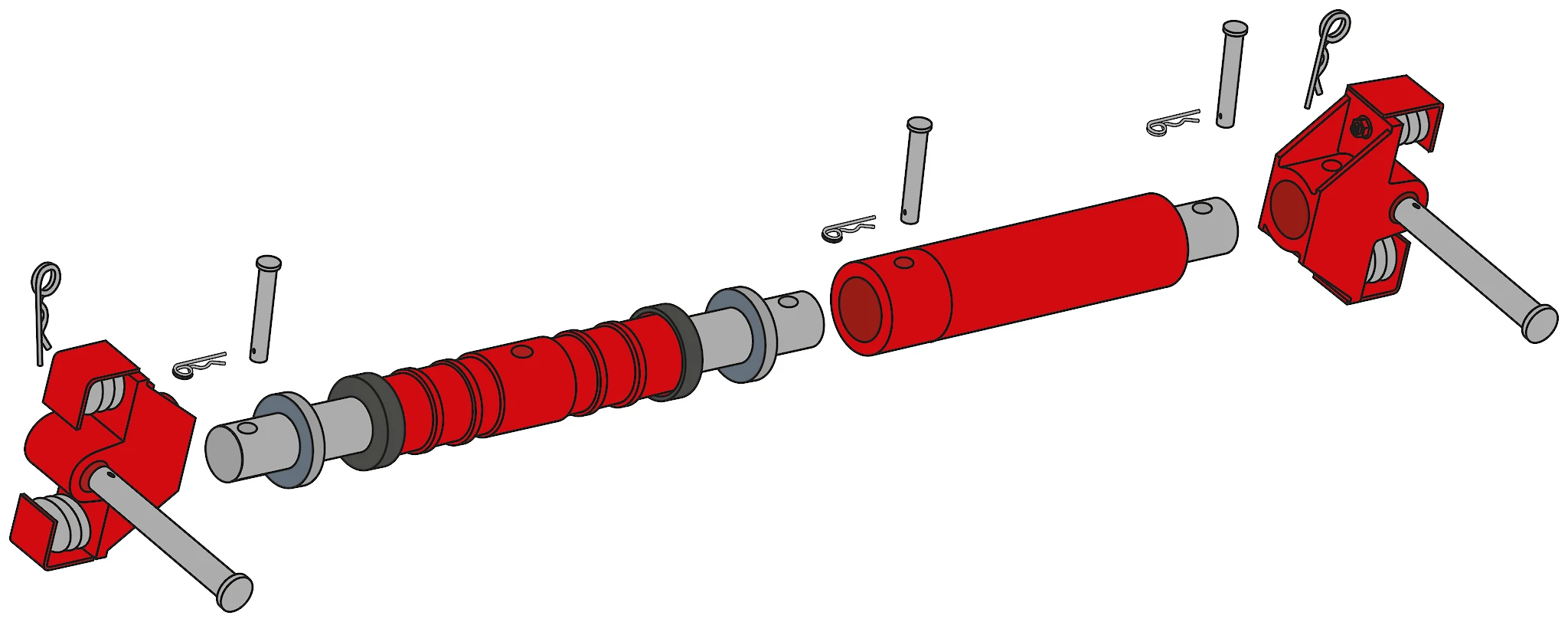

Standard Spindles
1 image
Model | Number intermediate pipe | Working width | Trench width | Safe working load | Weight |
---|---|---|---|---|---|
m | m | kN | kg | ||
Standard Spindle | 0 | 0.98 - 1.27 | 1.11 - 1.40 | 468 | 65 |
Standard Spindle | 1 | 1.48 - 1.77 | 1.61 - 1.90 | 403 | 86 |
Standard Spindle | 2 | 1.98 - 2.27 | 2.11 - 2.40 | 348 | 107 |
Standard Spindle | 3 | 2.48 - 2.77 | 2.61 - 2.90 | 299 | 128 |
Standard Spindle | 4 | 2.98 - 3.27 | 3.11 - 3.40 | 254 | 149 |
Standard Spindle | 5 | 3.48 - 3.77 | 3.61 - 3.90 | 210 | 170 |
Standard Spindle | 6 | 3.98 - 4.27 | 4.11 - 4.40 | 165 | 191 |
Standard Spindle | |
---|---|
Number intermediate pipe | |
Working width | 0.98 - 1.27 m |
Trench width | 1.11 - 1.40 m |
Safe working load | 468 kN |
Weight | 65 kg |
Standard Spindle | |
Number intermediate pipe | 1 |
Working width | 1.48 - 1.77 m |
Trench width | 1.61 - 1.90 m |
Safe working load | 403 kN |
Weight | 86 kg |
Standard Spindle | |
Number intermediate pipe | 2 |
Working width | 1.98 - 2.27 m |
Trench width | 2.11 - 2.40 m |
Safe working load | 348 kN |
Weight | 107 kg |
Standard Spindle | |
Number intermediate pipe | 3 |
Working width | 2.48 - 2.77 m |
Trench width | 2.61 - 2.90 m |
Safe working load | 299 kN |
Weight | 128 kg |
Standard Spindle | |
Number intermediate pipe | 4 |
Working width | 2.98 - 3.27 m |
Trench width | 3.11 - 3.40 m |
Safe working load | 254 kN |
Weight | 149 kg |
Standard Spindle | |
Number intermediate pipe | 5 |
Working width | 3.48 - 3.77 m |
Trench width | 3.61 - 3.90 m |
Safe working load | 210 kN |
Weight | 170 kg |
Standard Spindle | |
Number intermediate pipe | 6 |
Working width | 3.98 - 4.27 m |
Trench width | 4.11 - 4.40 m |
Safe working load | 165 kN |
Weight | 191 kg |
