TWF Trench Boxes Type 600
Updated: 26.02.2024
3 images

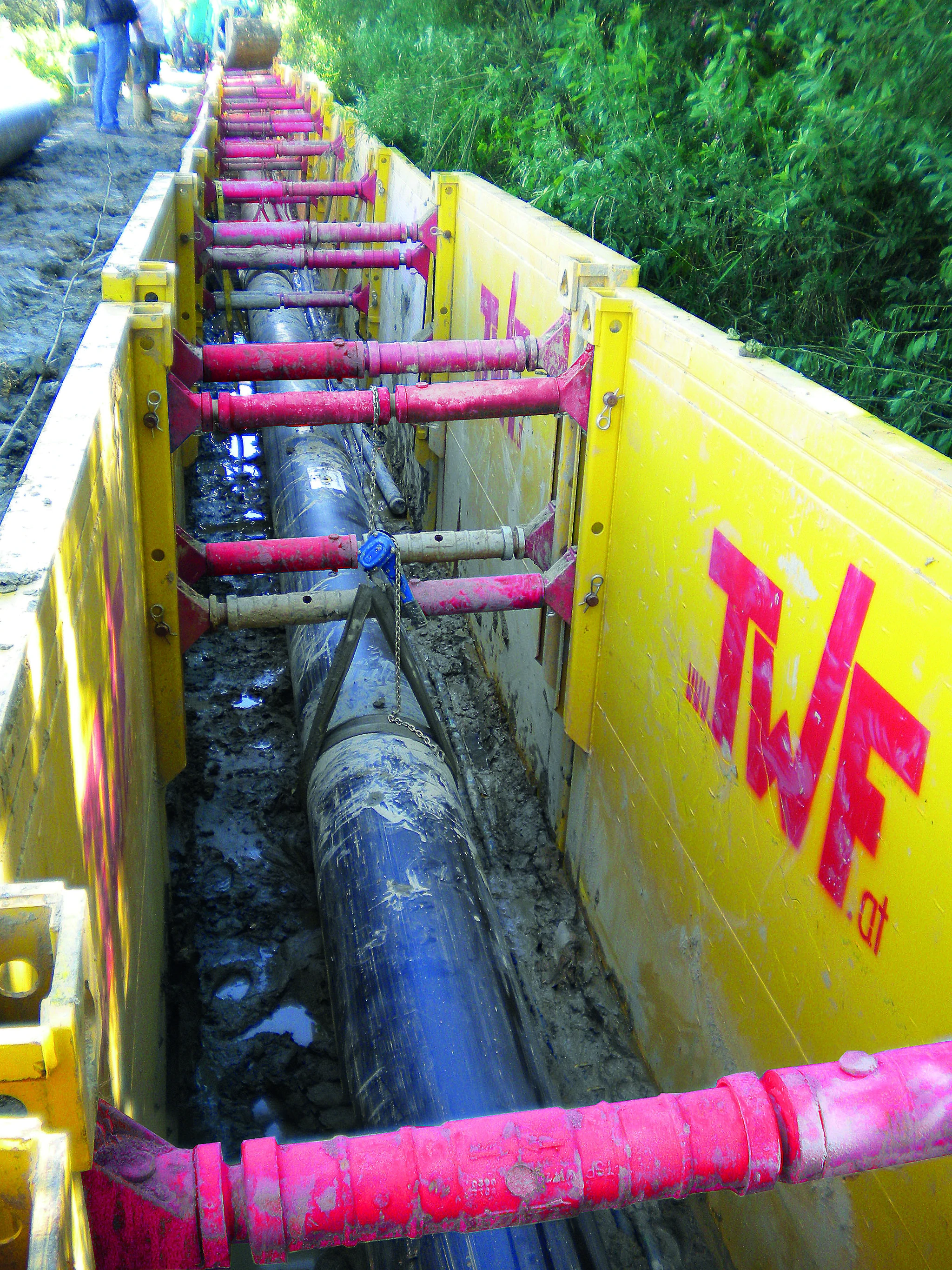

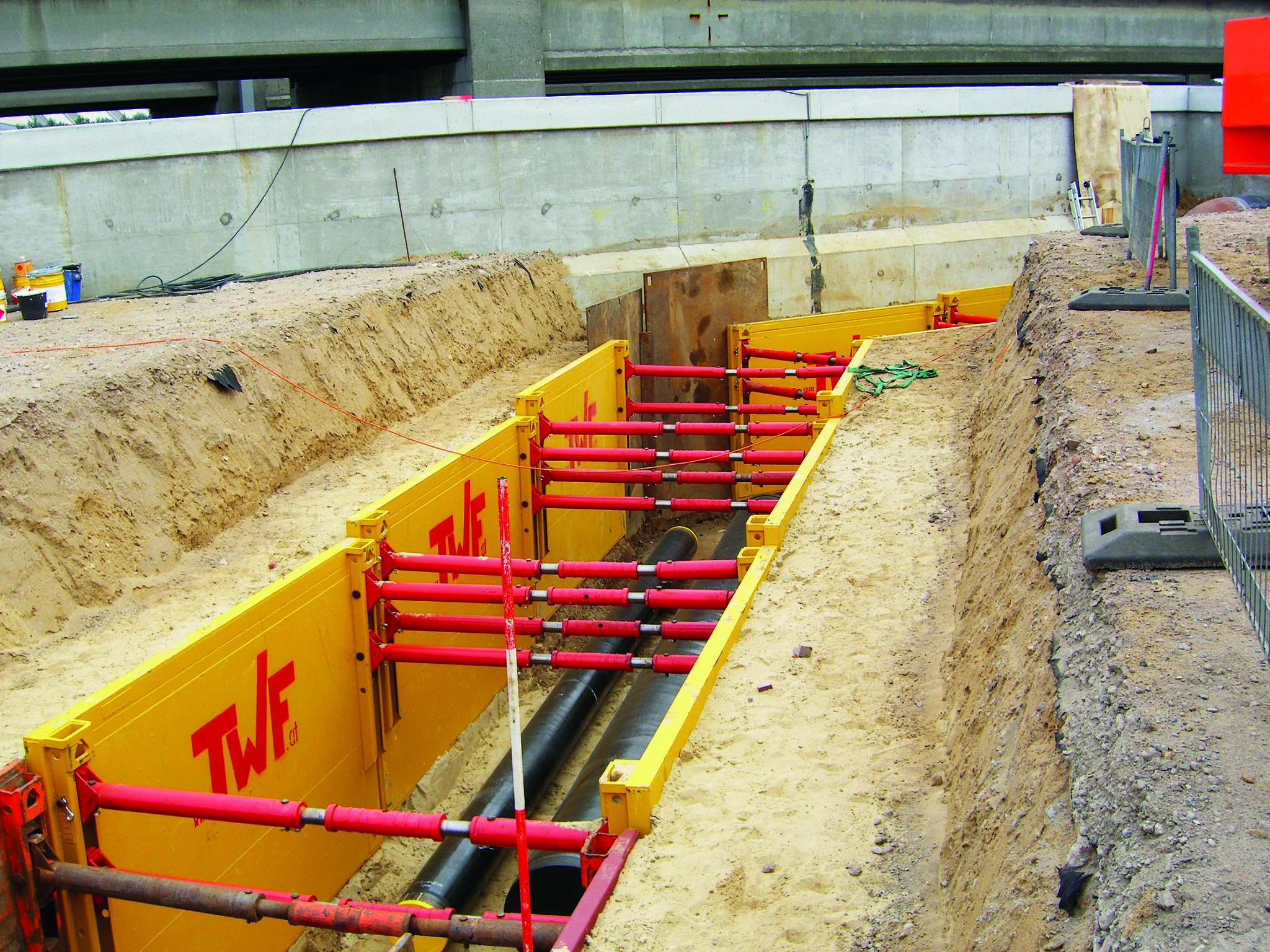

Trench Boxes are the worldwide most used mechanised shoring system for trench depths up to 4 m. No other shoring equipment is faster and easier to install. Base and top plates are available of different height, length and plate thickness to meet a wide range of site conditions and with various spindle extensions trench widths up to 4.26 m can be reached. All our trench boxes are approved by the German TBG and meet strongest safety standards.

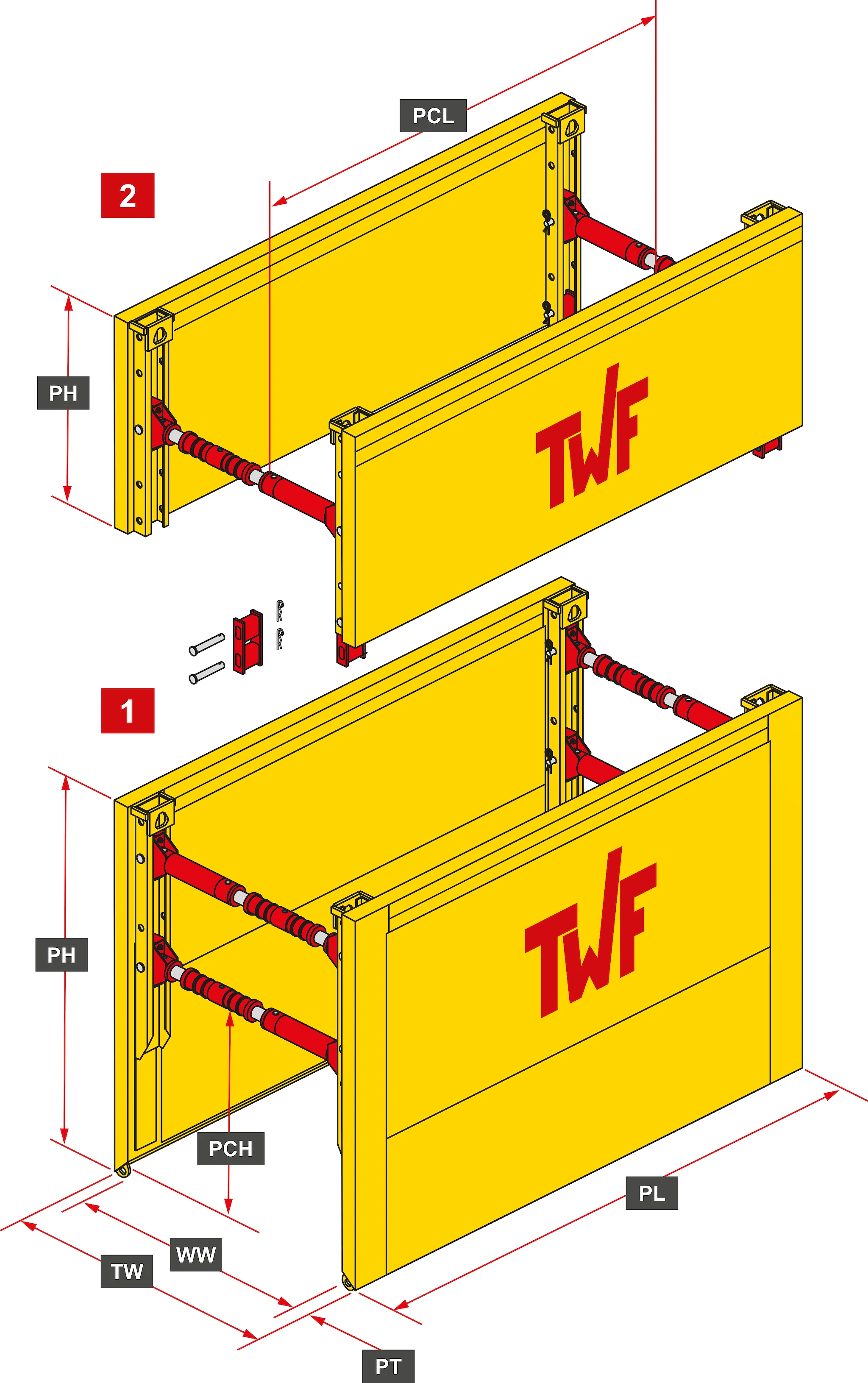

Trench Box Plates
Model | Element | Plate length | Plate height | Plate thickness | Pipe clearance length | Pipe clearance height | System resistance | Weight per box |
---|---|---|---|---|---|---|---|---|
m | m | mm | m | m | kN/m² | kg | ||
Base Plate | 1 | 3.0 | 2.4 | 107 | 2.6 | 1.30 | 65.7 | 2,007 |
Top Plate | 2 | 3.0 | 1.4 | 107 | 2.6 | - | 65.7 | 1,121 |
Base Plate | 1 | 3.5 | 2.4 | 107 | 3.1 | 1.30 | 56.3 | 2,289 |
Top Plate | 2 | 3.5 | 1.4 | 107 | 3.1 | - | 56.3 | 1,289 |
Base Plate | 1 | 4.0 | 2.4 | 107 | 3.6 | 49.3 | 56.3 | 2,549 |
Top Plate | 2 | 4.0 | 1.4 | 107 | 3.6 | - | 49.3 | 1,509 |
Base Plate | |
---|---|
Element | 1 |
Plate length | 3.0 m |
Plate height | 2.4 m |
Plate thickness | 107 mm |
Pipe clearance length | 2.6 m |
Pipe clearance height | 1.30 m |
System resistance | 65.7 kN/m² |
Weight per box | 2,007 kg |
Top Plate | |
Element | 2 |
Plate length | 3.0 m |
Plate height | 1.4 m |
Plate thickness | 107 mm |
Pipe clearance length | 2.6 m |
Pipe clearance height | - m |
System resistance | 65.7 kN/m² |
Weight per box | 1,121 kg |
Base Plate | |
Element | 1 |
Plate length | 3.5 m |
Plate height | 2.4 m |
Plate thickness | 107 mm |
Pipe clearance length | 3.1 m |
Pipe clearance height | 1.30 m |
System resistance | 56.3 kN/m² |
Weight per box | 2,289 kg |
Top Plate | |
Element | 2 |
Plate length | 3.5 m |
Plate height | 1.4 m |
Plate thickness | 107 mm |
Pipe clearance length | 3.1 m |
Pipe clearance height | - m |
System resistance | 56.3 kN/m² |
Weight per box | 1,289 kg |
Base Plate | |
Element | 1 |
Plate length | 4.0 m |
Plate height | 2.4 m |
Plate thickness | 107 mm |
Pipe clearance length | 3.6 m |
Pipe clearance height | 49.3 m |
System resistance | 56.3 kN/m² |
Weight per box | 2,549 kg |
Top Plate | |
Element | 2 |
Plate length | 4.0 m |
Plate height | 1.4 m |
Plate thickness | 107 mm |
Pipe clearance length | 3.6 m |
Pipe clearance height | - m |
System resistance | 49.3 kN/m² |
Weight per box | 1,509 kg |

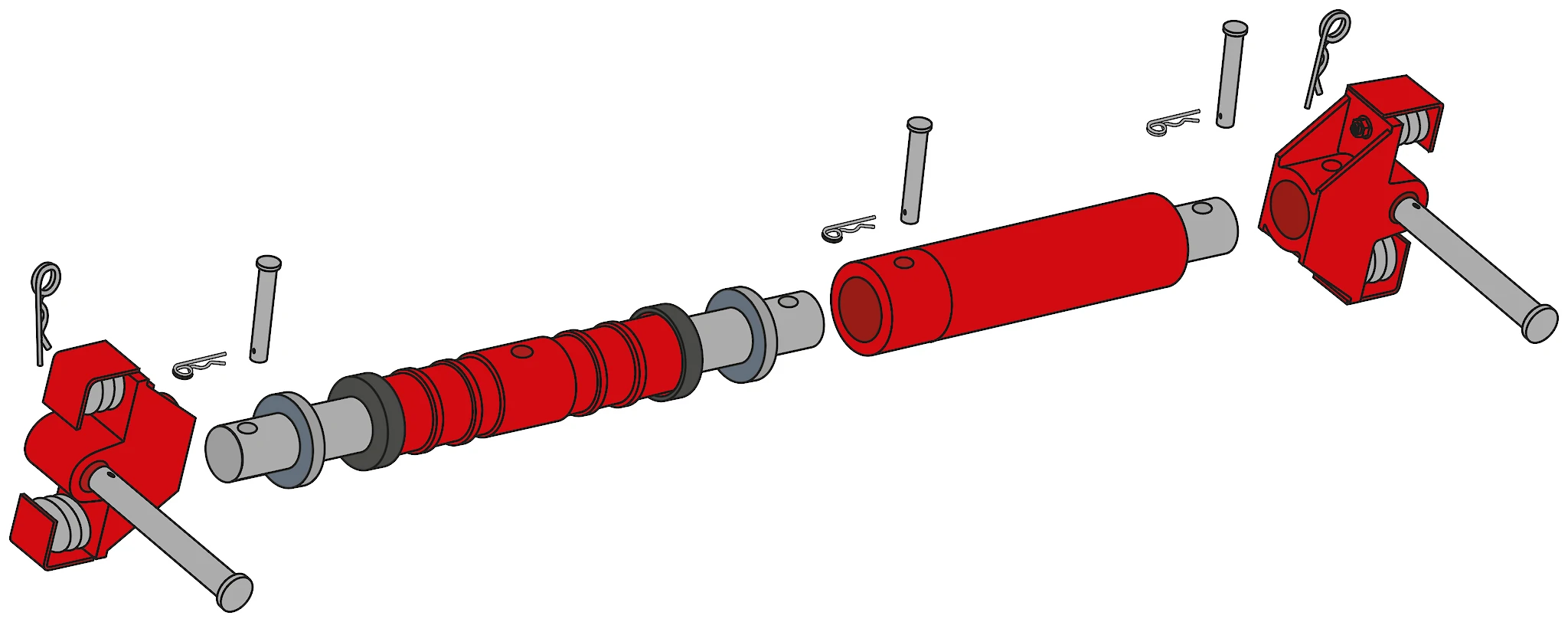

Standard Spindles
1 image
Model | Number intermediate pipe | Working width | Trench width | Safe working load | Weight |
---|---|---|---|---|---|
m | m | kN | kg | ||
Standard Spindle | 0 | 0.98 - 1.27 | 1.11 - 1.40 | 468 | 65 |
Standard Spindle | 1 | 1.48 - 1.77 | 1.61 - 1.90 | 403 | 86 |
Standard Spindle | 2 | 1.98 - 2.27 | 2.11 - 2.40 | 348 | 107 |
Standard Spindle | 3 | 2.48 - 2.77 | 2.61 - 2.90 | 299 | 128 |
Standard Spindle | 4 | 2.98 - 3.27 | 3.11 - 3.40 | 254 | 149 |
Standard Spindle | 5 | 3.48 - 3.77 | 3.61 - 3.90 | 210 | 170 |
Standard Spindle | 6 | 3.98 - 4.27 | 4.11 - 4.40 | 165 | 191 |
Standard Spindle | |
---|---|
Number intermediate pipe | |
Working width | 0.98 - 1.27 m |
Trench width | 1.11 - 1.40 m |
Safe working load | 468 kN |
Weight | 65 kg |
Standard Spindle | |
Number intermediate pipe | 1 |
Working width | 1.48 - 1.77 m |
Trench width | 1.61 - 1.90 m |
Safe working load | 403 kN |
Weight | 86 kg |
Standard Spindle | |
Number intermediate pipe | 2 |
Working width | 1.98 - 2.27 m |
Trench width | 2.11 - 2.40 m |
Safe working load | 348 kN |
Weight | 107 kg |
Standard Spindle | |
Number intermediate pipe | 3 |
Working width | 2.48 - 2.77 m |
Trench width | 2.61 - 2.90 m |
Safe working load | 299 kN |
Weight | 128 kg |
Standard Spindle | |
Number intermediate pipe | 4 |
Working width | 2.98 - 3.27 m |
Trench width | 3.11 - 3.40 m |
Safe working load | 254 kN |
Weight | 149 kg |
Standard Spindle | |
Number intermediate pipe | 5 |
Working width | 3.48 - 3.77 m |
Trench width | 3.61 - 3.90 m |
Safe working load | 210 kN |
Weight | 170 kg |
Standard Spindle | |
Number intermediate pipe | 6 |
Working width | 3.98 - 4.27 m |
Trench width | 4.11 - 4.40 m |
Safe working load | 165 kN |
Weight | 191 kg |
