Metax Grouting Units
Updated: 14.06.2024

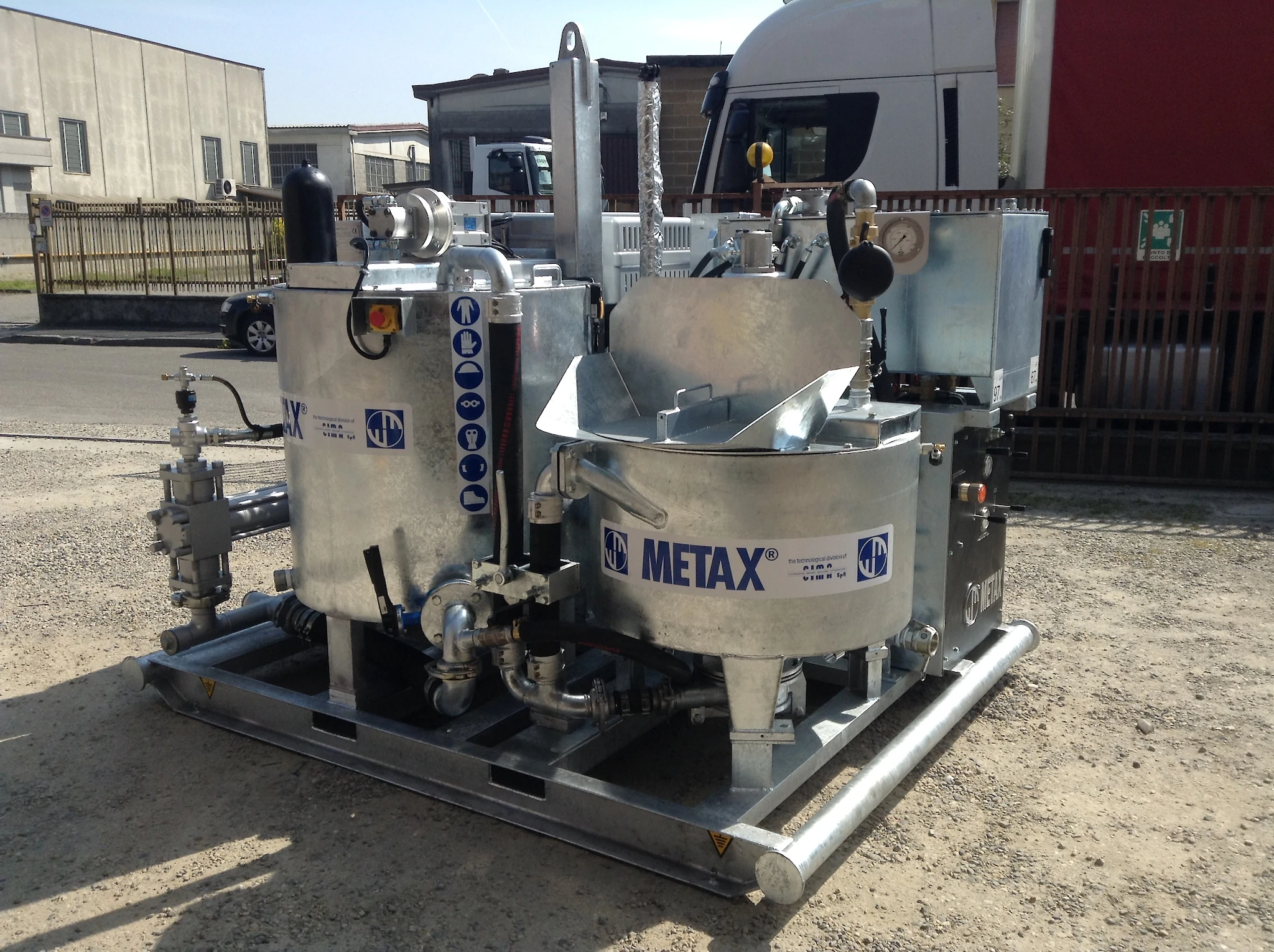

Metax grouting units consist of a high speed turbo mixer, an agitator and an injection pump to produce a cement grout using bag cement, water and/or bentonite power. Different units with electric or diesel motors and wide range of flow and pressure configurations are available. The grouting units are assembled on a firm base frame and a single lifting hook for easy manipulation.
Applications:
- Grouting of soil anchors
- Soil nails
- Micropiles
- HDD applications
- Annulus space grouting
- Cave and mine backfilling
Product line:
- High-pressure triplex pumps
- Batching plants
- Injection plants
- Centrifugal and screw pumps
- Horizontal silos
- Data loggers
| Model | JMP12 | JMP8 | JMP3-2i | |
|---|---|---|---|---|
| Electric power max. | kW | 30 | 56 | 20 |
| Mixed load capacity | l | 350 | 350 | 350 |
| Storage tank capacity | m³ | 2 | 2 | 1 |
| Pump type | P4 | IM902 | IC90 | |
| Pump pressure max. | bar | 700 | 80 | 120 |
| Pump flow rate max. | l/min | 430 | 212 | 38 |
| Weight | kg | 12,500 | 4,500 | 2,000 |

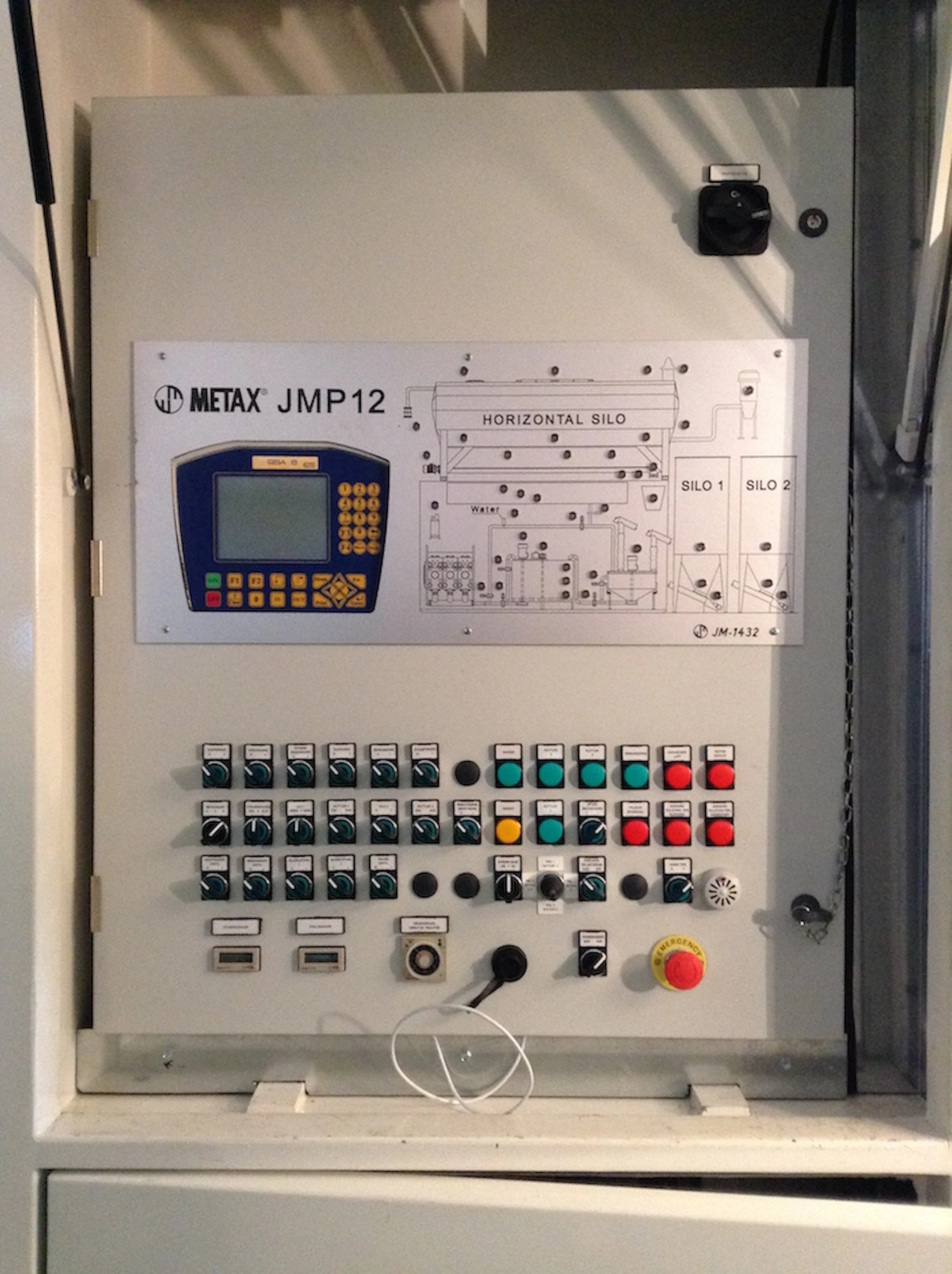

| JMP12 | |
|---|---|
| Electric power max. | 30 kW |
| Mixed load capacity | 350 l |
| Storage tank capacity | 2 m³ |
| Pump type | P4 |
| Pump pressure max. | 700 bar |
| Pump flow rate max. | 430 l/min |
| Weight | 12,500 kg |
| JMP8 | |
| Electric power max. | 56 kW |
| Mixed load capacity | 350 l |
| Storage tank capacity | 2 m³ |
| Pump type | IM902 |
| Pump pressure max. | 80 bar |
| Pump flow rate max. | 212 l/min |
| Weight | 4,500 kg |
| JMP3-2i | |
| Electric power max. | 20 kW |
| Mixed load capacity | 350 l |
| Storage tank capacity | 1 m³ |
| Pump type | IC90 |
| Pump pressure max. | 120 bar |
| Pump flow rate max. | 38 l/min |
| Weight | 2,000 kg |
