ABI TM 17
Updated: 11.10.2023
| ABI TM 17 | |
|---|---|
| Leader mast: | |

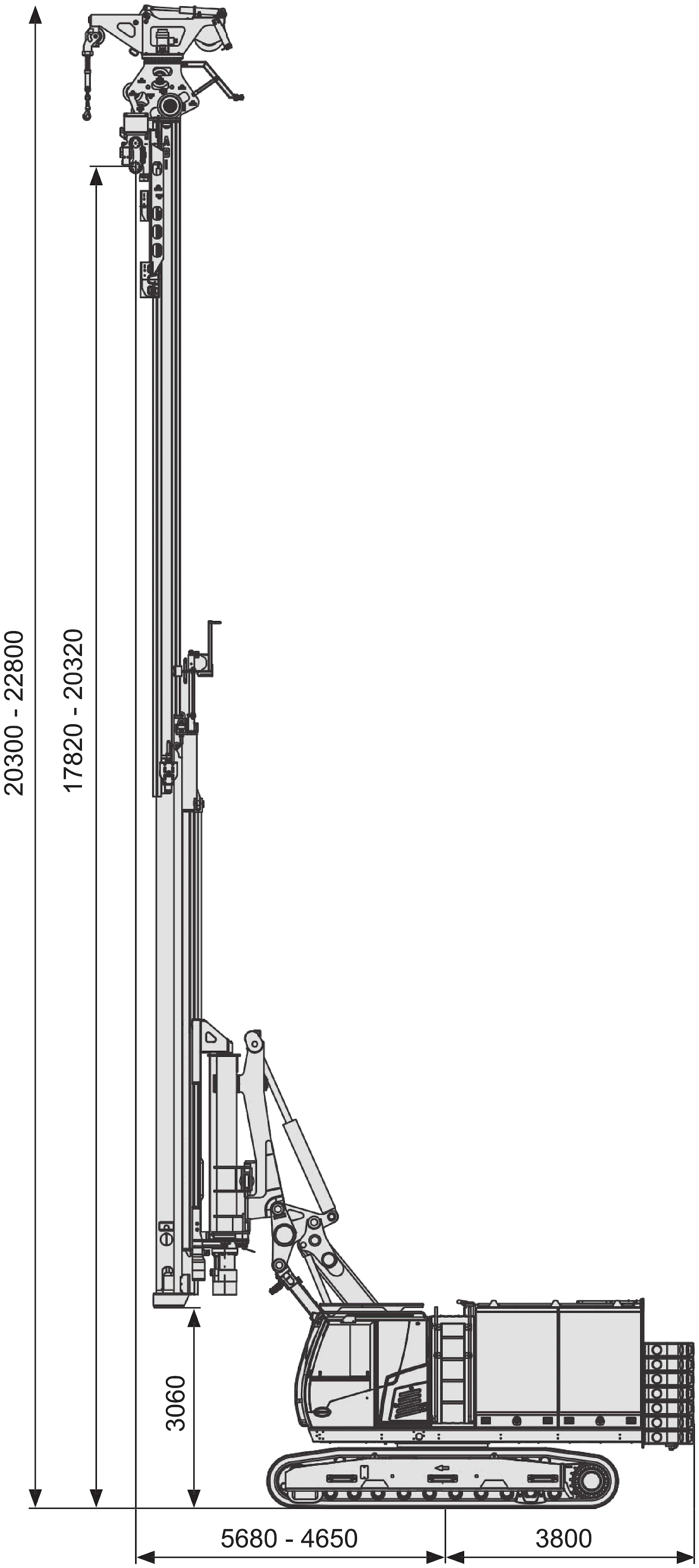

| Total height | 22,800 mm |
| Inclination left / right | 4 / 4 deg |
| Inclination forward / backward | 4 / 5 deg |
| Stroke guiding carriage | 18,000 mm |
| Extraction force up | 200 kN |
| Feed force down | 118 kN |
| Torque absorption max. | 150 kNm |
| Load capacity max. | 11,000 kg |
| Auxiliary winch (option): | |
| Line pull at min. reach | 50 kN |
| Speed, adjusted | 35 m/min |
| Base carrier: | |
| Model | SR 35 F |
| Engine | CAT C18 |
| Engine power | 470 kW |
| Hydraulic pumps (set at) | 2 x 210, 1 x 95, 1 x 60 l/min |
| Working pressure | 330 bar |
| Transport weight: | |
| Weight | 62,650 kg |

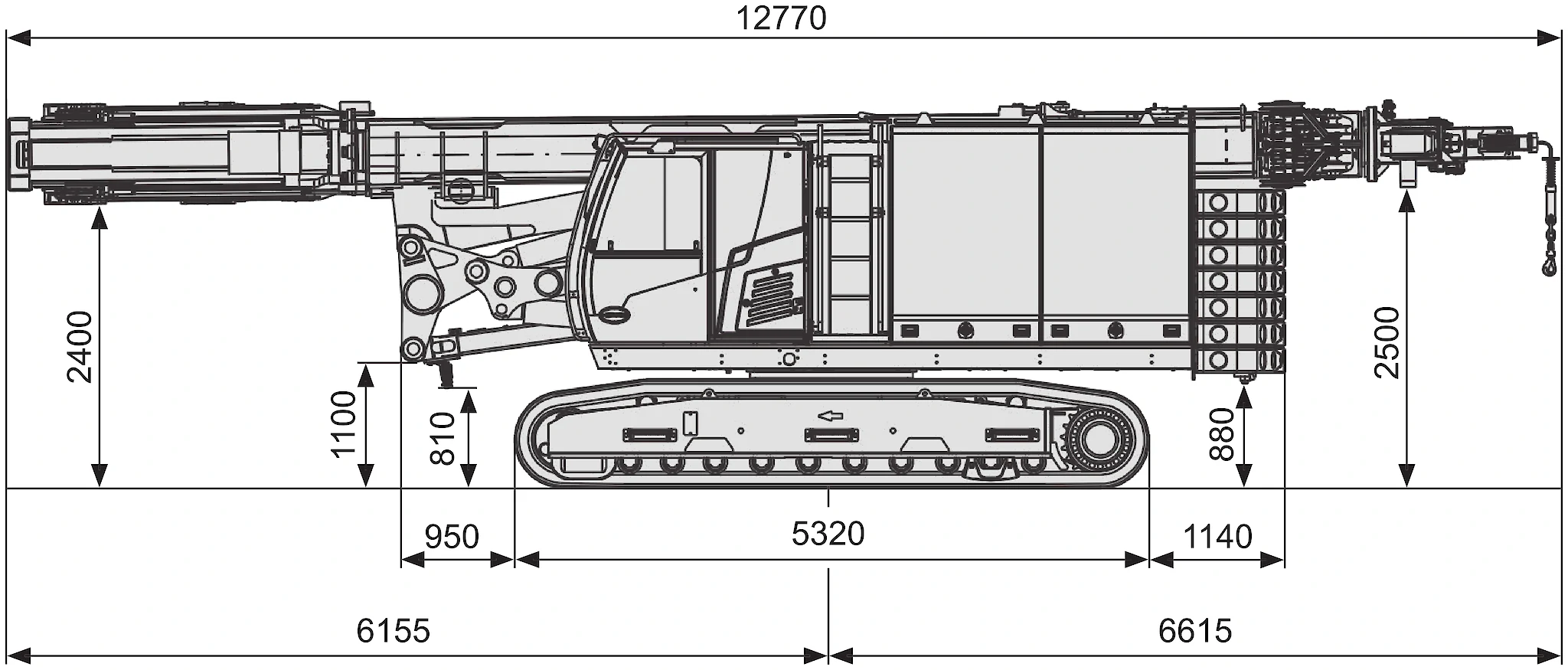

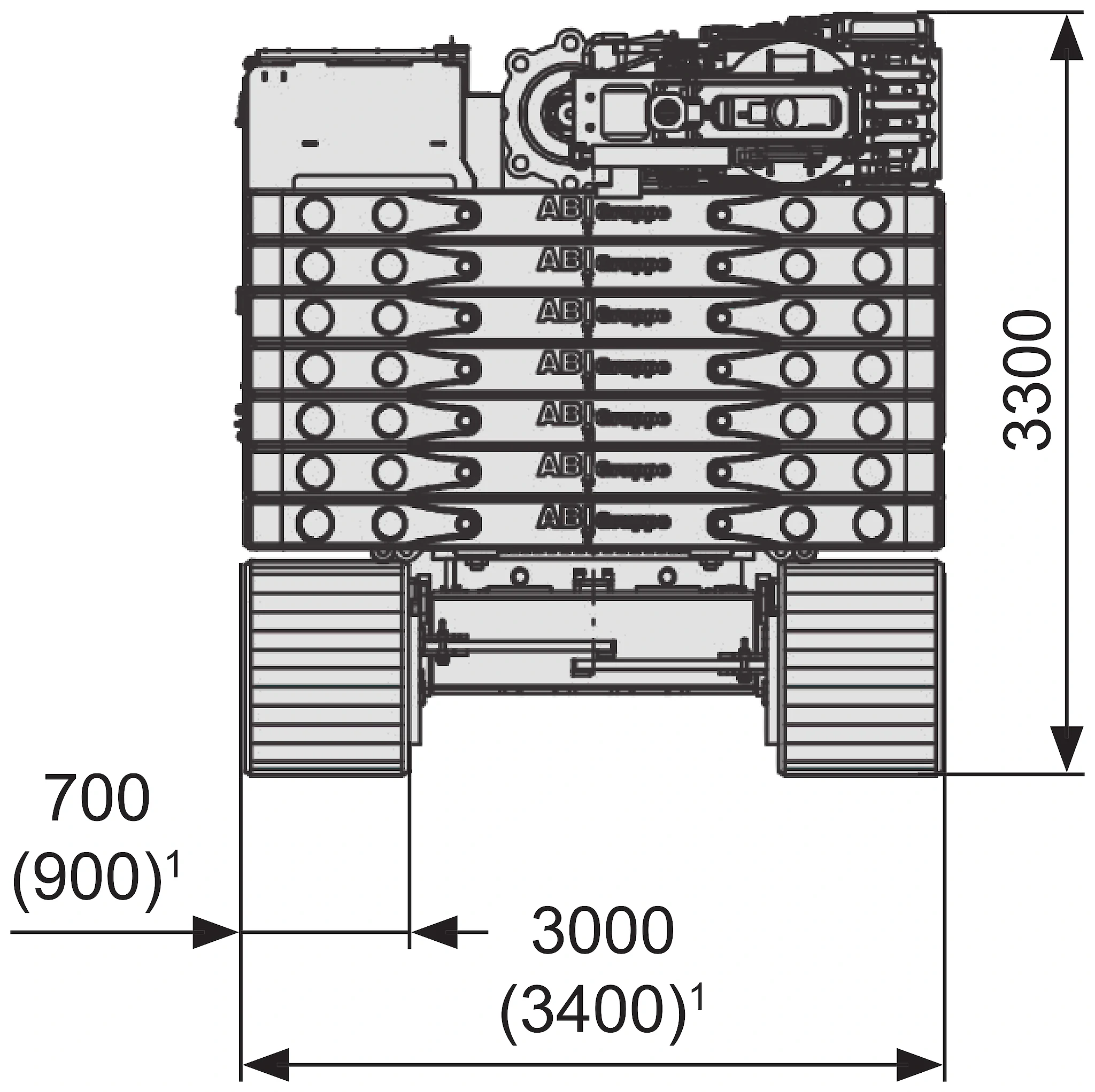

| Transport dimensions: | |
| Length | 12,770 mm |
| Width | 3,000 mm |
| Height | 3,300 mm |
