Sheet Piles Cold Rolled
Steel sheet piles are the most universal material to protect open trenches, shafts, manholes, building excavations, quay walls, jetties and much more. In combination with H-piles and pipe piles even the most demanding retaining walls can be constructed.
Cold deformed sheet piles are made by a continuous rolling process from steel coils. They are available in HAT-, U- and Z-sections and in a very wide range of section moduli (cm³). As the web and the flange are of same thickness we recommend to use cold rolled sheet piles mainly for permanent installation.

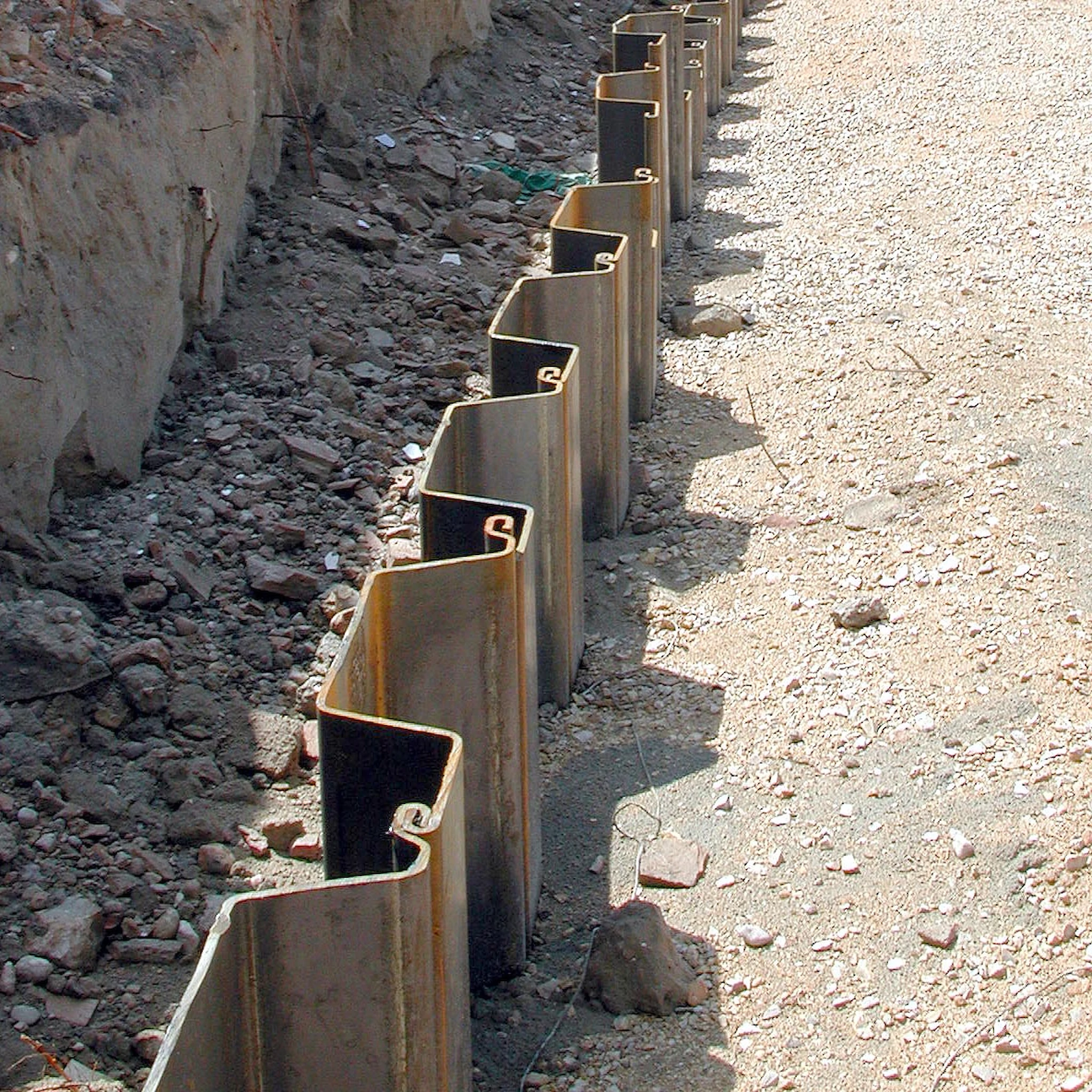

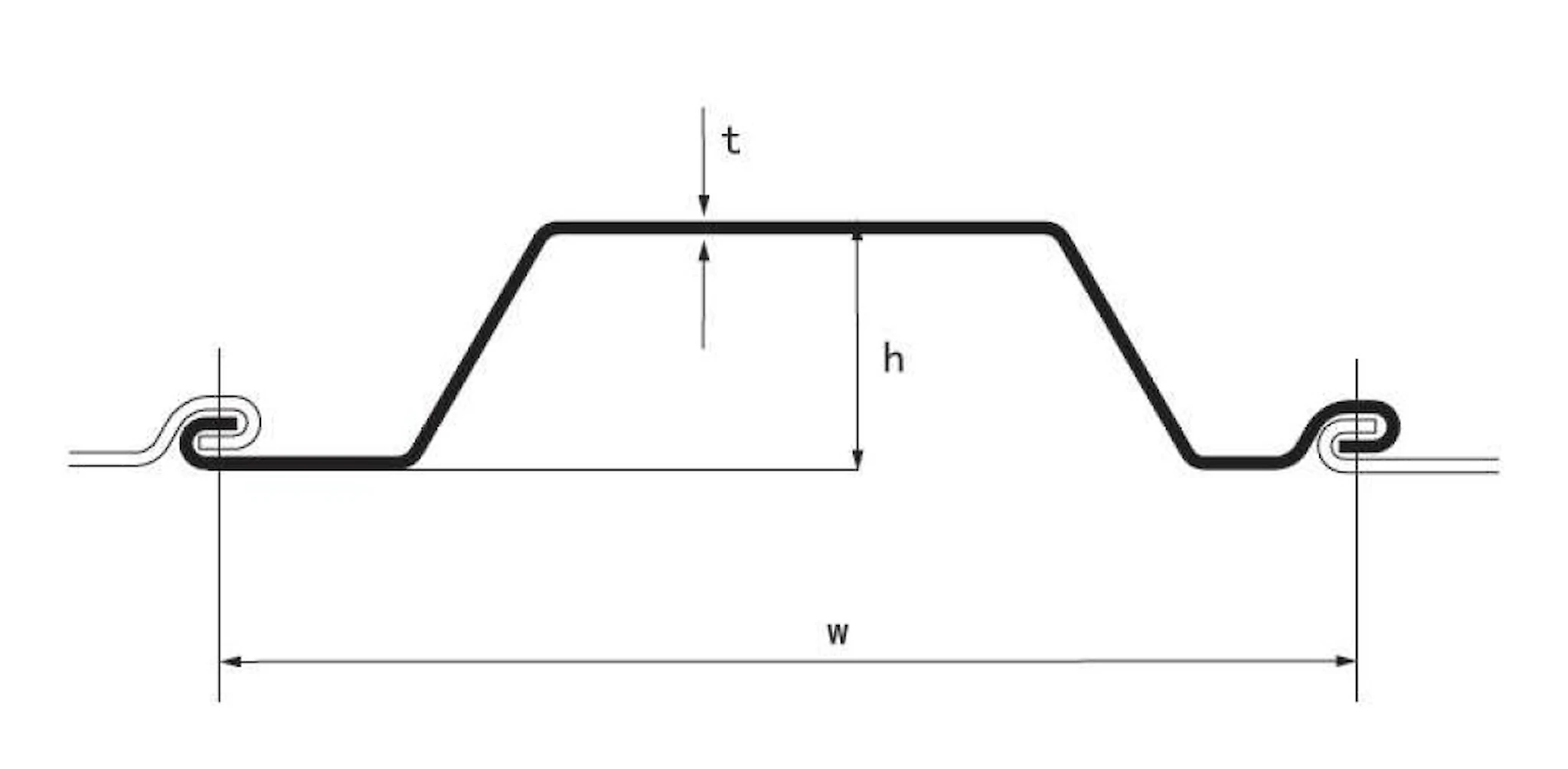

HAT-Sections
HAT or OMEGA sections have the advantage of small height which makes it ideal for trenches in urban areas where the trench width should be reduced to a minimum.
Model | Width | Height | Thickness | Mass per pile | Mass | Moment of inertia | Section modulus |
---|---|---|---|---|---|---|---|
mm | mm | mm | kg/m | kg/m² | cm⁴/m | cm³/m | |
FLP 700 | 700 | 148 | 5 | 39.4 | 56.2 | 2,576 | 343 |
FLP 700 | 700 | 150 | 7 | 54.34 | 77.6 | 3,591 | 474 |
FLP 750 | 750 | 283 | 6 | 57.46 | 76.6 | 11,375 | 788 |
FLP 750 | 750 | 284 | 7 | 67 | 89.3 | 13,263 | 912 |
FLP 840 | 840 | 251 | 7 | 67 | 79.76 | 9,128 | 718 |
FLP 840 | 840 | 252 | 8 | 76.61 | 91.2 | 10,474 | 817 |
FLP 700 | |
---|---|
Width | 700 mm |
Height | 148 mm |
Thickness | 5 mm |
Mass per pile | 39.4 kg/m |
Mass | 56.2 kg/m² |
Moment of inertia | 2,576 cm⁴/m |
Section modulus | 343 cm³/m |
FLP 700 | |
Width | 700 mm |
Height | 150 mm |
Thickness | 7 mm |
Mass per pile | 54.34 kg/m |
Mass | 77.6 kg/m² |
Moment of inertia | 3,591 cm⁴/m |
Section modulus | 474 cm³/m |
FLP 750 | |
Width | 750 mm |
Height | 283 mm |
Thickness | 6 mm |
Mass per pile | 57.46 kg/m |
Mass | 76.6 kg/m² |
Moment of inertia | 11,375 cm⁴/m |
Section modulus | 788 cm³/m |
FLP 750 | |
Width | 750 mm |
Height | 284 mm |
Thickness | 7 mm |
Mass per pile | 67 kg/m |
Mass | 89.3 kg/m² |
Moment of inertia | 13,263 cm⁴/m |
Section modulus | 912 cm³/m |
FLP 840 | |
Width | 840 mm |
Height | 251 mm |
Thickness | 7 mm |
Mass per pile | 67 kg/m |
Mass | 79.76 kg/m² |
Moment of inertia | 9,128 cm⁴/m |
Section modulus | 718 cm³/m |
FLP 840 | |
Width | 840 mm |
Height | 252 mm |
Thickness | 8 mm |
Mass per pile | 76.61 kg/m |
Mass | 91.2 kg/m² |
Moment of inertia | 10,474 cm⁴/m |
Section modulus | 817 cm³/m |

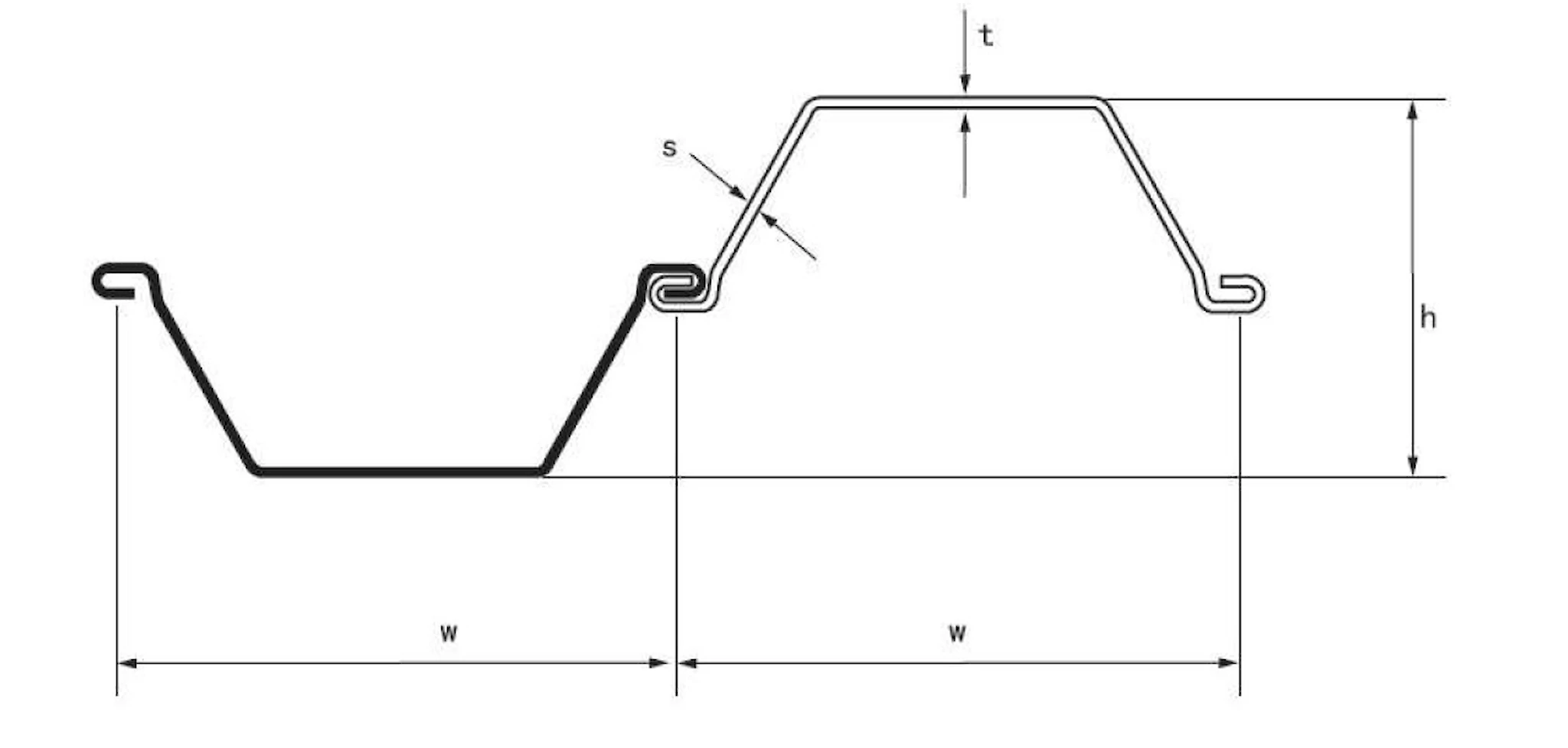

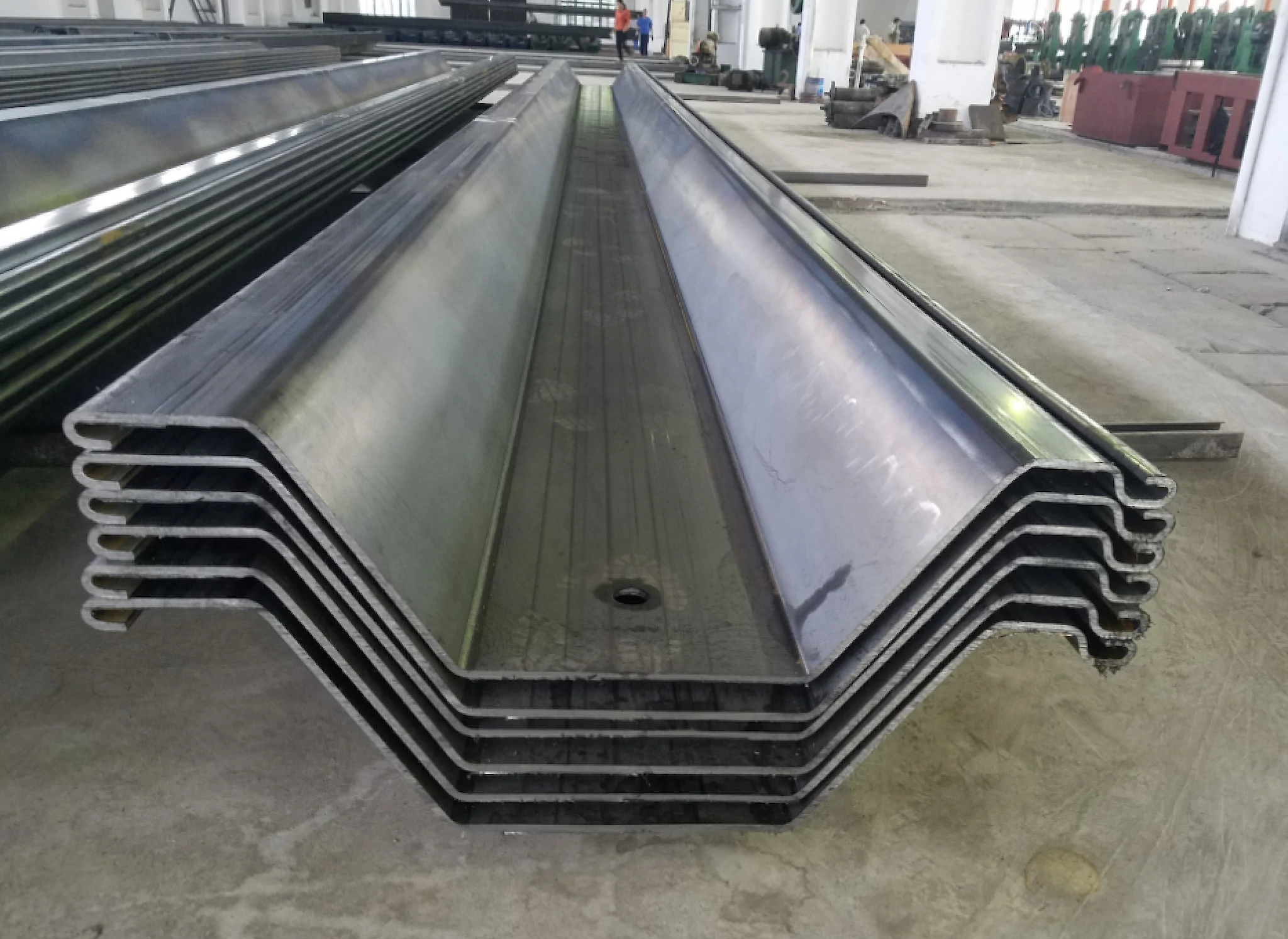

U-Sections
U-sheet piles are usually installed as single sheets so that driving and extracting by a vibrator or impact hammer is comparatively easy and therefore U-sheet piles are the preferred section as temporary installations for utility trenches, manholes, driving and receiving shafts, etc.
Model | Width | Height | Thickness | Mass per pile | Wall | Moment of inertia | Section modulus |
---|---|---|---|---|---|---|---|
mm | mm | mm | kg/m | kg/m² | cm⁴/m | cm³/m | |
GPU 6-600d | 600 | 226 | 7 | 45.6 | 76 | 6,780 | 600 |
GPU 8-600b | 600 | 240 | 9 | 62.5 | 104.2 | 9,640 | 804 |
GPU 12-600b | 600 | 310 | 9 | 64.8 | 108 | 18,600 | 1,200 |
GPU 16-750a | 750 | 411 | 9.5 | 86.3 | 115 | 32,850 | 1,600 |
GPU 20-750a | 750 | 444 | 10.5 | 96.9 | 129.2 | 44,440 | 2,000 |
GPU 25-750 | 750 | 540 | 10 | 103.1 | 137.5 | 68,820 | 2,549 |
GPU 28-750b | 750 | 562 | 11 | 119.6 | 159.4 | 78,809 | 2,805 |
GPU 30-750c | 750 | 564 | 12 | 132.5 | 176.6 | 85,879 | 3,045 |
GPU 35-750 | 750 | 608 | 12 | 136.1 | 181.5 | 105,080 | 3,466 |
GPU 40-750 | 750 | 610 | 14 | 163.9 | 218.5 | 122,680 | 4,031 |
GPU 6-600d | |
---|---|
Width | 600 mm |
Height | 226 mm |
Thickness | 7 mm |
Mass per pile | 45.6 kg/m |
Wall | 76 kg/m² |
Moment of inertia | 6,780 cm⁴/m |
Section modulus | 600 cm³/m |
GPU 8-600b | |
Width | 600 mm |
Height | 240 mm |
Thickness | 9 mm |
Mass per pile | 62.5 kg/m |
Wall | 104.2 kg/m² |
Moment of inertia | 9,640 cm⁴/m |
Section modulus | 804 cm³/m |
GPU 12-600b | |
Width | 600 mm |
Height | 310 mm |
Thickness | 9 mm |
Mass per pile | 64.8 kg/m |
Wall | 108 kg/m² |
Moment of inertia | 18,600 cm⁴/m |
Section modulus | 1,200 cm³/m |
GPU 16-750a | |
Width | 750 mm |
Height | 411 mm |
Thickness | 9.5 mm |
Mass per pile | 86.3 kg/m |
Wall | 115 kg/m² |
Moment of inertia | 32,850 cm⁴/m |
Section modulus | 1,600 cm³/m |
GPU 20-750a | |
Width | 750 mm |
Height | 444 mm |
Thickness | 10.5 mm |
Mass per pile | 96.9 kg/m |
Wall | 129.2 kg/m² |
Moment of inertia | 44,440 cm⁴/m |
Section modulus | 2,000 cm³/m |
GPU 25-750 | |
Width | 750 mm |
Height | 540 mm |
Thickness | 10 mm |
Mass per pile | 103.1 kg/m |
Wall | 137.5 kg/m² |
Moment of inertia | 68,820 cm⁴/m |
Section modulus | 2,549 cm³/m |
GPU 28-750b | |
Width | 750 mm |
Height | 562 mm |
Thickness | 11 mm |
Mass per pile | 119.6 kg/m |
Wall | 159.4 kg/m² |
Moment of inertia | 78,809 cm⁴/m |
Section modulus | 2,805 cm³/m |
GPU 30-750c | |
Width | 750 mm |
Height | 564 mm |
Thickness | 12 mm |
Mass per pile | 132.5 kg/m |
Wall | 176.6 kg/m² |
Moment of inertia | 85,879 cm⁴/m |
Section modulus | 3,045 cm³/m |
GPU 35-750 | |
Width | 750 mm |
Height | 608 mm |
Thickness | 12 mm |
Mass per pile | 136.1 kg/m |
Wall | 181.5 kg/m² |
Moment of inertia | 105,080 cm⁴/m |
Section modulus | 3,466 cm³/m |
GPU 40-750 | |
Width | 750 mm |
Height | 610 mm |
Thickness | 14 mm |
Mass per pile | 163.9 kg/m |
Wall | 218.5 kg/m² |
Moment of inertia | 122,680 cm⁴/m |
Section modulus | 4,031 cm³/m |

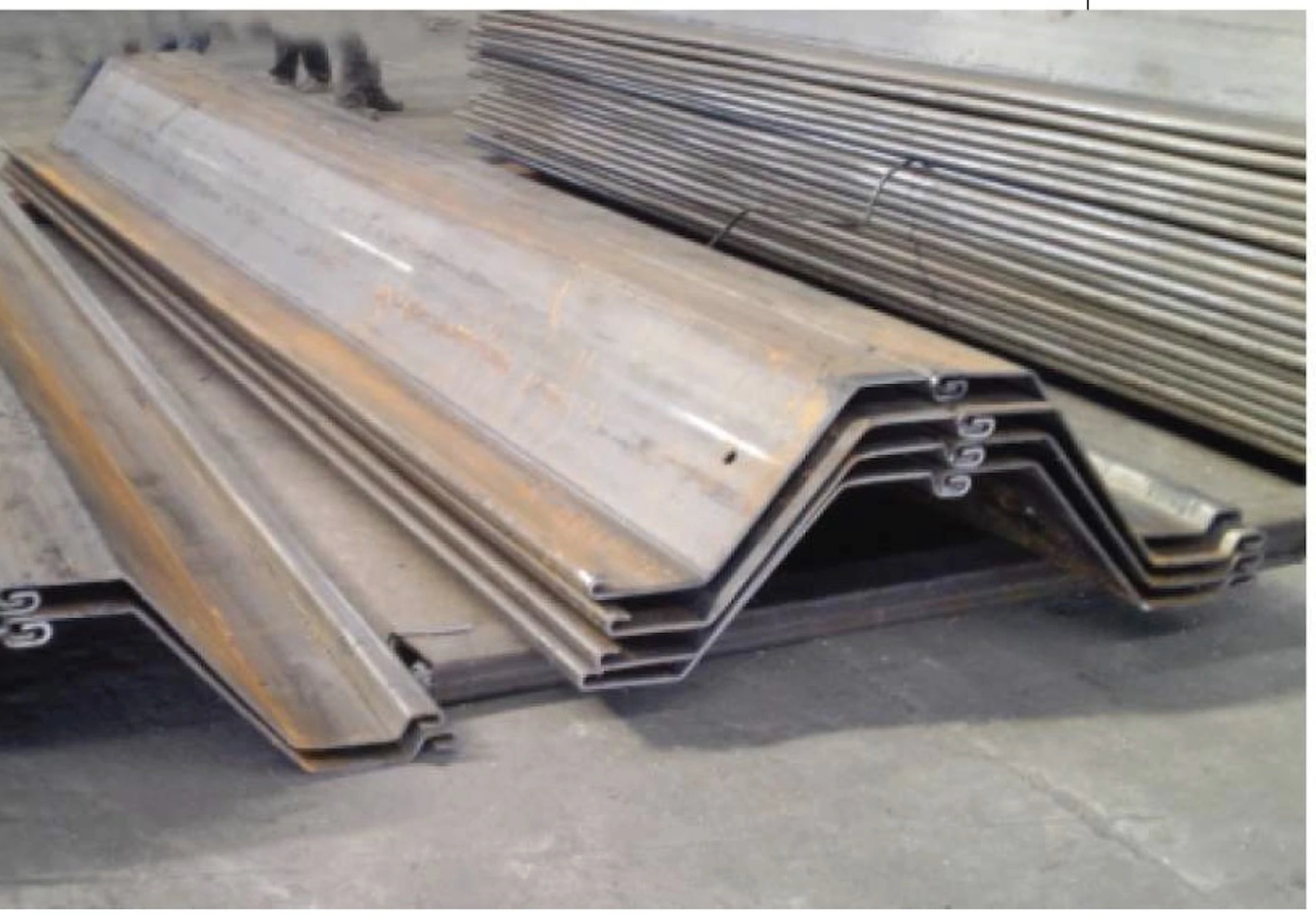

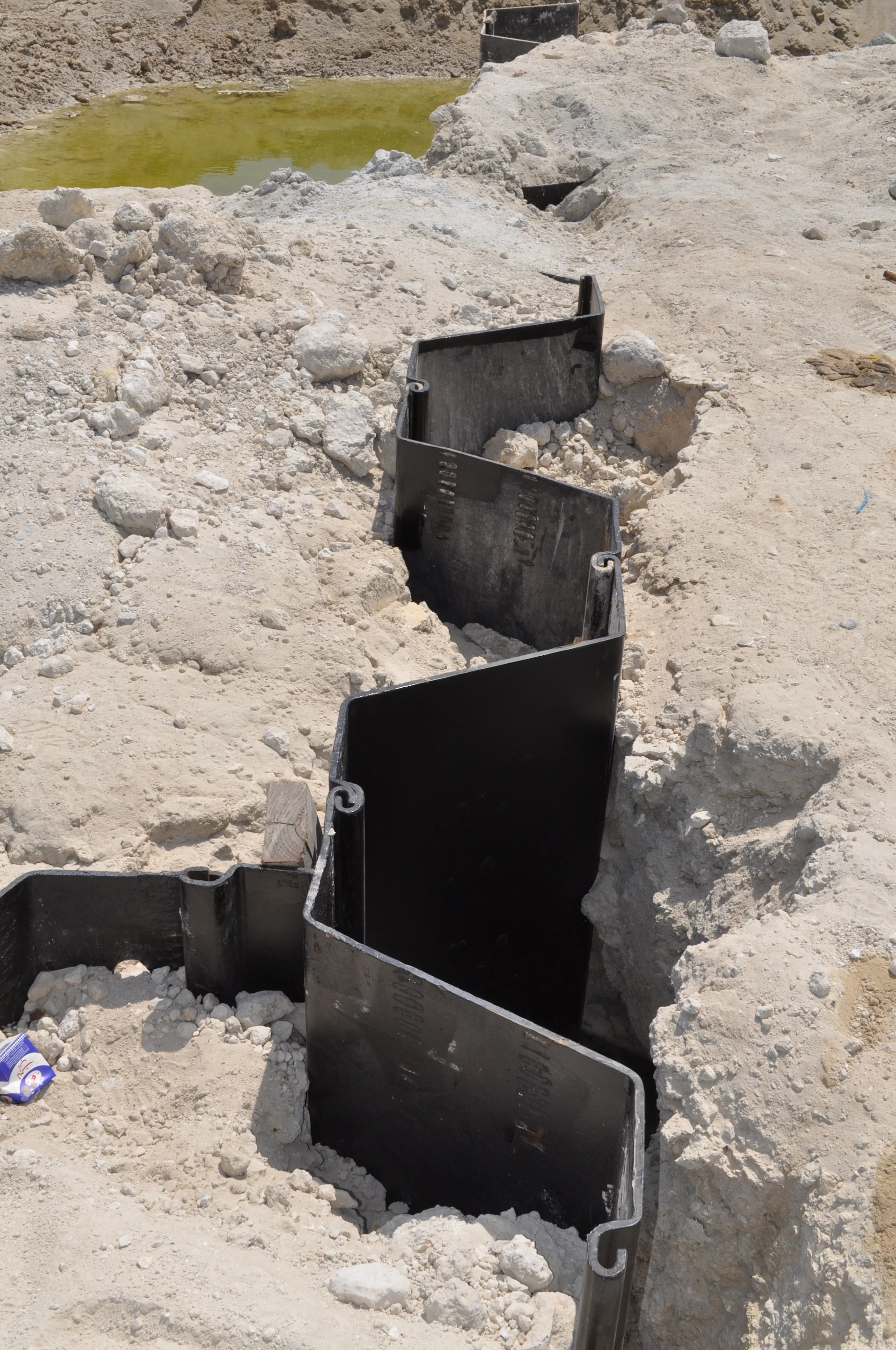

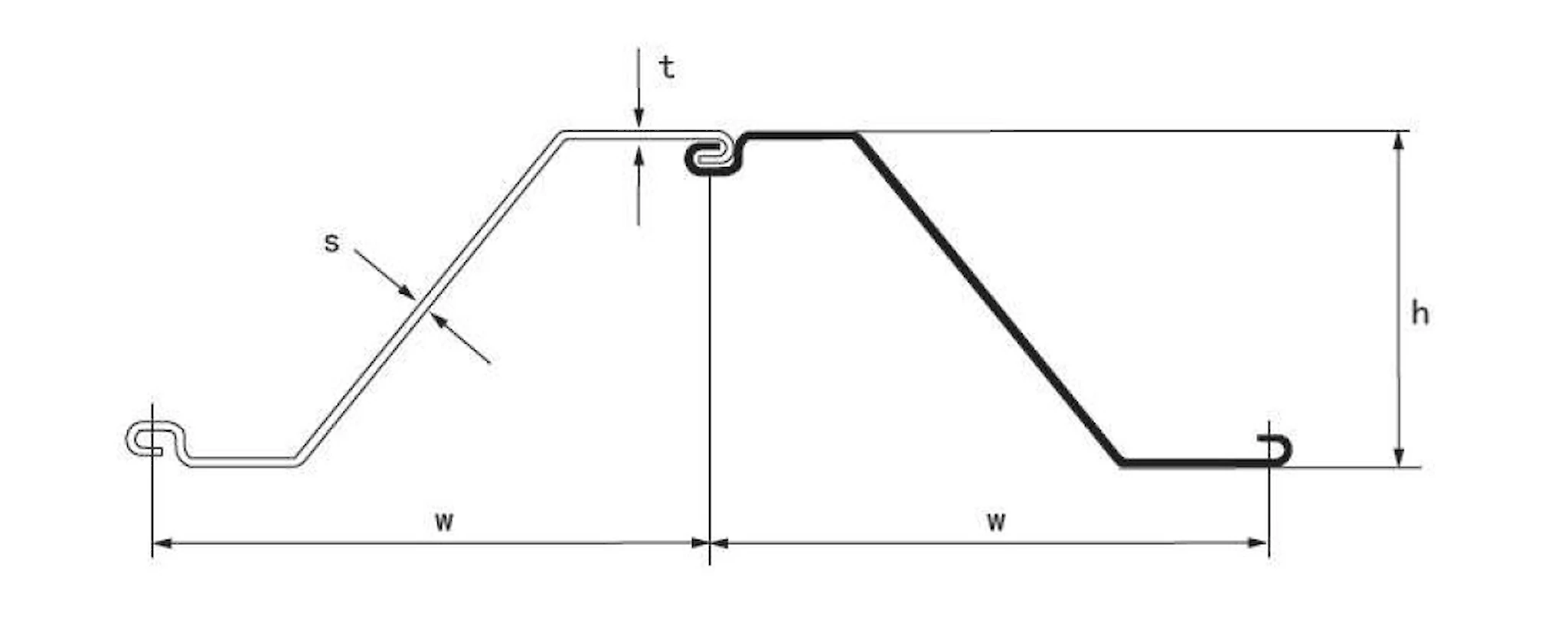

Z-Sections
Z-sections must be driven in pairs which needs a well-designed piling frame and, due to the higher weight as pair, also larger piling equipment. Therefore Z-sections are often used for permanent retaining walls such as quay walls, jetties and other marine structures.
Model | Width | Height | Thickness | Mass per pile | Wall | Moment of inertia | Section modulus |
---|---|---|---|---|---|---|---|
mm | mm | mm | kg/m | kg/m² | cm⁴/m | cm³/m | |
GPZ 5-850 | 850 | 253 | 5 | 41.1 | 84.4 | 6,420 | 507 |
GPZ 7-725 | 725 | 270 | 6 | 45.1 | 62.2 | 9,890 | 730 |
GPZ 12-850 | 850 | 379 | 7 | 66.7 | 778.5 | 22,973 | 1,212 |
GPZ 16-808 | 808 | 355 | 10 | 89.2 | 110.3 | 27,850 | 1,570 |
GPZ 20-800 | 800 | 450 | 9.5 | 88.6 | 110.7 | 45,050 | 2,000 |
GPZ 25-800 | 800 | 475 | 11 | 102.6 | 128.2 | 59,410 | 2,500 |
GPZ 32-750 | 750 | 511 | 12.5 | 116.7 | 155.6 | 81,800 | 3,200 |
GPZ 36-630 | 630 | 460 | 14.3 | 122.2 | 194 | 82,800 | 3,600 |
GPZ 41-700 | 700 | 550 | 14 | 139.5 | 199 | 113,788 | 4,137 |
GPZ 5-850 | |
---|---|
Width | 850 mm |
Height | 253 mm |
Thickness | 5 mm |
Mass per pile | 41.1 kg/m |
Wall | 84.4 kg/m² |
Moment of inertia | 6,420 cm⁴/m |
Section modulus | 507 cm³/m |
GPZ 7-725 | |
Width | 725 mm |
Height | 270 mm |
Thickness | 6 mm |
Mass per pile | 45.1 kg/m |
Wall | 62.2 kg/m² |
Moment of inertia | 9,890 cm⁴/m |
Section modulus | 730 cm³/m |
GPZ 12-850 | |
Width | 850 mm |
Height | 379 mm |
Thickness | 7 mm |
Mass per pile | 66.7 kg/m |
Wall | 778.5 kg/m² |
Moment of inertia | 22,973 cm⁴/m |
Section modulus | 1,212 cm³/m |
GPZ 16-808 | |
Width | 808 mm |
Height | 355 mm |
Thickness | 10 mm |
Mass per pile | 89.2 kg/m |
Wall | 110.3 kg/m² |
Moment of inertia | 27,850 cm⁴/m |
Section modulus | 1,570 cm³/m |
GPZ 20-800 | |
Width | 800 mm |
Height | 450 mm |
Thickness | 9.5 mm |
Mass per pile | 88.6 kg/m |
Wall | 110.7 kg/m² |
Moment of inertia | 45,050 cm⁴/m |
Section modulus | 2,000 cm³/m |
GPZ 25-800 | |
Width | 800 mm |
Height | 475 mm |
Thickness | 11 mm |
Mass per pile | 102.6 kg/m |
Wall | 128.2 kg/m² |
Moment of inertia | 59,410 cm⁴/m |
Section modulus | 2,500 cm³/m |
GPZ 32-750 | |
Width | 750 mm |
Height | 511 mm |
Thickness | 12.5 mm |
Mass per pile | 116.7 kg/m |
Wall | 155.6 kg/m² |
Moment of inertia | 81,800 cm⁴/m |
Section modulus | 3,200 cm³/m |
GPZ 36-630 | |
Width | 630 mm |
Height | 460 mm |
Thickness | 14.3 mm |
Mass per pile | 122.2 kg/m |
Wall | 194 kg/m² |
Moment of inertia | 82,800 cm⁴/m |
Section modulus | 3,600 cm³/m |
GPZ 41-700 | |
Width | 700 mm |
Height | 550 mm |
Thickness | 14 mm |
Mass per pile | 139.5 kg/m |
Wall | 199 kg/m² |
Moment of inertia | 113,788 cm⁴/m |
Section modulus | 4,137 cm³/m |
These are just a few examples of cold rolled sheet piles. Many other sections are available on request. Please specify the required section modulus and the application and we will be pleased to recommend the most suitable sheet pile section.
Available steel grades: S235JR, S275JR, S355JO.
