Simex TF 2100
Updated: 09.11.2023
| TF 2100 | |
|---|---|
| Recommended excavator weight | 28 - 45 t |
| Weight without bracket | 2,380 kg |
| Nominal power | 120 kW |
| Rotation torque | 26.7 kNm |
| Cutting force | 71 kN |
| Pressure max. | 400 bar |
| Required oil flow | 240 - 340 l/min |

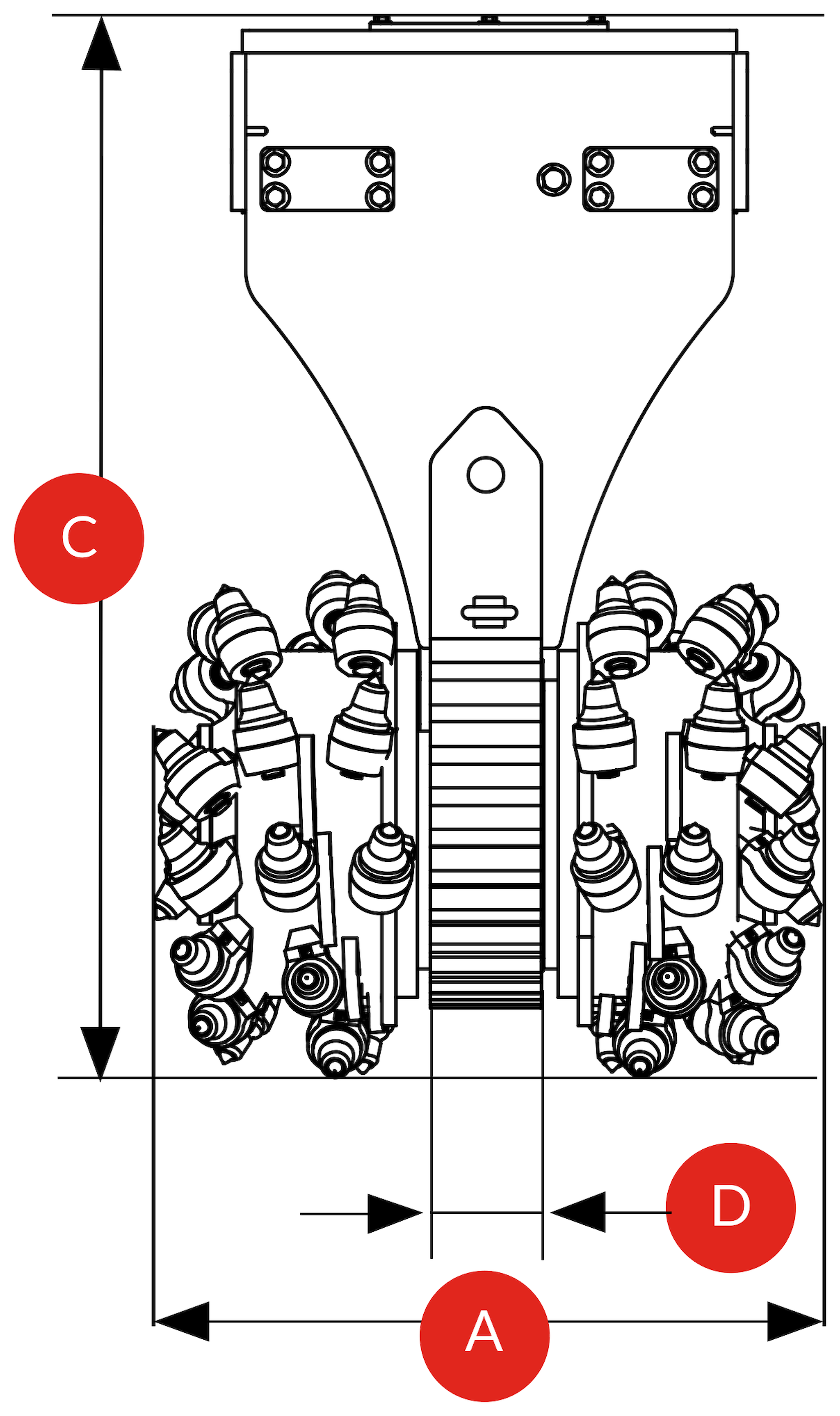

| Drum width (HP) A | 965 mm |
| Drum width (GP) A | 1,100 mm |
| Drum width (WP) A | - mm |

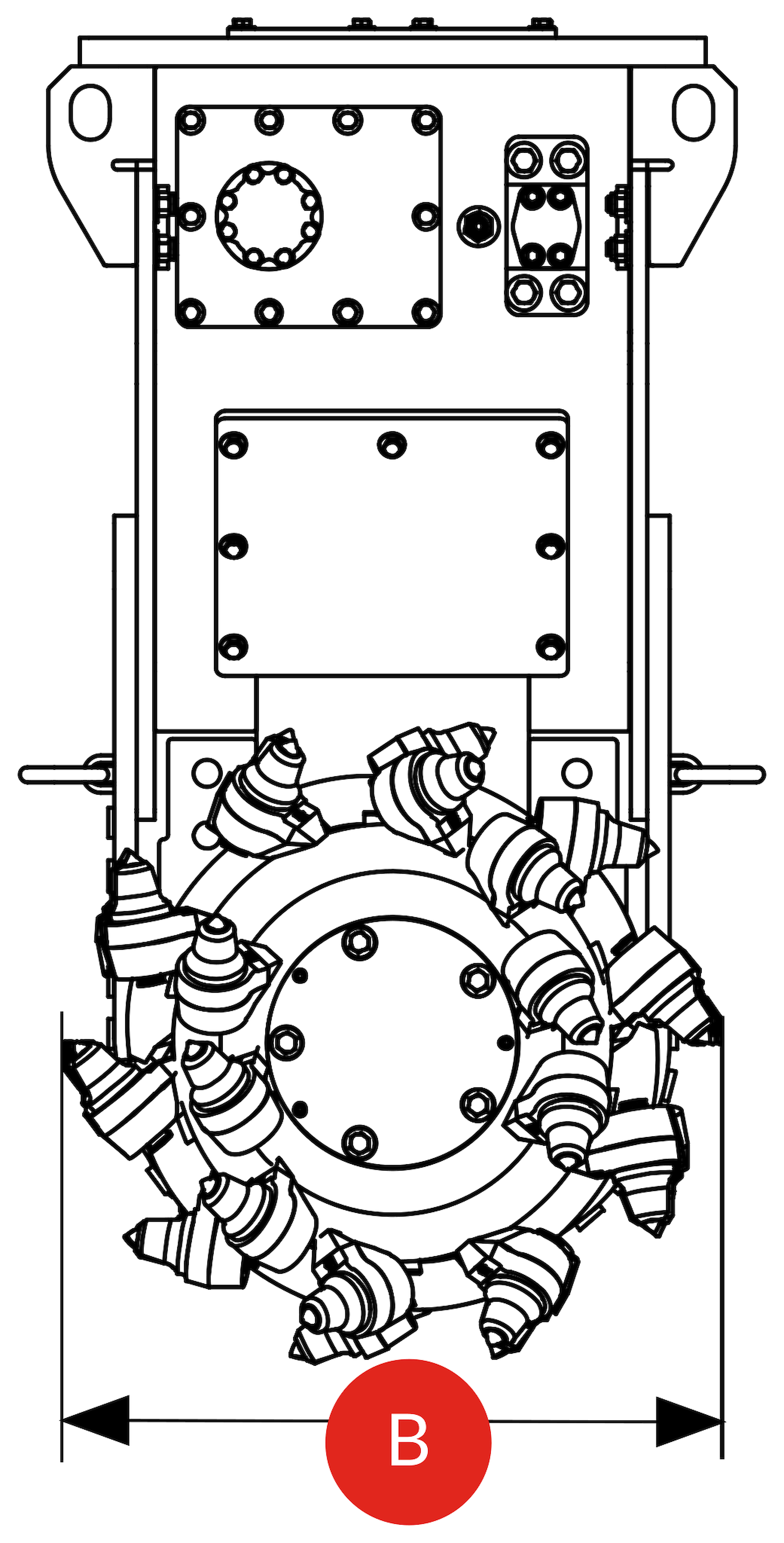

| HP drum diameter HP B | 750 mm |
| Height without bracket C | 1,570 mm |
| Drum distance D | 250 mm |
| Tooth holder diameter | 38 / 30 mm |
